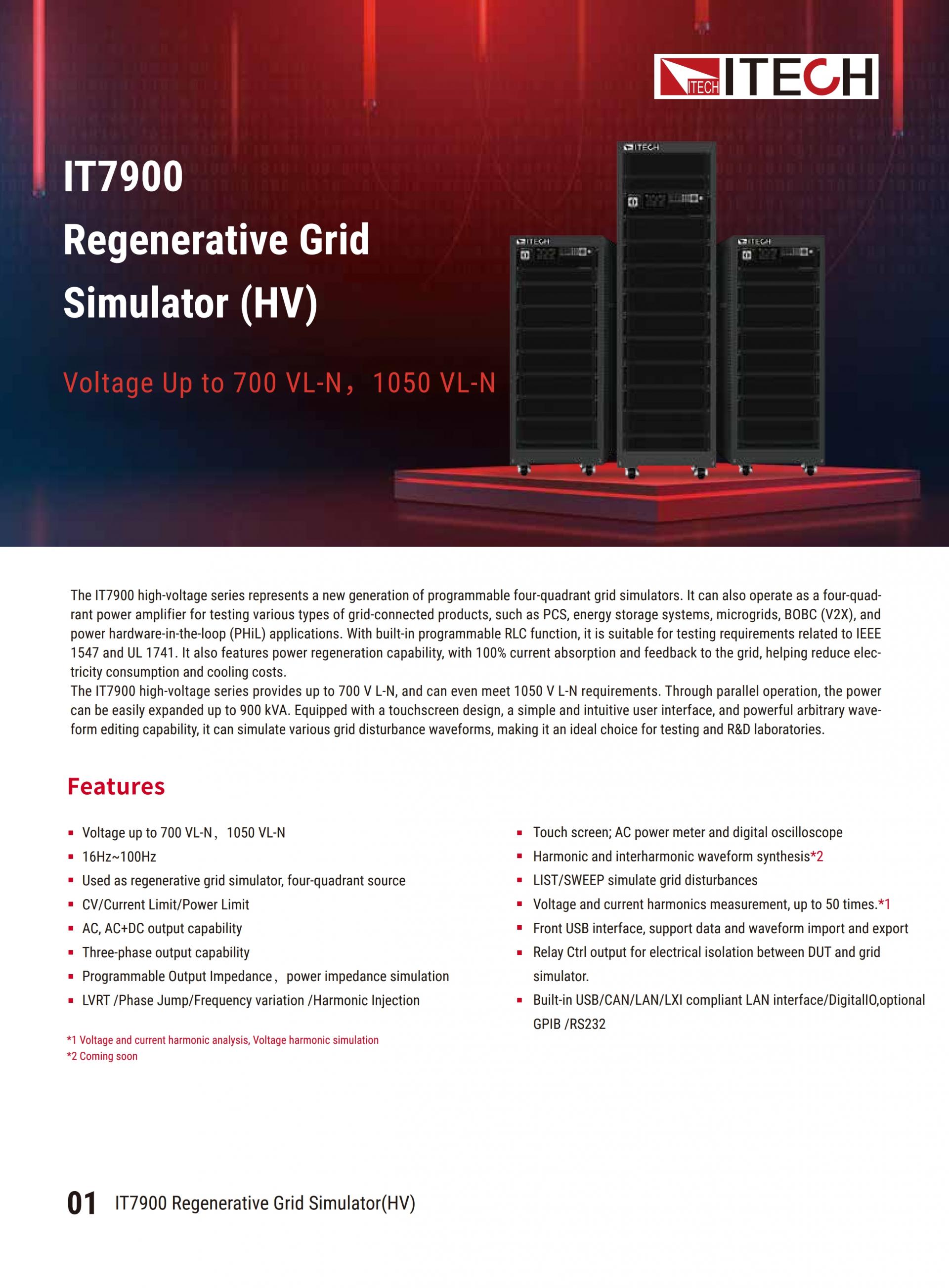

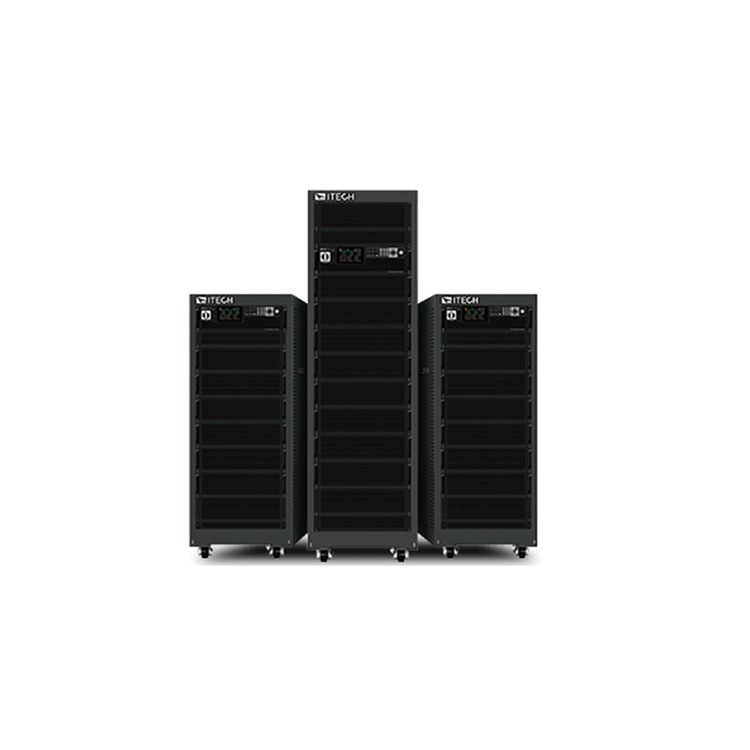

IT7900 series represents a new generation of programmable, full four-quadrant grid simulators that can also be used as fourquadrant power amplifiers for testing all kinds of grid-connected products. Examples include PCS, energy storage systems,micro-grids, BOBC (V2X) and power related hardware loop simulation (PHiL). With the energy regenerative function, it provides 100% current absorption and feeds back to the grid
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT7900 series represents a new generation of programmable, full four-quadrant grid simulators that can also be used as fourquadrant power amplifiers for testing all kinds of grid-connected products. Examples include PCS, energy storage systems,micro-grids, BOBC (V2X) and power related hardware loop simulation (PHiL). With the energy regenerative function, it provides 100% current absorption and feeds back to the grid
through the device, saving power and cooling costs. IT7900 series is a high-voltage series with voltage up to 700 VL-N, even up to 1050 VL-N. The power can be easily extended to 900 kVA by parallel operation. Also, it has touch-screen, concise UI interface, and powerful arbitrary waveform editing function that can simulate a variety of grid disturbance waveforms. It is good choice for test and R&D labs.

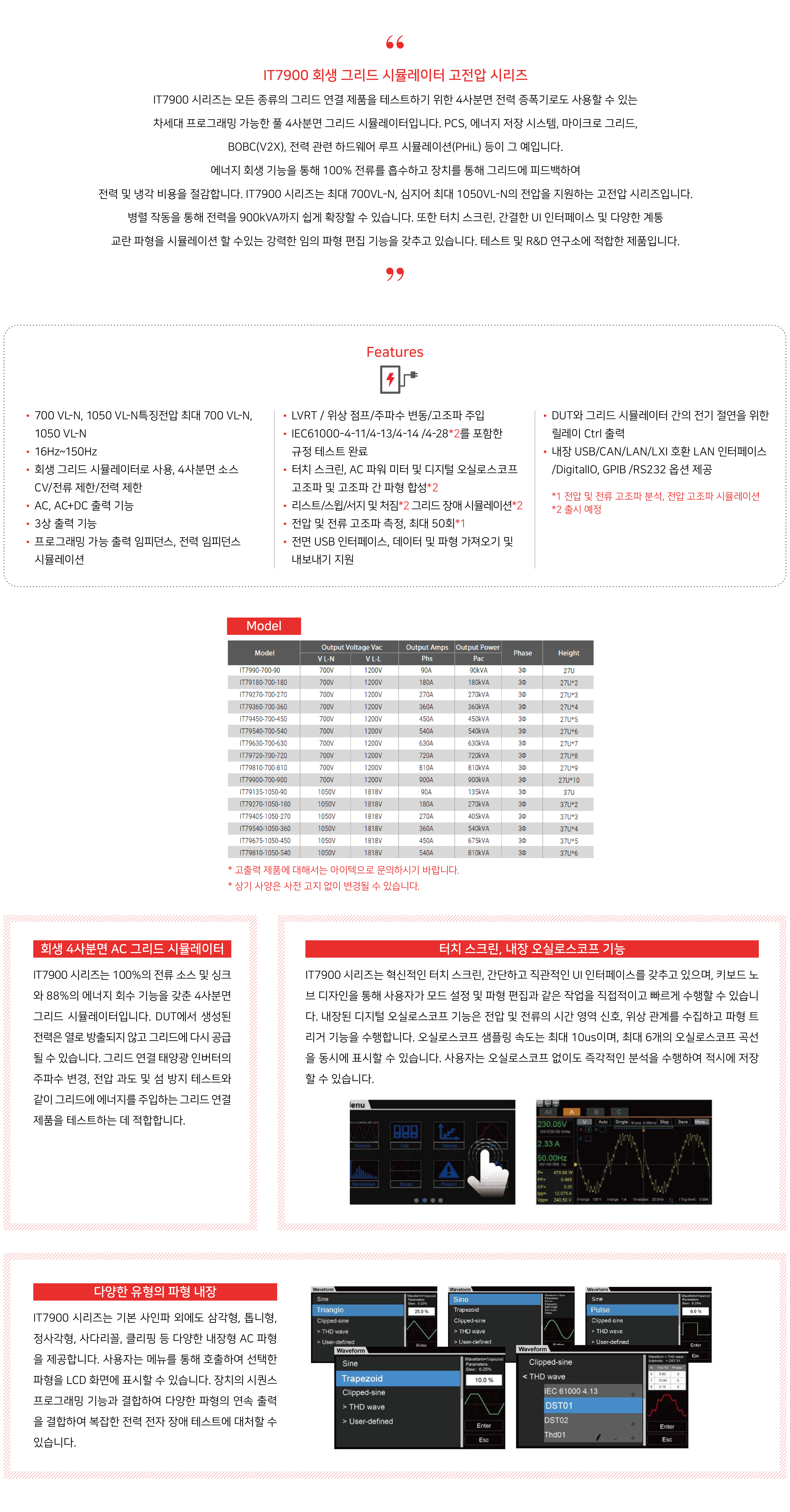

Product Features
- 700 VL-N，1050 VL-NFeaturesVoltage up to 700 VL-N，1050 VL-N
- 16Hz~100Hz
- Used as regenerative grid simulator, four-quadrant source
- CV/Current Limit/Power Limit
- AC, AC+DC output capability
- Three-phase output capability
- Programmable Output Impedance，power impedance simulation
- LVRT /Phase Jump/Frequency variation /Harmonic Injection
- Regulatory testing include IEC61000-4-11/4-13/4-14 /4-28 *2
- Touch screen; AC power meter and digital oscilloscope
- Harmonic and interharmonic waveform synthesis*2
- LIST/SWEEP/Surge&Sag*2 simulate grid disturbances
- Voltage and current harmonics measurement, up to 50 times.*1
- Front USB interface, support data and waveform import and export
- Relay Ctrl output for electrical isolation between DUT and grid simulator.
- Built-in USB/CAN/LAN/LXI compliant LAN interface/DigitalIO, optional GPIB /RS232
*1 Voltage and current harmonic analysis, Voltage harmonic simulation
*2 Coming soon
Functions and Advantages

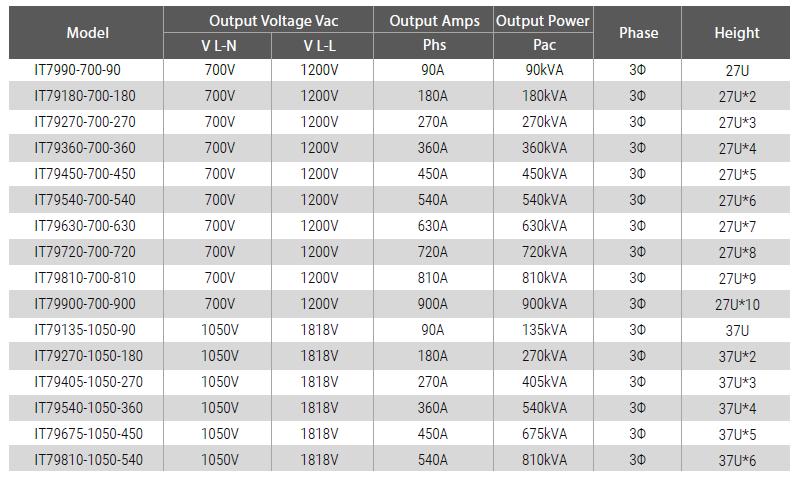

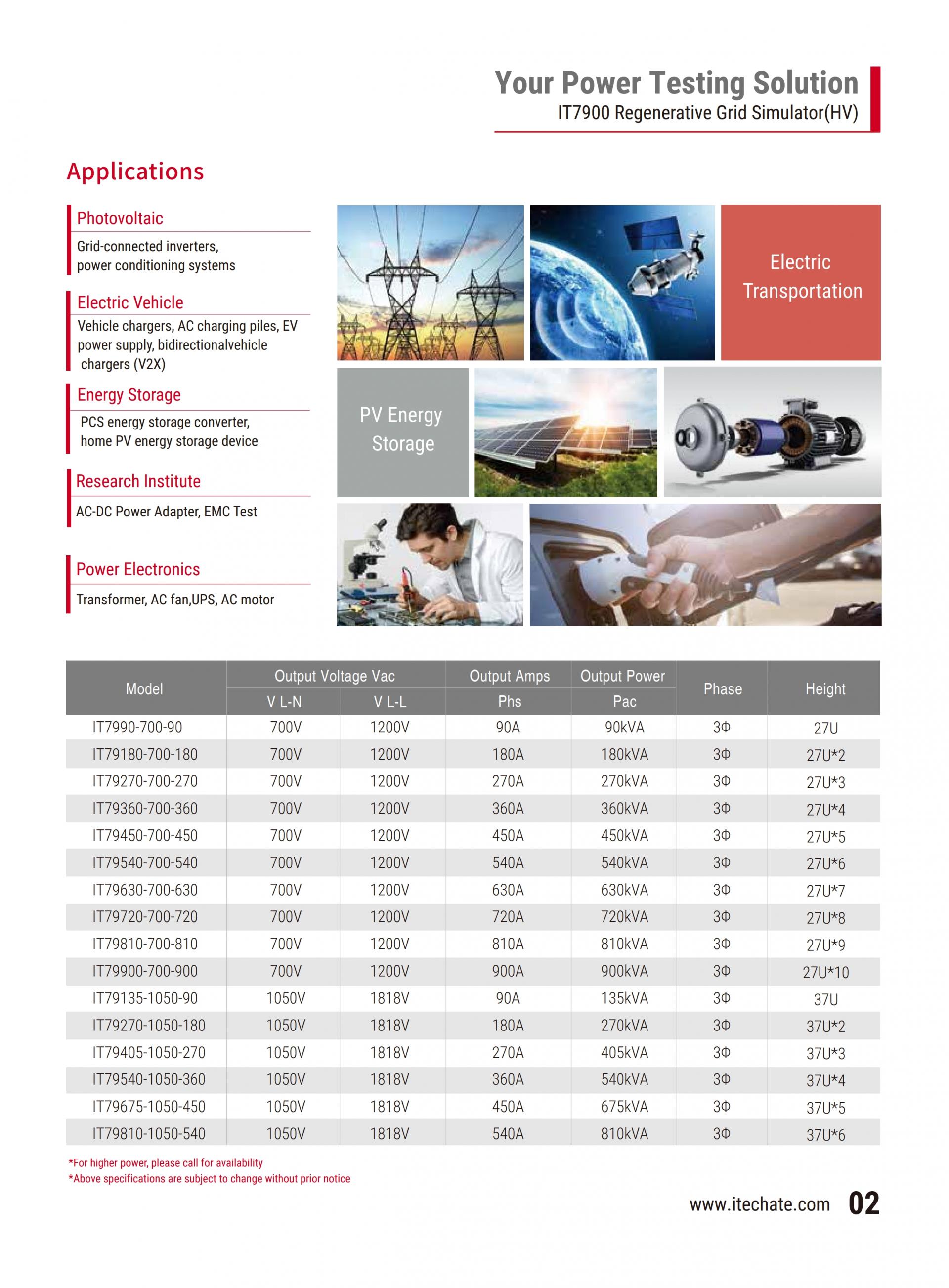

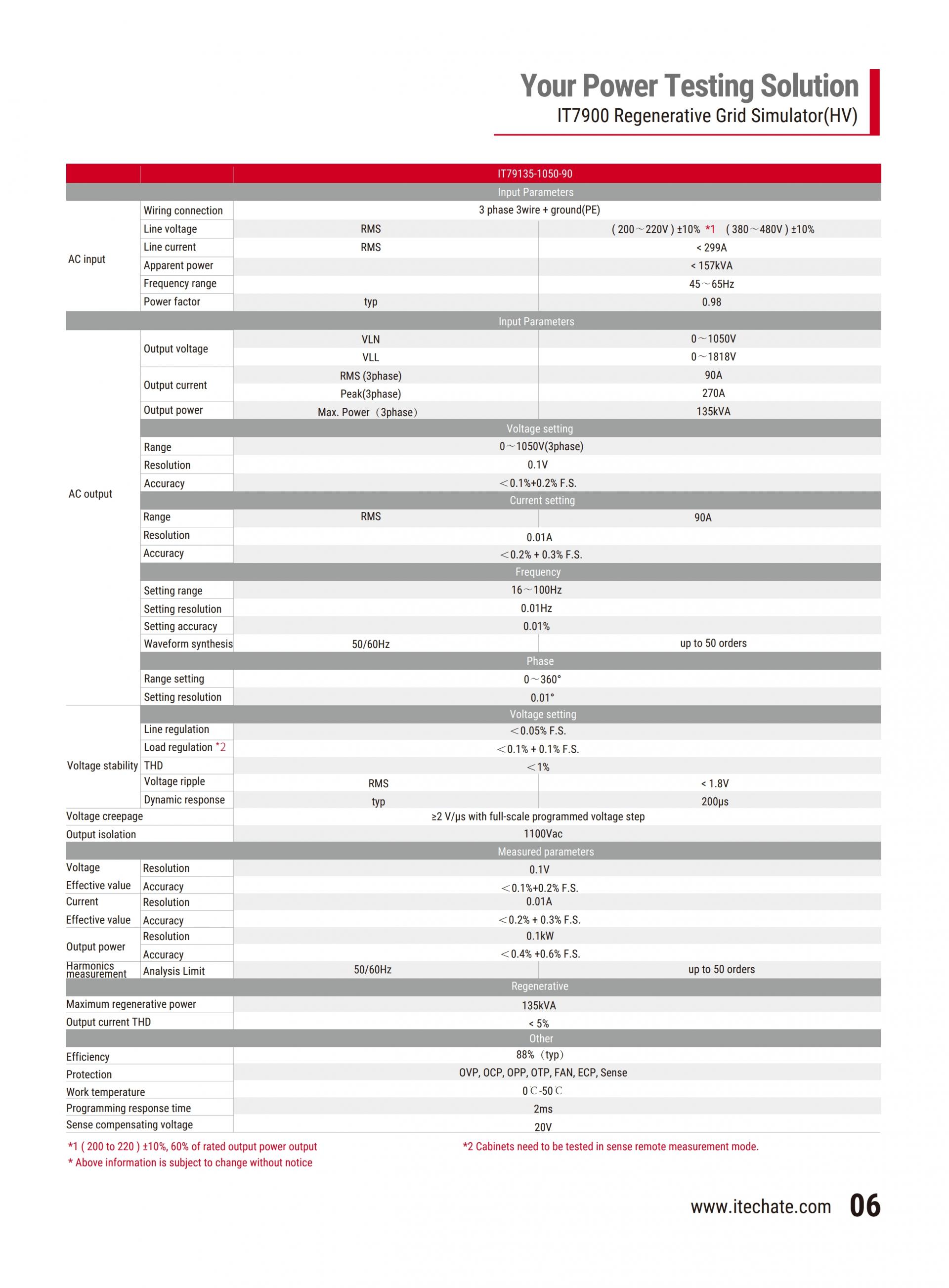

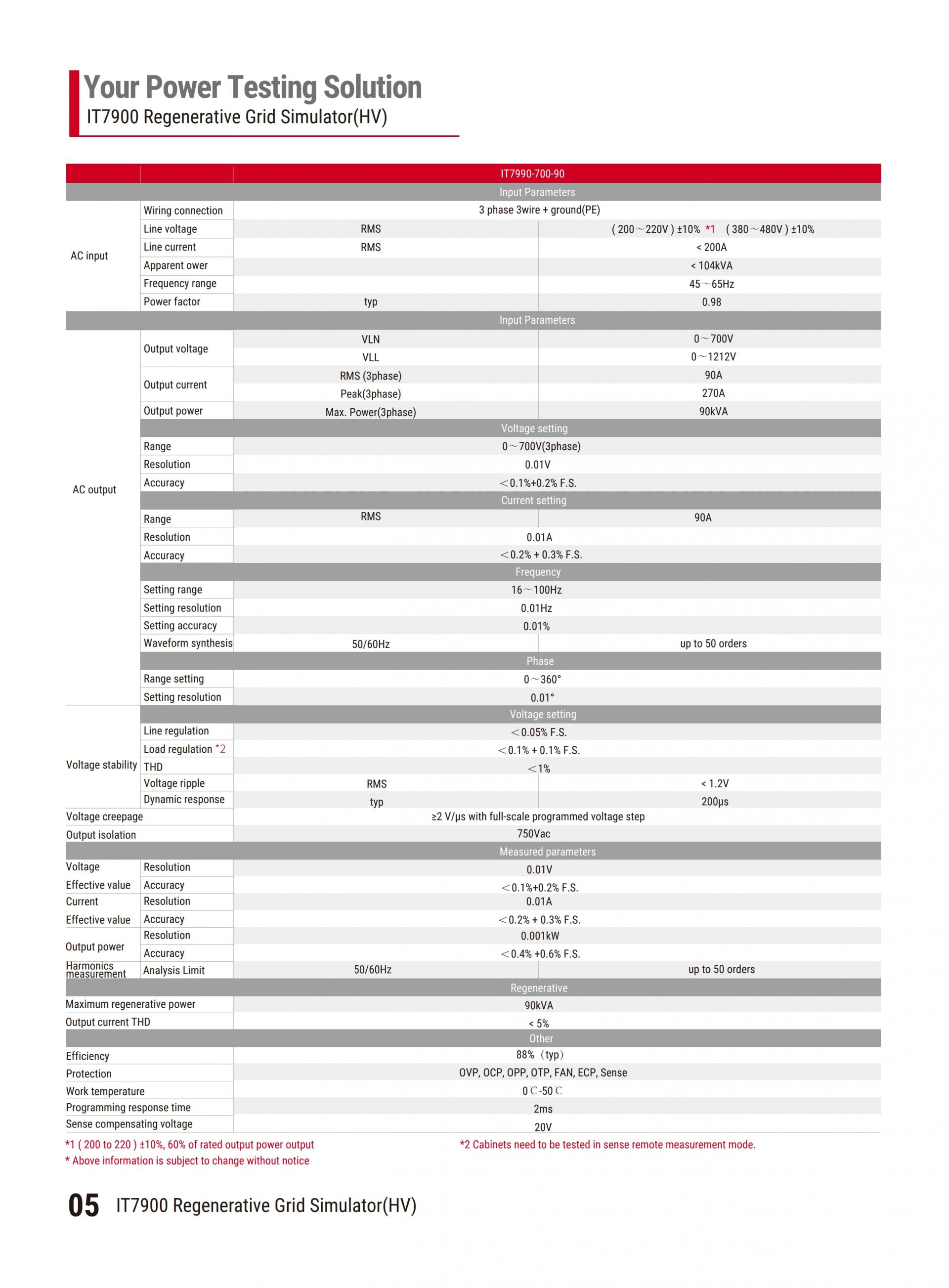

Model
*For higher power, please call for availability
*Above specifications are subject to change without prior notice

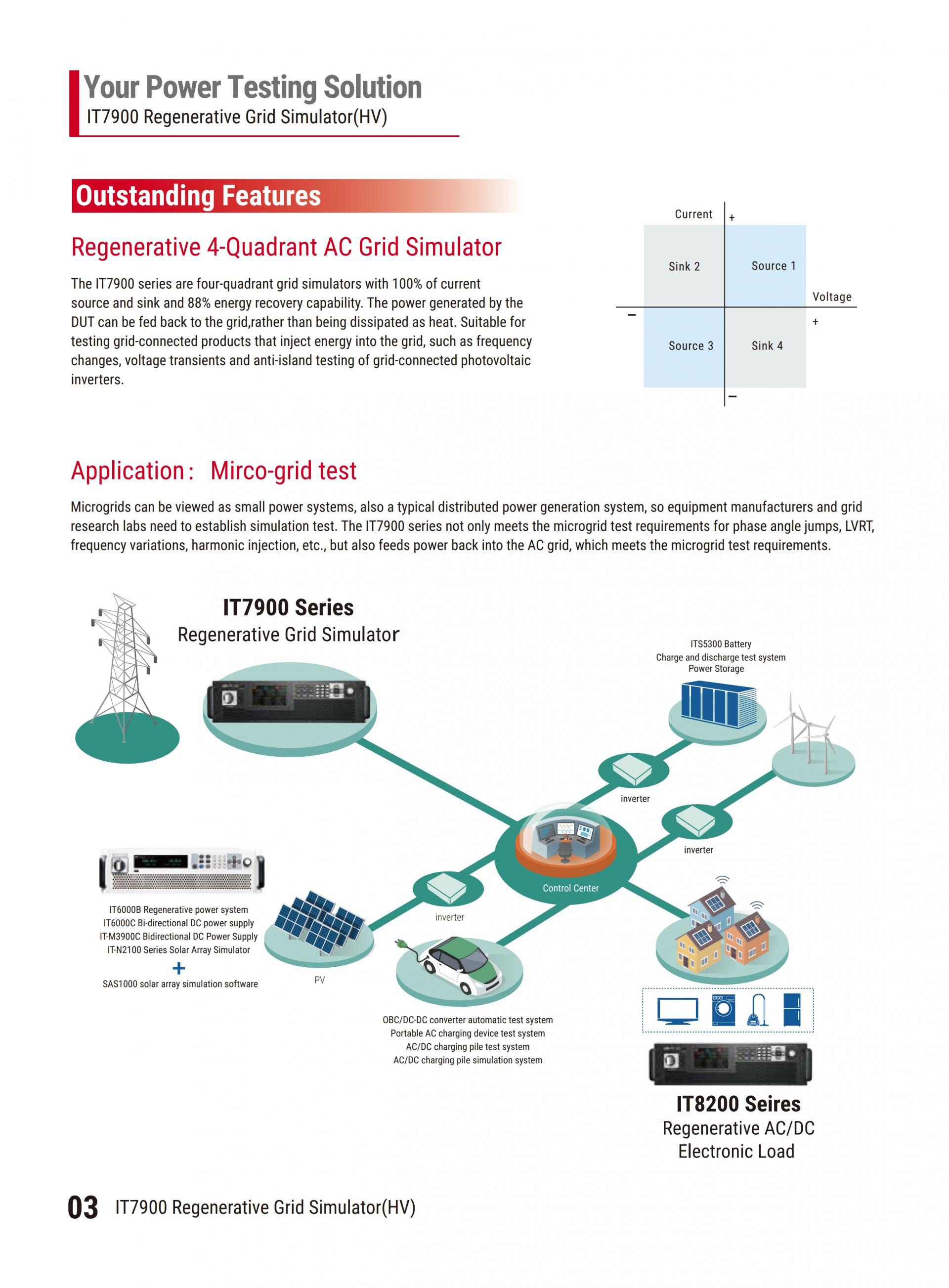

Regenerative 4-Quadrant AC Grid Simulator
The IT7900 series are four-quadrant grid simulators with 100% of currentsource and sink and 88% energy recovery capability. The power generated by theDUT can be fed back to the grid,rather than being dissipated as heat. Suitable fortesting grid-connected products that inject energy into the grid, such as frequencychanges, voltage transients and anti-island testing of grid-connected photovoltaicinverters.
Touch screen，built-in oscilloscope function

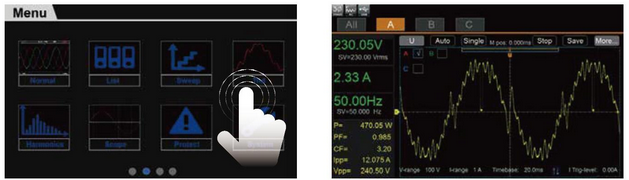

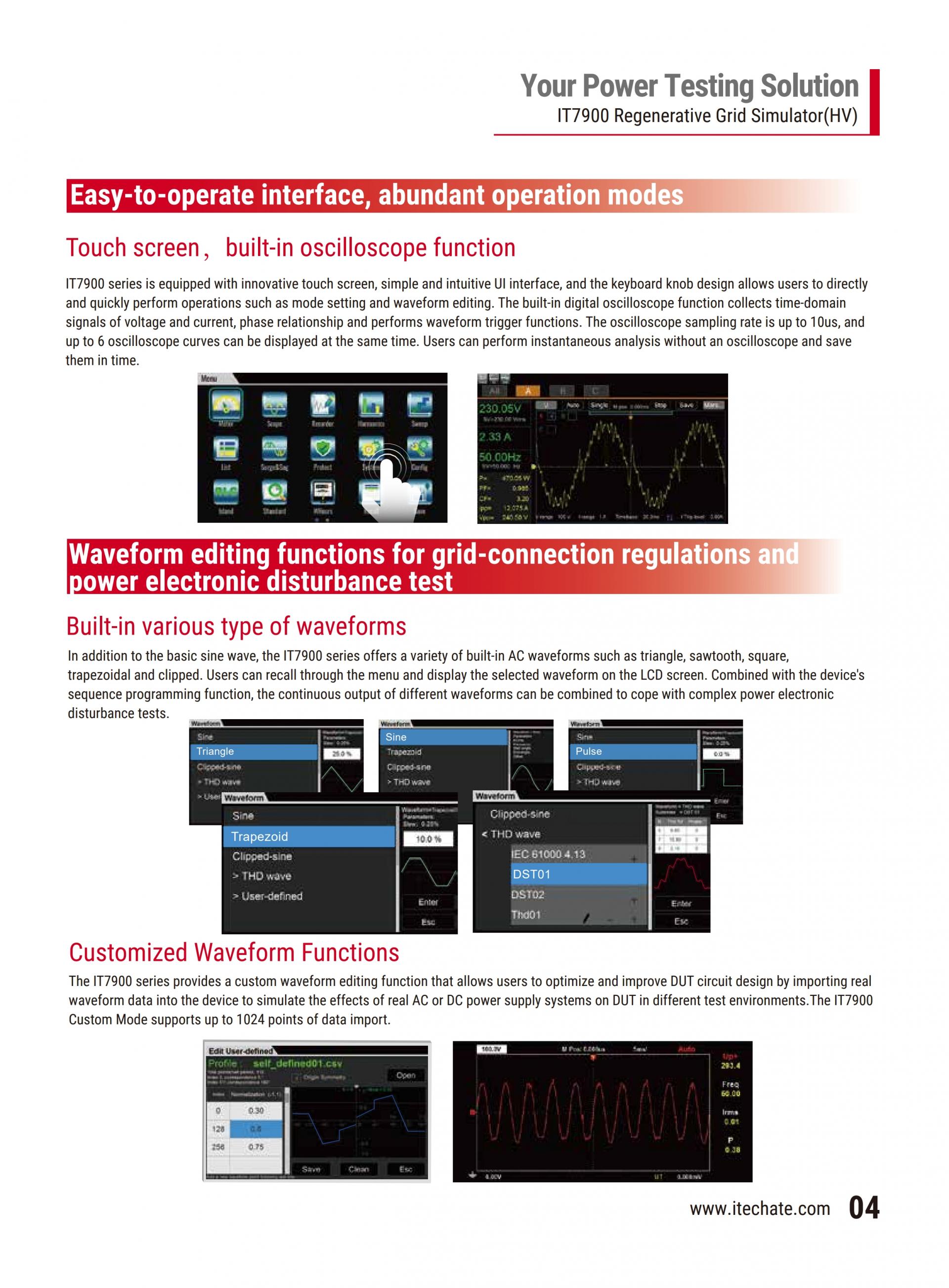

IT7900 series is equipped with innovative touch screen, simple and intuitive UI interface, and the keyboard knob design allows users to directlyand quickly perform operations such as mode setting and waveform editing. The built-in digital oscilloscope function collects time-domainsignals of voltage and current, phase relationship and performs waveform trigger functions. The oscilloscope sampling rate is up to 10us, andup to 6 oscilloscope curves can be displayed at the same time. Users can perform instantaneous analysis without an oscilloscope and savethem in time.
Built-in various type of waveforms

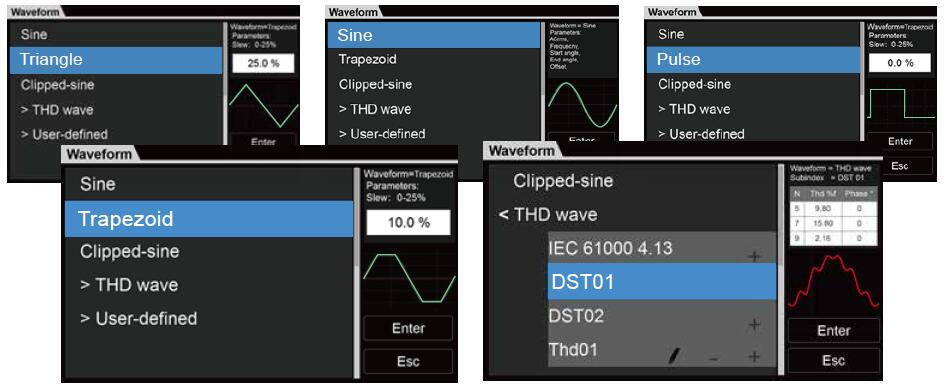

In addition to the basic sine wave, the IT7900 series offers a variety of built-in AC waveforms such as triangle, sawtooth, square,trapezoidal and clipped. Users can recall through the menu and display the selected waveform on the LCD screen. Combined with the device'ssequence programming function, the continuous output of different waveforms can be combined to cope with complex power electronicdisturbance tests.
