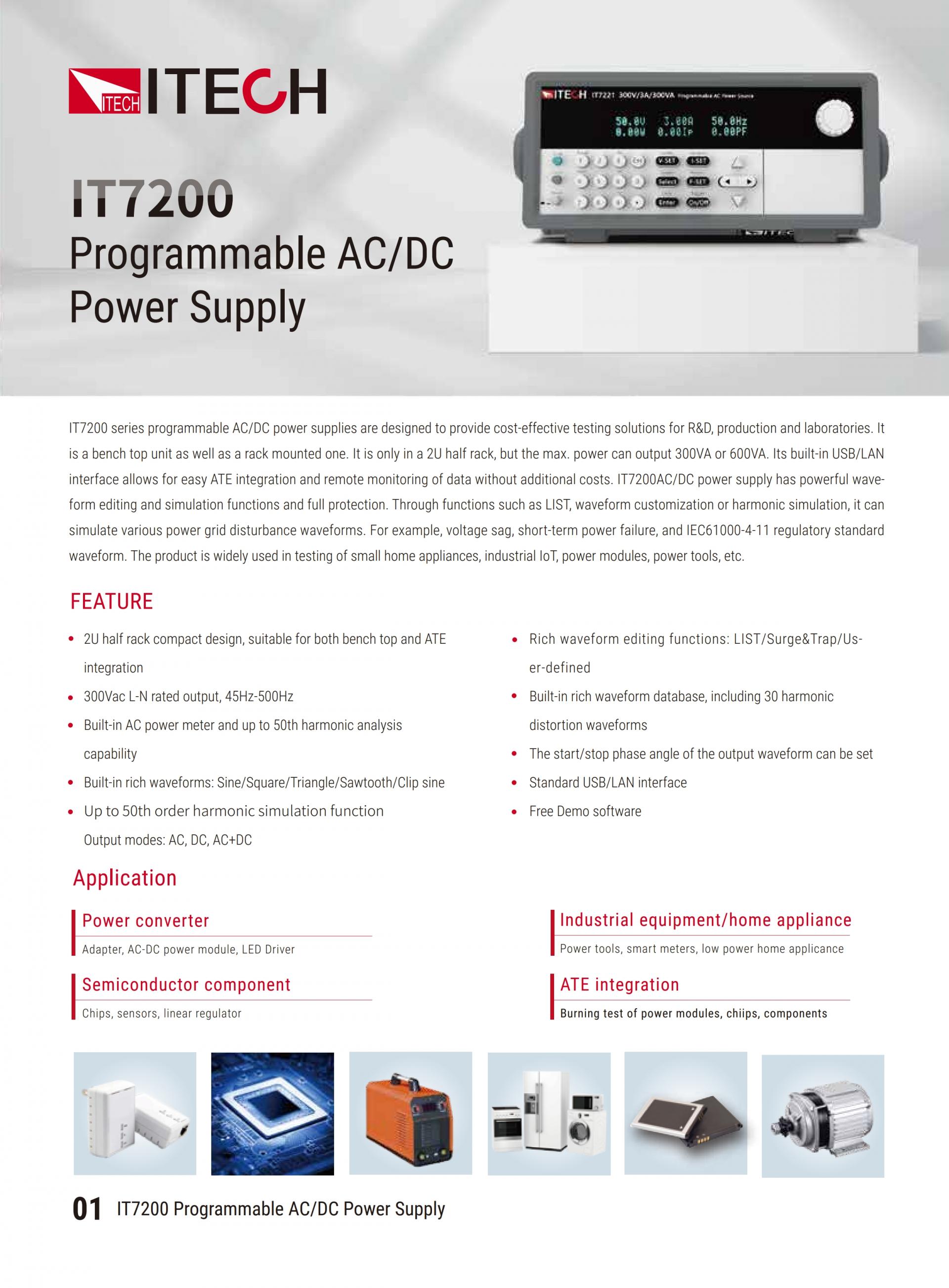

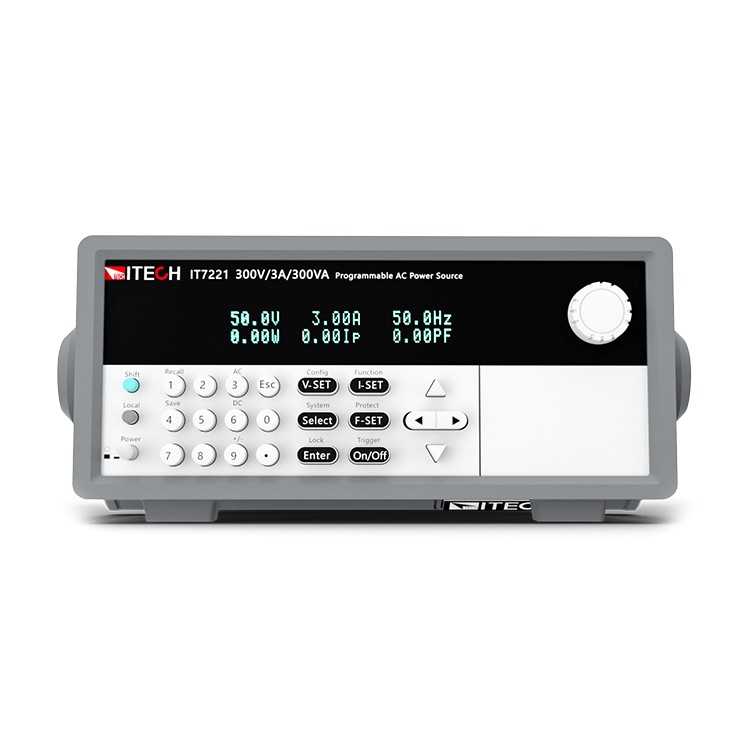

IT7200 series programmable AC/DC power supplies are designed to provide cost-effective testing solutions for R&D, production and laboratories. It is a bench top unit as well as a rack mounted one. It is only in a 2U half rack, but the max. power can output 300VA or 600VA. Its built-in USB/LAN interface allows for easy ATE integration and remote monitoring of data without additional costs. IT7200AC/DC power supply has powerful waveform editing and simulation functions and full protection. Through functions such as LIST, waveform customization or harmonic simulation, it can simulate various power grid disturbance waveforms. For example, voltage sag, short-term power failure, and IEC61000-4-11 regulatory standard waveform. The product is widely used in testing of small home appliances, industrial IoT, power modules, power tools, etc.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT7200 series programmable AC/DC power supplies are designed to provide cost-effective testing solutions for R&D, production and laboratories. It is a bench top unit as well as a rack mounted one. It is only in a 2U half rack, but the max. power can output 300VA or 600VA. Its built-in USB/LAN interface allows for easy ATE integration and remote monitoring of data without additional costs. IT7200AC/DC power supply has powerful waveform editing and simulation functions and full protection. Through functions such as LIST, waveform customization or harmonic simulation, it can simulate various power grid disturbance waveforms. For example, voltage sag, short-term power failure, and IEC61000-4-11 regulatory standard waveform. The product is widely used in testing of small home appliances, industrial IoT, power modules, power tools, etc.
Product Features
- 2U half rack compact design, suitable for both bench top and ATE integration
- 300Vac L-N rated output, 45Hz-500Hz
- Built-in AC power meter and up to 50th harmonic analysis capability
- Built-in rich waveforms: Sine/Square/Triangle/Sawtooth/Clip sine
- Up to 50th order harmonic simulation function
- Output modes: AC, DC, AC+DC
- Rich waveform editing functions: LIST/Surge&Trap/User-defined
- Built-in rich waveform database, including 30 harmonic distortion waveforms
- The start/stop phase angle of the output waveform can be set
- Standard USB/LAN interface
- Free Demo software
Functions and Advantages
Application
- R&D, verification and testing of small power supply manufacturing
- Low-power home appliance PCB board power supply test
- Industrial low-power AC servo motor testing
- Testing of connectors, protection switches and other devices
- Production and process control
- Power IC device aging test
- Automatic test system

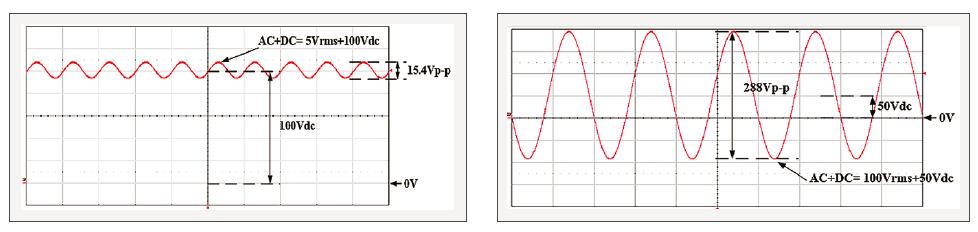

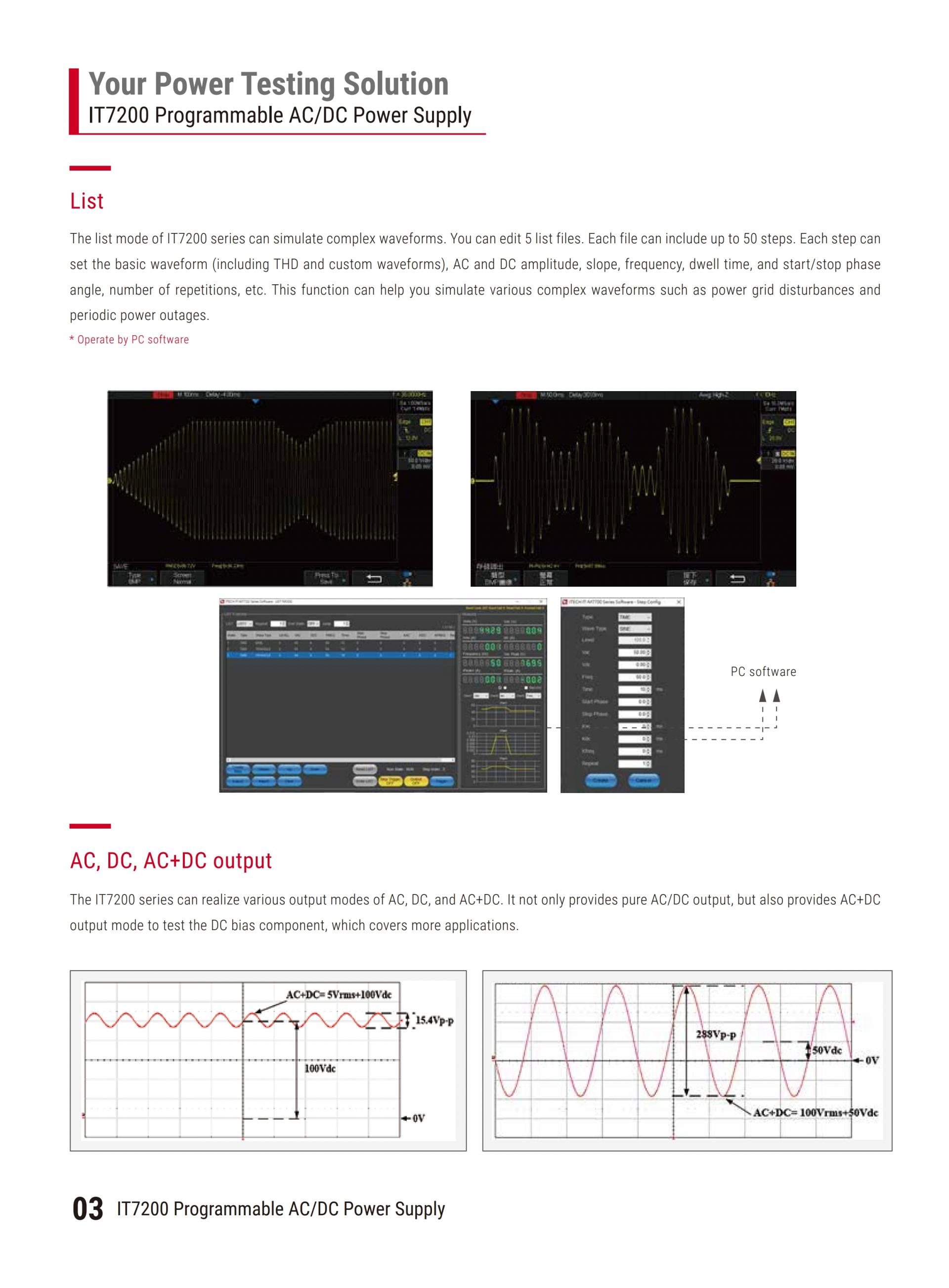

AC, DC, AC+DC output
The IT7200 series can realize various output modes of AC, DC, and AC+DC. It not only provides pure AC/DC output, but also provides AC+DCoutput mode to test the DC bias component, which covers more applications.

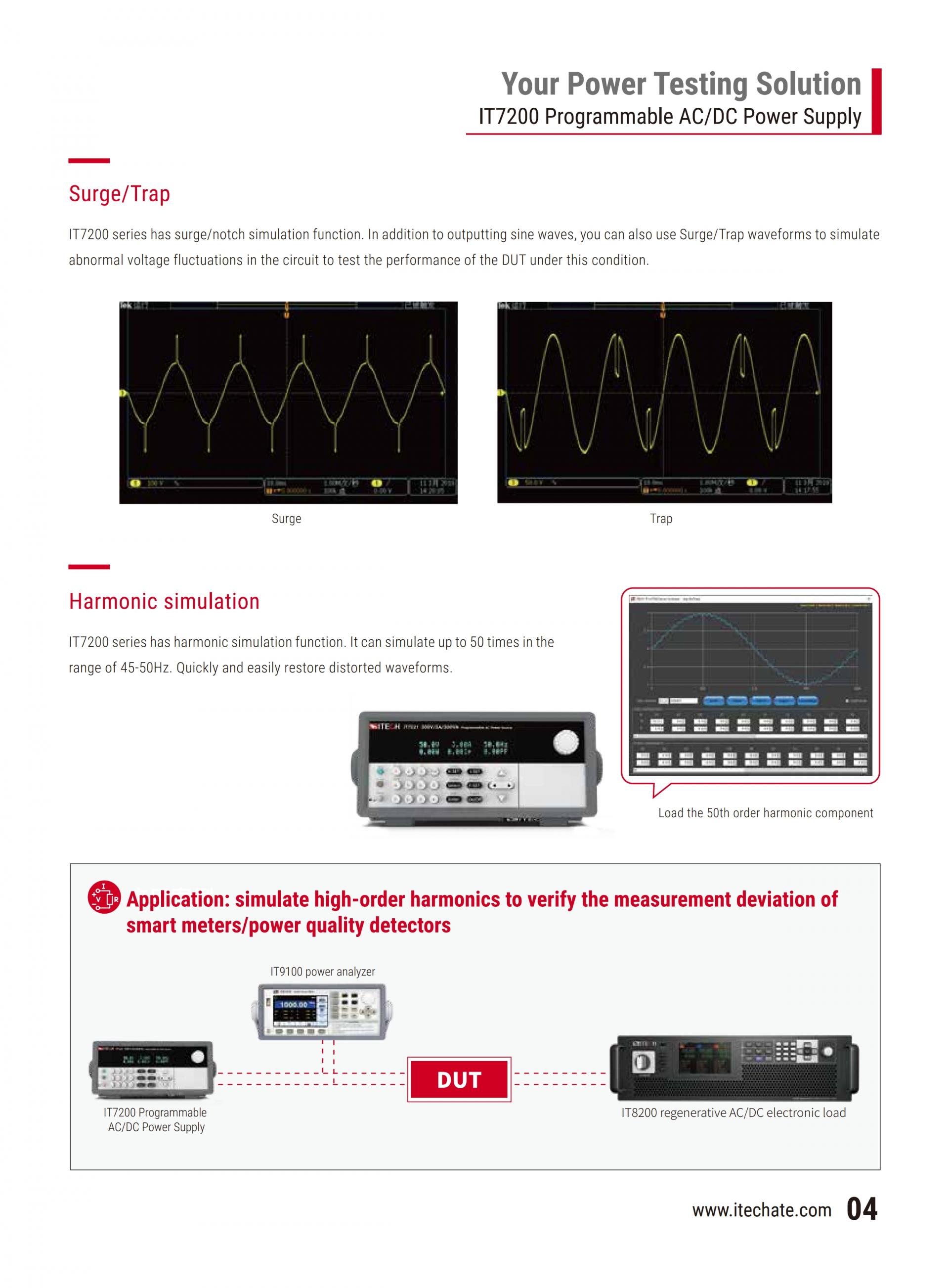

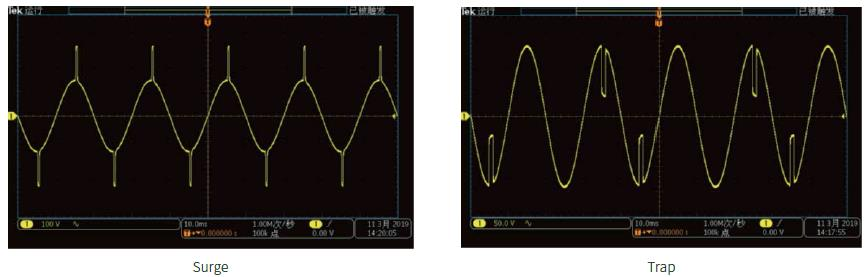

Surge/Trap
IT7200 series has surge/notch simulation function. In addition to outputting sine waves, you can also use Surge/Trap waveforms to simulateabnormal voltage fluctuations in the circuit to test the performance of the DUT under this condition.

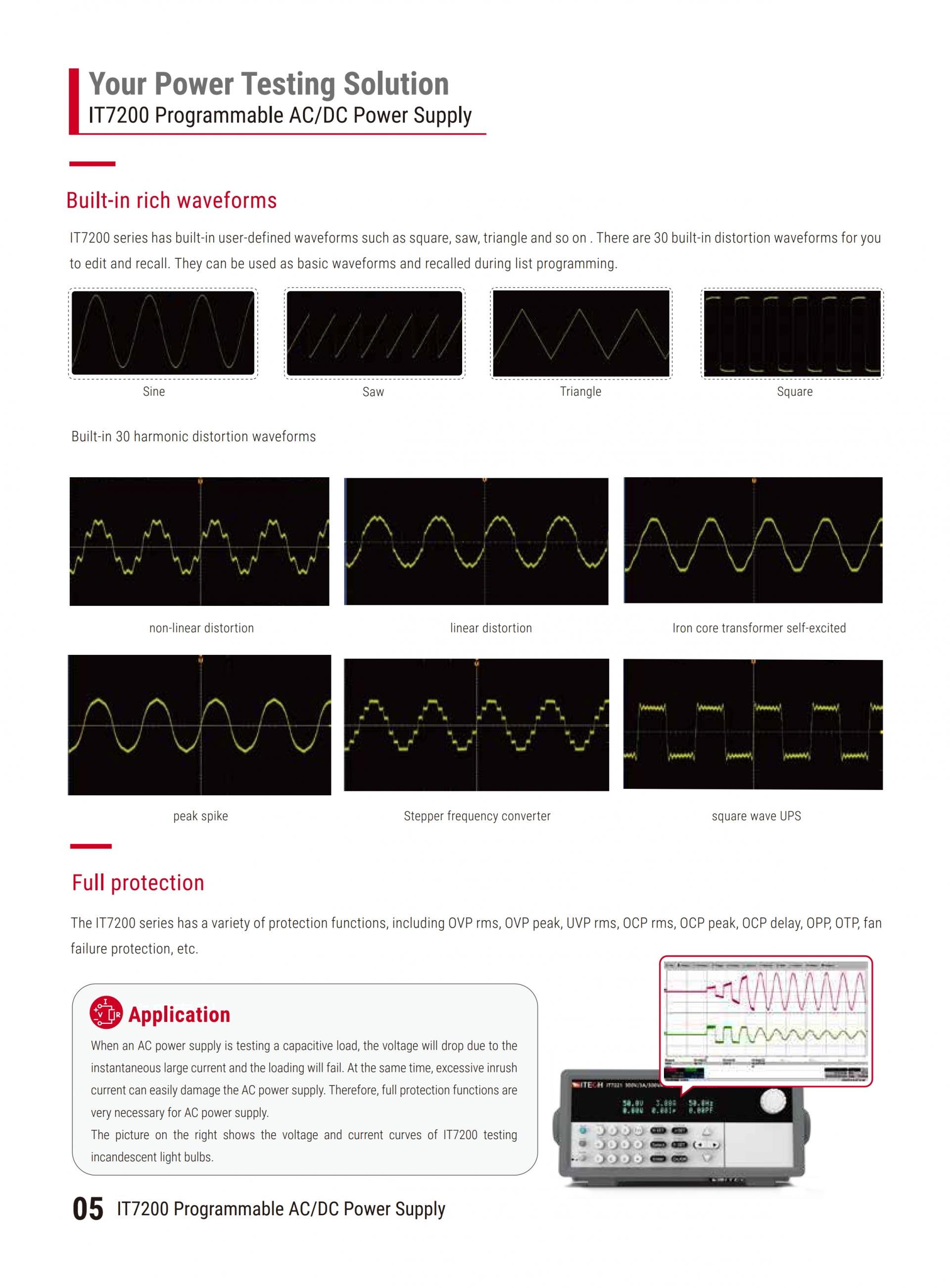

Built-in rich waveforms
IT7200 series has built-in user-defined waveforms such as square, saw, triangle and so on . There are 30 built-in distortion waveforms for youto edit and recall. They can be used as basic waveforms and recalled during list programming.

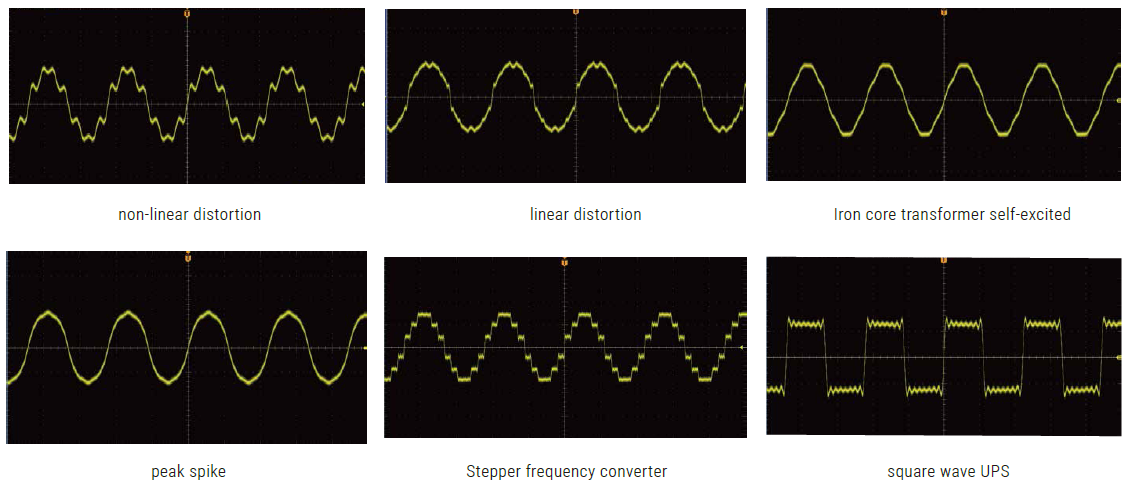

Built-in 30 harmonic distortion waveforms
