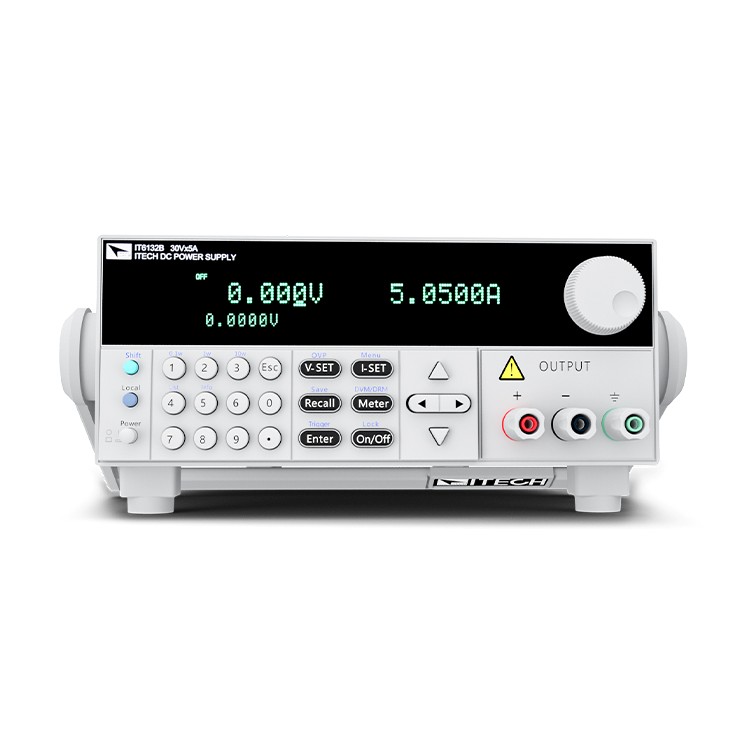

IT6100B series (86 ~ 150W) high speed high precision programmable DC power supply is withultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current is with high-speed and no overshoot, which is widely used in power modules and other high-precision test occasions. IT6100B hasbuilt-in standard USB / RS232 / communication interface and the panel supports List programming, which canprovide multi-purpose solutionaccording to customer design and testing demands, easy to use.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT6100B series (86 ~ 150W) high speed high precision programmable DC power supply is withultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current is with high-speed and no overshoot, which is widely used in power modules and other high-precision test occasions. IT6100B hasbuilt-in standard USB / RS232 / communication interface and the panel supports List programming, which canprovide multi-purpose solutionaccording to customer design and testing demands, easy to use.
Product Features
- Output linear adjustment, high speed reliable, low noise
- High accuracy and resolution
- High voltage rising edge
- Built-in 5½ digital voltmeter and Ohmmeter
- Memory capacity: 100 groups
- List mode
- Timer function (0.01~60000S)
- Remote sense interface to compensate line voltage
- Built-in RS232/USB interface and support SCPI protocol
Functions and Advantages

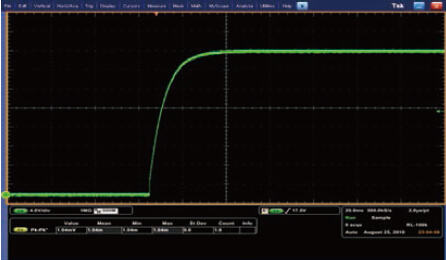

High voltage rise speed
Comparing with general high speed power supplies, IT6100B series power supplies reduce their ripple and noise to the lowest level.Their high voltage rise speed (<20mS) suits for all high speed and precise testing occasions.
Digital voltage ohmmeter
IT6100B series has built-in precision digital voltage ohmmeterDigital ohmmeter: Provide four-wire method to measure resistance, measurement range: 0 ~ 1KΩ
Digital voltmeter: A 5½ voltmeter is provided to measure the external voltage, measurement range: 0 ~ 40V
