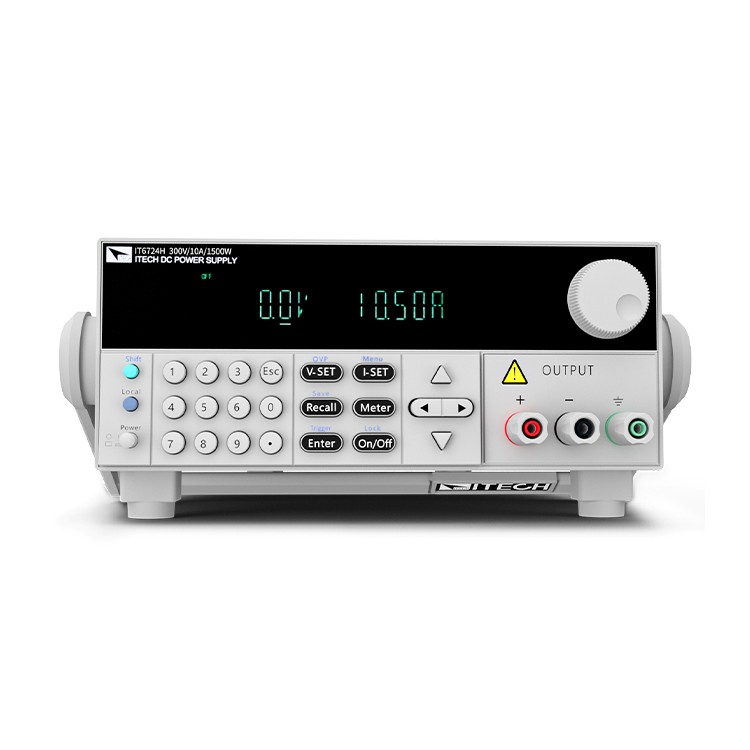

IT6700H series high-voltage DC power supplies is with maximum output power 3000W, adjustable voltage 0-1200V and current 0-10A, IT6700H series have desktop and shelves installation function, easy to operate. IT6700H series provide list mode, built-in RS232 / USB communication interface, rich SCPI instructions facilitate the formation of a variety of intelligent test platforms. IT6700H can accurately describe the battery charge and discharge process, widely used in battery fluctuation simulation test, battery charger, high voltage ultra high speed diode, electrolytic capacitor, electromechanical control field and ATE test system, etc., which need to use high voltage and low current DC power supply.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT6700H series high-voltage DC power supplies is with maximum output power 3000W, adjustable voltage 0-1200V and current 0-10A, IT6700H series have desktop and shelves installation function, easy to operate. IT6700H series provide list mode, built-in RS232 / USB communication interface, rich SCPI instructions facilitate the formation of a variety of intelligent test platforms. IT6700H can accurately describe the battery charge and discharge process, widely used in battery fluctuation simulation test, battery charger, high voltage ultra high speed diode, electrolytic capacitor, electromechanical control field and ATE test system, etc., which need to use high voltage and low current DC power supply.
Product Features
- Voltage up to 1200V
- VFD display
- Various models for high voltage or high current are Optional
- Output switch ON/OFF control
- Safety terminal
- List mode, editable waveforms of voltage and current
- Remote sense
- Built-in RS232/USB
Functions and Advantages
Small size, big function, more flexible and free
Gone are the days of bulky and cumbersome instruments, now engineers need more
A light-weight test instrument is required. ITECH products have always been characterized by "small size"
Well-known, this advantage is also fully reflected in the IT6700H series. 3000W in a only 2U and full rack unit, easy to be integrated into a 19' rack without mounting kit, less room needed.
Battery fluctuation simulation test
Battery charging needs high-precision voltage and stable current output to simulate the battery charge and discharge process. IT6700H series can accurately describes the battery charge and discharge process, which is applied in areas need high voltage and low flow direct current, such as battery fluctuation simulation tests, battery chargers, high voltage ultra high speed diodes, electrolytic capacitors, electromechanical control, and ATE test systems, etc.

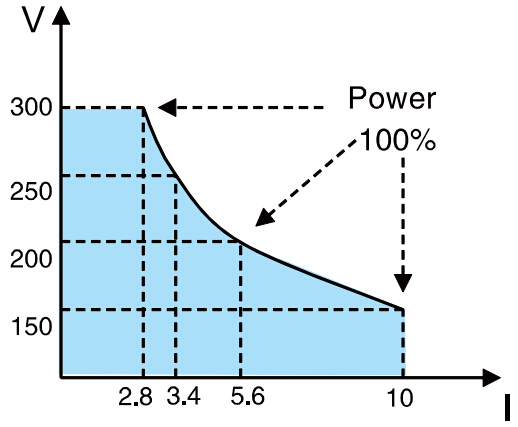

Widely programmable range,higher voltage
Power range 850W~3000W,Maximum output voltage 1200V
