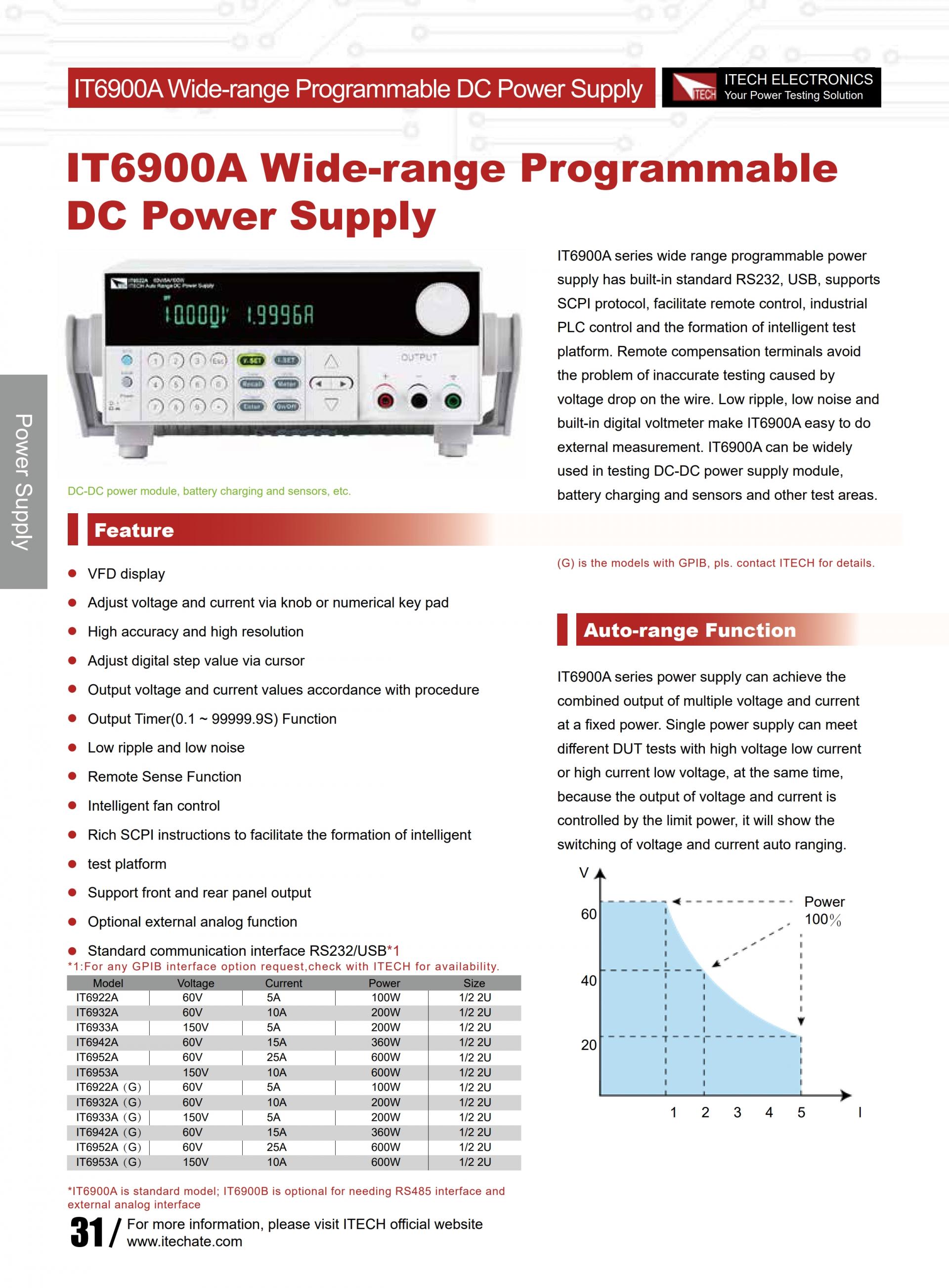

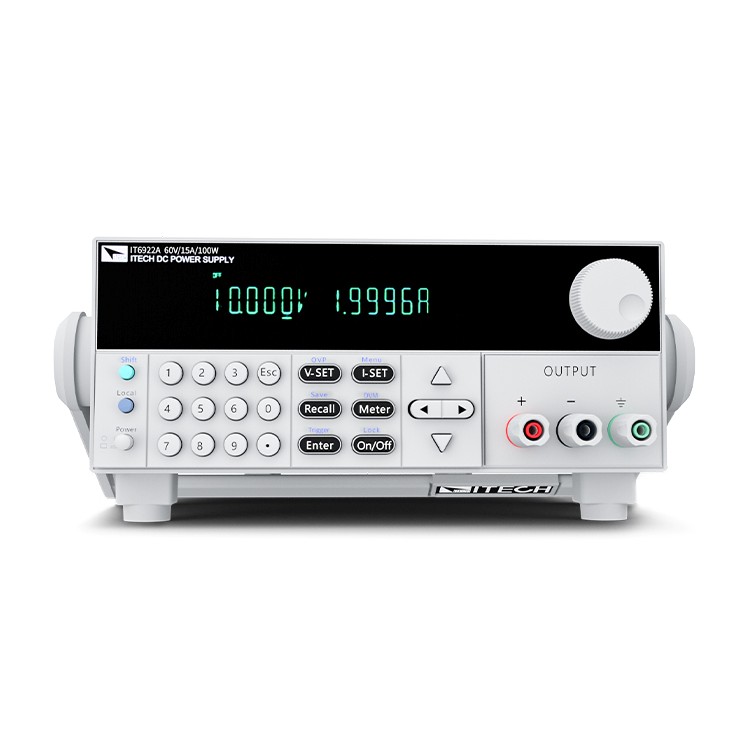

IT6900A series wide range programmable power supply have built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), support SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire.Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement.IT6900A can be widely applied in DC-DC power supply module, battery charging and sensors and other test areas.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT6900A series wide range programmable power supply have built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), support SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire.Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement.IT6900A can be widely applied in DC-DC power supply module, battery charging and sensors and other test areas.
Product Features
- VFD display
- Adjust voltage and current via knob or numerical key pad
- High accuracy and high resolution
- Adjust digital step value via cursor
- Output according to voltage and current programed
- Output Timer(0.1 ~ 99999.9S) Function
- Low ripple and low noise
- Remote Sense Function
- OVP/OCP/OTP protection fucntions
- Intelligent fan control
- Rich SCPI instructions to facilitate the formation of intelligent test platform
- Support front and rear panel output
- Optional external analog function
Functions and Advantages

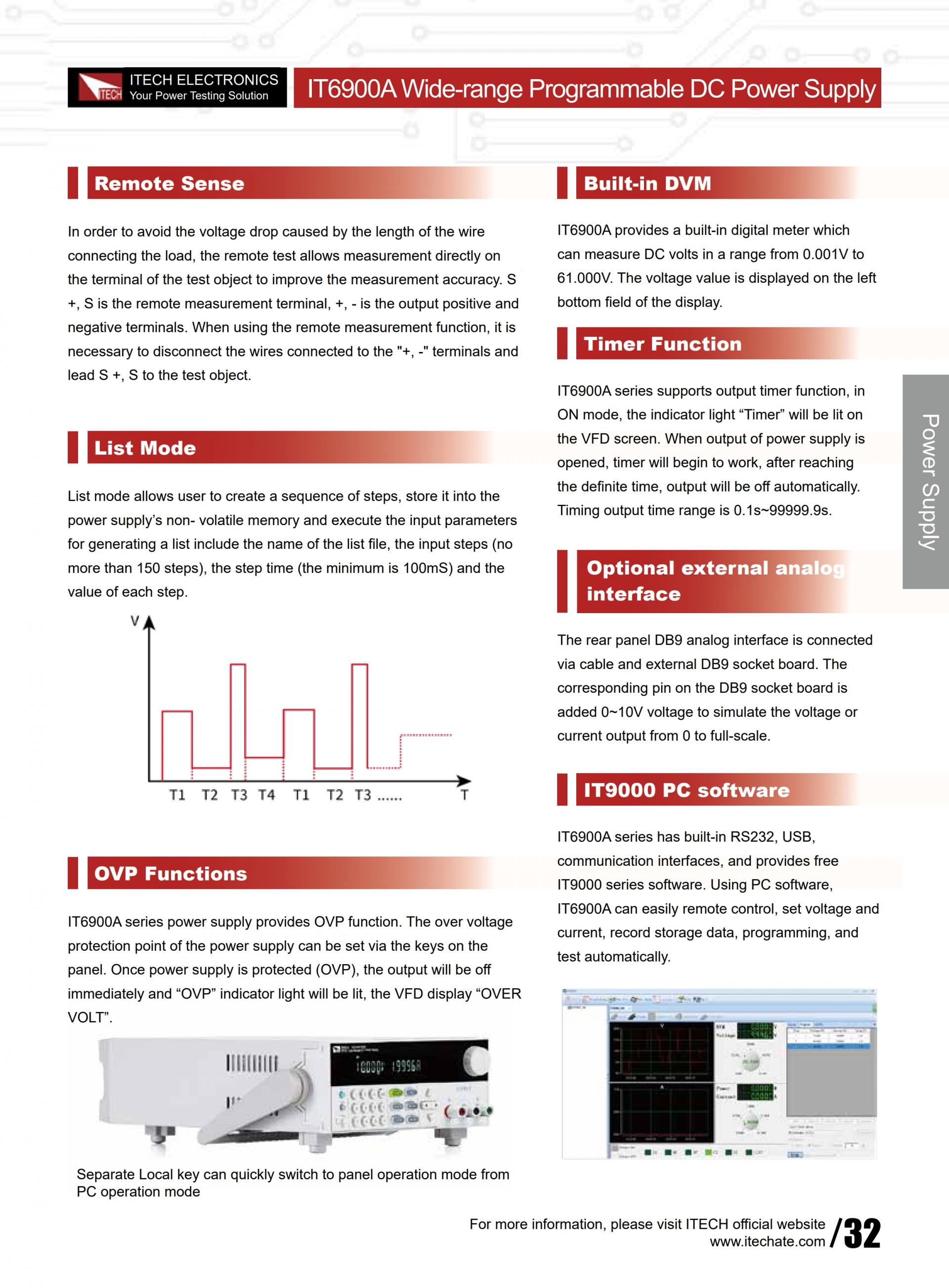

Remote sense function
In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object.

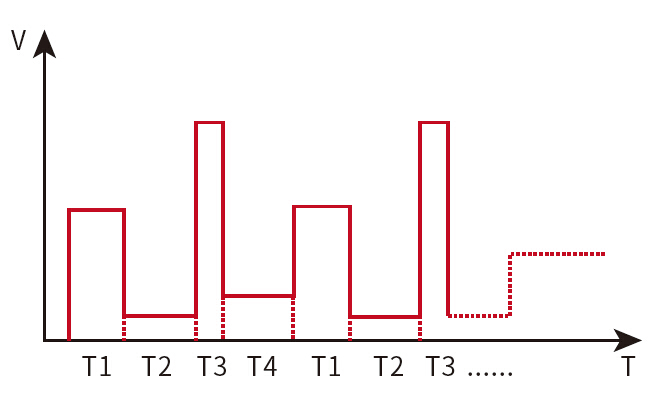

List function

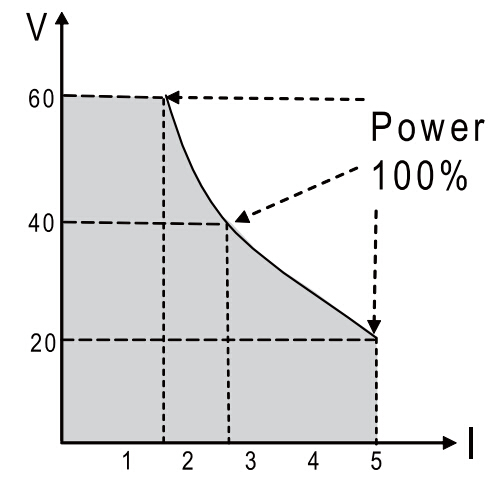

Auto Range
IT6900A series is a power supply with automatic wide range output. It can realize various voltage and current combinations under fixed power. One power supply can meet the test of high voltage and low current or high current and low voltage. At the same time, because the output of power supply voltage and current is controlled by the limit power, it will show the switching of voltage and current automatic range.
