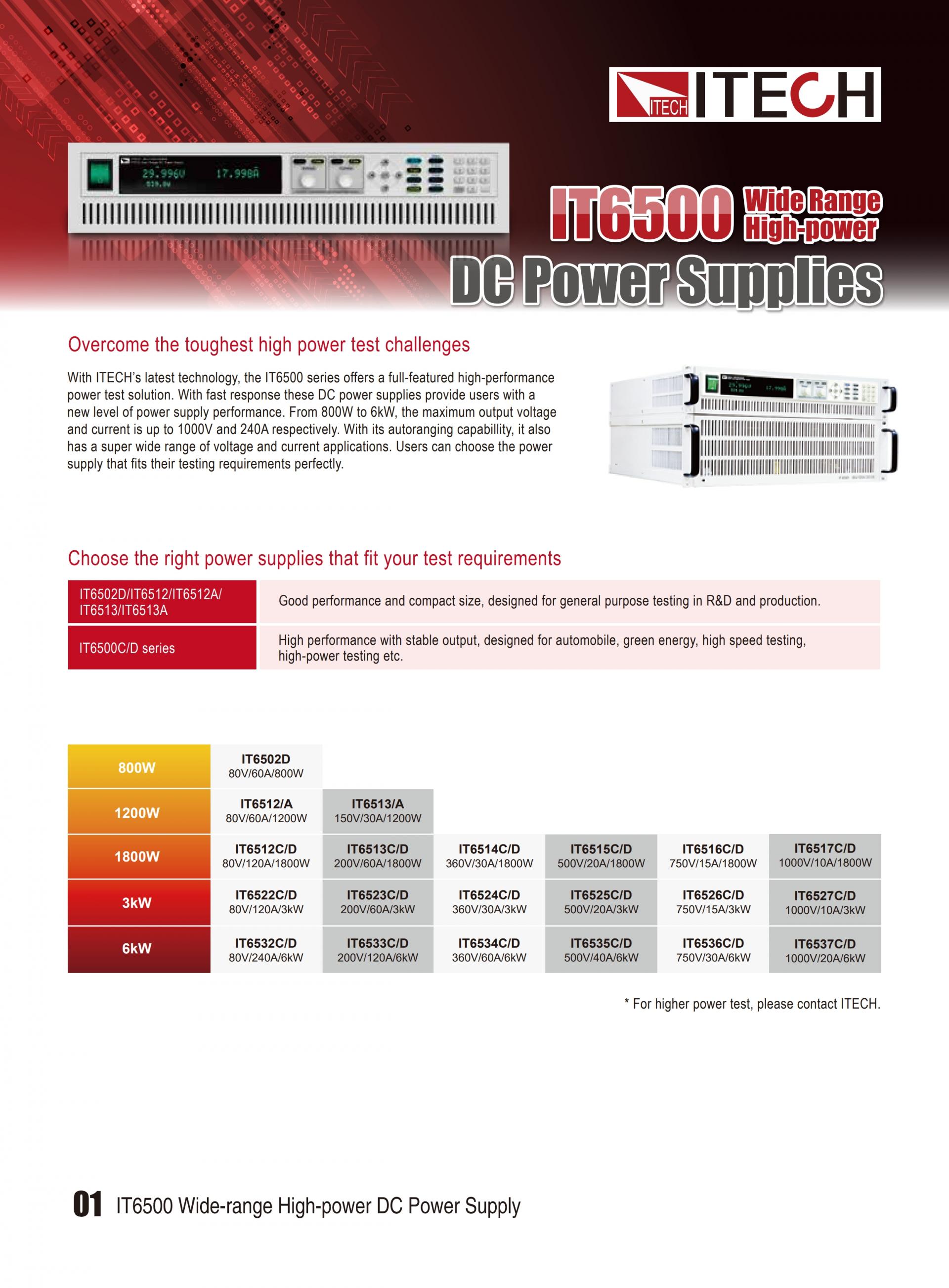

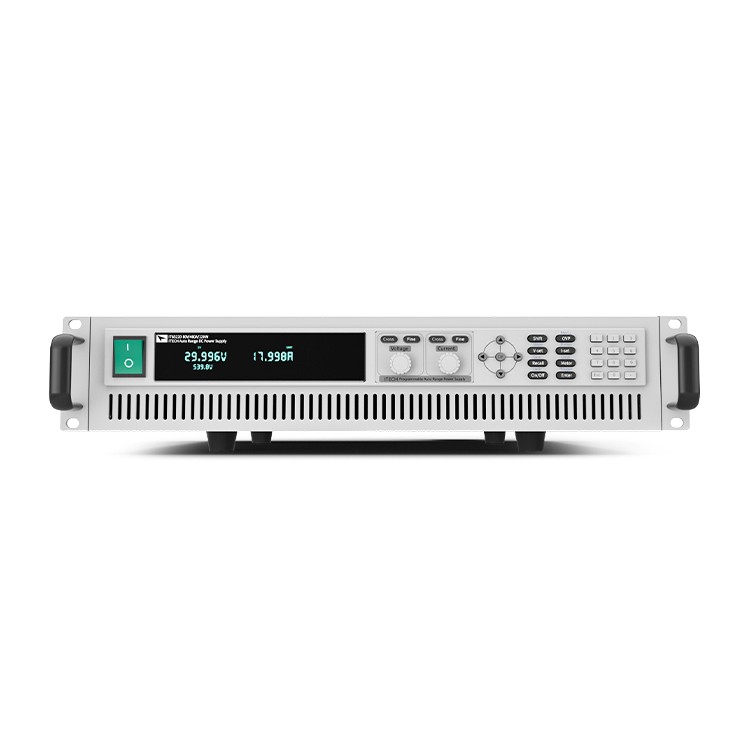

IT6500 series wide range high power DC power supply provides users with a very wide range of choices, the whole series includes from 800W to 6kW, as well as up to 1000V, 240A output range, at the same time has an ultra-wide range of voltage and current. IT6500C series has rich measurement and high-speed response function, while IT6500D series has high performance and stable output function, users can easily choose according to their requirements. IT6500 can be used in a variety of applications, including automotive, green energy, high speed testing, high power testing, etc. It is a dc power supply with rich features, excellent performance and a wide range of applications.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT6500 series wide range high power DC power supply provides users with a very wide range of choices, the whole series includes from 800W to 6kW, as well as up to 1000V, 240A output range, at the same time has an ultra-wide range of voltage and current. IT6500C series has rich measurement and high-speed response function, while IT6500D series has high performance and stable output function, users can easily choose according to their requirements. IT6500 can be used in a variety of applications, including automotive, green energy, high speed testing, high power testing, etc. It is a dc power supply with rich features, excellent performance and a wide range of applications.
Product Features
- Support multiple power supplies paralleling in Master-Slave mode and ensures each power supply equally shares the load current. Extension capacity is up to 30kW output.
- Support various modes (CV/CC/CP), independent edge setting
- Adjustable rising and falling time

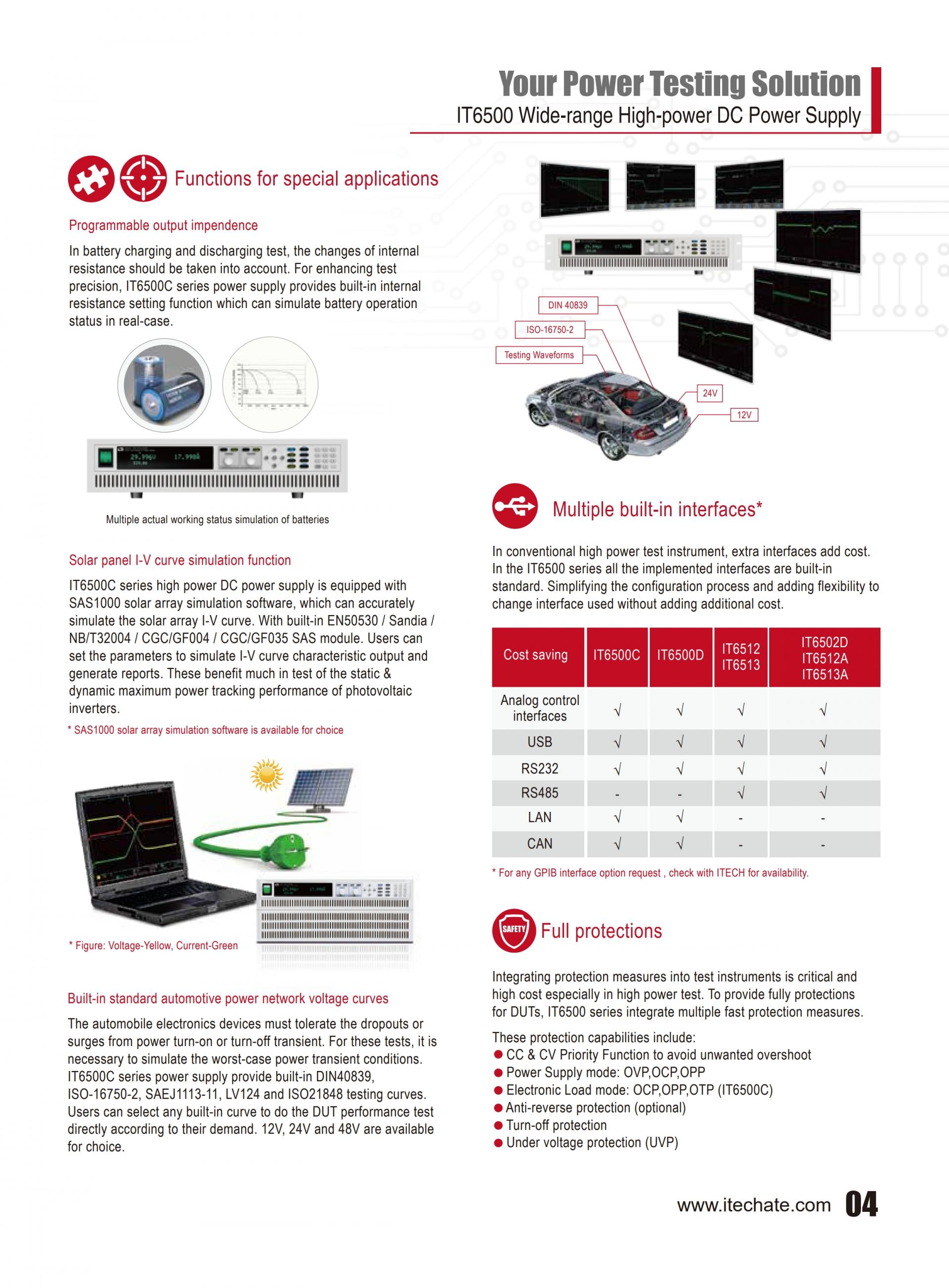

- Built-in DIN 40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO2184 standard voltage curve for automobile power net *2
- Support solar panel I-V curve simulation function *3

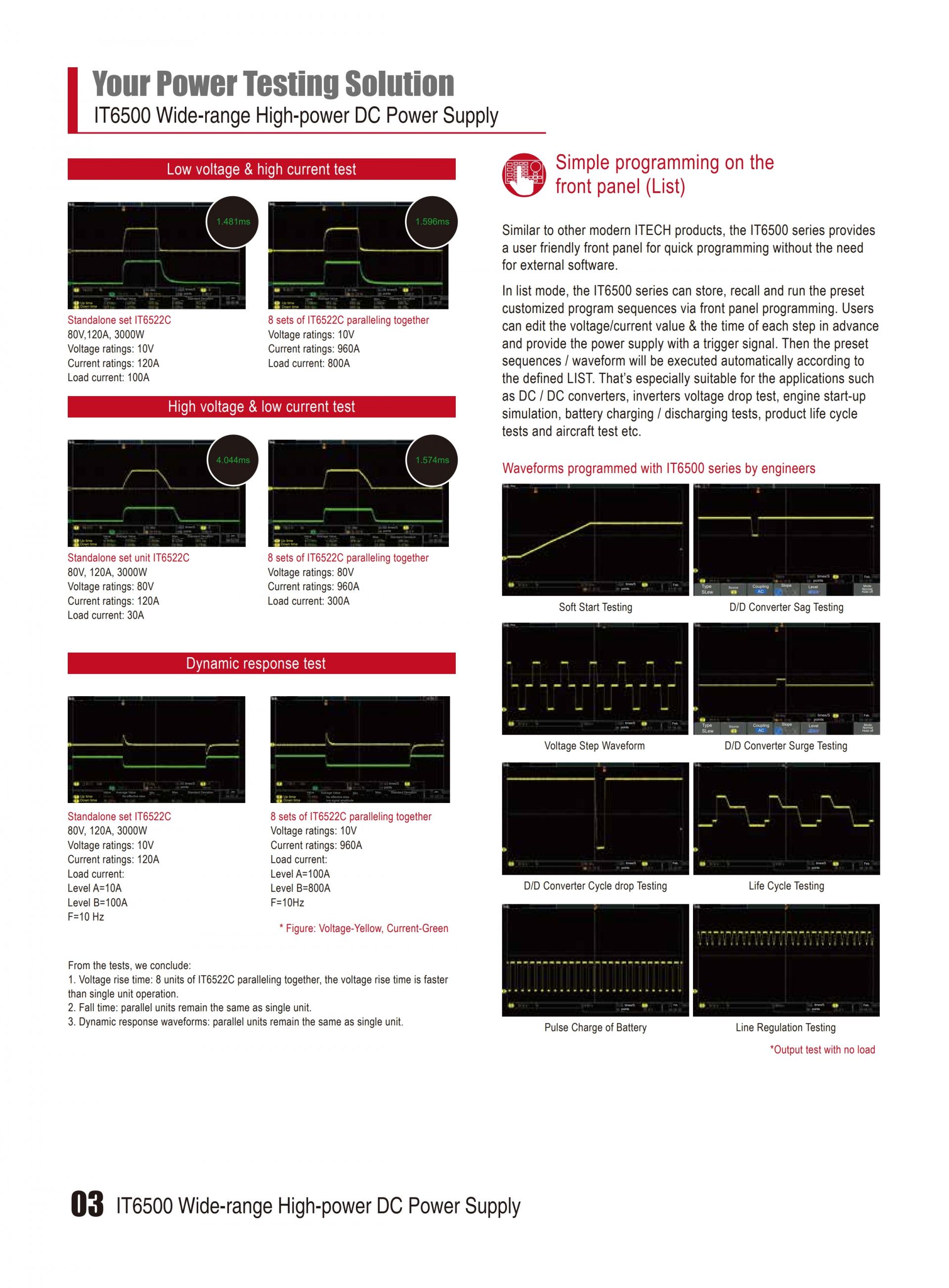

- LIST mode programming
- Variable output impendence function *1
- Low ripple and low noise
- High resolution and high accuracy
- Support multiple protections (Power Supply: OVP,OCP,OPP; Vsense Reverse protection, turn-off protection, input under voltage protection
- Remote sense function
- Analog control interfaces
- Built-in USB/RS232/CAN/LAN interfaces
*1 Limit IT6500C series have this function
*2 Limit IT6500C series have this function, IT6512 and IT6513 are built-in DIN 40839, ISO-16750-2
*3 Optional SAS1000 software
Functions and Advantages

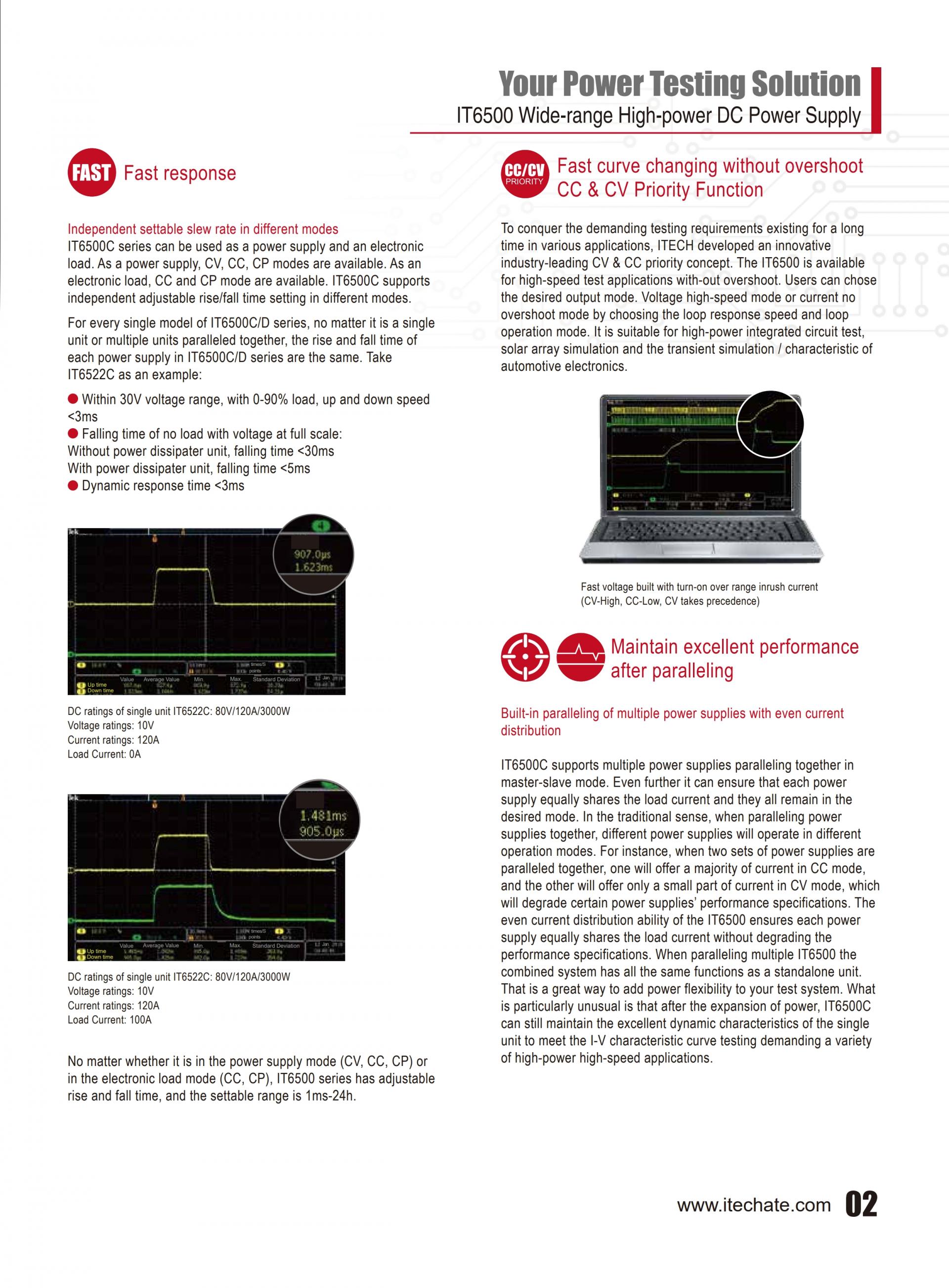

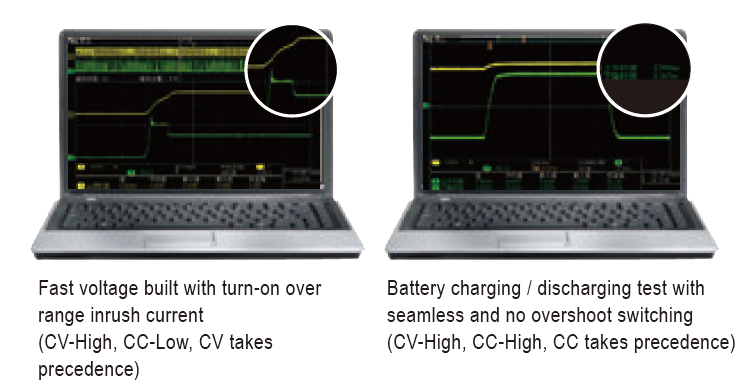

Fast curve changing without overshoot CC & CV Priority Function
To conquer the demanding testing requirements existing for a long time in various applications, ITECH developed an innovative industry-leading CV & CC priority concept. The IT6500 is available for high-speed test applications with-out overshoot. Users can choose the desired output mode. Voltage high-speed mode or current no overshoot mode by choosing the loop response speed and loop operation mode. It is suitable for high-power integrated circuit test, charging / discharging test, solar array simulation and the transient simulation / characteristic of automotive electronics.
Fast response
Independent settable slew rate in different modes
IT6500C series can be used as a power supply and an electronic load. As a power supply, CV, CC, CP modes are available. As an electronic load, CC and CP mode are available. IT6500C supports independent adjustable rise/fall time setting in different modes.

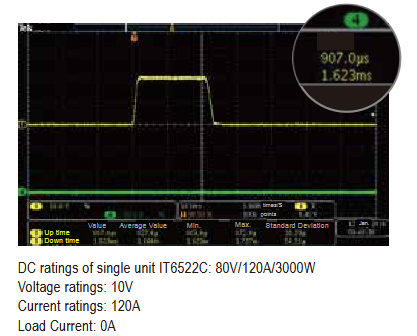

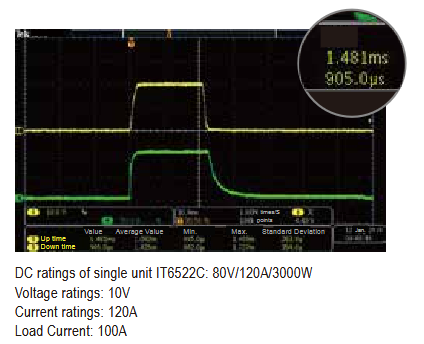

For every single model of IT6500C/D series, no matter it is a single unit or multiple units paralleled together, the rise and fall time of each power supply in IT6500C/D series are the same. Take IT6522C as an example:
1) Within 30V voltage range, with 0-90% load, up and down speed
<3ms
2) Falling time of no load with voltage at full scale:
Without power dissipater unit, falling time <30ms
With power dissipater unit, falling time <5ms
3) Dynamic response time <3ms
 |  |
