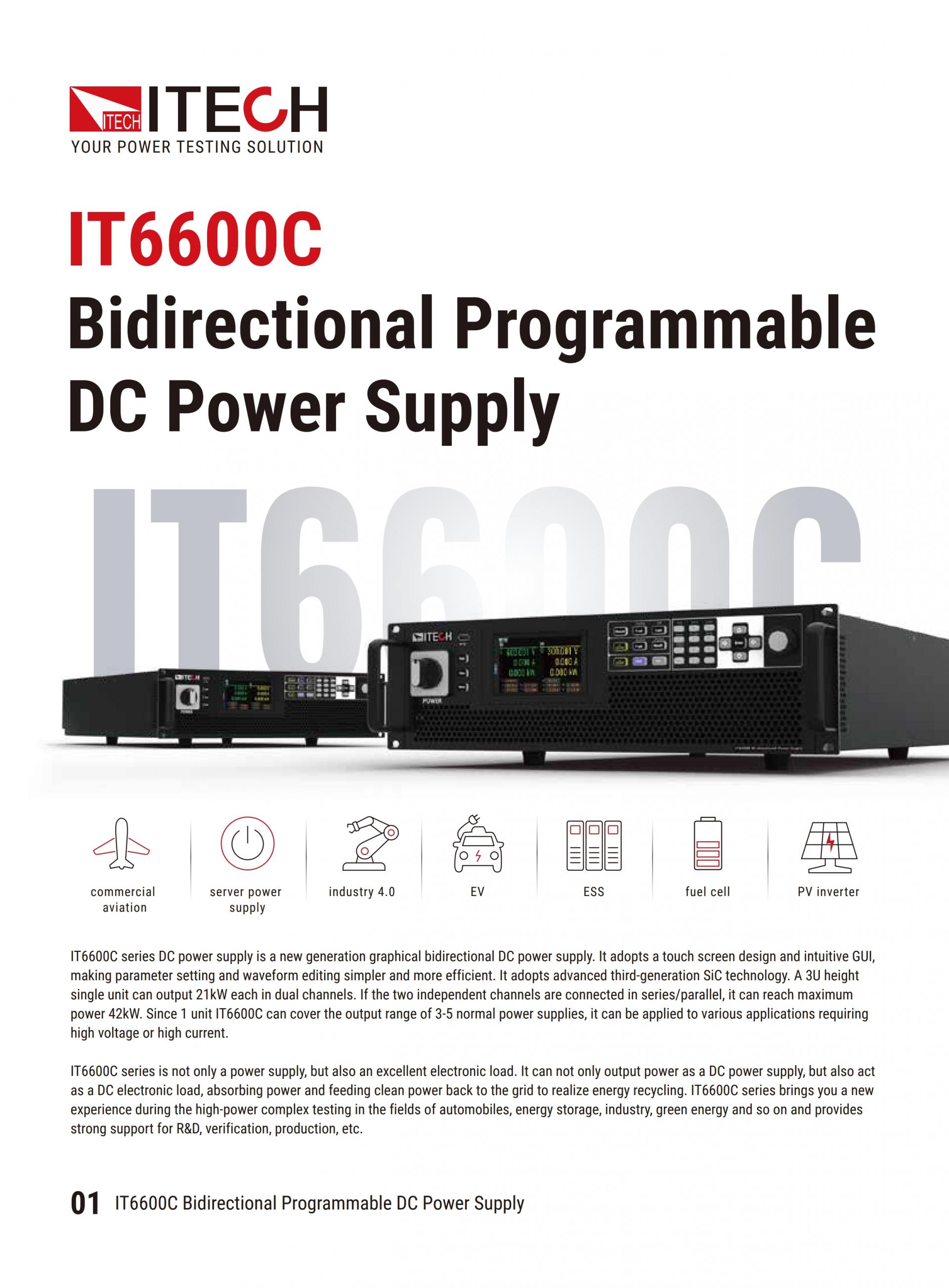

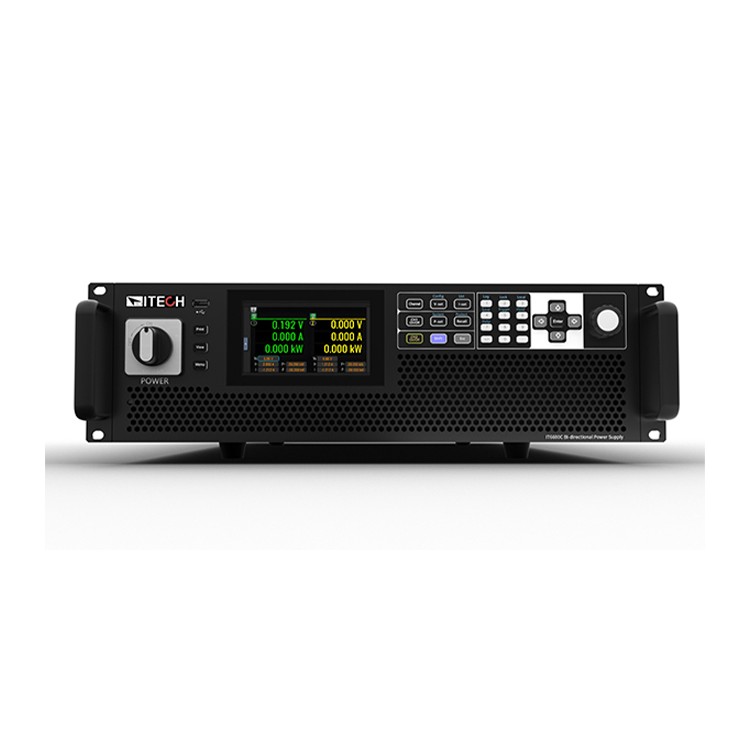

IT6600C series DC power supply is a new generation graphical bidirectional DC power supply. It adopts a touch screen design and intuitive GUI, making parameter setting and waveform editing simpler and more efficient. It adopts advanced third-generation SiC technology. A 3U height single unit can output 21kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW. Since 1 unit IT6600C can cover the output range of 3-5 normal power supplies, it can be applied to various applications requiring high voltage or high current.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT6600C series DC power supply is a new generation graphical bidirectional DC power supply. It adopts a touch screen design and intuitive GUI, making parameter setting and waveform editing simpler and more efficient. It adopts advanced third-generation SiC technology. A 3U height single unit can output 21kW each in dual channels. If the two independent channels are connected in series/parallel, it can reach maximum power 42kW. Since 1 unit IT6600C can cover the output range of 3-5 normal power supplies, it can be applied to various applications requiring high voltage or high current.
IT6600C series is not only a power supply, but also an excellent electronic load. It can not only output power as a DC power supply, but also act as a DC electronic load, absorbing power and feeding clean power back to the grid to realize energy recycling. IT6600C series brings you a new experience during the high-power complex testing in the fields of automobiles, energy storage, industry, green energy and so on and provides strong support for R&D, verification, production, etc.

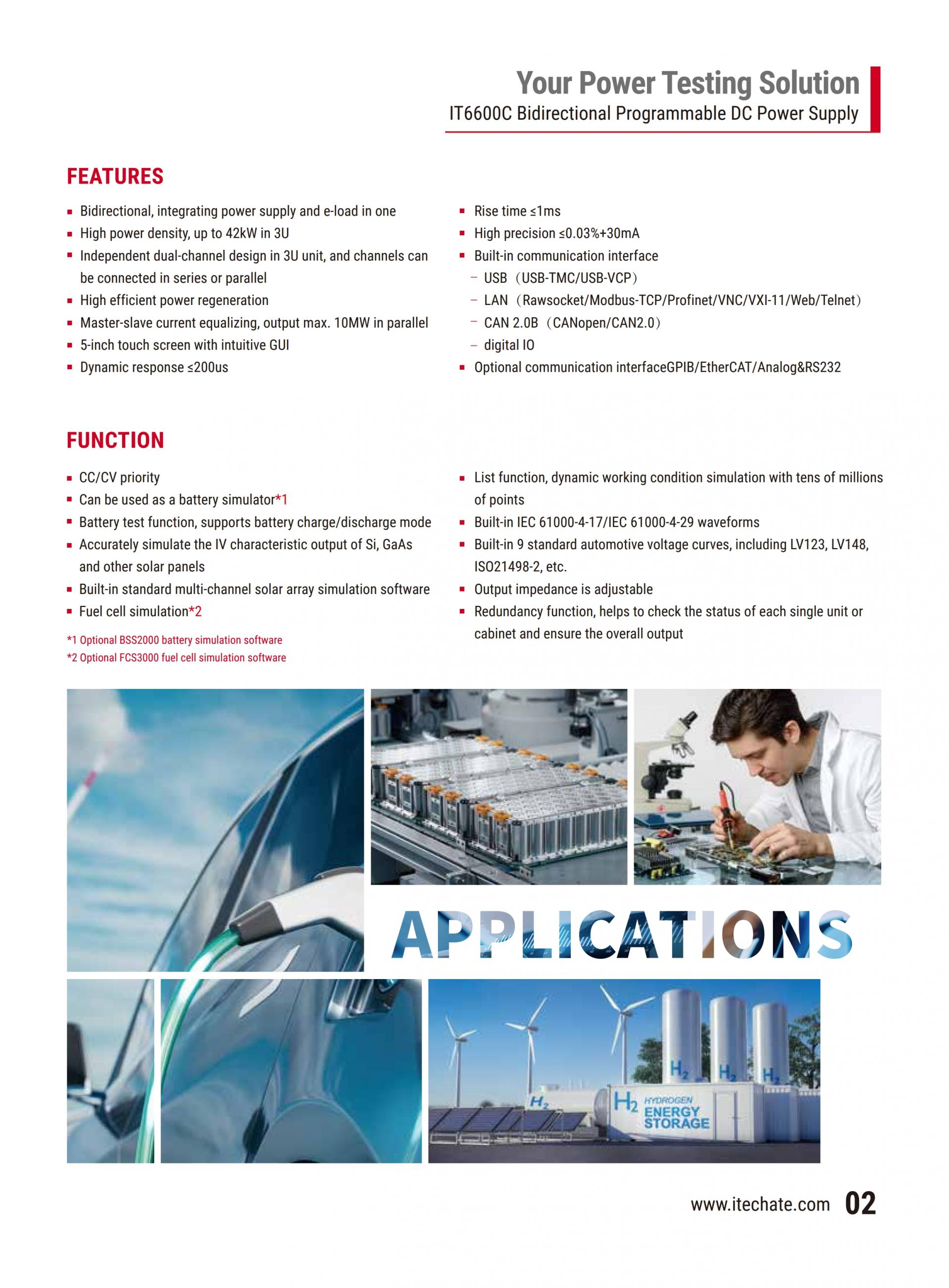

Product Features
FEATURES
- Bidirectional, integrating power supply and e-load in one
- High power density, up to 42kW in 3U
- Independent dual-channel design in 3U unit, and channels can be connected in series or parallel

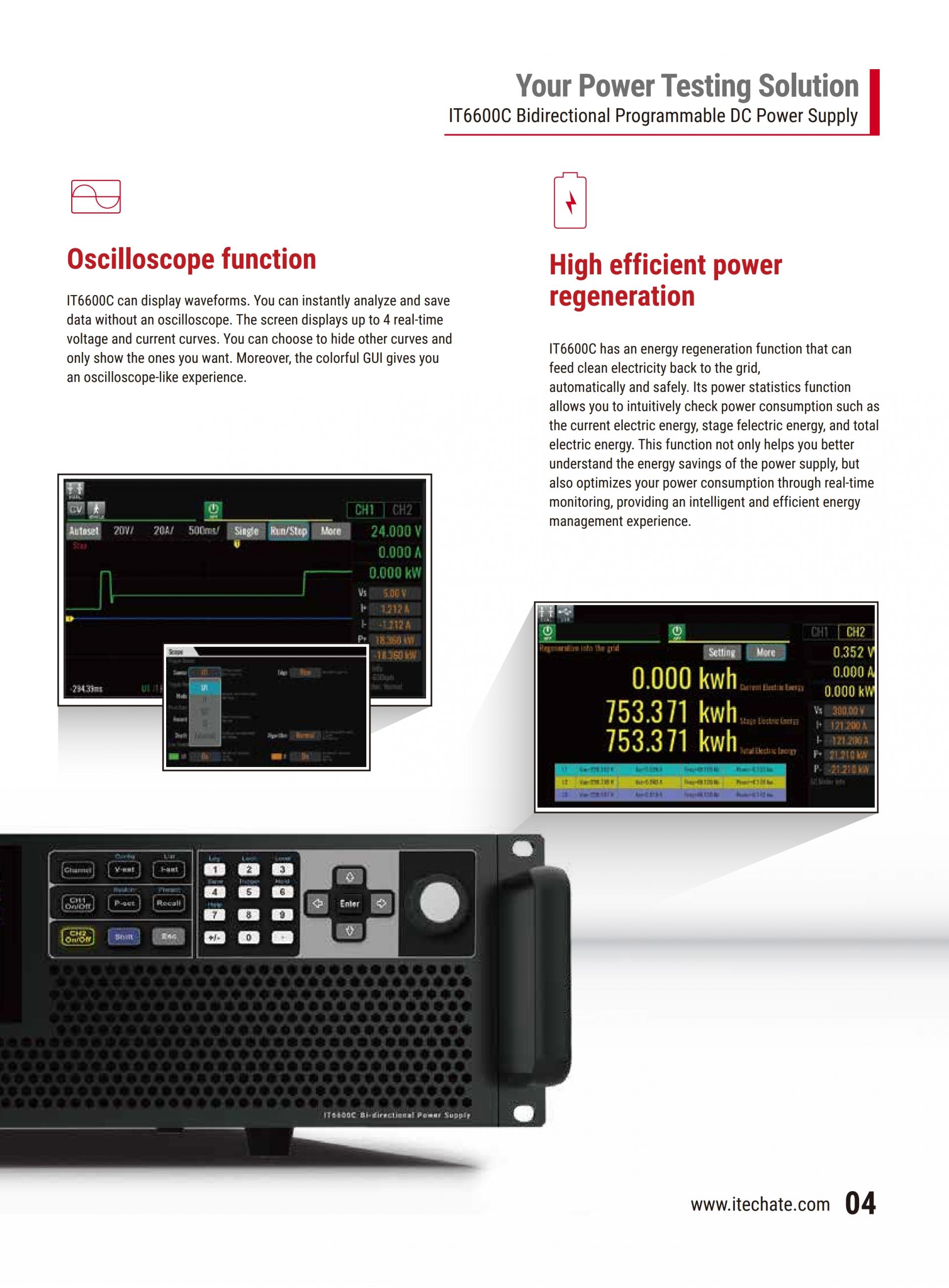

- High efficient power regeneration

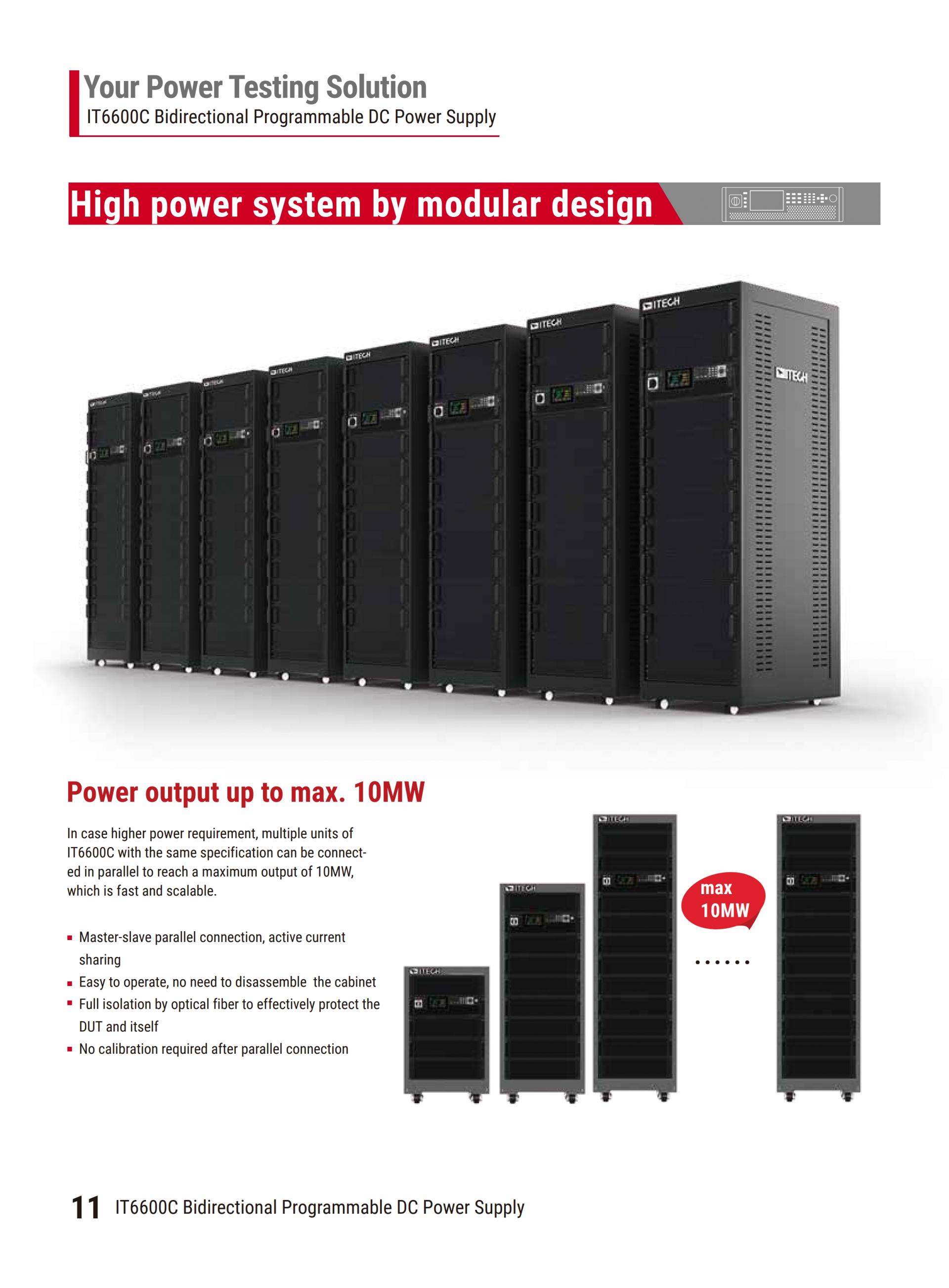

- Master-slave current equalizing, output max. 10MW in parallel

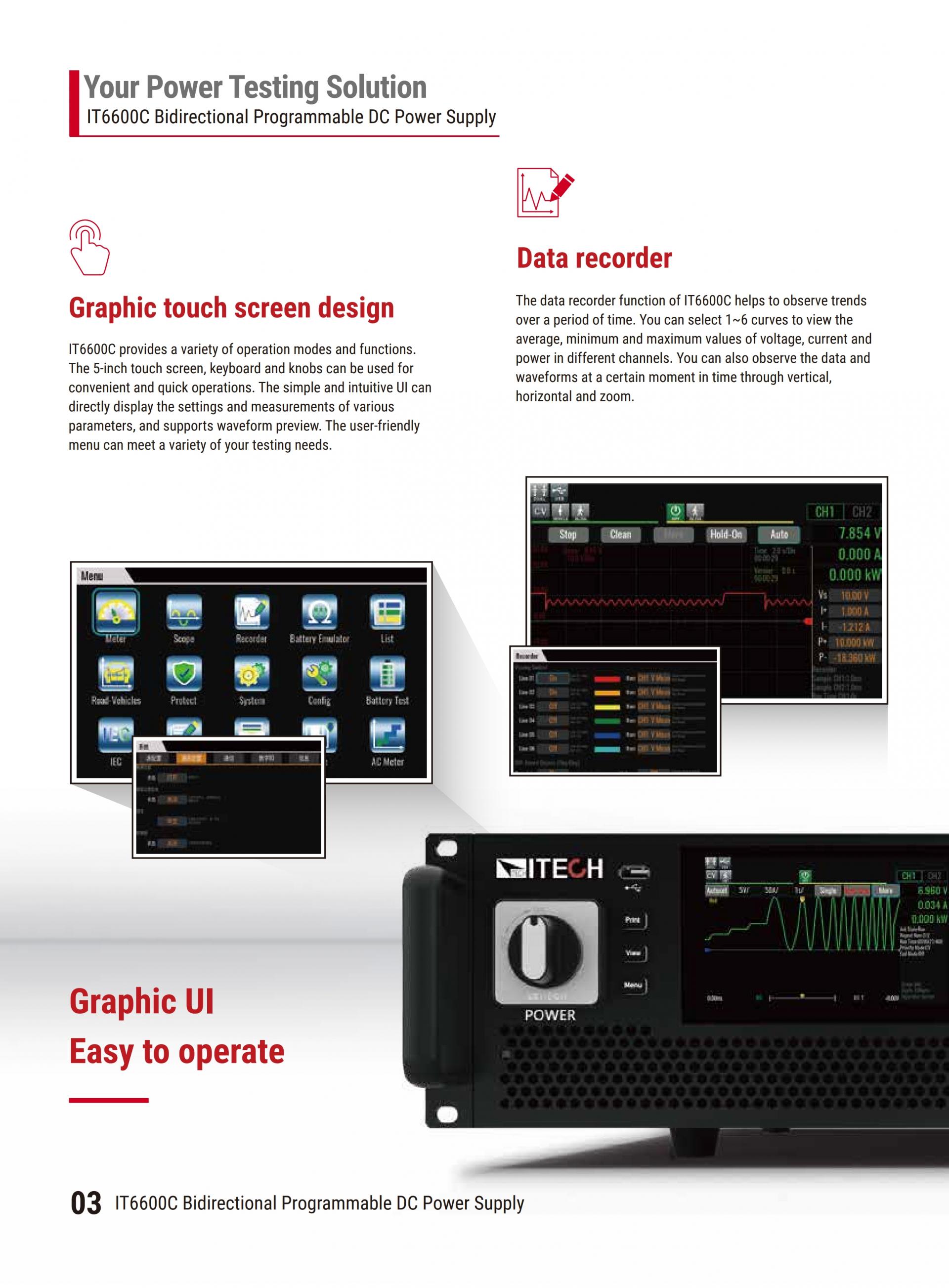

- 5-inch touch screen with intuitive GUI
- Dynamic response ≤200us
- Rise time ≤1ms
- High precision ≤0.03%+30mA

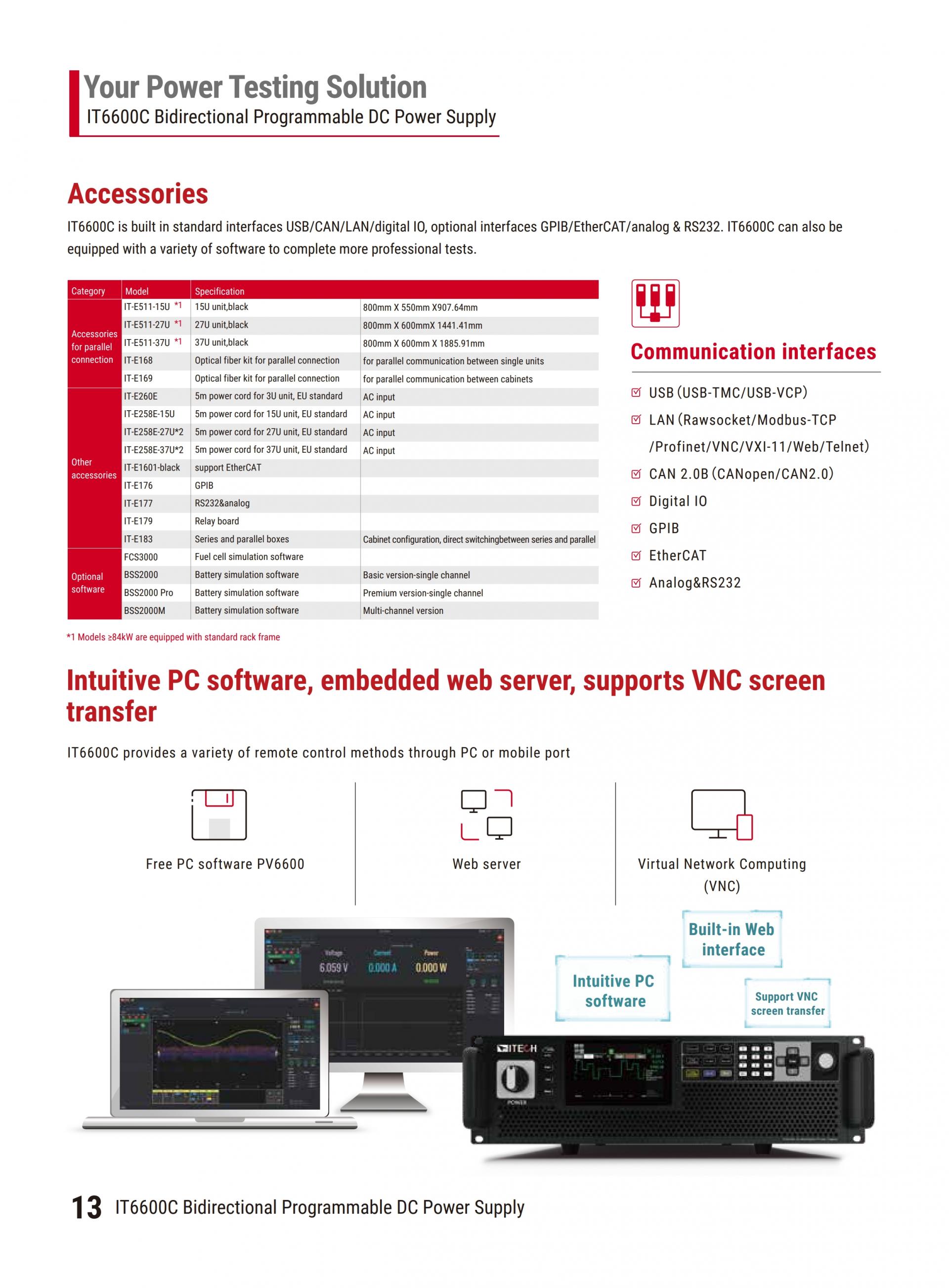

- Built-in communication interface
- USB（USB-TMC/USB-VCP）
- LAN（Rawsocket/Modbus-TCP/Profinet/VNC/VXI-11/Web/Telnet）
- CAN 2.0B（CANopen/CAN2.0）
- digital IO
- Optional communication interfaceGPIB/EtherCAT/Analog&RS232
FUNCTION
- CC/CV priority

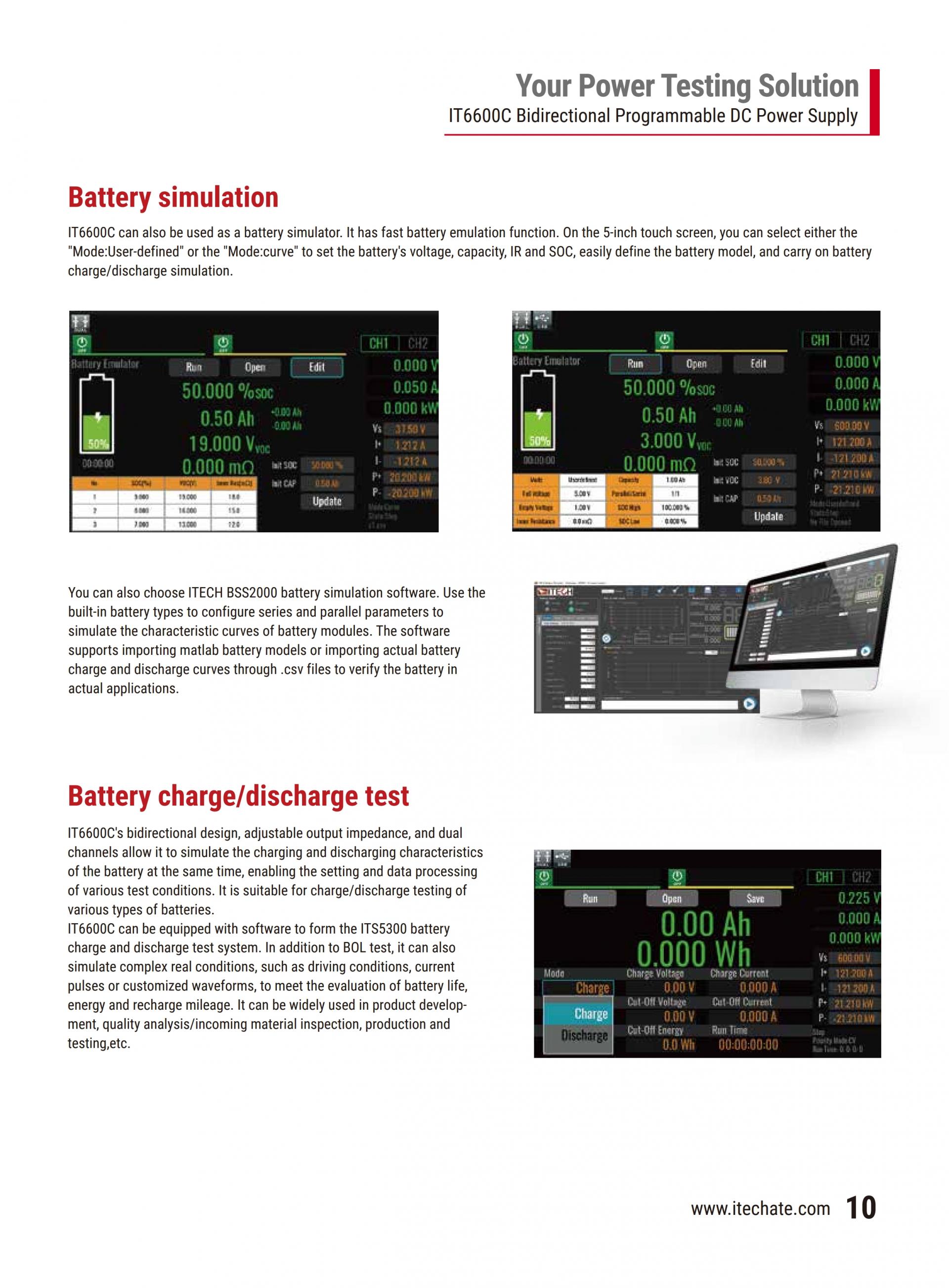

- Can be used as a battery simulator*1
- Battery test function, supports battery charge/discharge mode

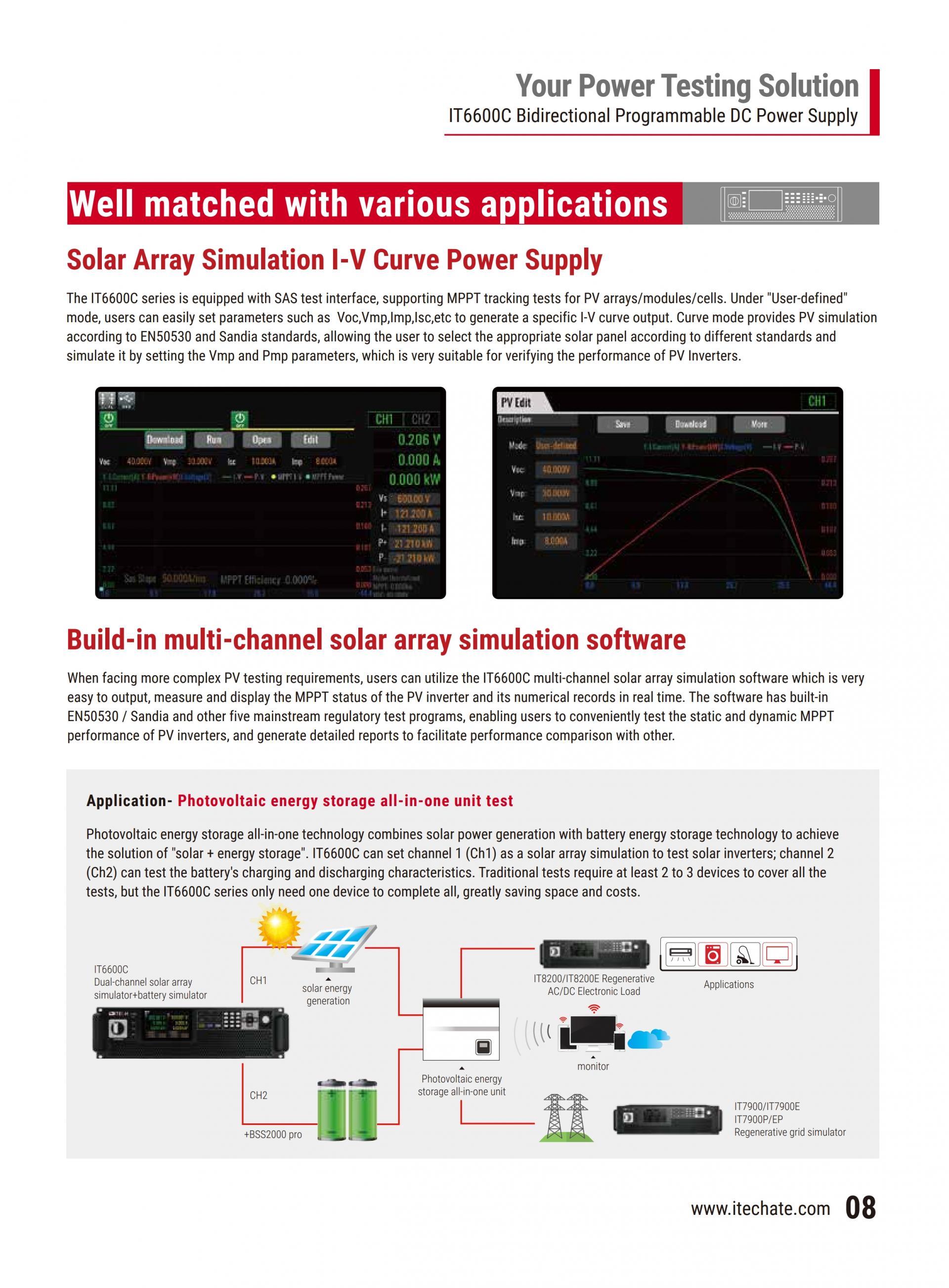

- Accurately simulate the IV characteristic output of Si, GaAs and other solar panels
- Built-in standard multi-channel solar array simulation software
- Fuel cell simulation*2
- List function, dynamic working condition simulation with tens of millions of points

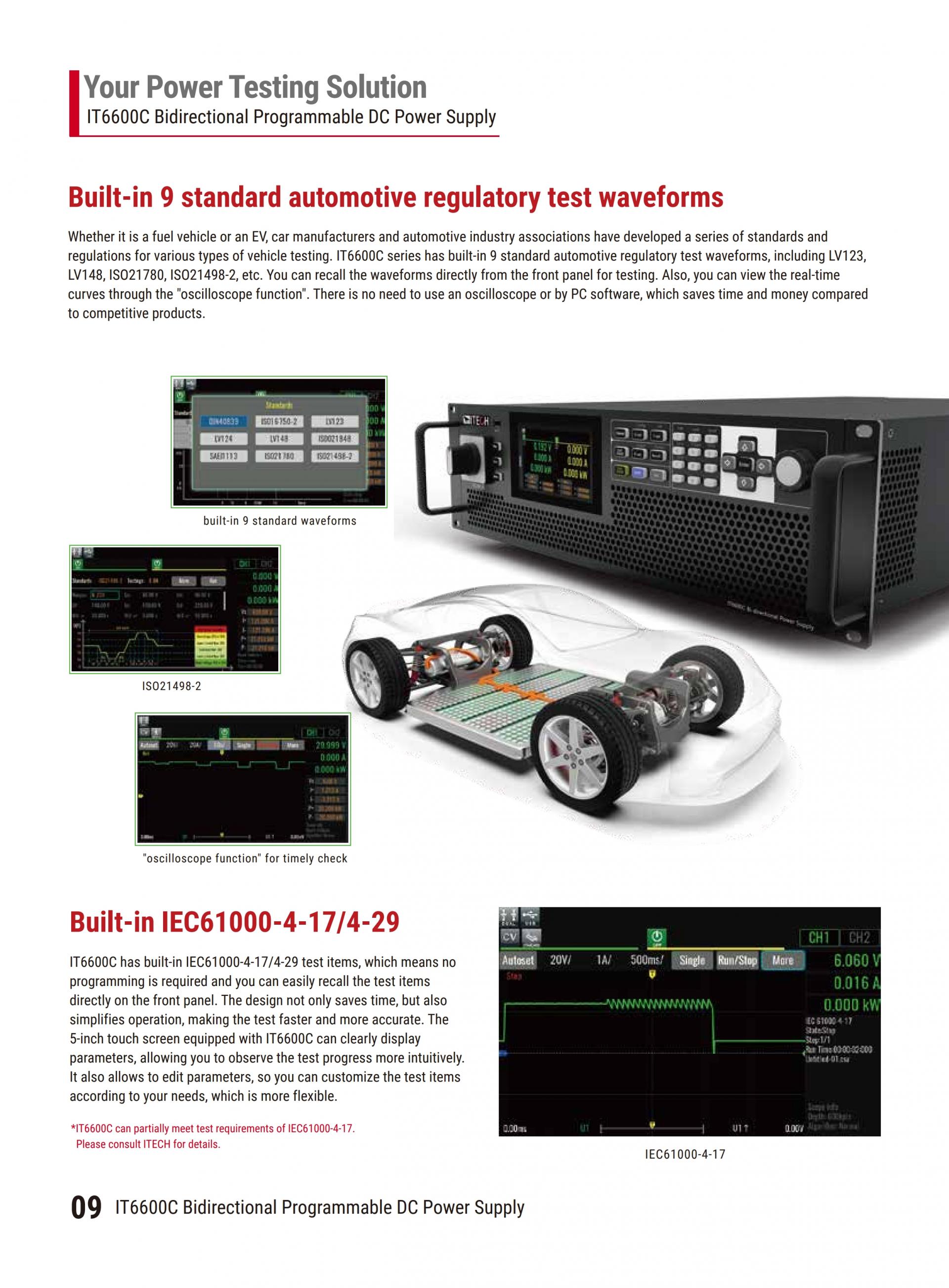

- Built-in IEC 61000-4-17/IEC 61000-4-29 waveforms
- Built-in 9 standard automotive voltage curves, including LV123, LV148, ISO21498-2, etc.
- Output impedance is adjustable

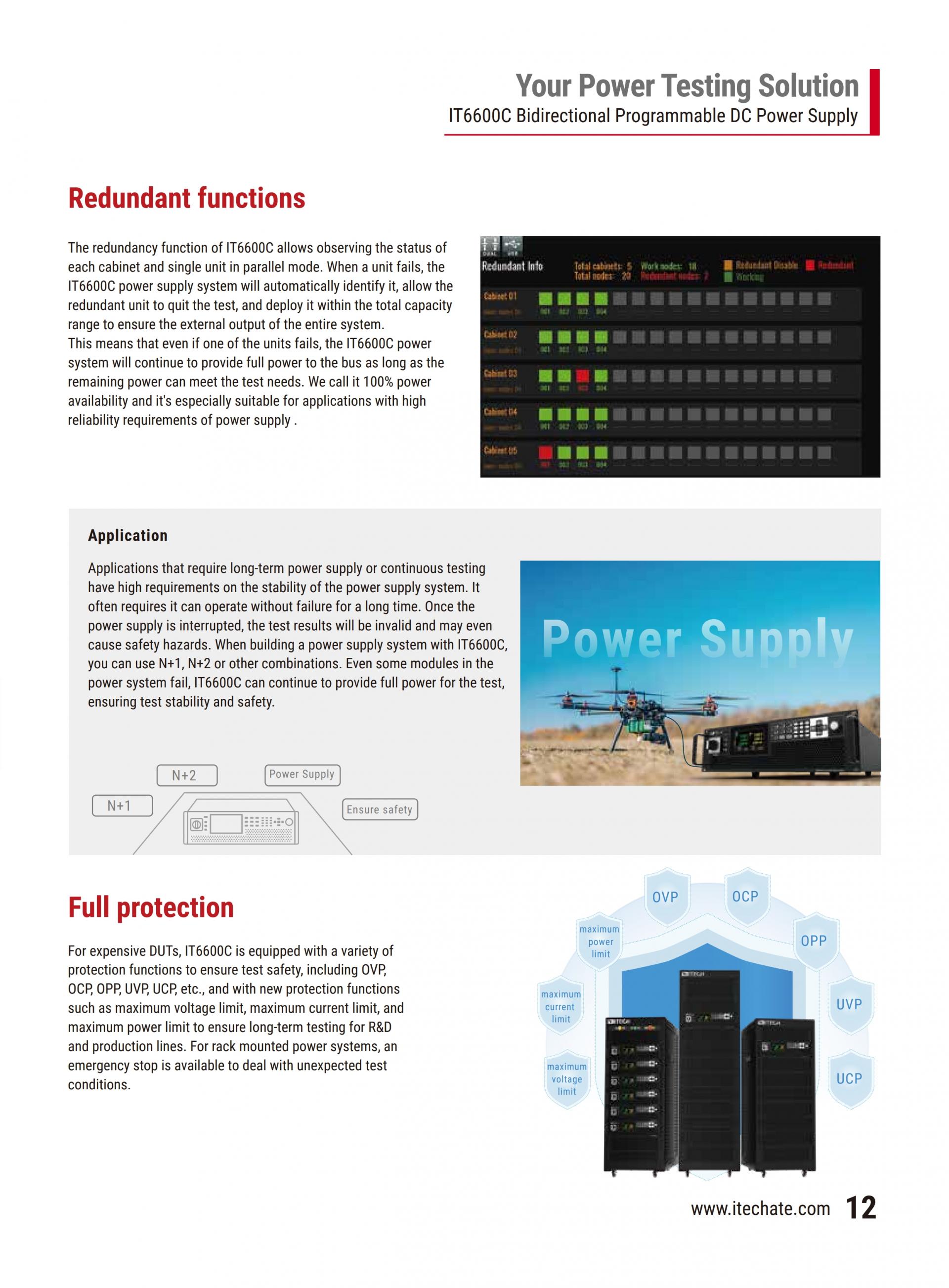

- Redundancy function, helps to check the status of each single unit or cabinet and ensure the overall output
*1 Optional BSS2000 battery simulation software
*2 Optional FCS3000 fuel cell simulation software

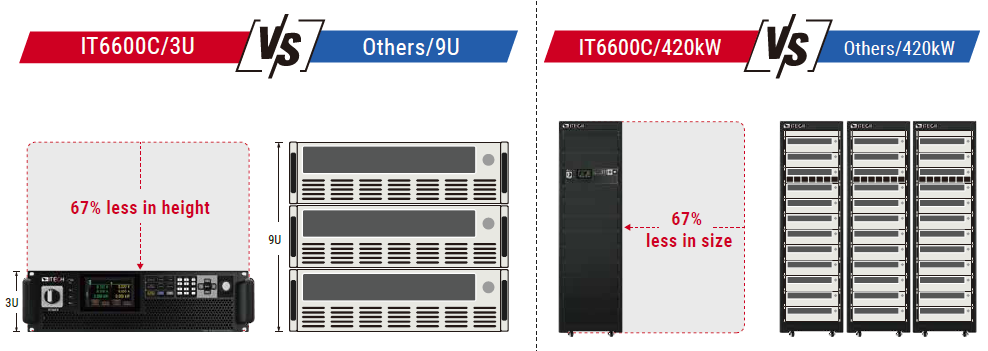

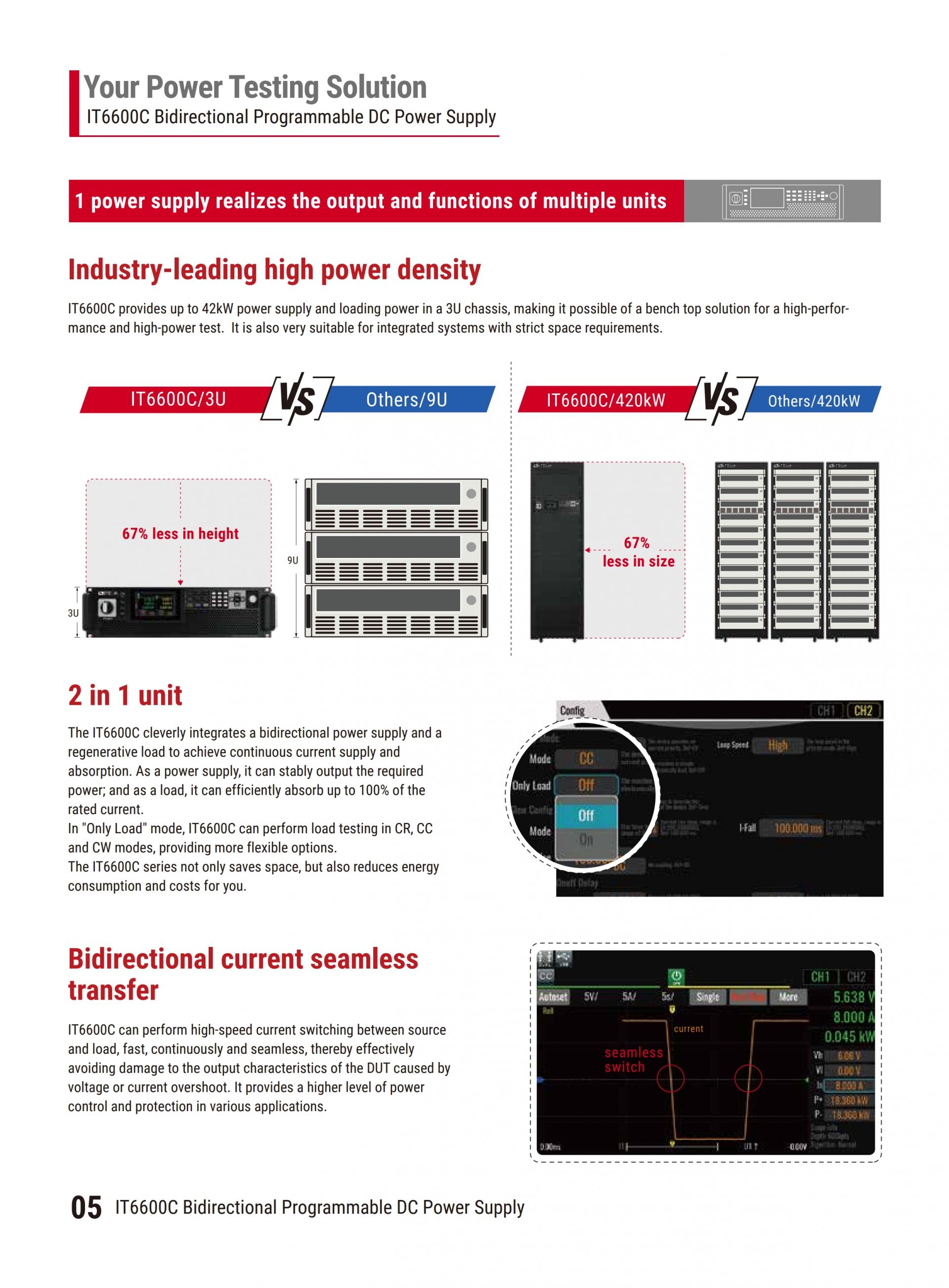

Industry-leading high power density
IT6600C bidirectional DC power supply provides up to 42kW power supply and loading power in a 3U chassis, making it possible of a bench top solution for a high-performance and high-power test. It is also very suitable for integrated systems with strict space requirements.
2 in 1 unit

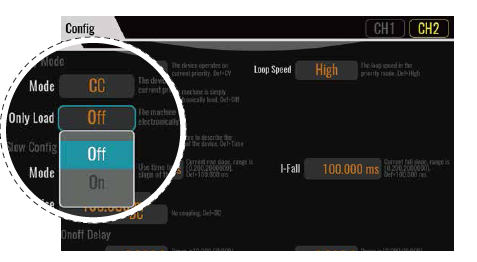

The IT6600C bidirectional DC power supply cleverly integrates a bidirectional power supply and a regenerative load to achieve continuous current supply and absorption. As a power supply, it can stably output the required power; and as a load, it can efficiently absorb up to 100% of the rated current. In "Only Load" mode, IT6600C can perform load testing in CR, CC and CW modes, providing more flexible options. The IT6600C series bidirectional DC power supply not only saves space, but also reduces energy consumption and costs for you.

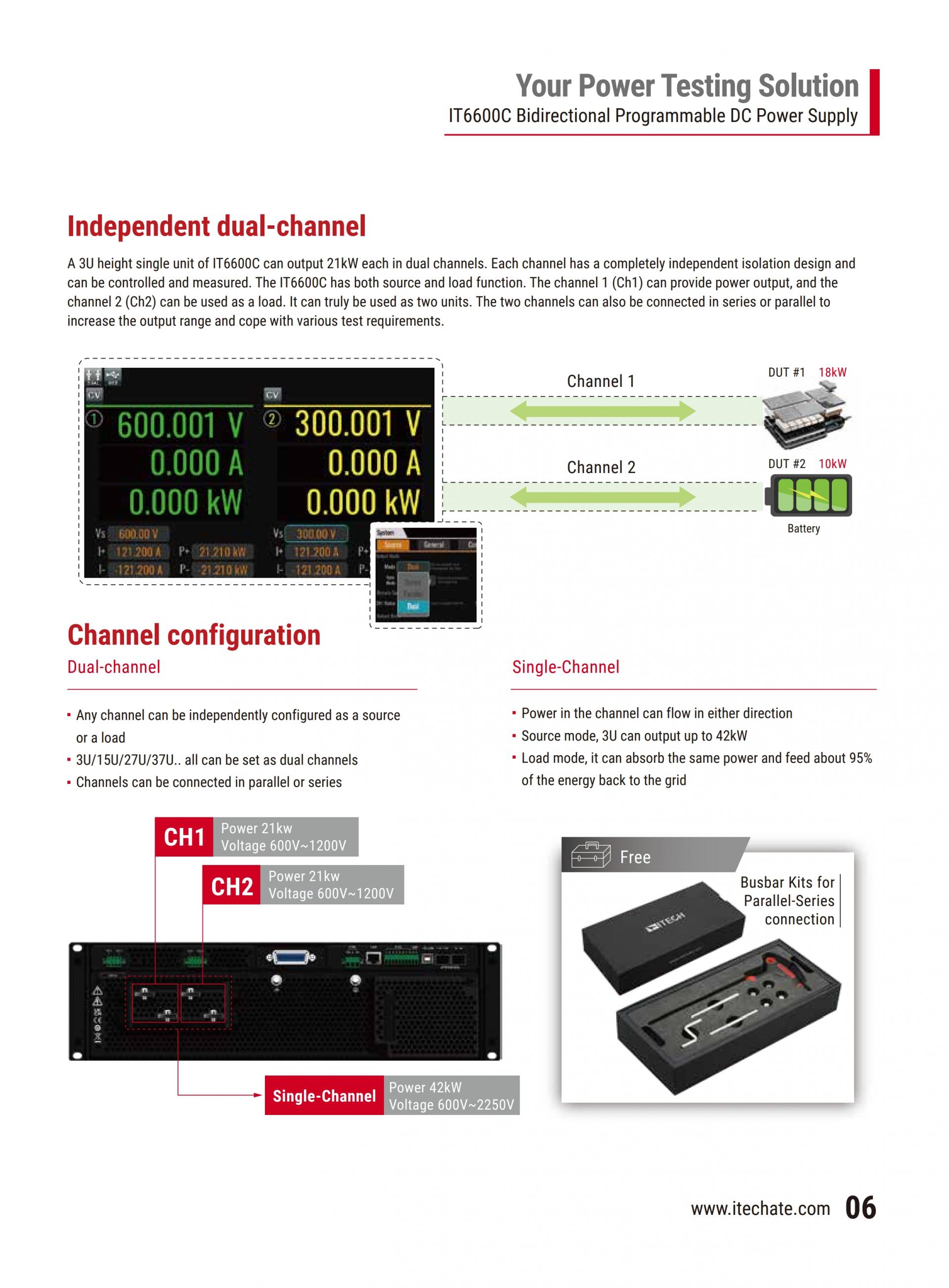

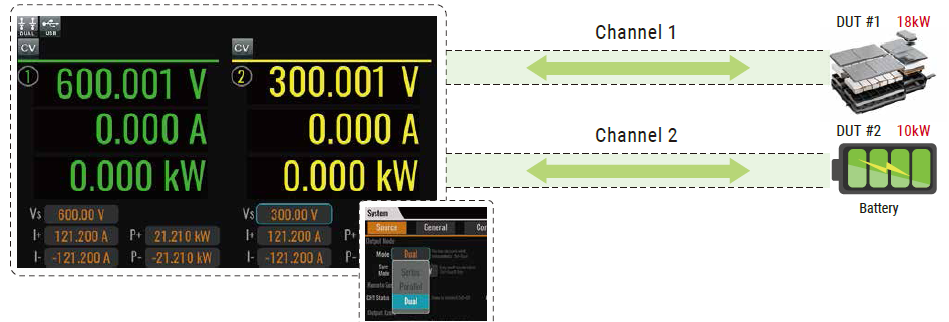

Independent dual-channel
A 3U height single unit of IT6600C bidirectional DC power supply can output 21kW each in dual channels. Each channel has a completely independent isolation design and can be controlled and measured. The IT6600C has both source and load function. The channel 1 (Ch1) can provide power output, and the channel 2 (Ch2) can be used as a load. It can truly be used as two units. The two channels can also be connected in series or parallel to increase the output range and cope with various test requirements.
