IT2700 series multi-channel modular power system brings ultra-high power density. The 1U mainframe can include up to 8 modules (200W each) or 4 modules (500W each). Different modules can be grouped and synchronized. The modules could be bidirectional DC power supplies, DC power supplies or regenerative loads. And they can be connected with each other in parallel. They have built-in LAN, USB, CAN, digital I/O and free PC software. It can be widely used in ATE integration in R&D, design verification and manufacturing of DC-DC converter, communication power semiconductors, 3C products, like smartphone, PCBA, battery simulation and test, chips BMS chips etc.
| 원산지 | TAIWAN |
|---|---|
| 제조사 | ITECH |
| 브랜드 | ITECH |
| 무게 | 1kg |
IT2700 series multi-channel modular power system brings ultra-high power density. The 1U mainframe can include up to 8 modules (200W each) or 4 modules (500W each). Different modules can be grouped and synchronized. The modules could be bidirectional DC power supplies, DC power supplies or regenerative loads. And they can be connected with each other in parallel. They have built-in LAN, USB, CAN, digital I/O and free PC software. It can be widely used in ATE integration in R&D, design verification and manufacturing of DC-DC converter, communication power semiconductors, 3C products, like smartphone, PCBA, battery simulation and test, chips BMS chips etc.
Product Features
Features

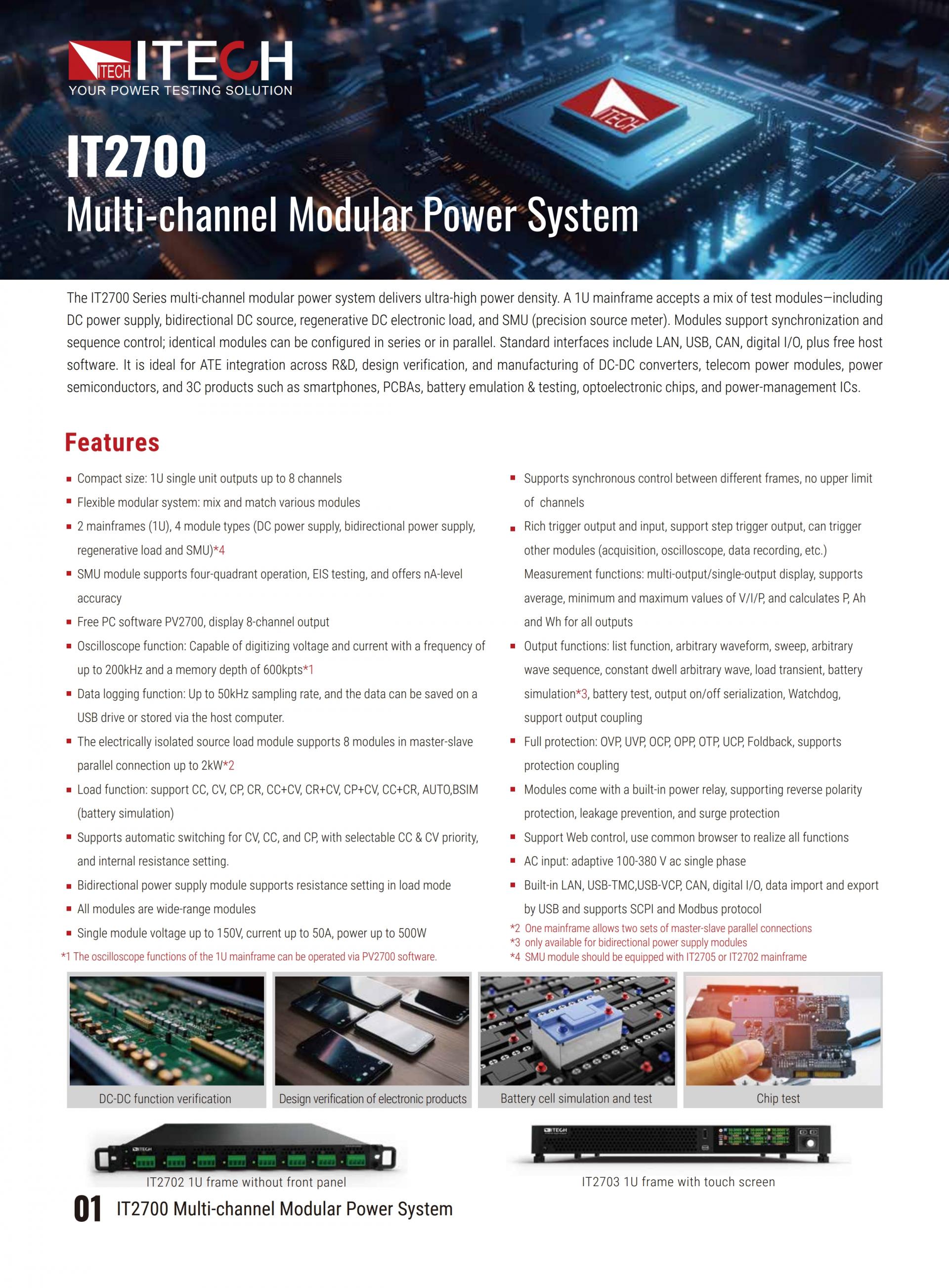

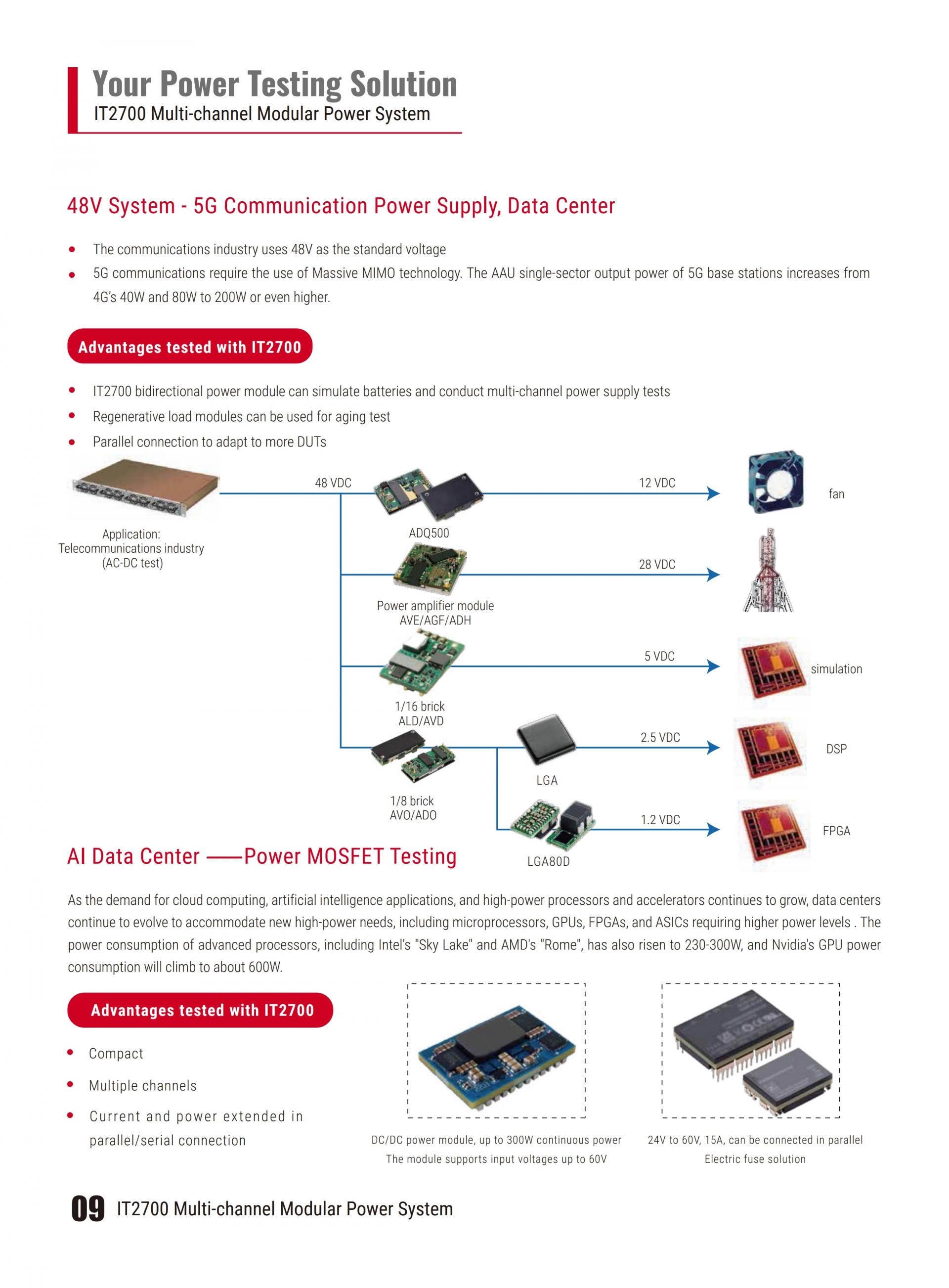

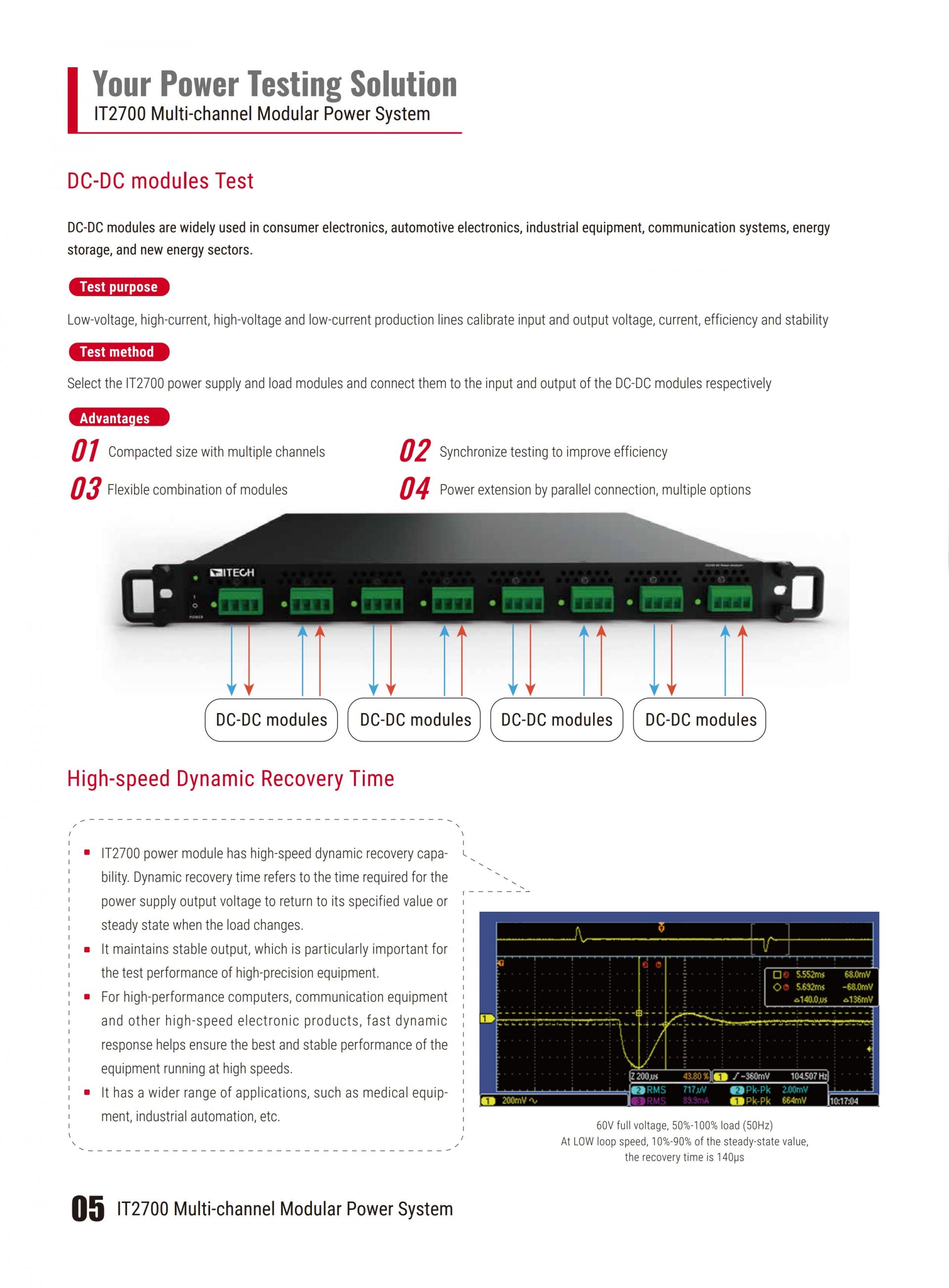

- ATE systems for R&D, design verification and manufacturing

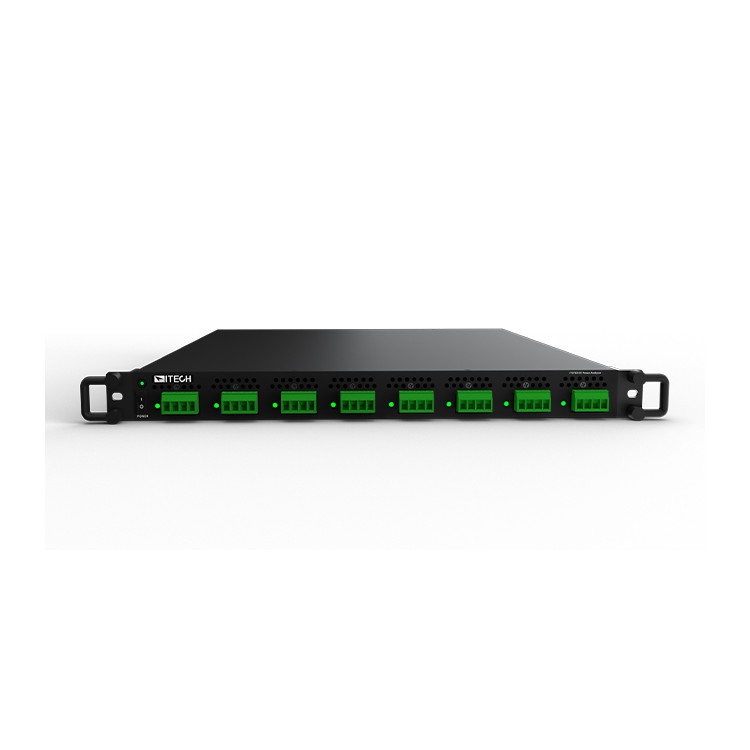

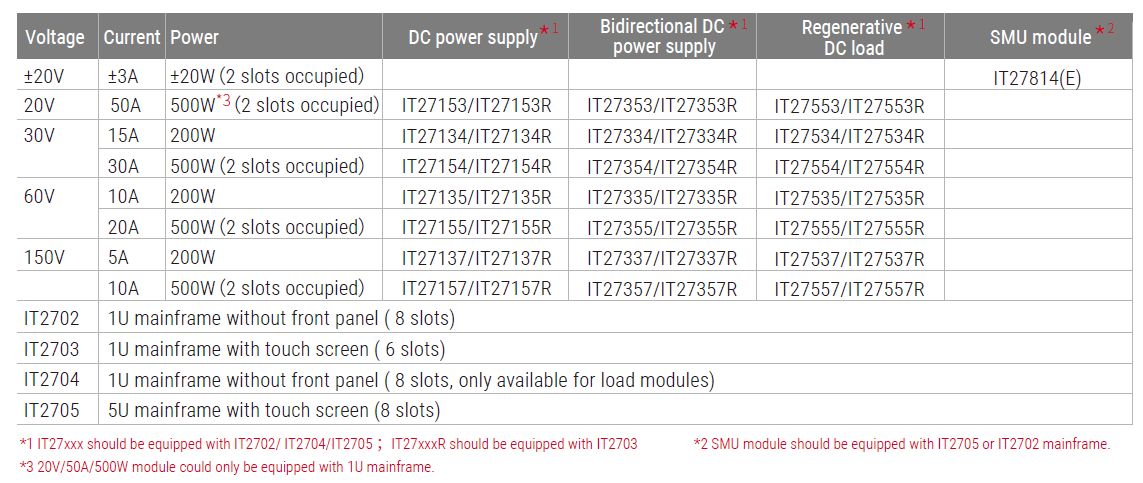

- Compact size: 1U single unit outputs up to 8 channels
- Flexible modular system: mix and match various modules
- 2 mainframes (1U), 3 module types (DC power supply, bidirectional power supply, regenerative load)
- Free PC software PV2700, display 8-channel output
- Oscilloscope function: Capable of digitizing voltage and current with a frequency of up to 200kHz and a memory depth of 600kpts*1
- Data logging function: Up to 50kHz sampling rate, with 2GB internal memory in the
- instrument and unlimited recording capability on the host computer.
- The electrically isolated source load module supports 8 modules in master-slave parallel connection up to 2kW*2

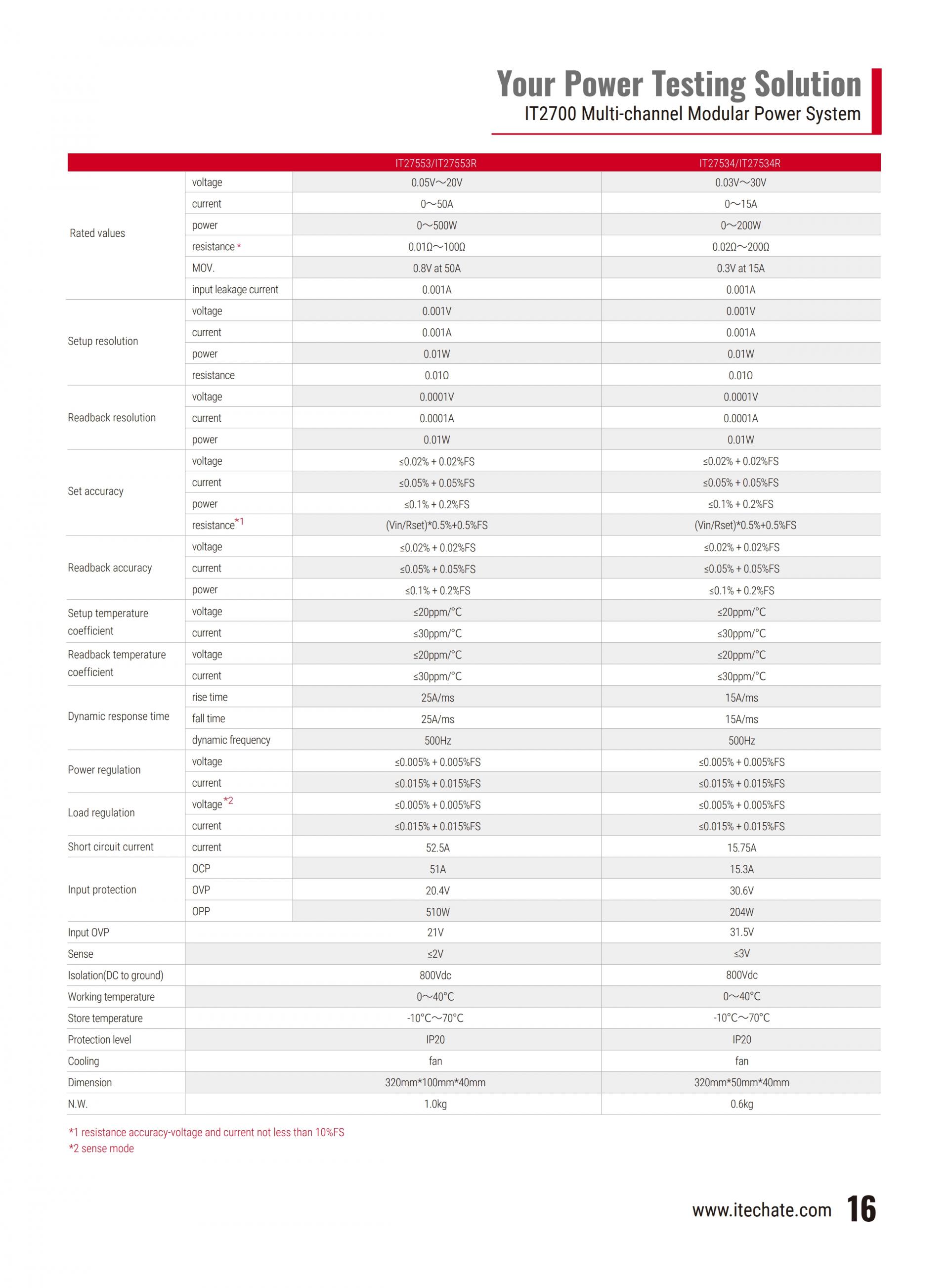

- Load function: support CC, CV, CP, CR, CC+CV, CR+CV, CP+CV, CC+CR, AUTO,BSIM (battery simulation)
- Supports automatic switching for CV, CC, and CP, with selectable CC & CV priority, and internal resistance setting.
- Bidirectional power supply module supports resistance setting in load mode
- All modules are wide-range modules

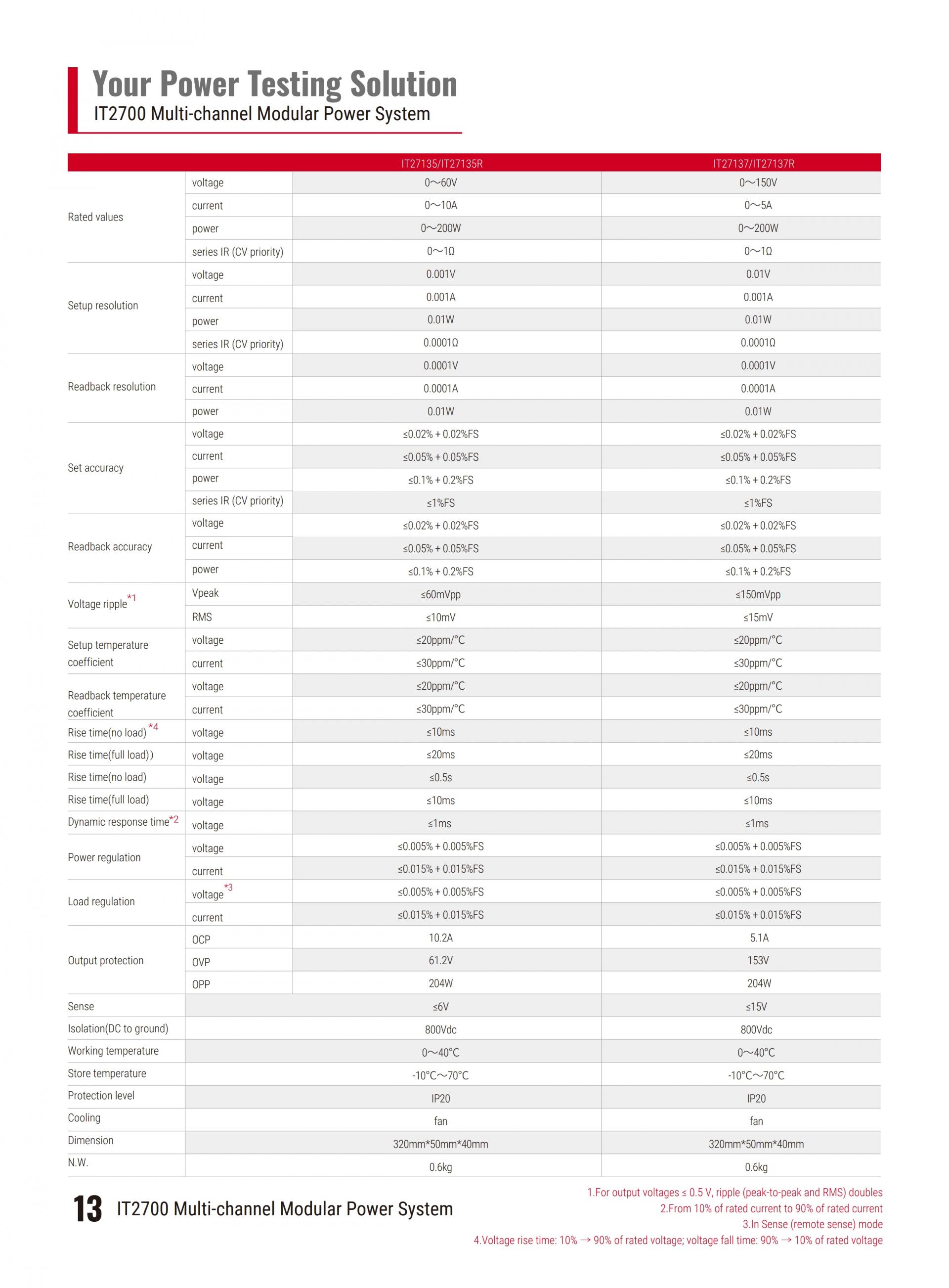

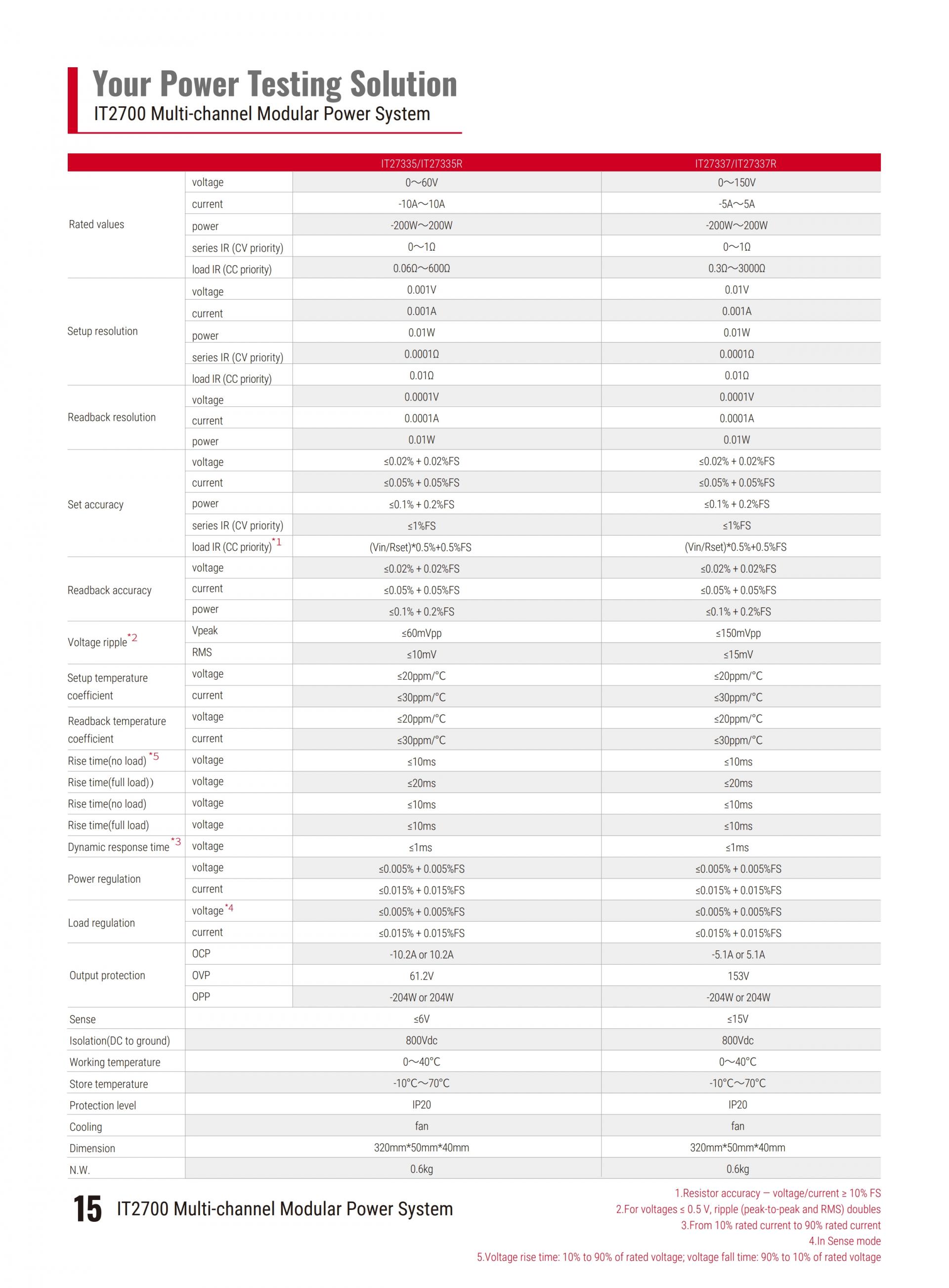

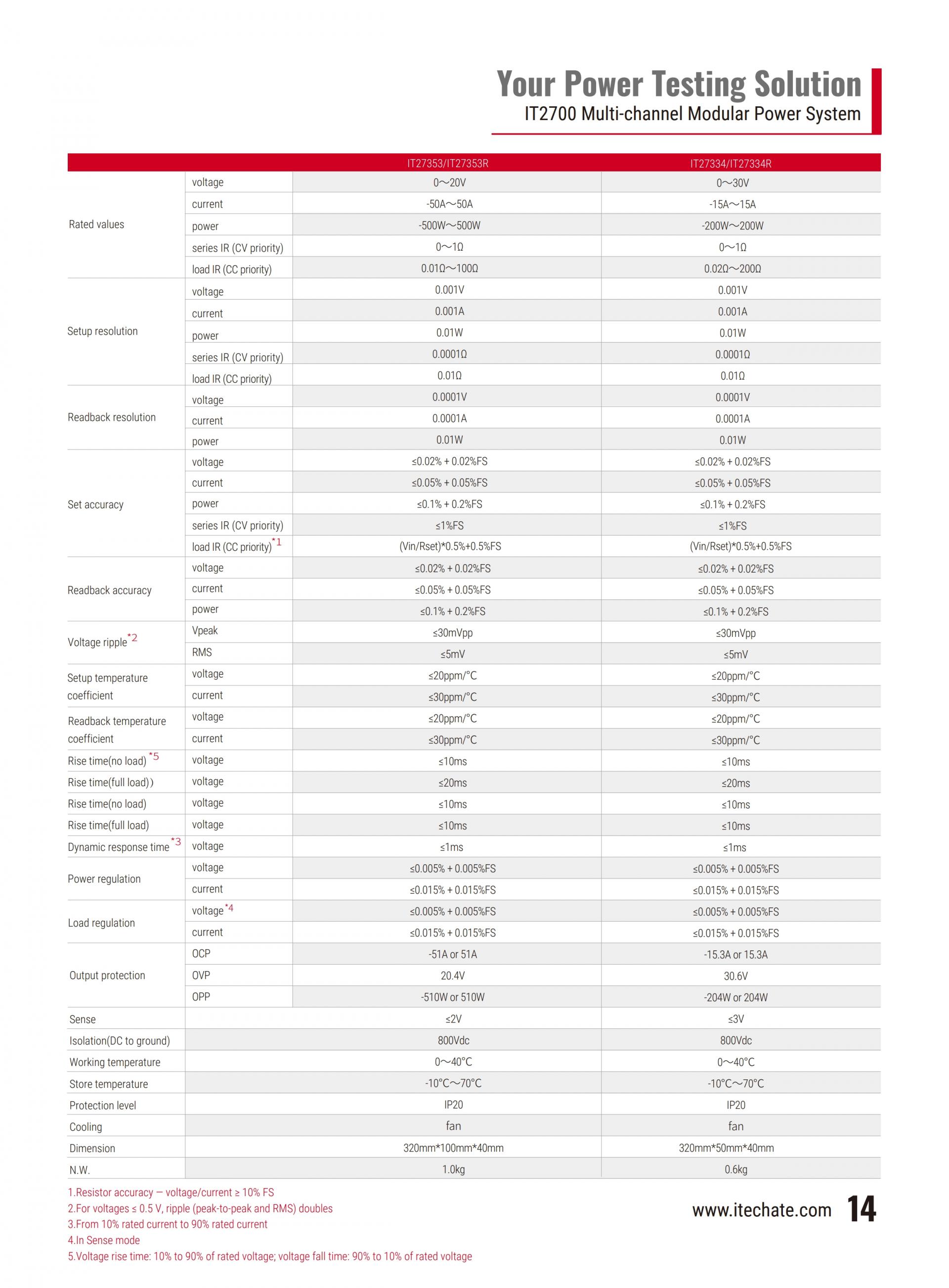

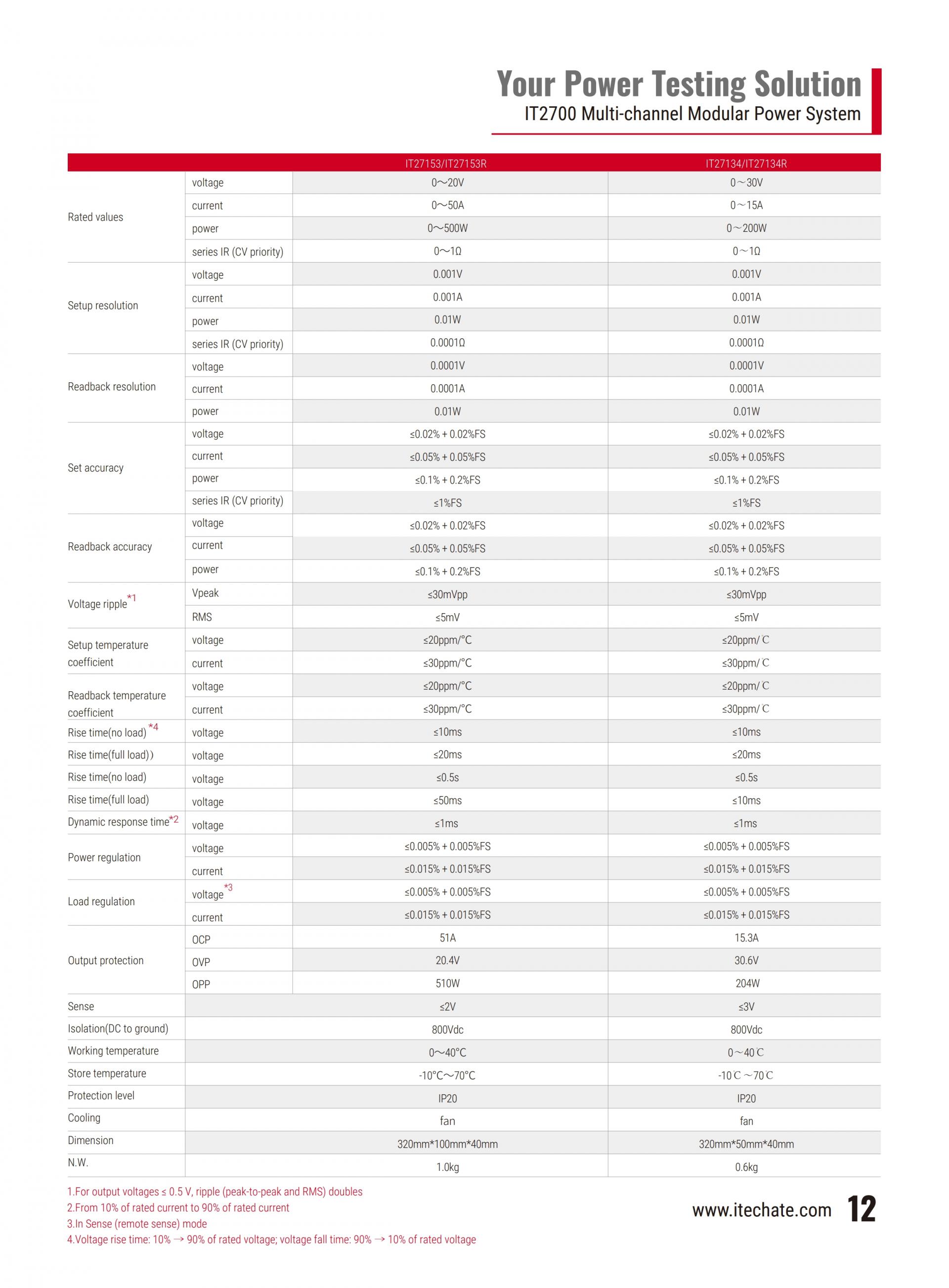

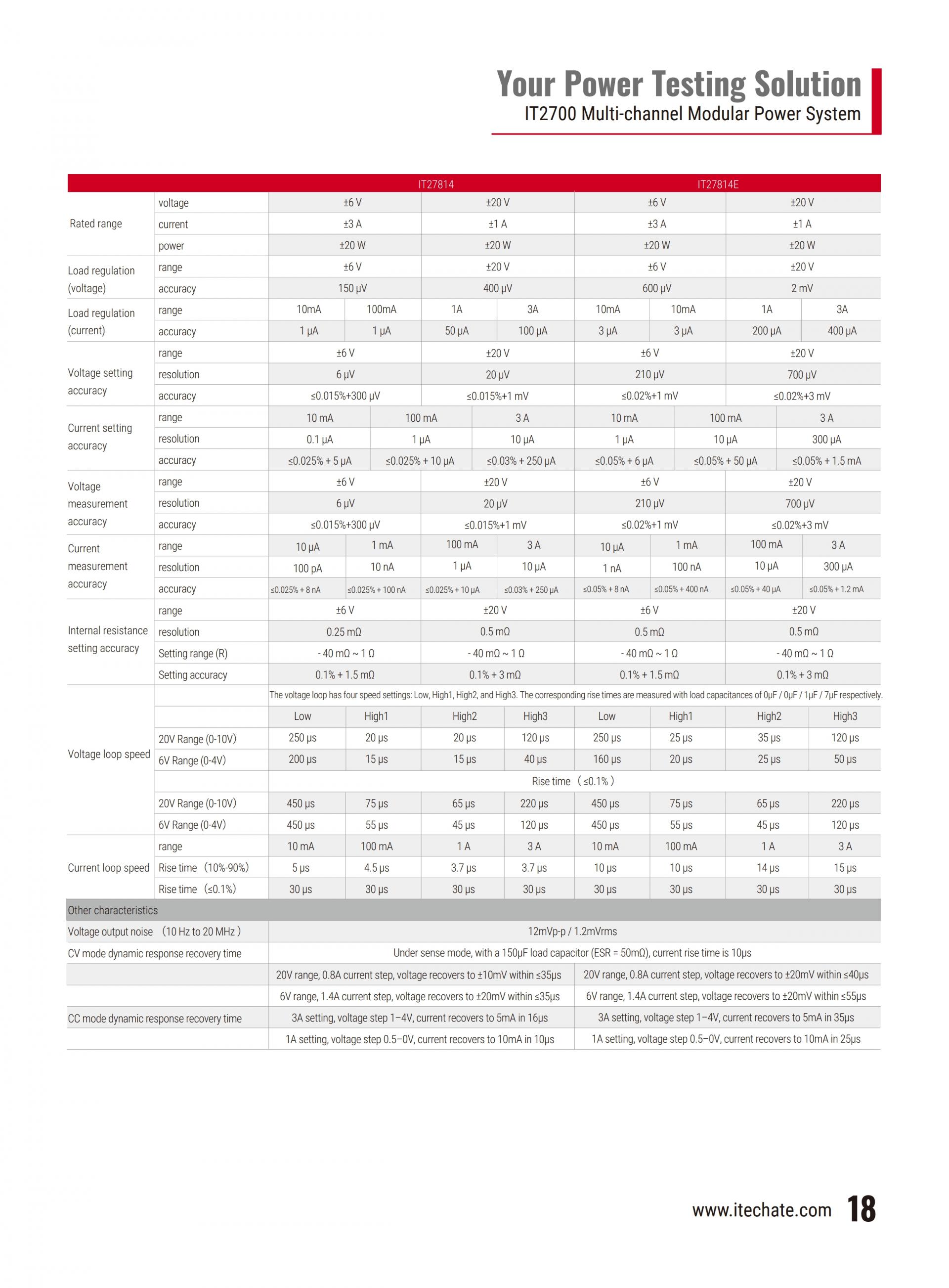

- Single module voltage up to 150V, current up to 50A, power up to 500W
- Supports synchronous control between different frames, no upper limit of channels
- Rich trigger output and input, support step trigger output, can trigger other modules (acquisition, oscilloscope, data recording, etc.)
- Measurement functions: multi-output/single-output display, supports average, minimum and maximum values of V/I/P, and calculates P, Ah and Wh for all outputs
- Output functions: list function, arbitrary waveform, sweep, arbitrary wave sequence, constant dwell arbitrary wave, load transient, battery simulation*3, battery test, output on/off serialization, Watchdog, support output coupling
- Full protection: OVP, UVP, OCP, OPP, OTP, UCP, Foldback, supports protection coupling
- Modules has anti-reverse connection protection and built-in relay

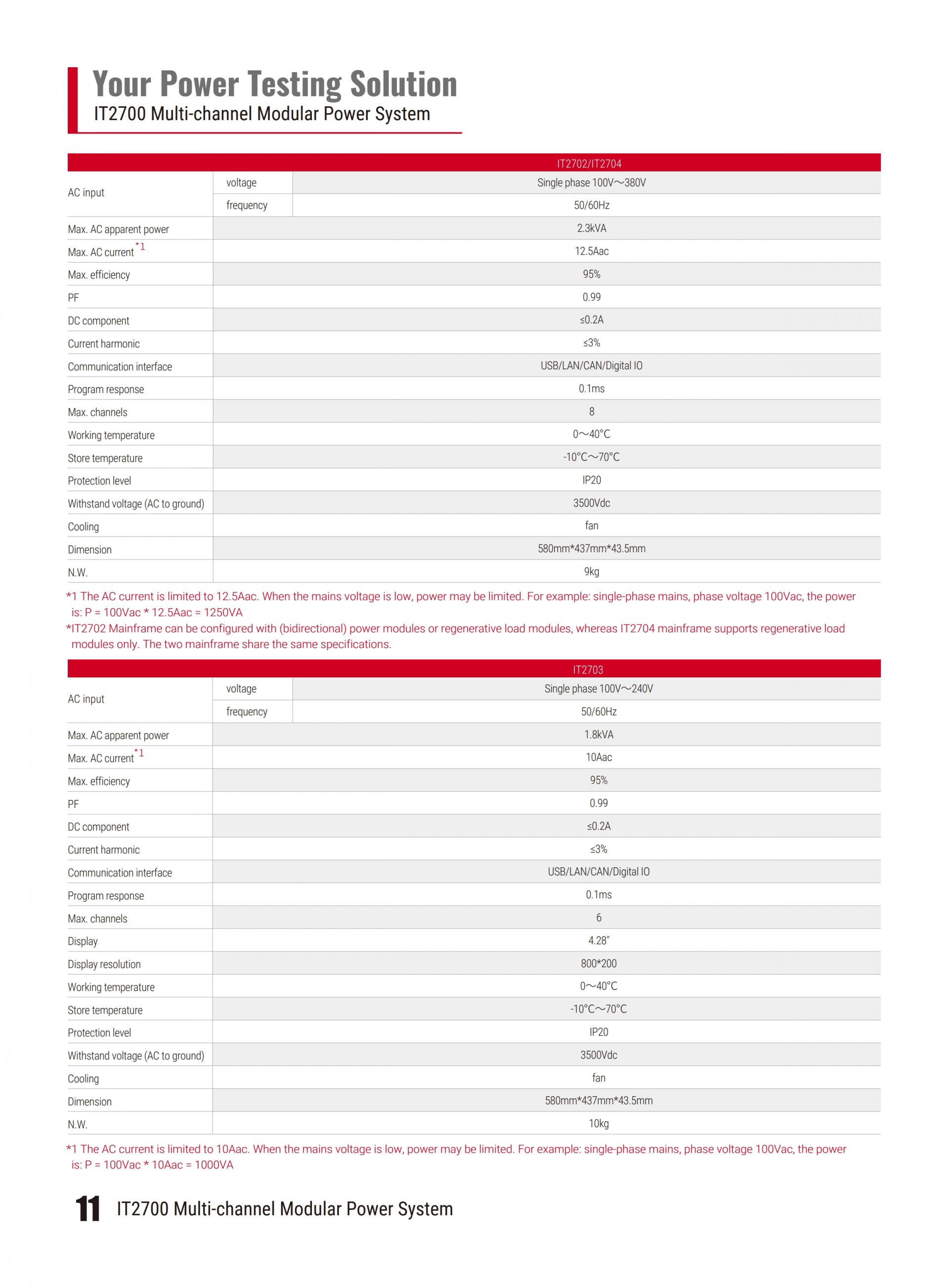

- Support Web control, use common browser to realize all functions AC input: adaptive 100-380 V ac single phase
- Built-in LAN (Rawsocket/Modbus-TCP/VNC/VXI-11/Web/Telnet), USB-TMC,USB-VCP, CAN, digital I/O, data import and export by USB and supports SCPI and Modbus protocol
*1 The oscilloscope functions of the 1U mainframe can be operated via PV2700 software.
*2 One mainframe allows two sets of master-slave parallel connections
*3 only available for bidirectional power supply modules
Functions and Advantages

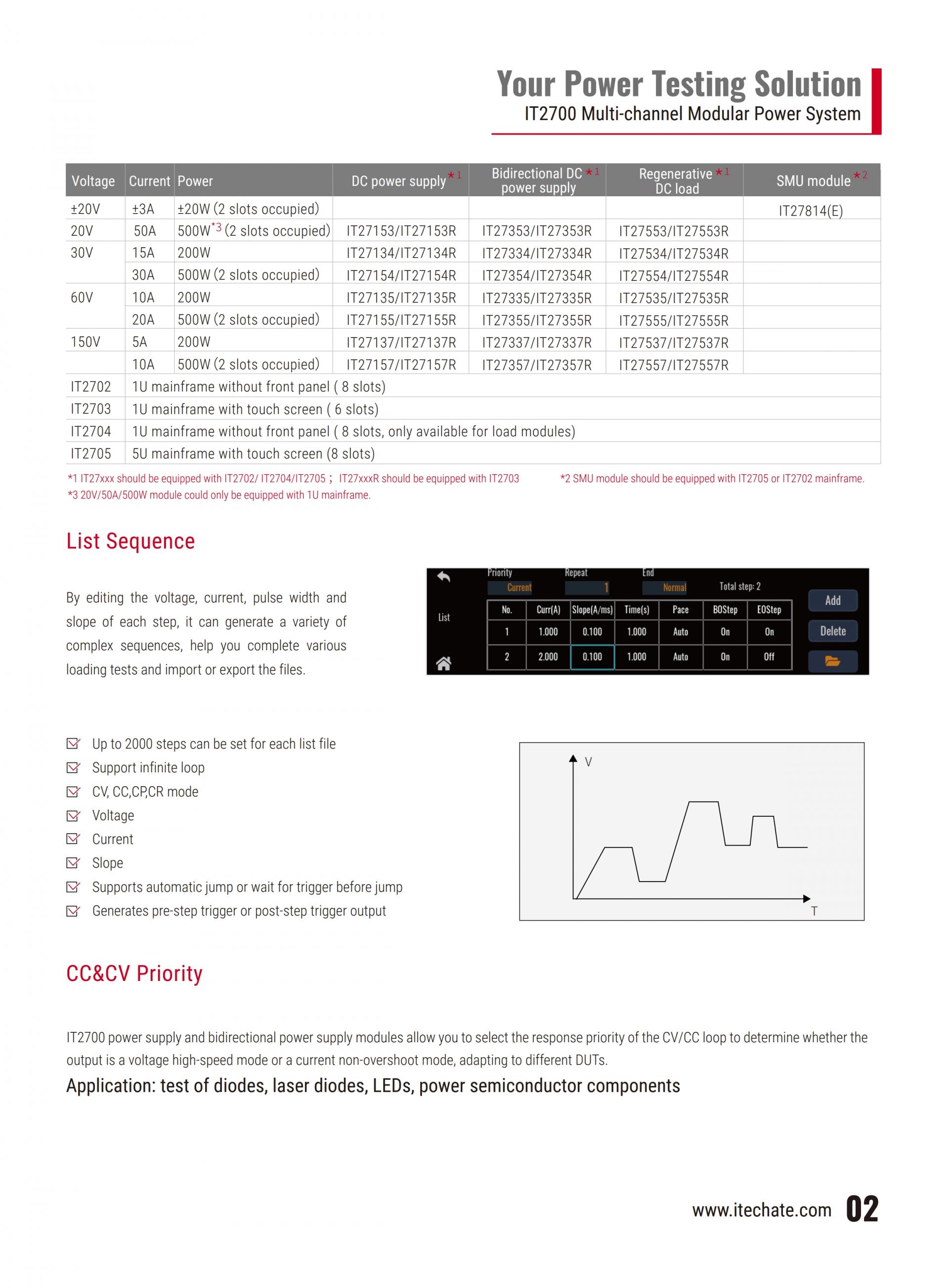

List sequence
By editing the voltage, current, pulse width and slope of each step, it can generate a variety of complex sequences, help you complete various loading tests and import or export the files.
Multiple operation modes

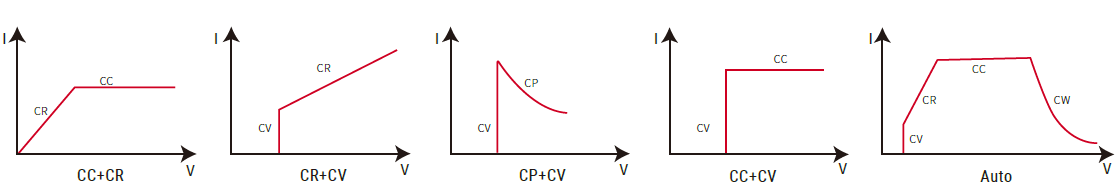

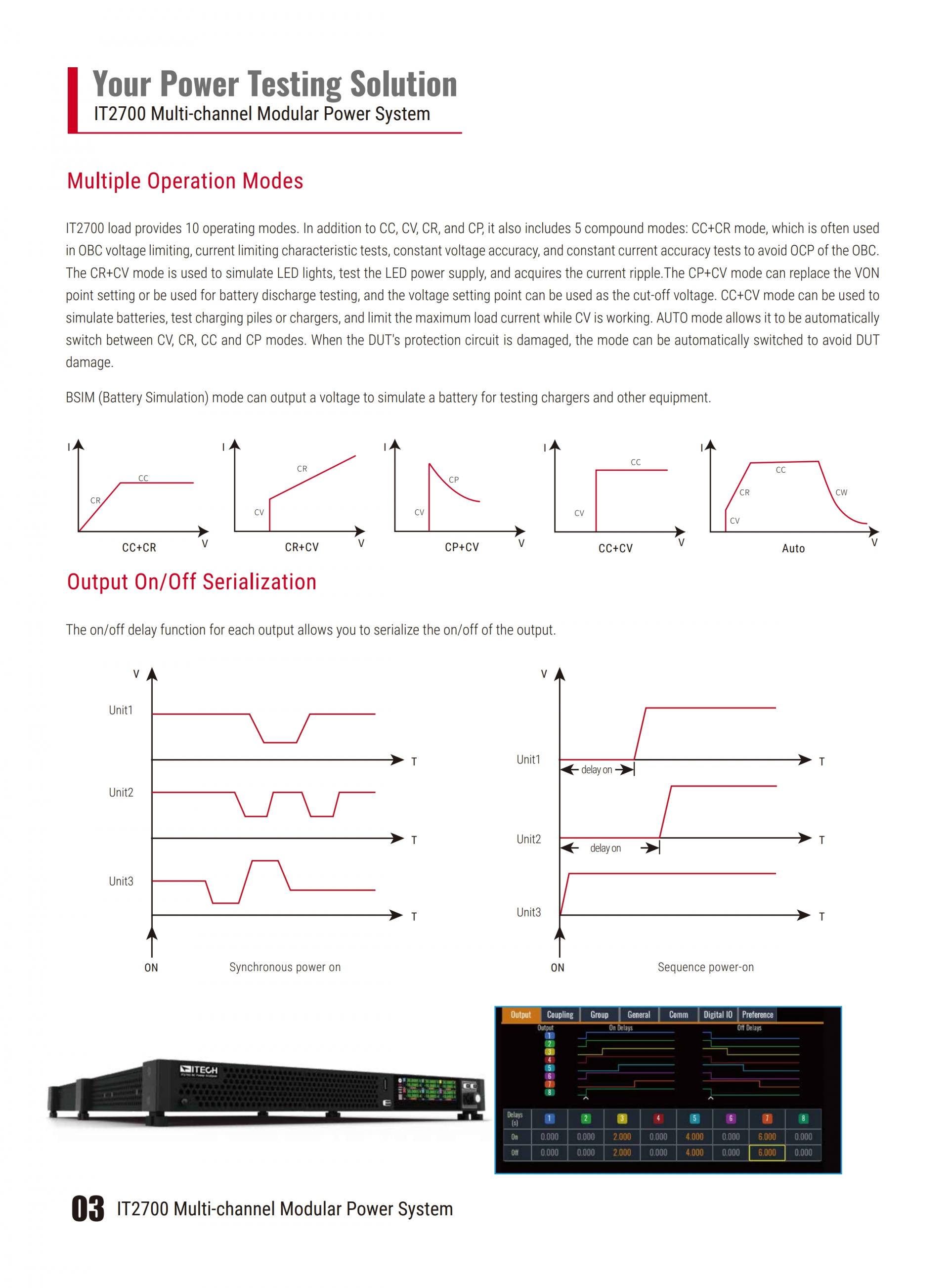

IT2700 load provides 10 operating modes. In addition to CC, CV, CR, and CP, it also includes 5 compound modes: CC+CR mode, which is often used in OBC voltage limiting, current limiting characteristic tests, constant voltage accuracy, and constant current accuracy tests to avoid OCP of the OBC. The CR+CV mode is used to simulate LED lights, test the LED power supply, and acquires the current ripple.The CP+CV mode can replace the VON point setting or be used for battery discharge testing, and the voltage setting point can be used as the cut-off voltage. CC+CV mode can be used to simulate batteries, test charging piles or chargers, and limit the maximum load current while CV is working. AUTO mode allows it to be automatically switch between CV, CR, CC and CP modes. When the DUT's protection circuit is damaged, the mode can be automatically switched to avoid DUT damage.

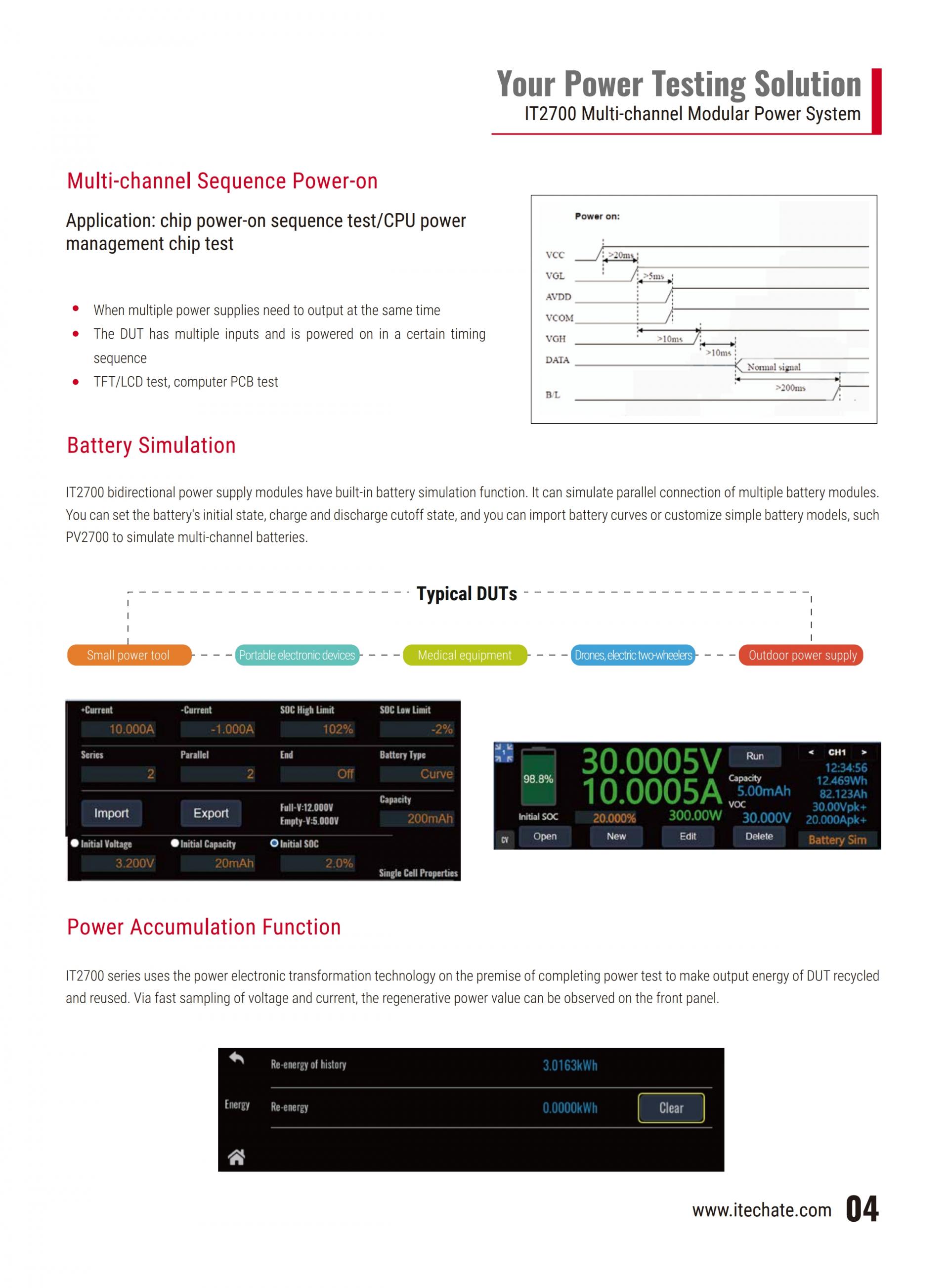

BSIM (Battery Simulation) mode can output a voltage to simulate a battery for testing chargers and other equipment.
Output on/off serialization

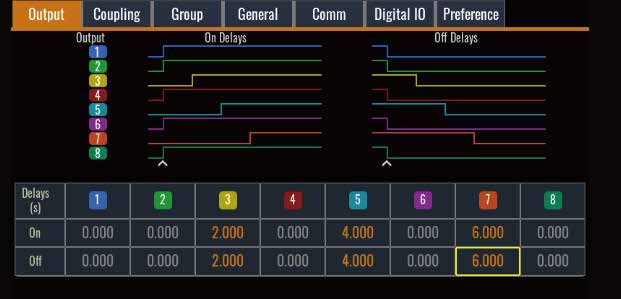

The on/off delay function for each output allows you to serialize the on/off of the output.

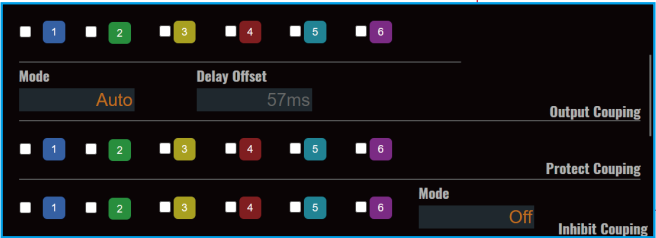

Coupling - Channel grouping function
- Grouping with different frames

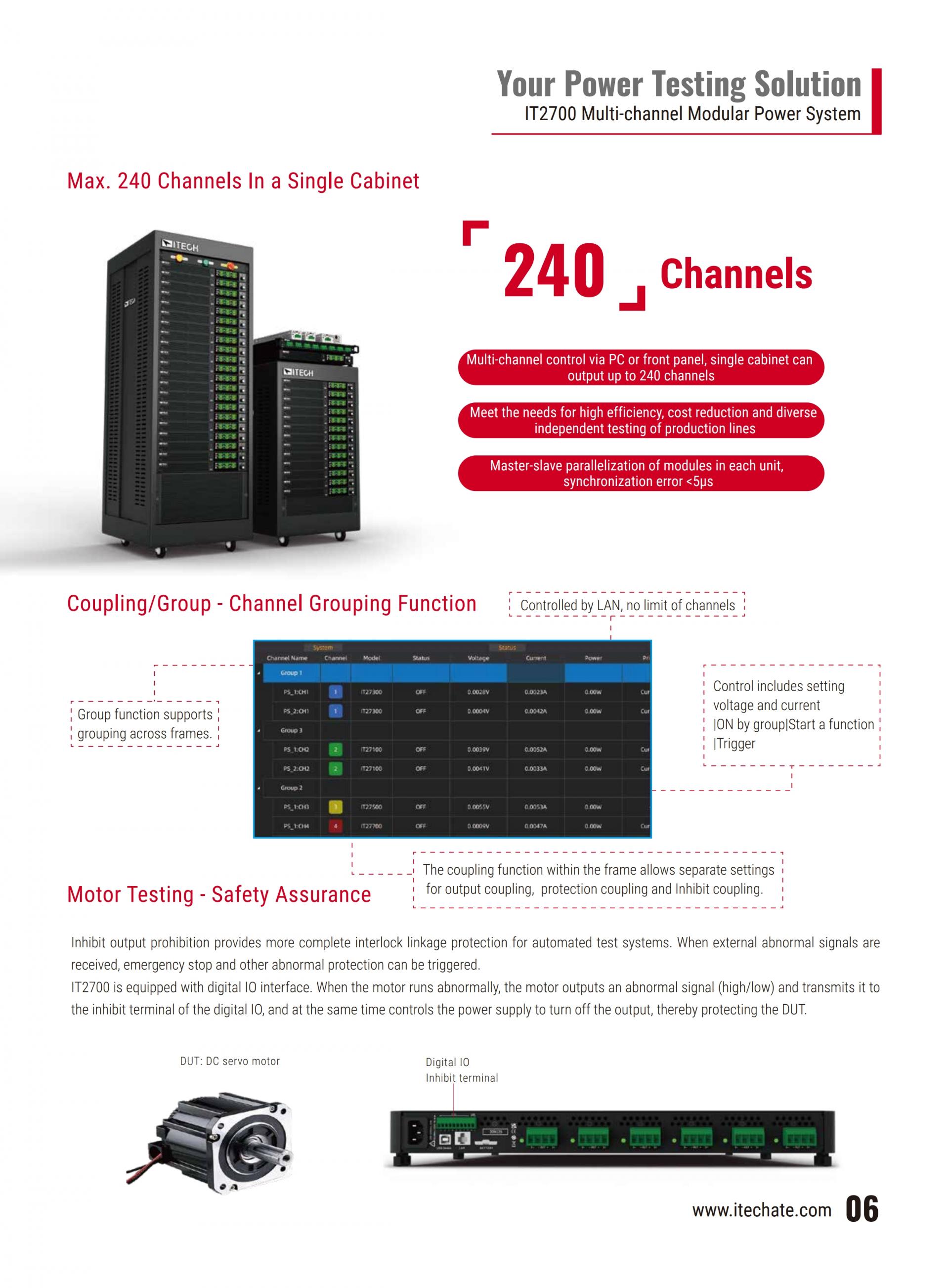

- Controlled by LAN, no limit of channels
- Control includes setting voltage and current |ON by group|Start a function |Trigger
- Output grouping, protection grouping and stop output grouping (emergency stop grouping) can be set separately

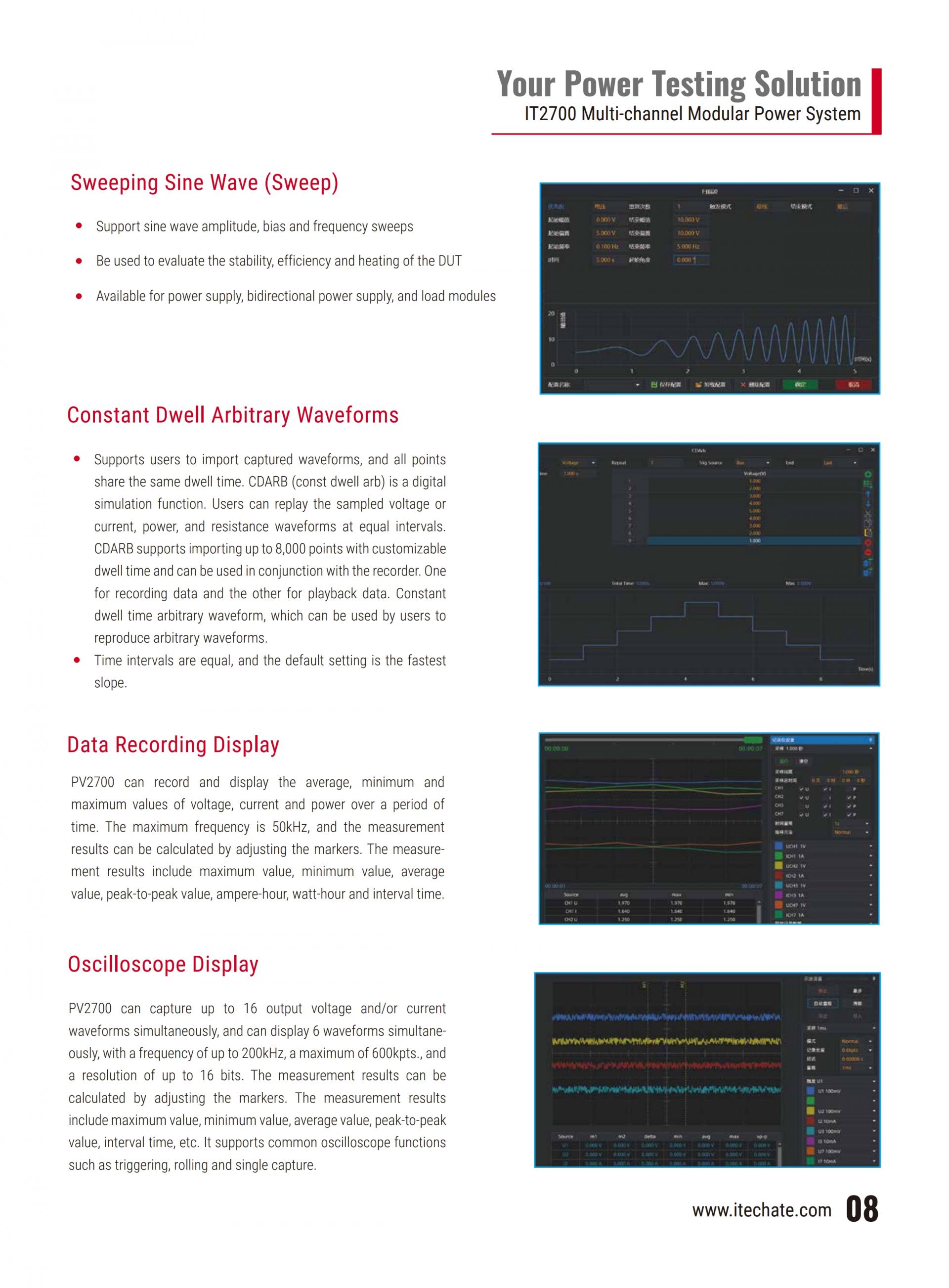

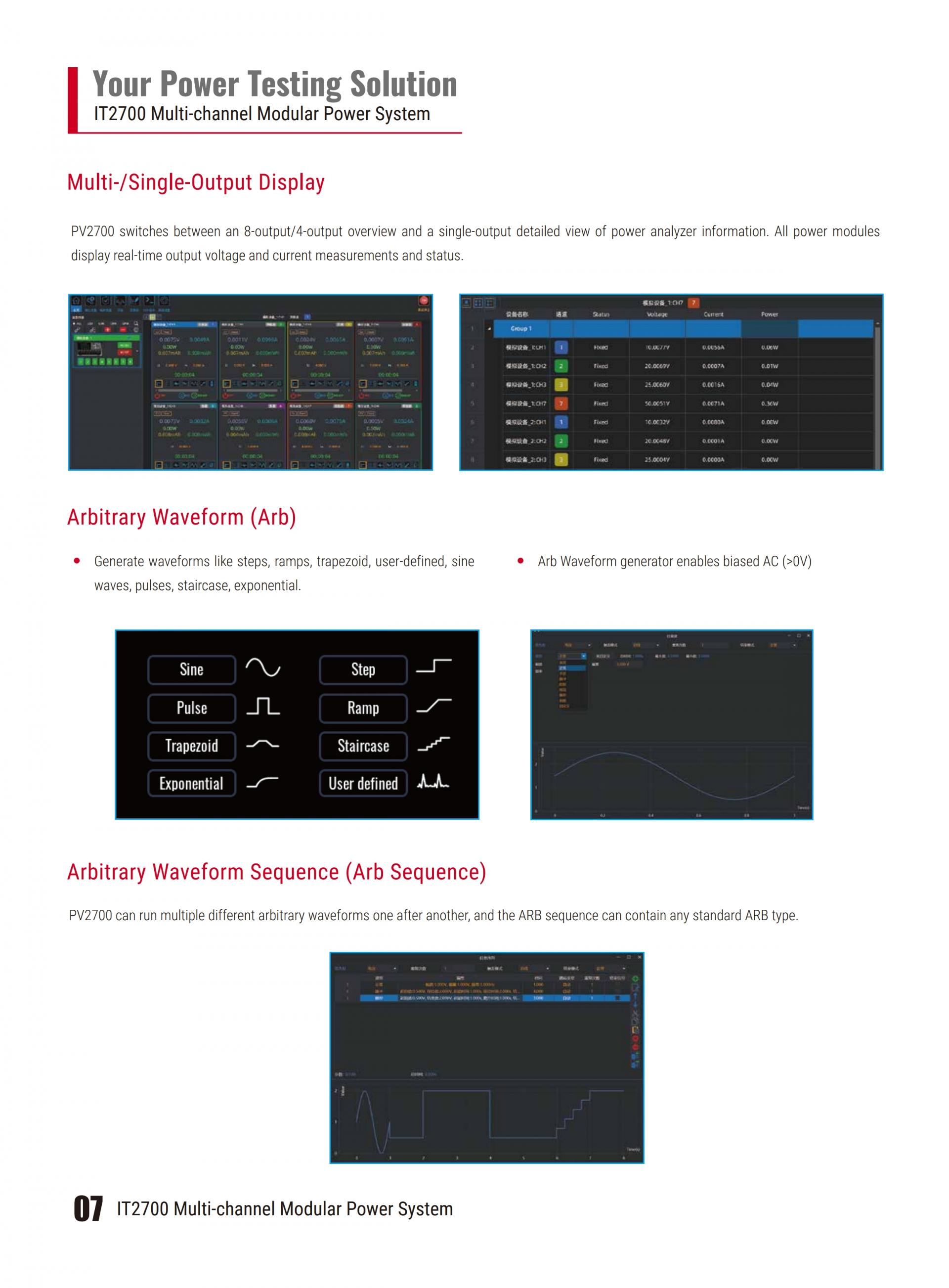

Free PC software

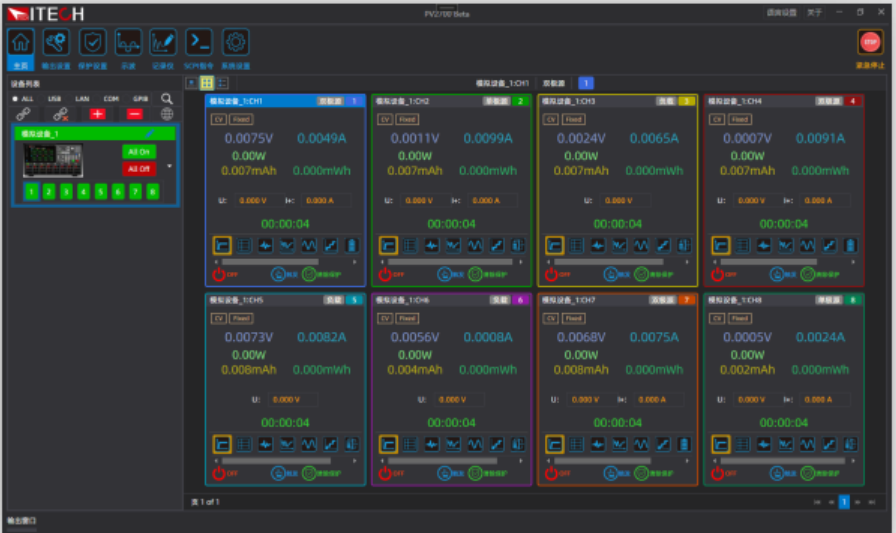

IT2700 comes with free software PV2700 and Web control functions. Both support the Windows 11 operating system. The graphical interface is more intuitive. Using the host computer software is more convenient for oscilloscope display, data recording display, battery simulation and editing of various complex waveforms.
