소형 제품의 색상 관리를 위해 설계된 새로운 고정밀 분광광도계를 소개합니다.
| 원산지 | JAPAN |
|---|---|
| 제조사 | KONICA MINOLTA |
| 브랜드 | KONICA MINOLTA |
| 무게 | 1kg |
소형 제품의 색상 관리에 적합한 고정밀 분광광도계
소형 제품의 색상 관리를 위해 설계된 새로운 고정밀 분광광도계를 소개합니다.

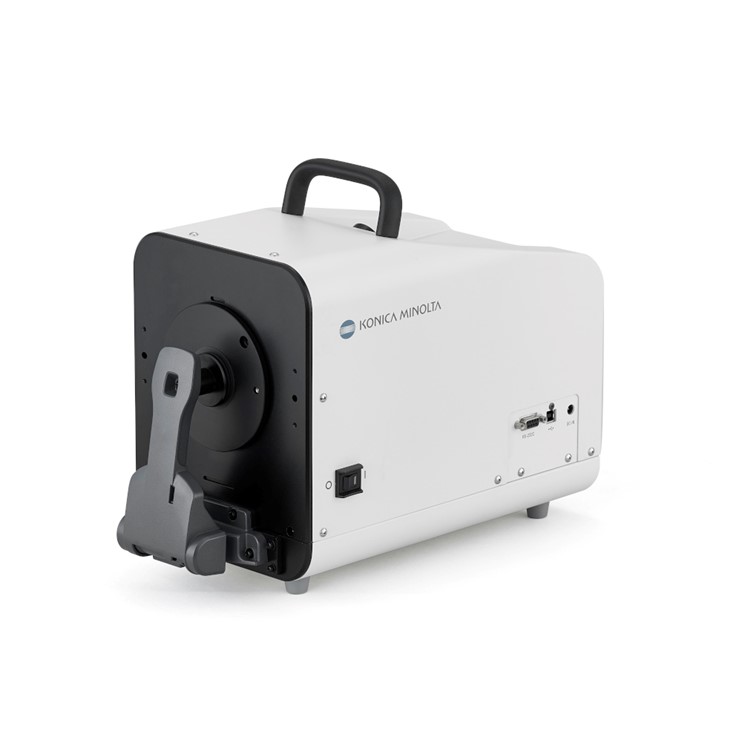

CF-300 분광광도계는 작은 측정 영역, 비접촉식 측정, 빠르고 정확한 측정 기능을 갖추고 있습니다.
CF-300 분광광도계는 0.75 x 1 mm만큼 작은 영역까지 측정할 수 있어 시계 다이얼, 밴드, 스마트폰 부품, 안경테, 지퍼, 단추, 만년필 등과 같이 측정 면적이 작은 제품을 측정하는 데 이상적입니다. 뷰파인더를 통해 측정 부위를 정확하게 정렬할 수 있어 측정 오차를 효과적으로 줄일 수 있습니다.
CF-300 분광광도계는 적분구를 사용하여 대상으로부터 1mm 거리에서도 색상을 측정할 수 있는 비접촉식 측정 방식을 제공합니다.
CF-300 분광광도계는 측정당 약 0.1초밖에 걸리지 않아 최소 0.2초 간격으로 연속 측정이 가능하며, 초당 5회 측정*이 가능합니다. 생산 라인에서 고속 비접촉 측정을 통해 품질 관리 효율을 향상시킬 수 있습니다.
* 고속 측정 용도로 사용하려면 고객의 회선 환경에 맞게 소프트웨어를 맞춤 설정해야 합니다.
A High-precision spectrophotometer suitable for color management of small products.

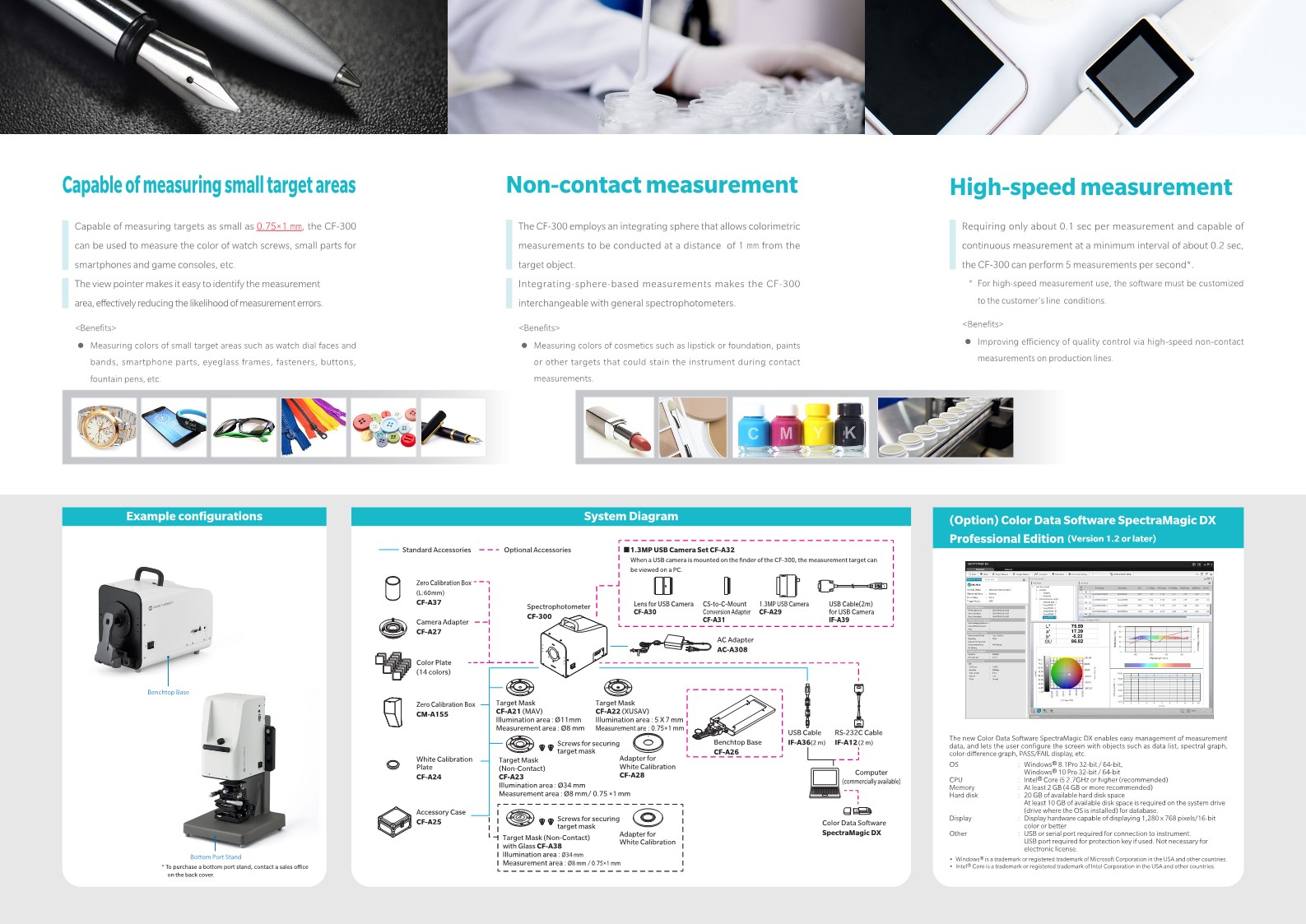

Introducing a new high-precision spectrophotometer designed for color management of small products. The Spectrophotometer CF-300 has the ability to measure small target areas, non-contact measurement, fast and accurate measurement.
The Spectrophotometer CF-300 is capable of measuring areas as small as 0.75 x 1 mm, making it idea to measure products with small measuring areas, such as watch dials, bands, smartphone parts, eyeglass frames, zippers, buttons, fountain pens, etc. With a viewfinder, you can accurately align the measurement part, effectively reducing measurement errors.
The Spectrophotometer CF-300 allows for non-contact measurement, by using an integrating sphere capable of measuring color even at a distance of 1 mm from the target.
The Spectrophotometer CF-300 requires only about 0.1 sec per measurement making it capable of continuous measurement at a minimum interval of about 0.2 sec, the CF-300 can perform 5 measurements per second*. Improving efficiency of quality control via high-speed non-contact measurements on production lines.
* For high-speed measurement use, the software must be customized to the customer’s line conditions.

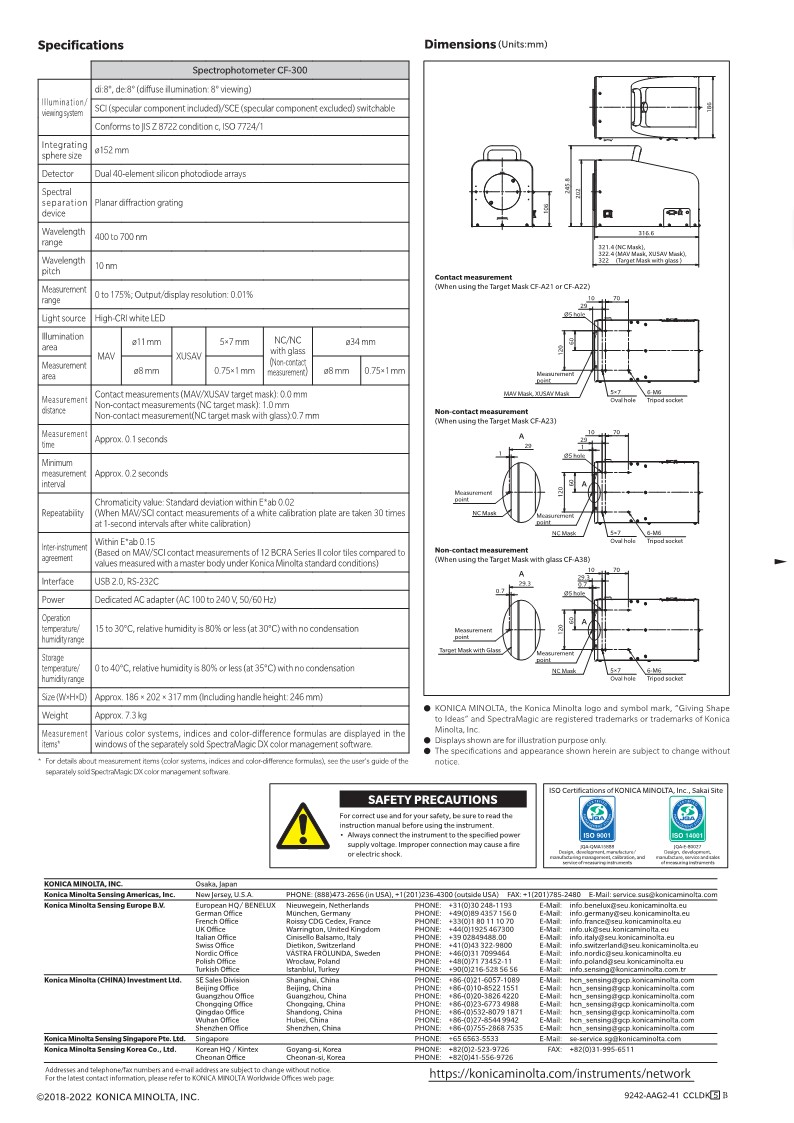

Specifications
| Spectrophotometer CF-300 | |||||||
| Illumination/ viewing system | di:8°, de:8° (diffuse illumination: 8° viewing) | ||||||
| SCI (specular component included)/SCE (specular component excluded) switchable | |||||||
| Conforms to JIS Z 8722 condition c, ISO 7724/1 | |||||||
| Integrating sphere size | ø152 mm | ||||||
| Detector | Dual 40-element silicon photodiode arrays | ||||||
| Spectral separation device | Planar diffraction grating | ||||||
| Wavelength range | 400 -700 nm | ||||||
| Wavelength pitch | 10 nm | ||||||
| Measurement range | 0 -175%; Output/display resolution: 0.01% | ||||||
| Light source | High-CRI white LED | ||||||
| Illumination area | MAV | ø11 mm | XUSAV | 5×7 mm | NC (Non-contact measurement） | ø34 mm | |
| Measurement area | ø8 mm | 0.75×1 mm | ø8 mm | 0.75×1 mm | |||
| Measurement distance | Contact measurements (MAV/XUSAV target mask): 0.0 mm Non-contact measurements (NC target mask): 1.0 mm | ||||||
| Measurement time | Approx. 0.1 seconds | ||||||
| Minimum measurement interval | Approx. 0.2 seconds | ||||||
| Repeatability | Chromaticity value: Standard deviation within E*ab 0.02 (When MAV/SCI contact measurements of a white calibration plate are taken 30 times at 1-second intervals after white calibration) | ||||||
| Inter-instrument agreement | Within E*ab 0.15 (Based on MAV/SCI contact measurements of 12 BCRA Series II color tiles compared to values measured with a master body under Konica Minolta standard conditions) | ||||||
| Interface | USB 2.0, RS-232C | ||||||
| Power | Dedicated AC adapter (AC 100 to 240 V, 50/60 Hz) | ||||||
| Operation temperature/humidity range | 15 – 30°C, relative humidity is 80% or less (at 30°C) with no condensation | ||||||
| Storage temperature/humidity range | 0 – 40°C, relative humidity is 80% or less (at 35°C) with no condensation | ||||||
| Size (W×H×D) | Approx. 186 × 202 × 317 mm (Including handle height: 246 mm) | ||||||
| Weight | Approx. 7.3 kg | ||||||
| Measurement items* | Various color systems, indices and color-difference formulas are displayed in the windows of the separately sold SpectraMagic color management software. | ||||||
For details about measurement items (color systems, indices and color-difference formulas), see the user’s guide of the separately sold SpectraMagic color management software.
