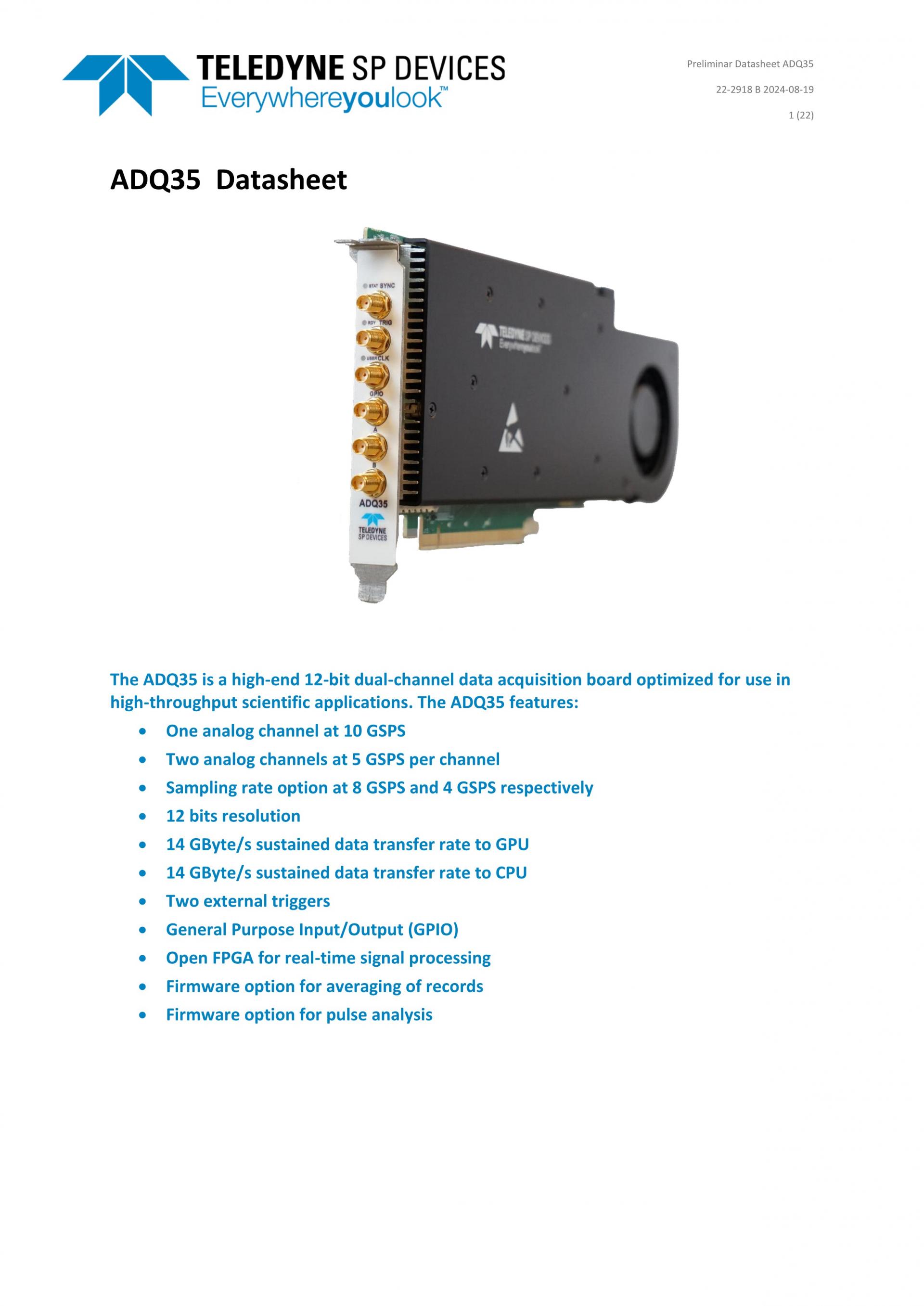

ADQ35 offers a two-channel configuration with 5 GSPS sampling rate or single-channel at 10 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ35 supports peer-to-peer streaming of up to 14 Gbyte/s either to the host PC or to graphics processing units (GPUs).
| 원산지 | SWEDEN |
|---|---|
| 제조사 | SP DEVICES |
| 브랜드 | SP DEVICES |
| 무게 | 1kg |
Description
ADQ35 offers a two-channel configuration with 5 GSPS sampling rate or single-channel at 10 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard Xilinx Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ35 supports peer-to-peer streaming of up to 14 Gbyte/s either to the host PC or to graphics processing units (GPUs).

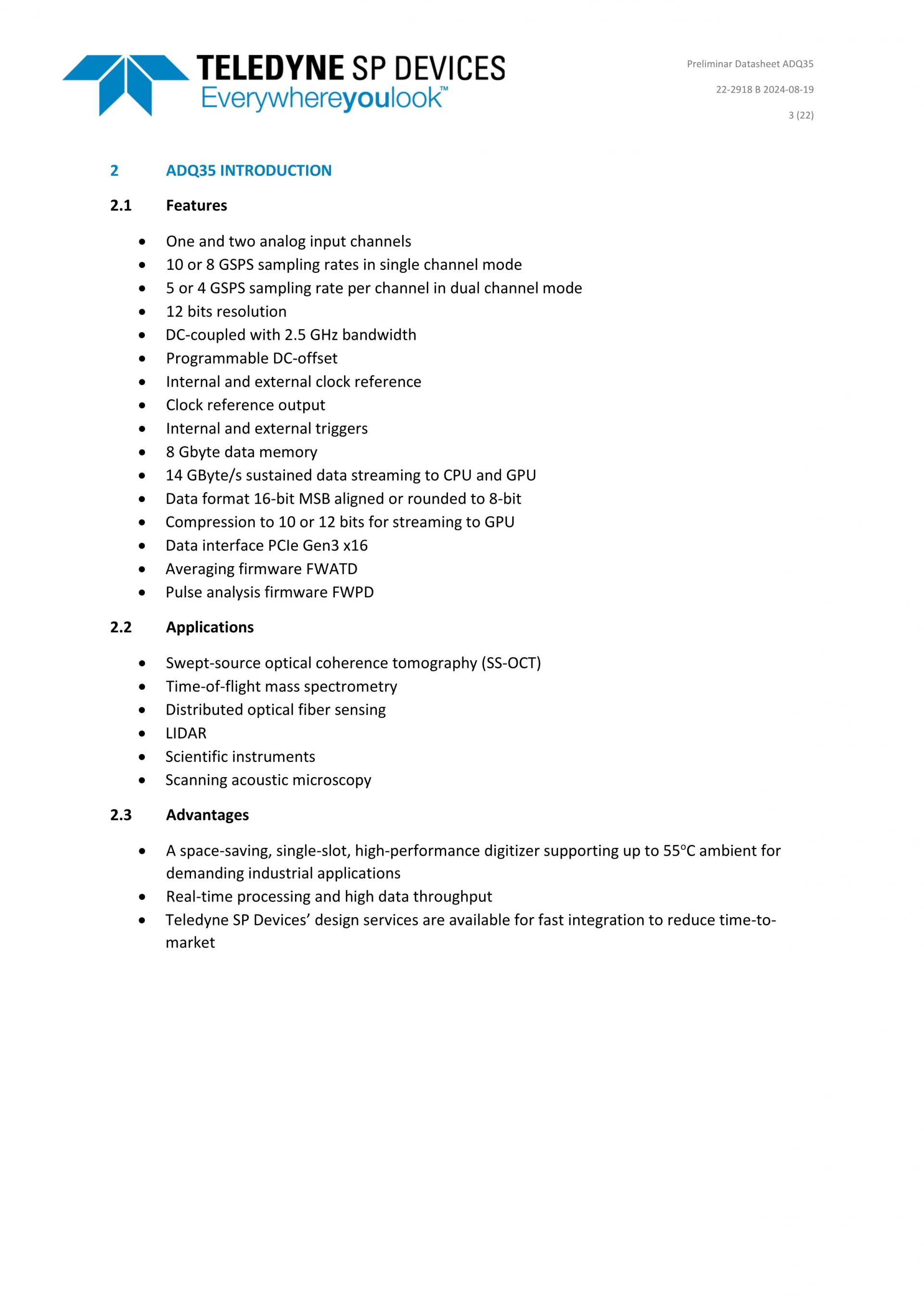

Applications
- Swept-Source Optical Coherence Tomography (SS-OCT)
- Time-of-Flight Mass Spectrometry
- Distributed Fiber Optical Sensing
- LiDAR
- Scientific instruments
- Scanning acoustic microscopy
- ATE
