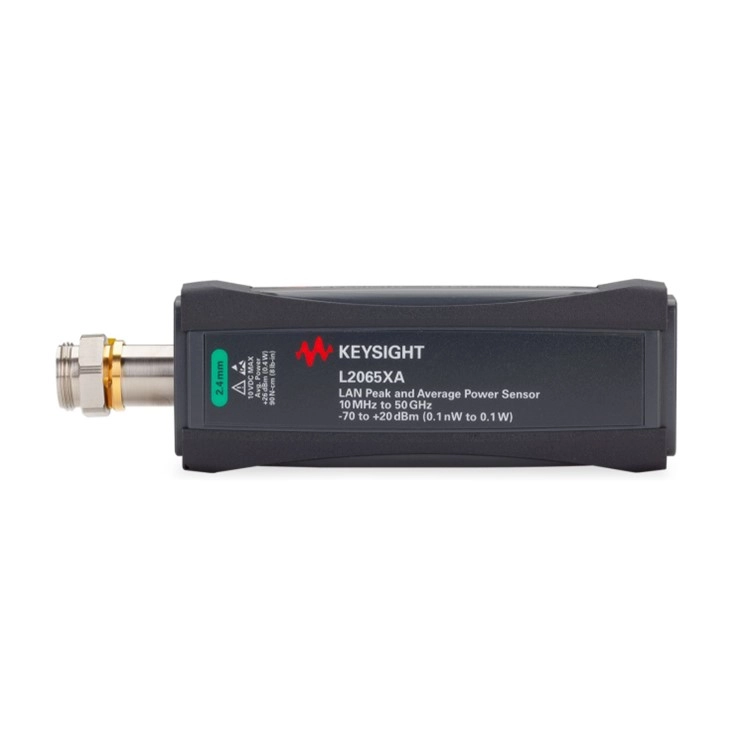

키사이트 ・ KEYSIGHT L2065XA 10 MHz to 50/53 GHz LAN 넓은 동적범위 피크&평균 파워센서 L2065XA 10 MHz to 50/53 GHz LAN Wide Dynamic Range Peak and Average Power Sensor HIGHLIGHTS Frequency range of 10 MHz – 50 GHz / 10 MHz – 53 GHz (Option 053) LAN connectivity with wide dynamic range of -70 to +20 dBm (frequency 10 MH
| 원산지 | USA |
|---|---|
| 제조사 | KEYSIGHT |
| 브랜드 | KEYSIGHT |
| 무게 | 1kg |
HIGHLIGHTS
- Frequency range of 10 MHz – 50 GHz / 10 MHz – 53 GHz (Option 053)
- LAN connectivity with wide dynamic range of -70 to +20 dBm (frequency 10 MHz – 50 GHz) / -70 to 0 dBm (frequency > 50 GHz to 53 GHz) for small signal measurements
- Fast real time measurement of 50,000 readings/sec
- Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage
- Real-time measurement with zero dead time to ensure every single continuous pulse is measured
- Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements
- Internal zero and automatic calibration saves time and reduces measurement uncertainty
- A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences.
