KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP
| 원산지 | FRANCE |
|---|---|
| 제조사 | KIMO INSTRUMENTS – SAUERMANN GROUP |
| 브랜드 | KIMO® |
| 무게 | 1kg |
KIMO® – KIMO INSTRUMENTS ・ SAUERMANN GROUP

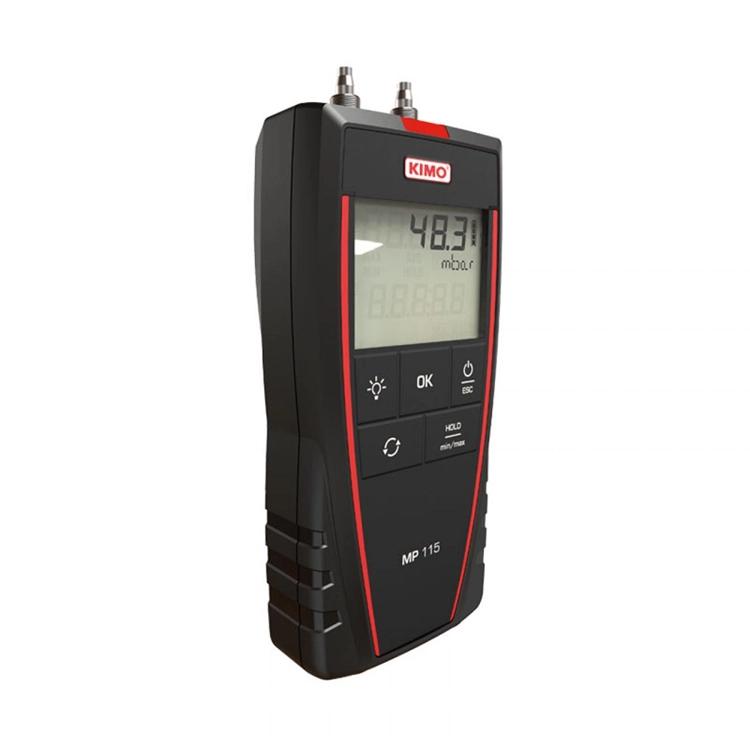

MP 115
- 디지털차압계, 미압계, 디지털압력게이지
- 음압측정기, 압력/차압 측정, 음압계, 양압계
- HOLD / MIN / MAX
- 단위선택 가능
- 백라이트 기능
- 손쉬운 사용법
키모 MP115 키모 MP-115 키모 MP 115 키모 KIMO MP115 KIMO MP-115 KIMO MP 115 KIMO
제품 개요
측정단위
kPa, inWg, mbar, mmHg, PSI
측정범위
0 ~ ±500mbar
정밀도
±0.5% 측정값의 ±0.5mbar
분해능
0.1mbr
Product info
MEASURE DETAILS
Units
Pa, kPa, bar, mbar, inWg, mmH2O, mmHg, daPa, psi
MEASURING RANGES
MP 110
-1000.00 Pa ... 1000.00 Pa
MP 111
-1000.00 mmH2O ... 1000.00 mmH2O
MP 112
-2000.00 mbar ... 2000.00 mbar
MP 115
-500.00 mbar ... 500.00 mbar
TECHNICAL DETAILS
Parameters
Differential pressure
Displays
4-line display
IP Protection
IP 54
Battery life
180 hours
Standards
2011/65/EU RoHS II
2012/19/UE DEEE
2014/30 UE EMC
2014/35/EU Low Voltage
2012/19/UE DEEE
2014/30 UE EMC
2014/35/EU Low Voltage
Power supply
4 piles AAA LR03 1.5V
Probe type
Built-in probe
Protective cover
No
Interchangeable module
No
INSTRUMENT DIMENSIONS
Length
71.5 mm
Width
34.2 mm
Height
147.9 mm
Weight
220 g
OPERATING TEMPERATURE
Min
0.00 °C
Max
50.00 °C
STORAGE TEMPERATURE
Min
-20.00 °C
Max
80.00 °C
