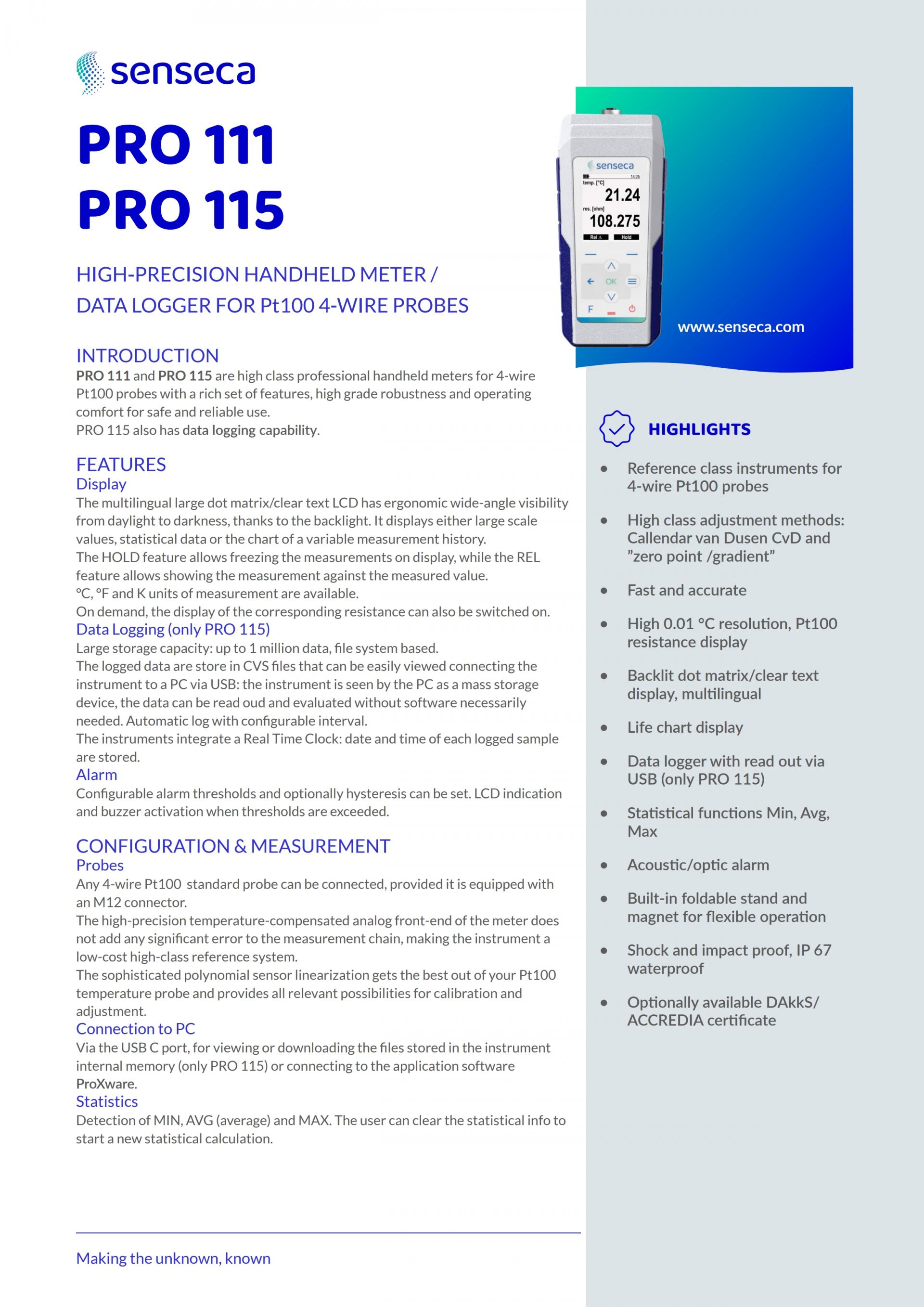

PRO 111 and PRO 115 are high class professional handheld meters for 4-wire Pt100 probes with a rich set of features, high grade robustness and operating comfort for safe and reliable use.
| 원산지 | GERMANY |
|---|---|
| 제조사 | SENSECA |
| 브랜드 | SENSECA |
| 무게 | 1kg |
INTRODUCTION
PRO 111 and PRO 115 are high class professional handheld meters for 4-wire Pt100 probes with a rich set of features, high grade robustness and operating comfort for safe and reliable use.
PRO 115 also has data logging capability.
FEATURES
Display
The multilingual large dot matrix/clear text LCD has ergonomic wide-angle visibility from daylight to darkness, thanks to the backlight.
It displays either large scale values, statistical data or the chart of a variable measurement history.
The HOLD feature allows freezing the measurements on display, while the REL feature allows showing the measurement against the measured value.
°C, °F and K units of measurement are available.
On demand, the display of the corresponding resistance can also be switched on.
Data Logging (only PRO 115)
Large storage capacity: up to 1 million data, file system based.
The logged data are store in CVS files that can be easily viewed connecting the instrument to a PC via USB: the instrument is seen by the PC as a mass storage device, the data can be read oud and evaluated without software necessarily needed.
Automatic log with configurable interval.
The instruments integrate a Real Time Clock: date and time of each logged sample are stored.
Alarm
Configurable alarm thresholds and optionally hysteresis can be set.
LCD indication and buzzer activation when thresholds are exceeded.
CONFIGURATION & MEASUREMENT
Probes
Any 4-wire Pt100 standard probe can be connected, provided it is equipped with an M12 connector.
The high-precision temperature-compensated analog front-end of the meter does not add any significant error to the measurement chain, making the instrument a low-cost high-class reference system.
The sophisticated polynomial sensor linearization gets the best out of your Pt100 temperature probe and provides all relevant possibilities for calibration and adjustment.
Connection to PC
Via the USB C port, for viewing or downloading the files stored in the instrument internal memory (only PRO 115) or connecting to the application software ProXware.
Statistics
Detection of MIN, AVG (average) and MAX. The user can clear the statistical info to start a new statistical calculation.
