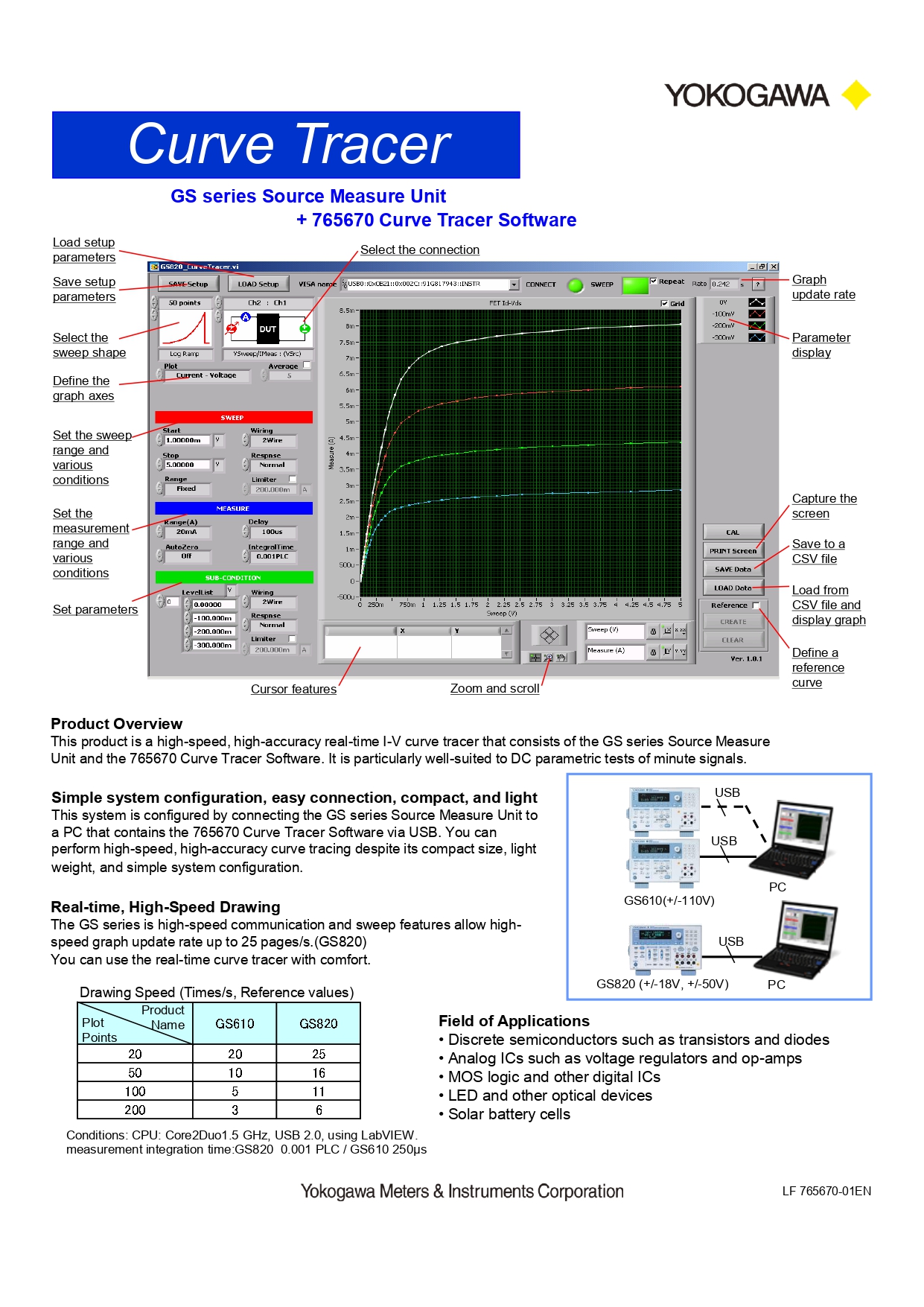

Simple system configuration, easy connection, compact, and light
| 원산지 | JAPAN |
|---|---|
| 제조사 | YOKOGAWA |
| 브랜드 | YOKOGAWA |
| 무게 | 1kg |
* 모델명 : 765670
Simple system configuration, easy connection, compact, and light

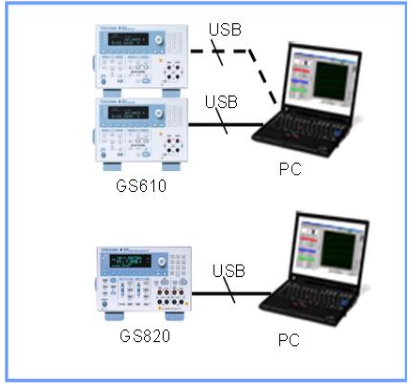

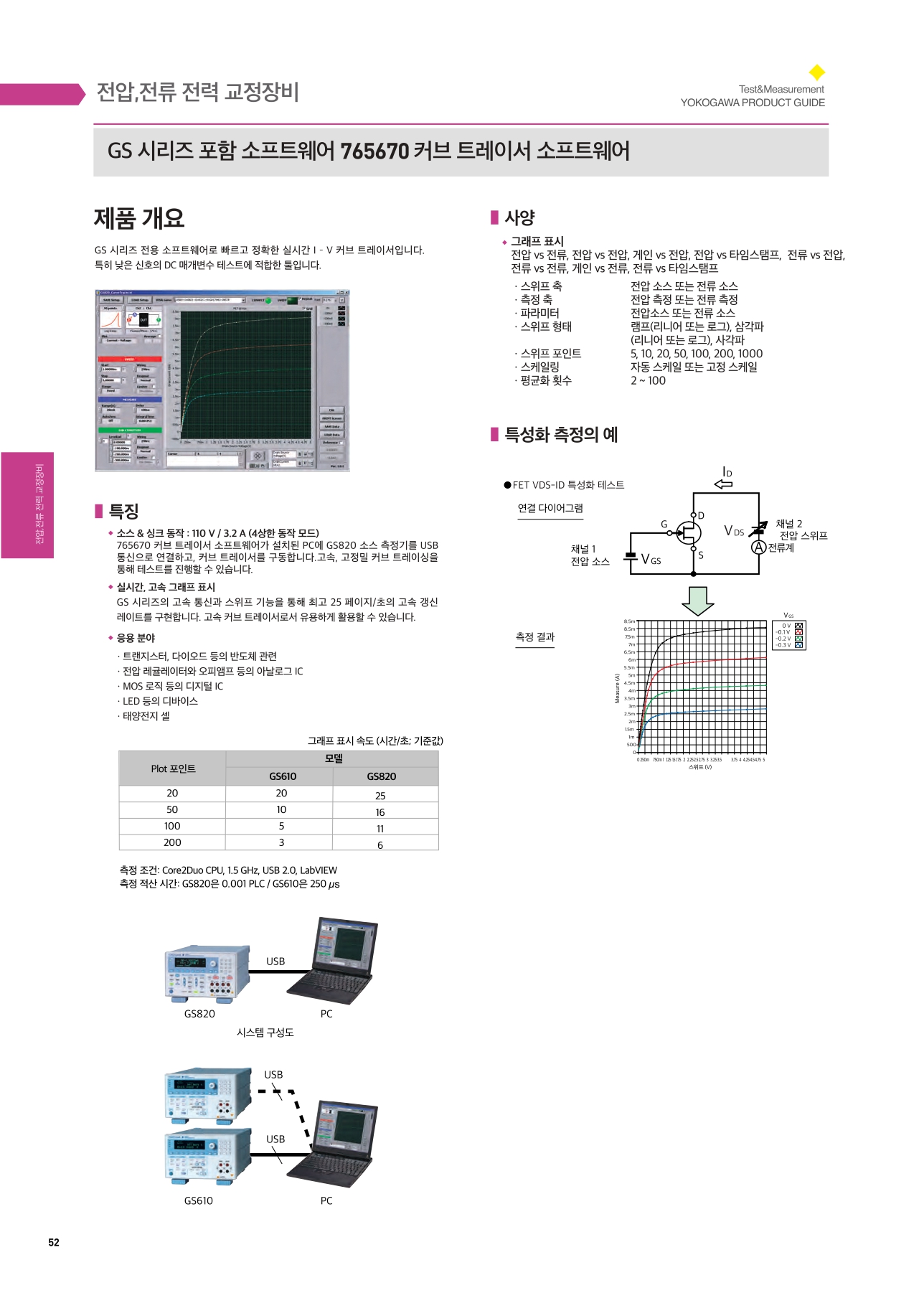

This system is configured by connecting the GS series Source Measure Unit to a PC that contains the 765670 Curve Tracer Software via USB. You can perform high-speed, high-accuracy curve tracing despite its compact size, light weight, and simple system configuration.
Go to the GS820 Source Measure Unit
Go to the GS610 Source Measure Unit
Real-time, High Speed Drawing
The GS series is high-speed communication and sweep features allow high-speed graph update rate up to 20 pages/s. You can use the real-time curve tracer with comfort.
Drawing Speed (times/s Reference Values)
Product NameGS610GS820Plot Points
| 20 | 20 | 25 |
| 50 | 10 | 16 |
| 100 | 5 | 11 |
| 200 | 3 | 6 |
Conditions: CPU: Core2Duo1.5 GHz, USB 2.0, using LabVIEW.
measurement integration time: GS820 0.001 PLC / GS610 250μ's
Field of Applications
- Discrete semiconductors such as transistors and diodes
- Analog ICs such as voltage regulators and op-amps
- MOS logic and other digital ICs
- LEDs and other optical devices
- Solar battery cells

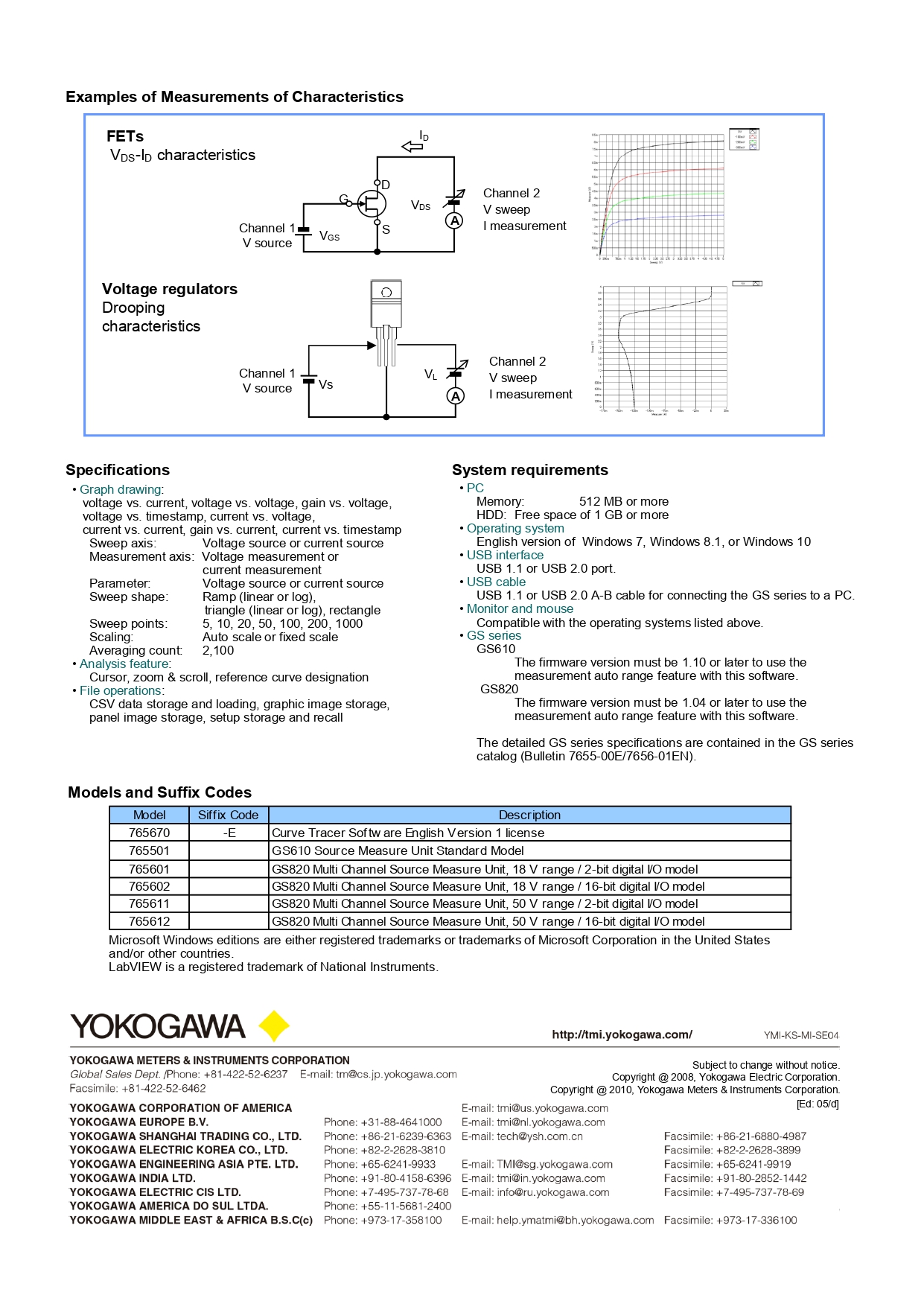

System requirements
PC
Memory : 512 MB or more
HDD : Free space of 1 GB or more
Operating system : English version of Windows 7,Windows 8.1, Windows10
USB interface : USB 1.1 or USB 2.0 port.
USB cable : USB 1.1 or USB 2.0 A-B cable for connecting the GS820 to a PC.
Monitor and mouse : Compatible with the operating systems listed above.
GS series
- GS610
The firmware version must be 1.10 or later to use the measurement auto range feature with this software.
- GS820
The firmware version must be 1.04 or later to use the measurement auto range feature with this software.
The detailed GS series specifications are contained in the GS series catalog (Bulletin 7655-00E/7656-01EN).
* Microsoft Windows editions are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
* LabVIEW is a registered trademark of National Instruments.
