PANAMETRICS AURORA TRANSPORT 포터블 수분측정기

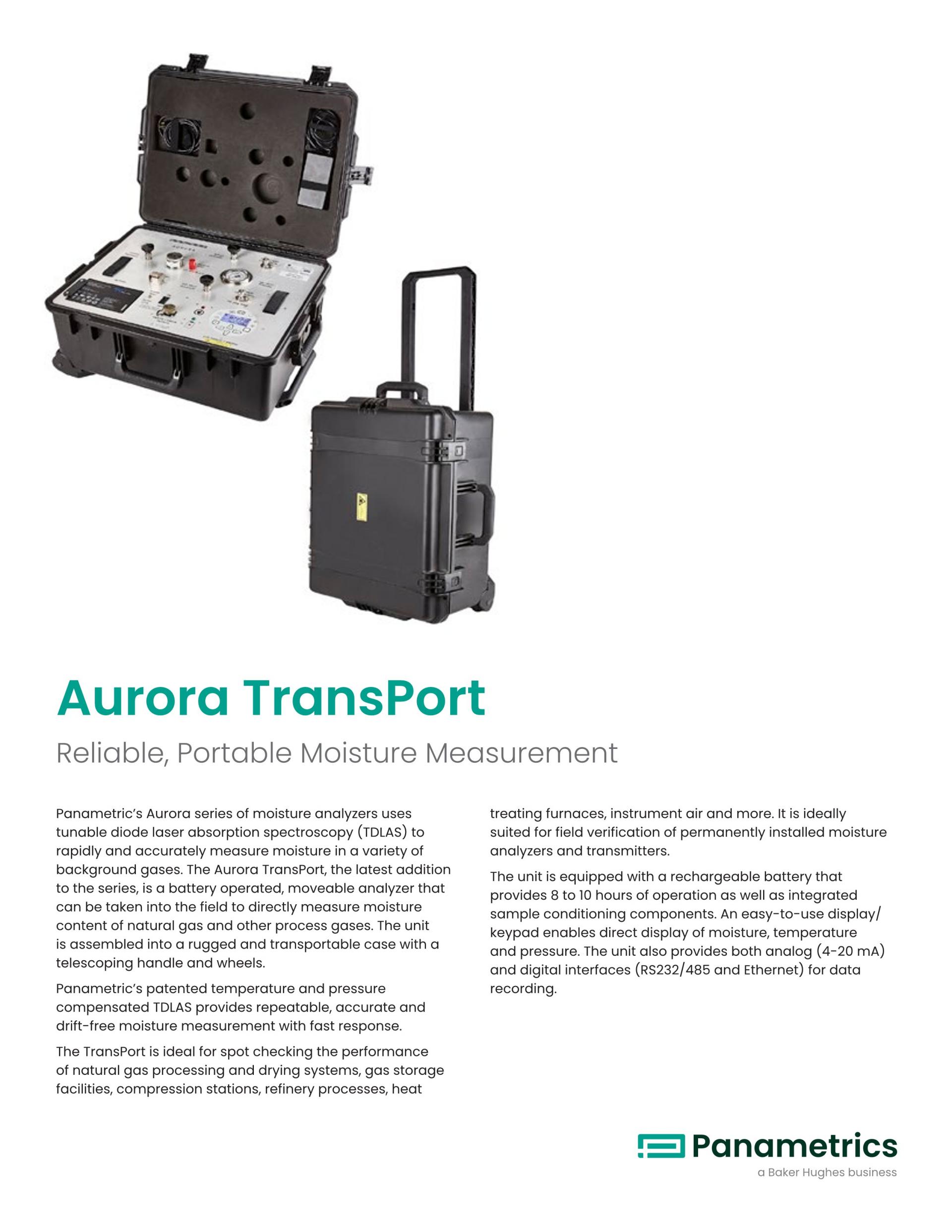

A portable industrial TDLAS analyzer, our Panametrics Aurora TransPort delivers reliability and accuracy anywhere. This on-the-go moisture analyzer rapidly responds to changes in moisture content in most gases. The unit is assembled into a rugged and transportable case with a telescoping handle and wheels.

A portable industrial TDLAS analyzer, our Panametrics Aurora TransPort delivers reliability and accuracy anywhere. This on-the-go moisture analyzer rapidly responds to changes in moisture content in most gases. The unit is assembled into a rugged and transportable case with a telescoping handle and wheels.

The TransPort is ideal for spot-checking the performance of natural gas processing and drying systems, gas storage facilities, compression stations, refinery processes, heat-treating furnaces, instrument air, and more. It is ideally suited for field verification of permanently installed moisture analyzers and transmitters. Features include:

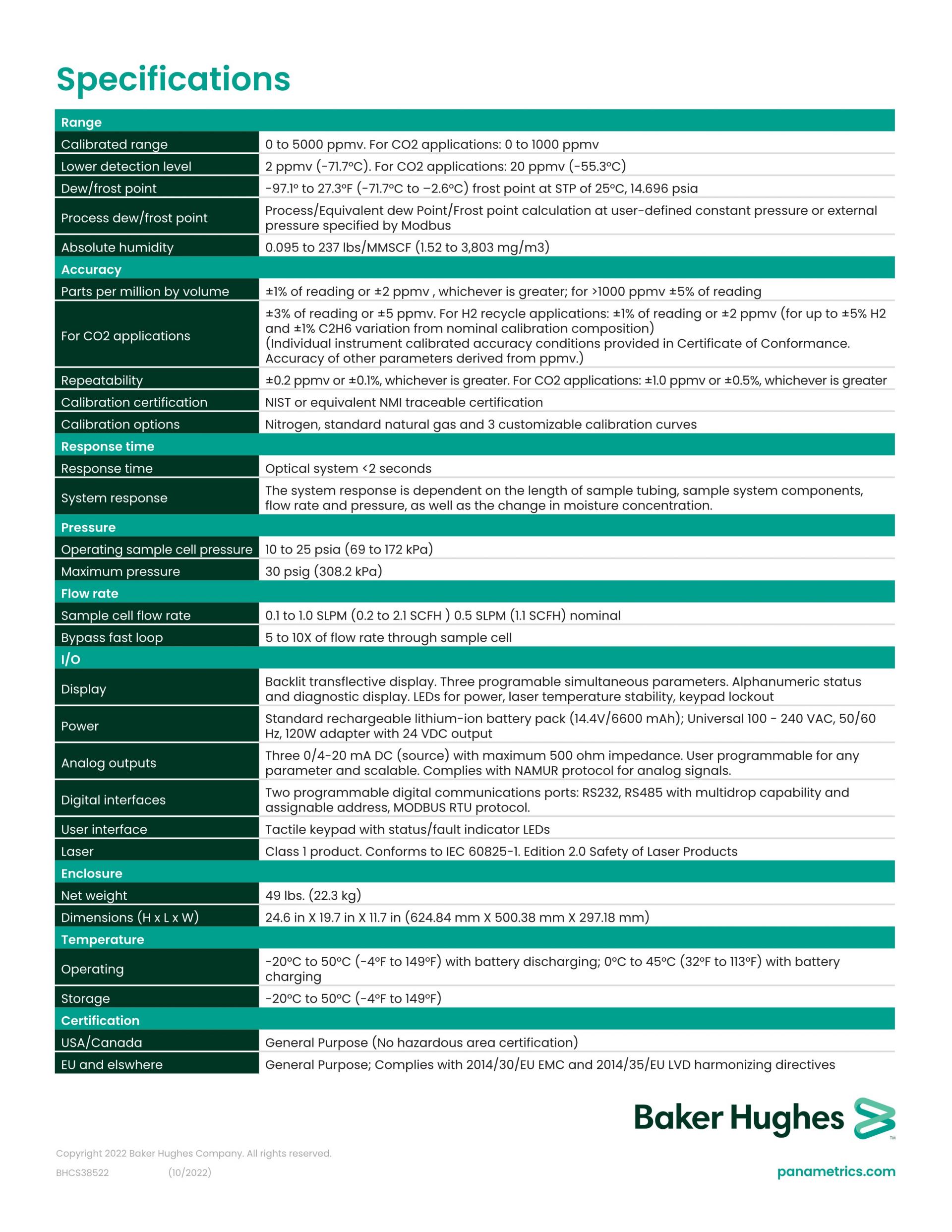

• Range

- Calibrated range: 0 to 5000 ppmv. For CO2 applications: 0 to 1000 ppmv

- Lower detection level: 2 ppmv (-71.7°C). For CO2 applications: 20 ppmv (-55.3°C)

- Process dew/frost point: Process/Equivalent dew Point/Frost point calculation at user-defined constant pressure or external pressure specified by Modbus

• Accuracy

- Parts per million by volume: ±1% of reading or ±2 ppmv , whichever is greater; for >1000 ppmv ±5% of reading

- For CO2 applications: ±3% of reading or ±5 ppmv. For H2 recycle applications: ±1% of reading or ±2 ppmv (for up to ±5% H2 and ±1% C2H6 variation from nominal calibration composition) (Individual instrument calibrated accuracy conditions provided in Certificate of Conformance. Accuracy of other parameters derived from ppmv.)

- Repeatability: ±0.2 ppmv or ±0.1%, whichever is greater. For CO2 applications: ±1.0 ppmv or ±0.5%, whichever is greater

- Operating sample cell pressure 10 to 25 psia (69 to 172 kPa)

• Battery Life

- Rechargeable battery provides 8 to 10 hours of operation
