FUTEK MTA600 Triaxial Load Cell

MTA600 , Ch Fx: 2500 lb; Ch Fy: 2500 lb; Ch Fz: 5000 lb , Tri-Axial Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , DB15 Female Connector

FUTEK MTA600 Triaxial Load Cell 이미지

MTA600 , Ch Fx: 2500 lb; Ch Fy: 2500 lb; Ch Fz: 5000 lb , Tri-Axial Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , DB15 Female Connector

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

MTA600 , Ch Fx: 2500 lb; Ch Fy: 2500 lb; Ch Fz: 5000 lb , Tri-Axial Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , DB15 Female Connector

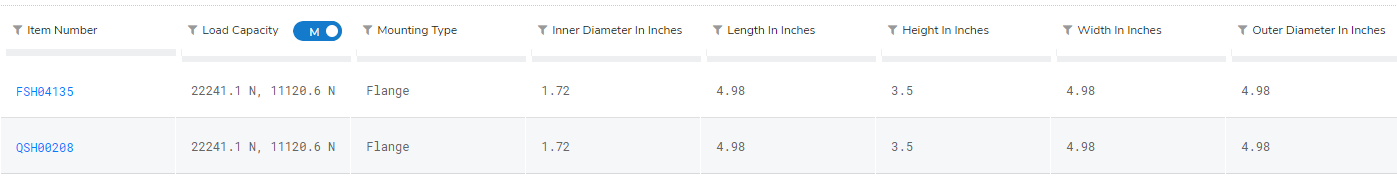

FSH04135

QSH00208

Description

The MTA600 Multi Axis Load Cell (Tri-Axial) offers an excellent solution for measuring Fx, Fy, and Fz loads. The MTA600 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA.

Features

  • Can support simultaneous force measurements on the X, Y, Z axes
  • Used for wind tunnel model applications
  • Used for triaxial dynamometer applications for motion studies

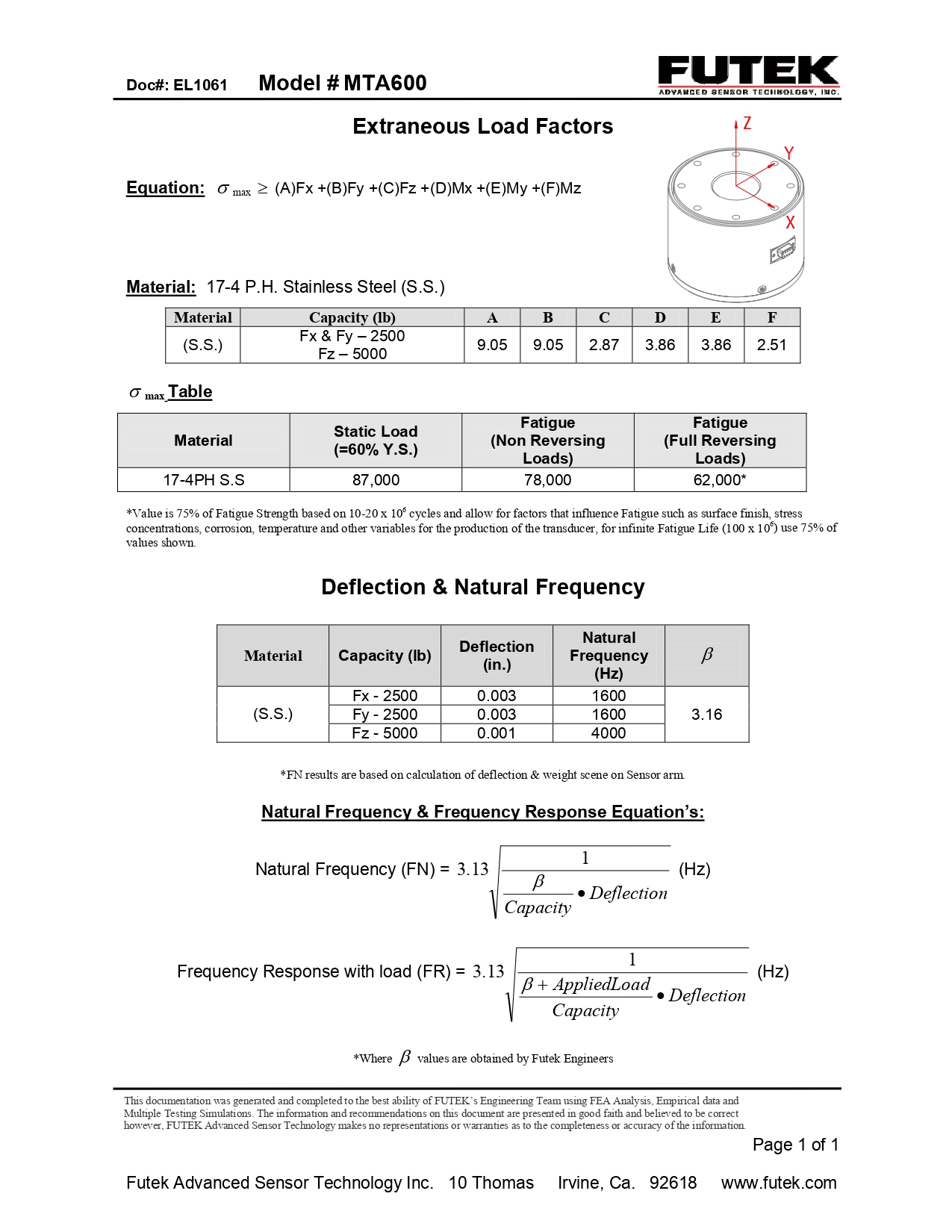

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
