FUTEK MTA400 Triaxial Load Cell

MTA400 , Ch Fx: 250 lb; Ch Fy: 250 lb; Ch Fz: 500 lb , Tri-Axial Load Cell , RoHS Compliant, Material - 2024-T4 , 1/4-28-Thread , 10 Pin Lemo Receptacle, EGG.1B.310.CLL

FUTEK MTA400 Triaxial Load Cell 이미지

MTA400 , Ch Fx: 250 lb; Ch Fy: 250 lb; Ch Fz: 500 lb , Tri-Axial Load Cell , RoHS Compliant, Material - 2024-T4 , 1/4-28-Thread , 10 Pin Lemo Receptacle, EGG.1B.310.CLL

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

MTA400 , Ch Fx: 250 lb; Ch Fy: 250 lb; Ch Fz: 500 lb , Tri-Axial Load Cell , RoHS Compliant, Material - 2024-T4 , 1/4-28-Thread , 10 Pin Lemo Receptacle, EGG.1B.310.CLL

FSH04139

Description

The MTA400 Tri-Axial Load Cell offers an excellent solution for measuring Fx, Fy, and Fz loads. The MTA400 tri axial load cell is made from Aluminum, weighs 32 oz and uses metal foil strain gauge technology.

The MTA400 triaxial load cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA.

Features

  • Ideal for wind tunnel lift, drag, and side force measurement
  • Low mechanical crosstalk
  • Tri axis load cell Ideal for flight control force auditing and measurement of Robotic Actuator and Reaction Forces

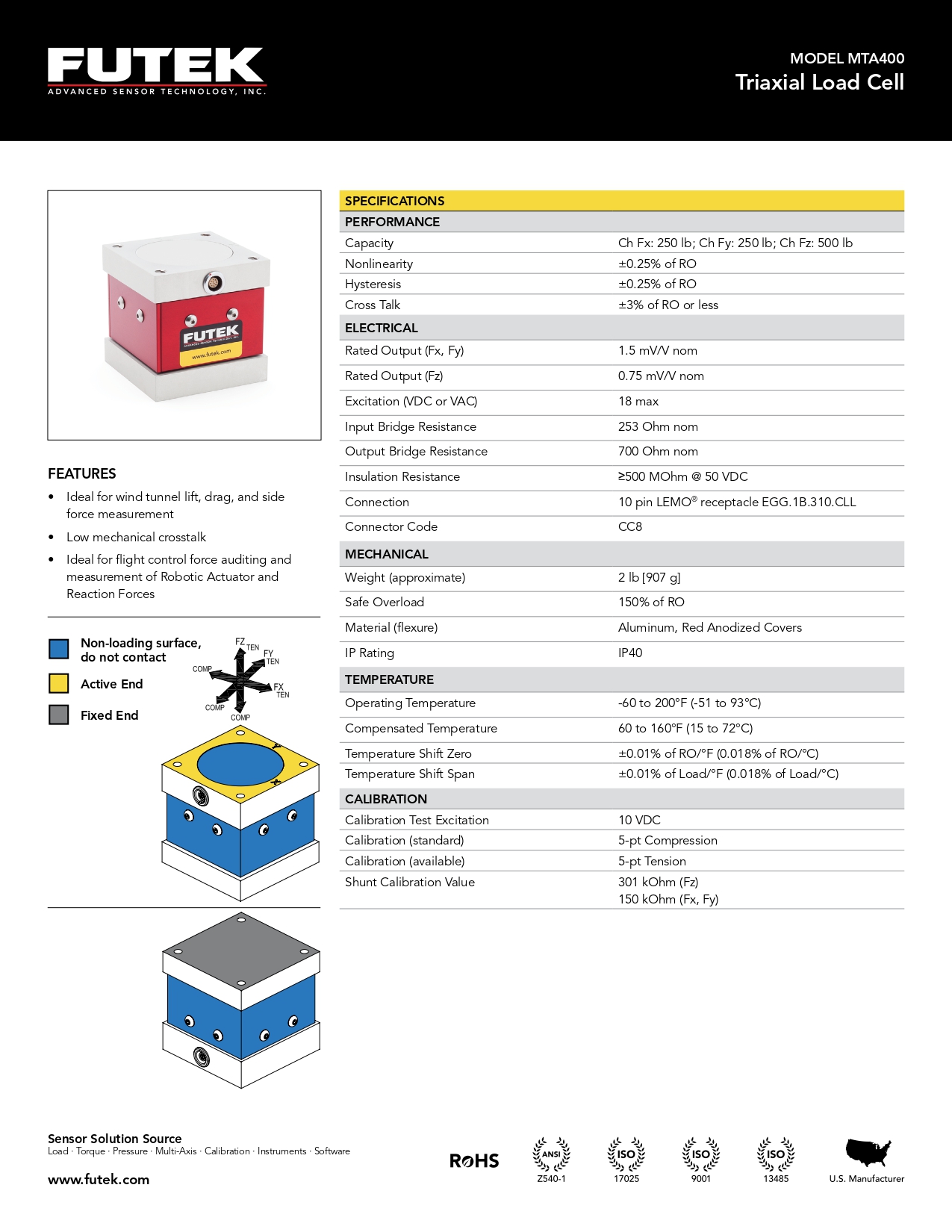

Specifications
