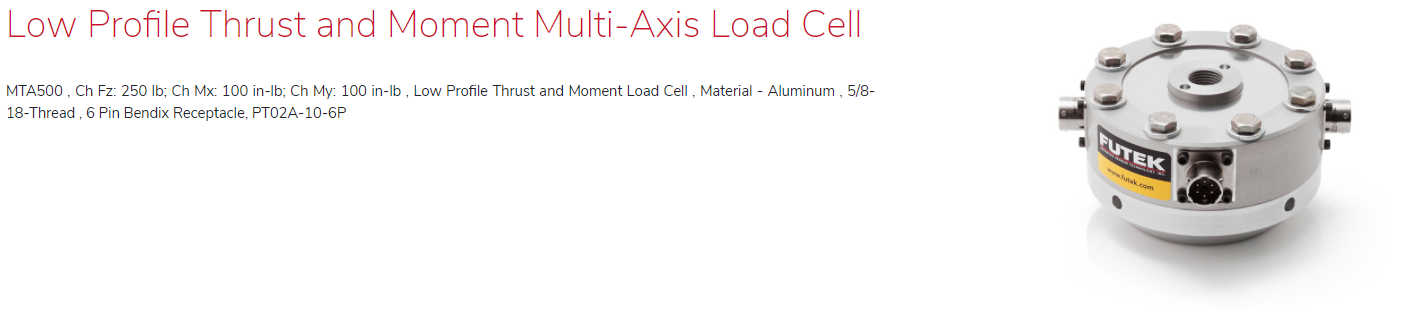

FUTEK MTA500 Low Profile Thrust And Moment Multi-Axis Load Cell

MTA500 , Ch Fz: 250 lb; Ch Mx: 100 in-lb; Ch My: 100 in-lb , Low Profile Thrust and Moment Load Cell , Material - Aluminum , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK MTA500 Low Profile Thrust And Moment Multi-Axis Load Cell 이미지

MTA500 , Ch Fz: 250 lb; Ch Mx: 100 in-lb; Ch My: 100 in-lb , Low Profile Thrust and Moment Load Cell , Material - Aluminum , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

MTA500 , Ch Fz: 250 lb; Ch Mx: 100 in-lb; Ch My: 100 in-lb , Low Profile Thrust and Moment Load Cell , Material - Aluminum , 5/8-18-Thread , 6 Pin Bendix Receptacle, PT02A-10-6P

FSH01954

FSH02299

FSH02505

FSH03191

Description

The MTA500 Multi Axis Load Cell (Tri-Axial) offers an excellent solution for measuring Mx, My, and Fz loads. The MTA500 is available in both Anodized Aluminum and Stainless.

The MTA500 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery. Similar to our entire Multi-Component Load Cell product line this model is manufactured in USA and utilizes metal foil strain gauge technology.

Features

  • Used for quantification of test stand misalignment
  • Used for measurement of wind tunnel model aerodynamics
  • Can Measure Force via Moment Arms

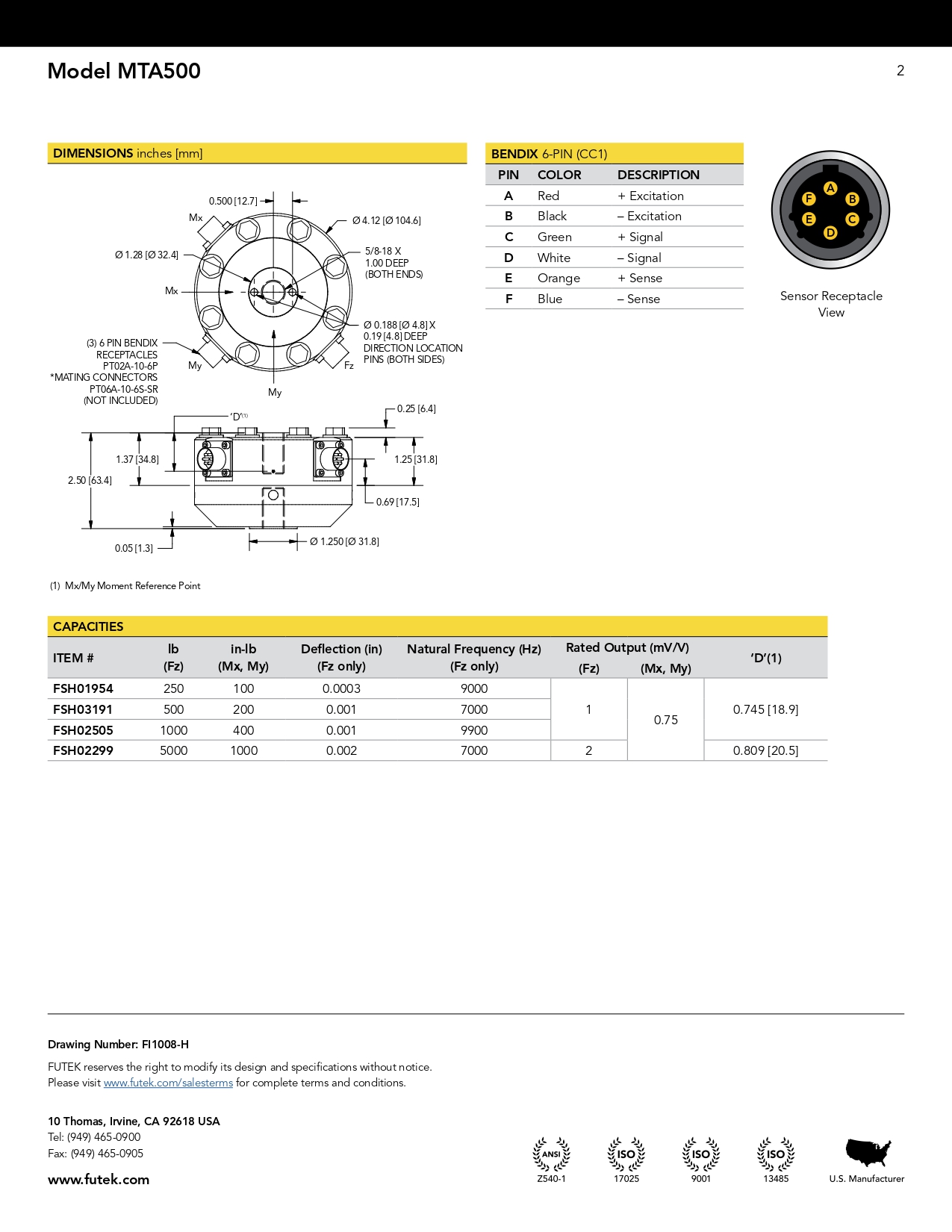

Specifications
