LCM375 , 7500 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LCM375 , 7500 lb , Tension & Compression Load Cell , RoHS Compliant , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded PVC , 10 ft Long

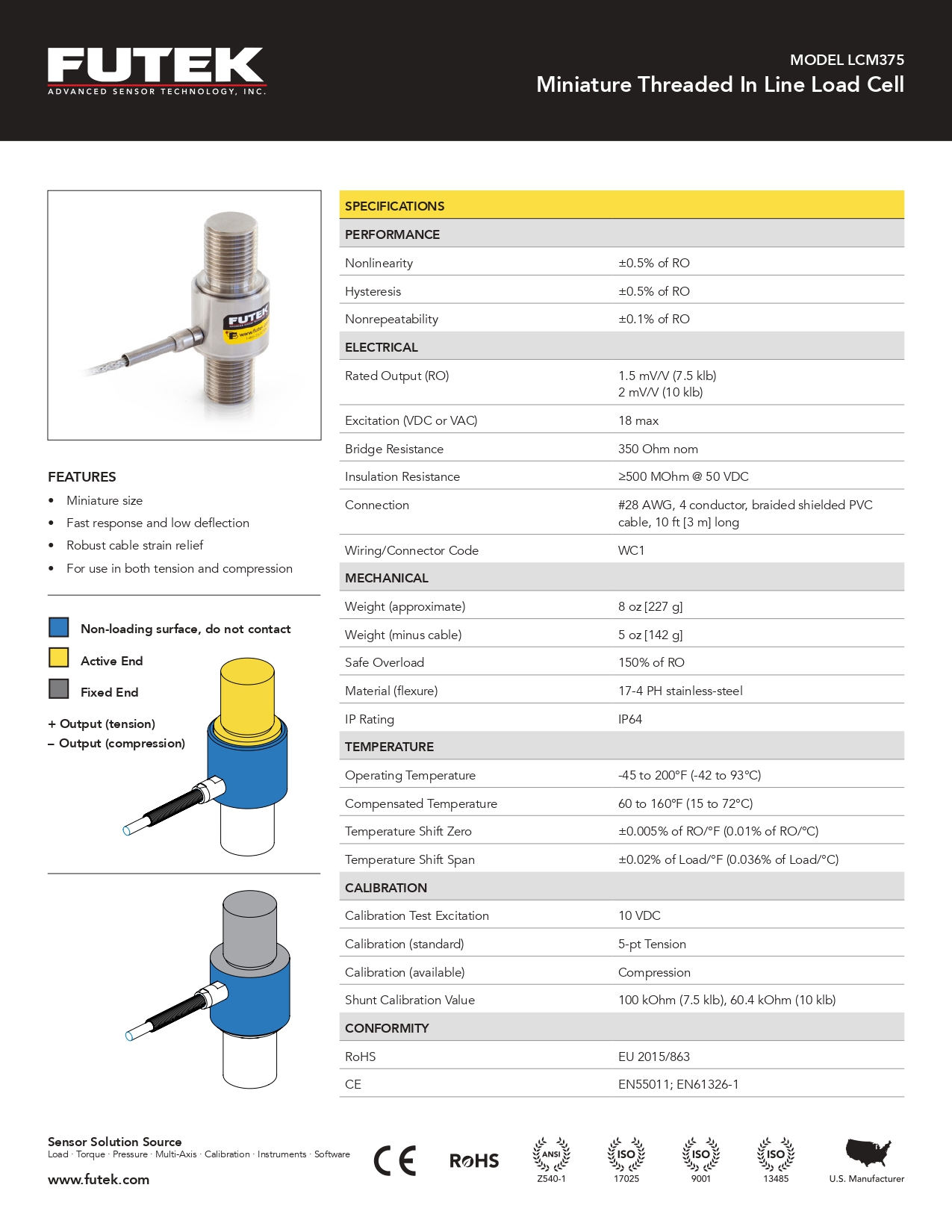

Miniature Threaded In Line Tension & Compression Load Cell (LCM375)
FSH04081
FSH04082
FSH04083
FSH04084
QSH01585
QSH01679
Description
Model LCM375 is an In Line Load Cell built for Endurance, Press, or Inline applications. The standard LCM375 In Line Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 28 AWG 4 conductor shielded PVC cable. This product offers an exceptional miniature design with a height of 2.77” and a diameter of 1.12”. You will also find options for external matched output or a Teflon cable readily available. For more capacity options please see the LCM300 or LCM325.
The In Line Load Cell offers high accuracy and high stiffness. It has Nonlinearity of ±0.5% and Deflection of 0.001” to 0.002” nominal. The standard LCM375 In Line Load Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24-hour shipping. Similar to our entire Load Cell product line this model is manufactured in the USA and uses metal foil strain gauge technology.
Features
- Miniature size
- Fast response and low deflection
- Robust cable strain relief
- For use in both tension and compression

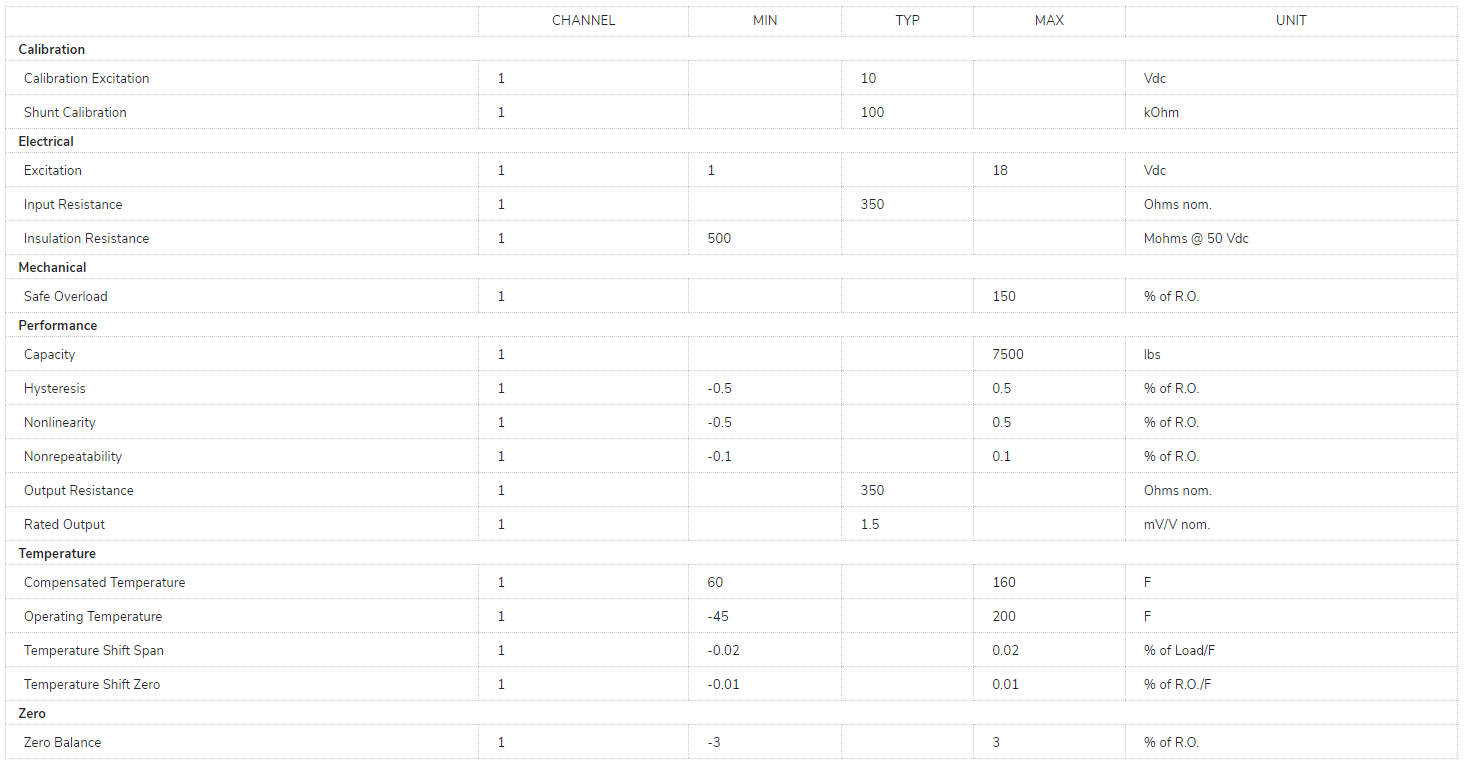

Specifications
