LSB201 , 250 g , JR S-Beam Load Cell 2.0 , Overload Protection , RoHS Compliant , Material - 17-4 PH S.S. , M3x0.5-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LSB201 , 250 g , JR S-Beam Load Cell 2.0 , Overload Protection , RoHS Compliant , Material - 17-4 PH S.S. , M3x0.5-Thread , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
Application Focus : Endurance Testing

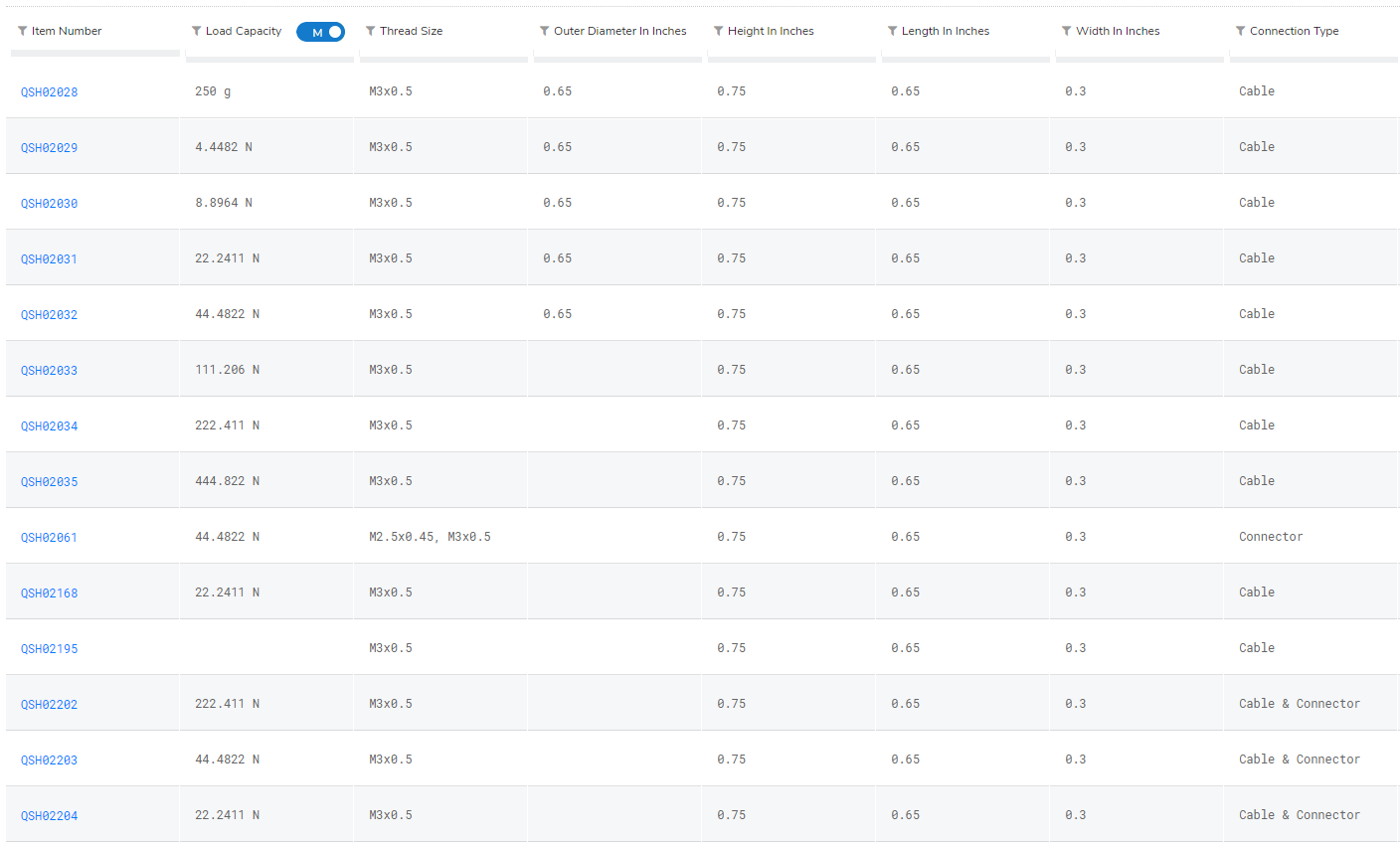

LSB200 Installation Tool
QSH02028
QSH02029
QSH02030
QSH02031
QSH02032
QSH02033
QSH02034
QSH02035
QSH02061
QSH02168
QSH02195
QSH02202
QSH02203
QSH02204
Description
The LSB201 is one of FUTEK’s most in-demand miniature force sensors, due to its small footprint, high performance and exceptional quality and durability. Featuring unparalleled capabilities for a miniature load cell of its size, the versatile and universal LSB201 offers limitless possibilities for applications.
Model LSB201 is a Mini Load Cell built for Endurance, for Tension or Compression applications. The standard LSB201 Miniature Load Cell model has a very robust construction available in 17-4 PH Stainless Steel, with female threads on both ends and a 5 feet long 29 AWG 4 conductor Spiral Shielded Silicone Cable. This tension and compression ultra light weight micro force sensor offers an exceptional weight of 22 grams only. You will also find mini load cell for external matched output readily available.
The Miniature Force Sensor offers high accuracy. It has Nonlinearity of ±0.1% of Rated Output, Deflection of 0.003” nominal and Safe Overload up to 1000% of Rated Output. The standard LSB201 Miniature Load Sensor can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.

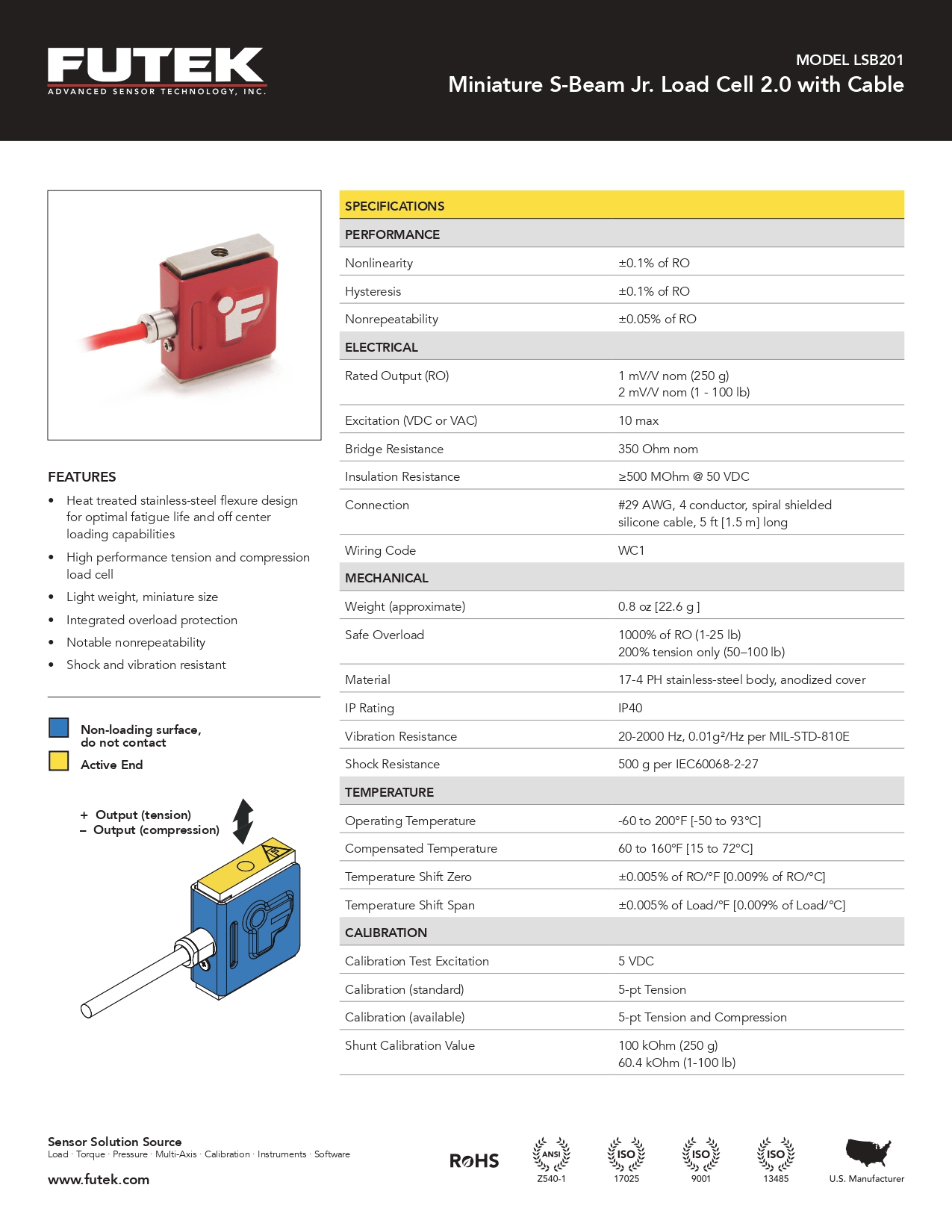

Specifications
