LSB200 , 10 g , JR S-Beam Load Cell , RoHS Compliant , Material - 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LSB200 , 10 g , JR S-Beam Load Cell , RoHS Compliant , Material - 2024-T4 , M3x0.5-Thread , Overload Protection , 29 Awg 4 Conductor Spiral Shielded Silicone Cable , 5 ft Long
Application Focus : Endurance Testing
LSB200 Installation Tool

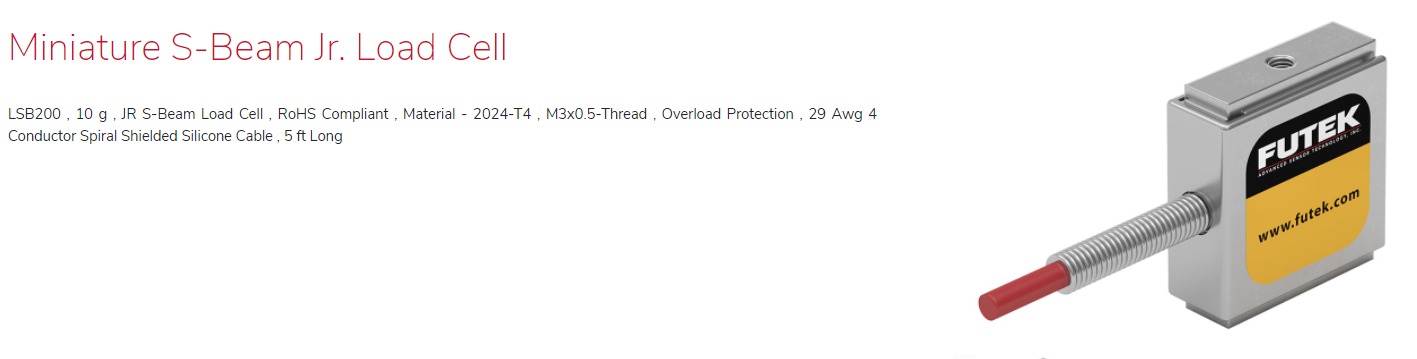

Miniature S Beam Load Cell (LSB200)

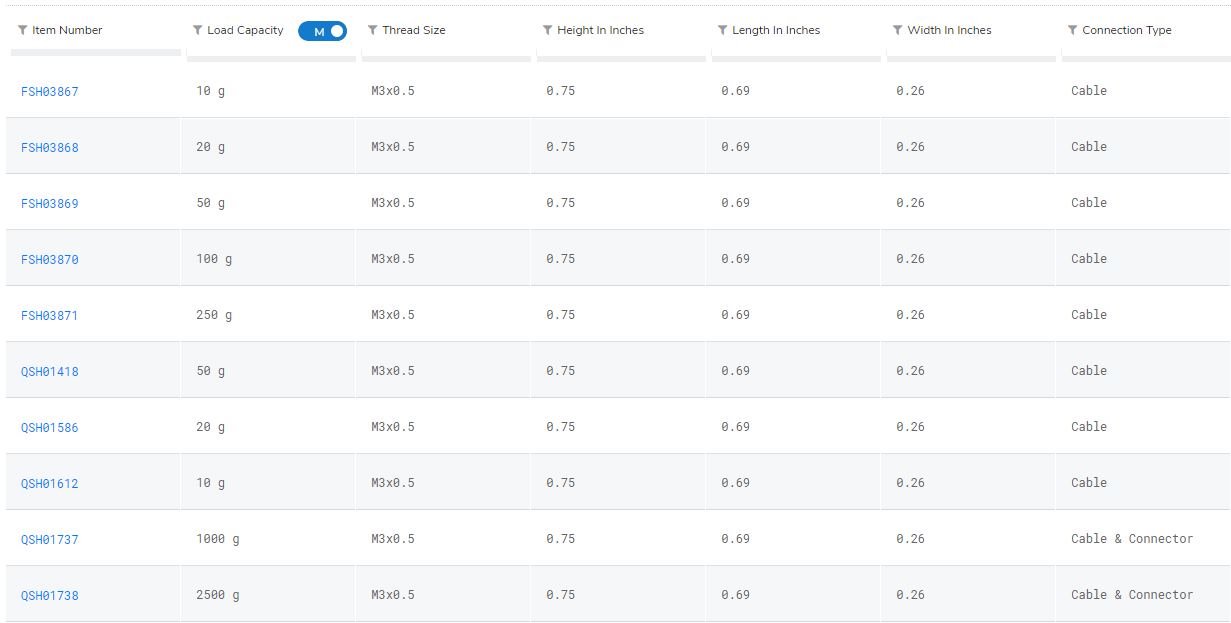

FSH03867
FSH03868
FSH03869
FSH03870
FSH03871
QSH01418
QSH01586
QSH01612
QSH01737
QSH01738

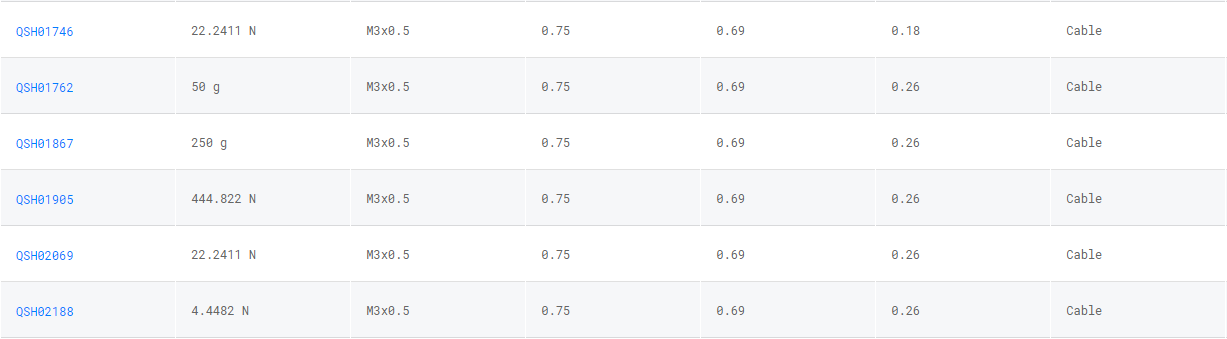

QSH01746
QSH01762
QSH01867
QSH01905
QSH02069
QSH02188
Description
This Miniature S-Beam Load Cell has become one of the signature products in the FUTEK Load Cell Series and is capable of servicing numerous applications and is used industry wide. One industry the LSB200 is often used in is the Medical Industry where it has been commonly used in Medical Bag Weighing Applications as well as automated feedback control and inline processing applications. This product offers a perfect mixture of size, accuracy and the assurance of an overload protection feature making this one of our most sought after models. With a height of only 0.75”, the LSB200 Miniature S Beam Load Cell is a great selection where tight environments or space is a challenge. LSB200 S-Beam Jr. Load Cell is also available with a brand new USB Digital Interface with 16 bits resolution.
Features
- Up to 10 times the overload protection
- Overload is available in Tension and Compression
- Lightweight force sensor
- Notable nonlinearity
- Loads up to 100 lb (445 N)
- Miniature size for critical force measurement systems

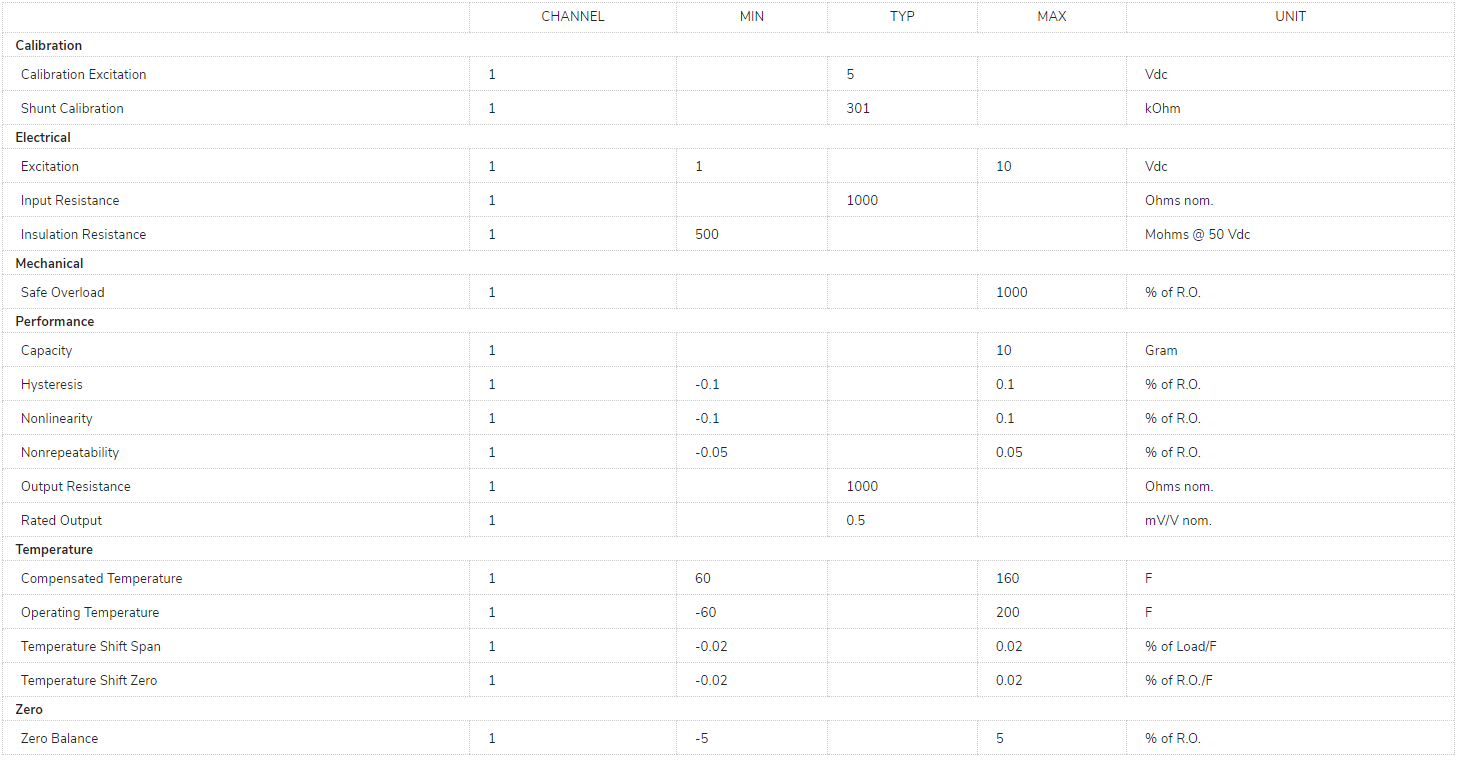

Specifications
