LSB205 , 1 lb , JR S-Beam Load Cell 2.0 , Overload Protection w/ Integrated TEDS IEEE1451.4 Recognition & Temperature Sensor , RoHS Compliant , Material - 17-4 PH S.S. , M3x0.5-Thread , 7 Pin Quick Disconnect "Break Away" Nano Receptacle
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LSB205 , 1 lb , JR S-Beam Load Cell 2.0 , Overload Protection w/ Integrated TEDS IEEE1451.4 Recognition & Temperature Sensor , RoHS Compliant , Material - 17-4 PH S.S. , M3x0.5-Thread , 7 Pin Quick Disconnect "Break Away" Nano Receptacle
Application Focus: Endurance Testing
LSB200 Installation Tool
FSH04085
FSH04097
FSH04099
FSH04100
FSH04101
FSH04401
FSH04416
FSH04422
QSH01984
QSH01999
QSH02000
QSH02003
QSH02005
Description
The LSB205 is one of FUTEK’s most in-demand sensors, due to its small footprint, high performance and exceptional quality and durability. Featuring unparalleled capabilities for a sensor of its size, the versatile and universal LSB205 offers limitless possibilities for applications.
Part of FUTEK’s industry-leading miniature s-beam load cell line, it was developed by our engineering team to push the boundaries of sensor innovation. The standard LSB205 can be modified or customized to meet your requirements and most models are in our inventory and available for 24-hour shipping.
Unique capabilities :
- Integrated IEEE1451.4 TEDs chip makes setup simple and greatly reduces setup errors. Connects directly to electronics and auto-scales to FUTEK instruments.
- PT-1000 temperature sensor enables support for real-time temperature compensation, ensuring accuracy in different environments.
- Detachable 7 Pin FUTEK aerospace-grade cable connector allows for quick cable disconnect and helps separate the sensor from cable damage.
Features
- Size : 0.75” x 0.69” x 0.26”
- Force measurement capacity : 250g to 100 lbs.
- Fatigue-rated for 100 million cycles.
- Optimized design to withstand extraneous load limits
- New generation design with increased natural frequency
- Integrated 1000% of RO overload protection for safe installment.
- Robust case design and heat-treated, aerospace grade stainless steel optimizes durability, linearity and off-center loading capabilities.
- Exceptional non-repeatability (±0.05% of RO).
- Highly shock and vibration resistant (500G), performs exceedingly well in high vibration environments.

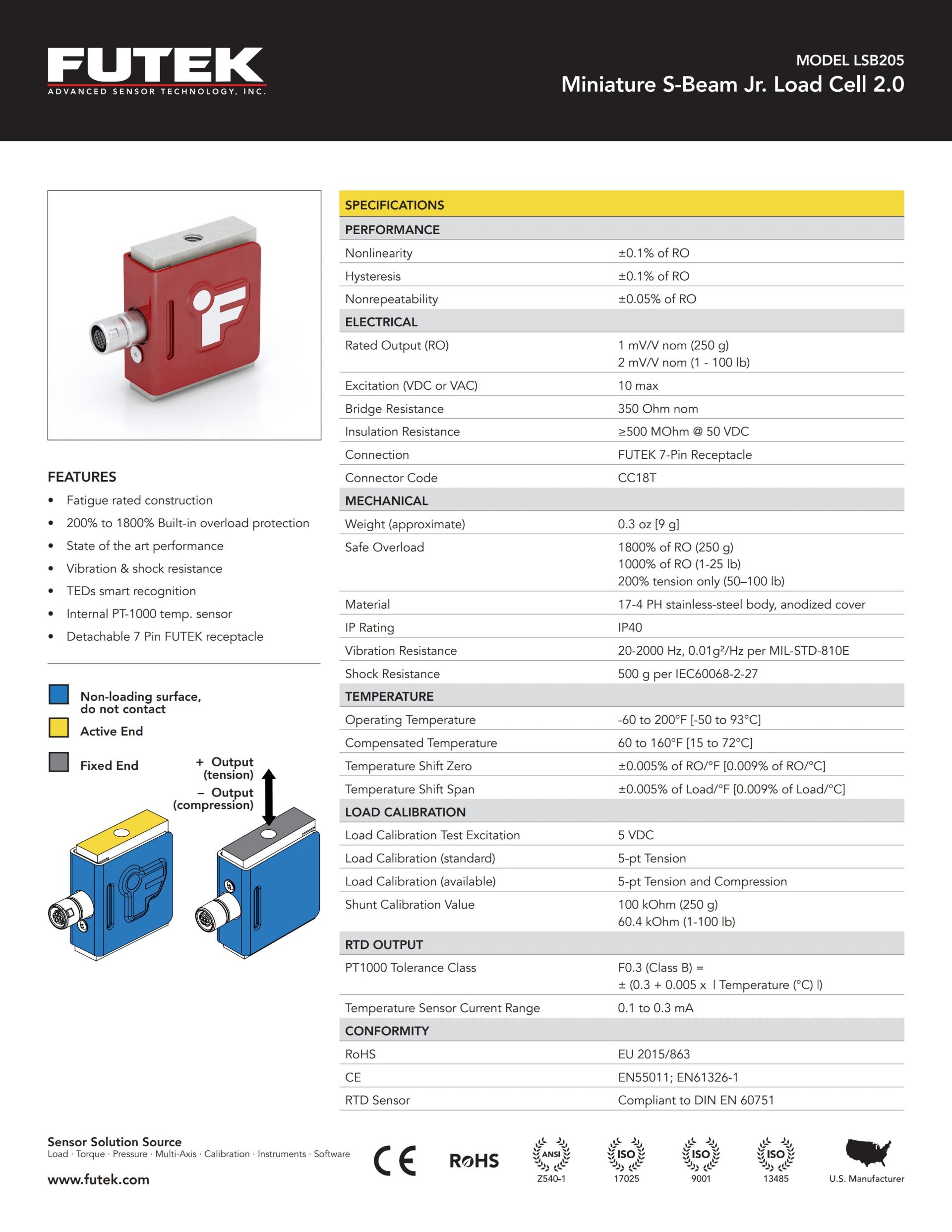

Specifications
