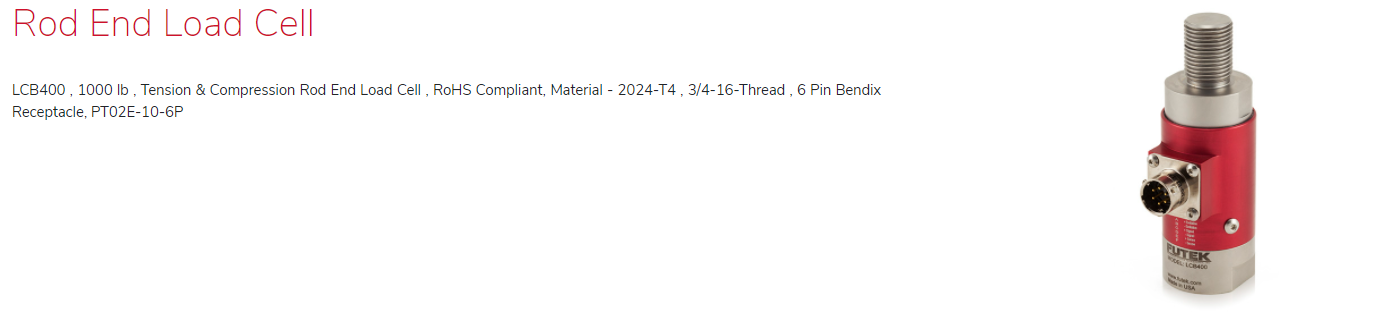

LCB400 , 1000 lb , Tension & Compression Rod End Load Cell , RoHS Compliant, Material - 2024-T4 , 3/4-16-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P
| 원산지 | USA |
|---|---|
| 제조사 | FUTEK |
| 브랜드 | FUTEK |
| 무게 | 1kg |
LCB400 , 1000 lb , Tension & Compression Rod End Load Cell , RoHS Compliant, Material - 2024-T4 , 3/4-16-Thread , 6 Pin Bendix Receptacle, PT02E-10-6P

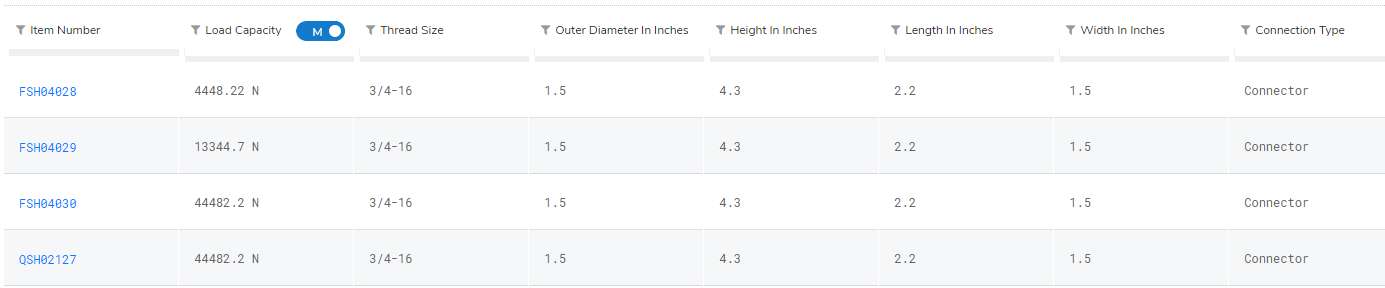

FSH04028
FSH04029
FSH04030
QSH2127
Description
Model LCB400 is a Rod End Load Cell (Tension/Compression) designed for applications involving Inline Actuators or Hydraulic Jacks with Male/Female Threads. The standard LCB400 Rod End Load Cell (Tension/Compression) model has male/female threads, uses a lightweight 2024 Aluminum for lower capacities and a robust 17-4 Stainless Steel for the higher capacities. This model is well suited for the mid range to high range capacity requirements (1,000 lb – 10,000 lb). For any applications that require a higher capacity range, please refer to the LCB450.
This Rod End Load Cell (Tension/Compression) has high accuracy and high stiffness. It has Nonlinearity of ±0.5% and Deflection of 0.001” nominal. The standard LCB400 Rod End Load Cell (Tension/Compression) can be modified or customized to meet your requirements and most models are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line, this model is manufactured in US, and uses metal foil strain gauge technology.
Features
- Incredibly fast
- Low deflection, light weight
- For use in both tension and compression
- Can easily thread in line into a threaded rod or actuator

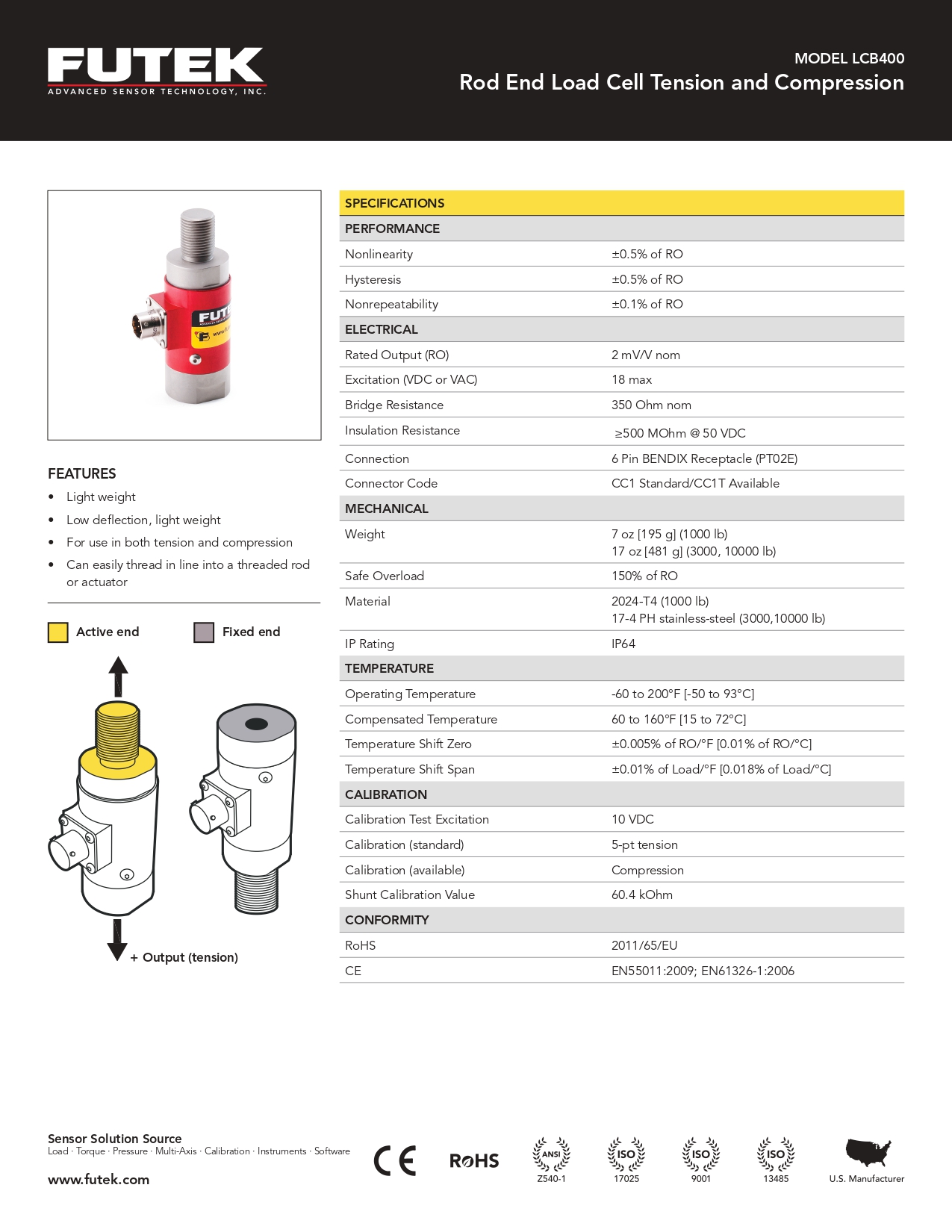

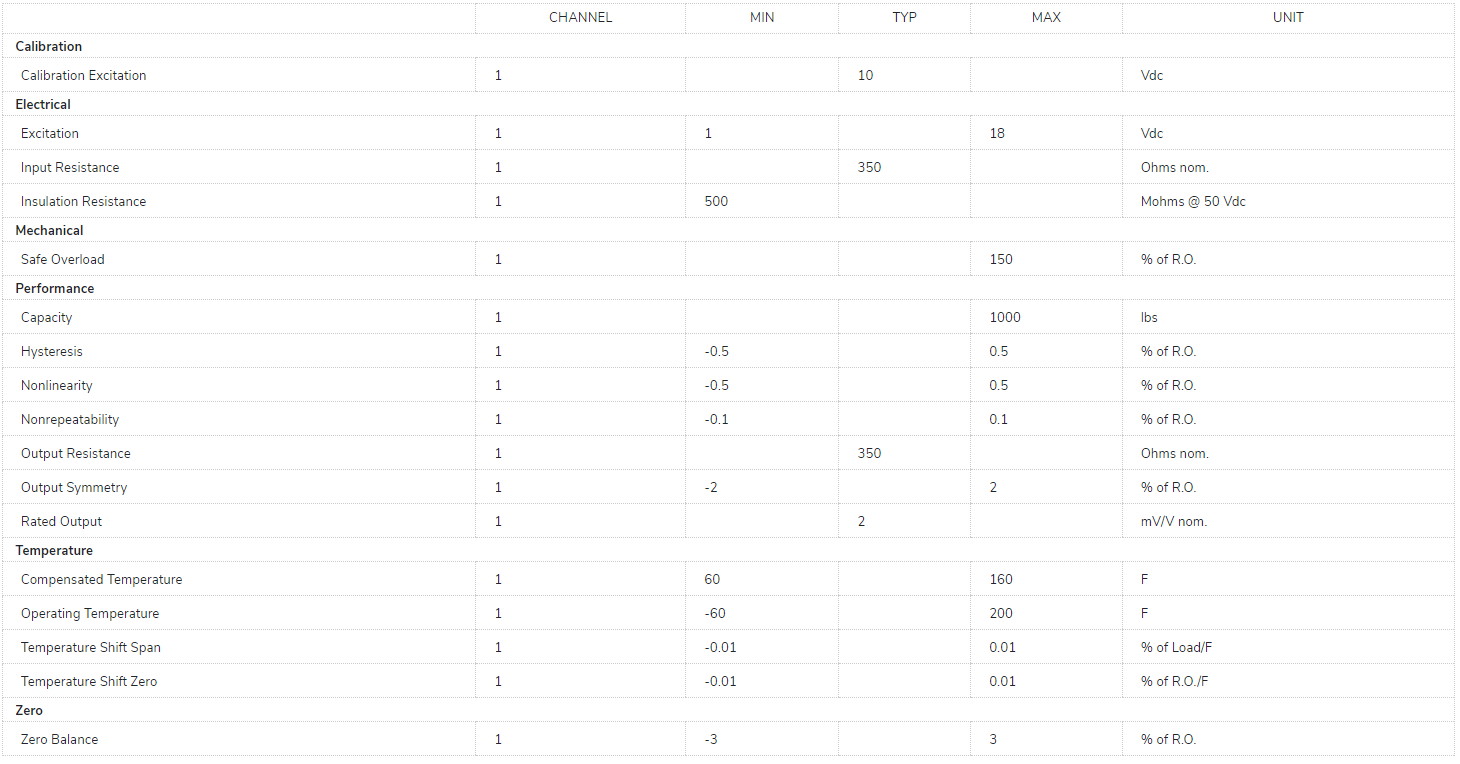

Specifications
