홈/종합산업장비/센서/로드셀/FUTEK QMA133 Reaction Torque and Thrust Flange to Flange Sensor

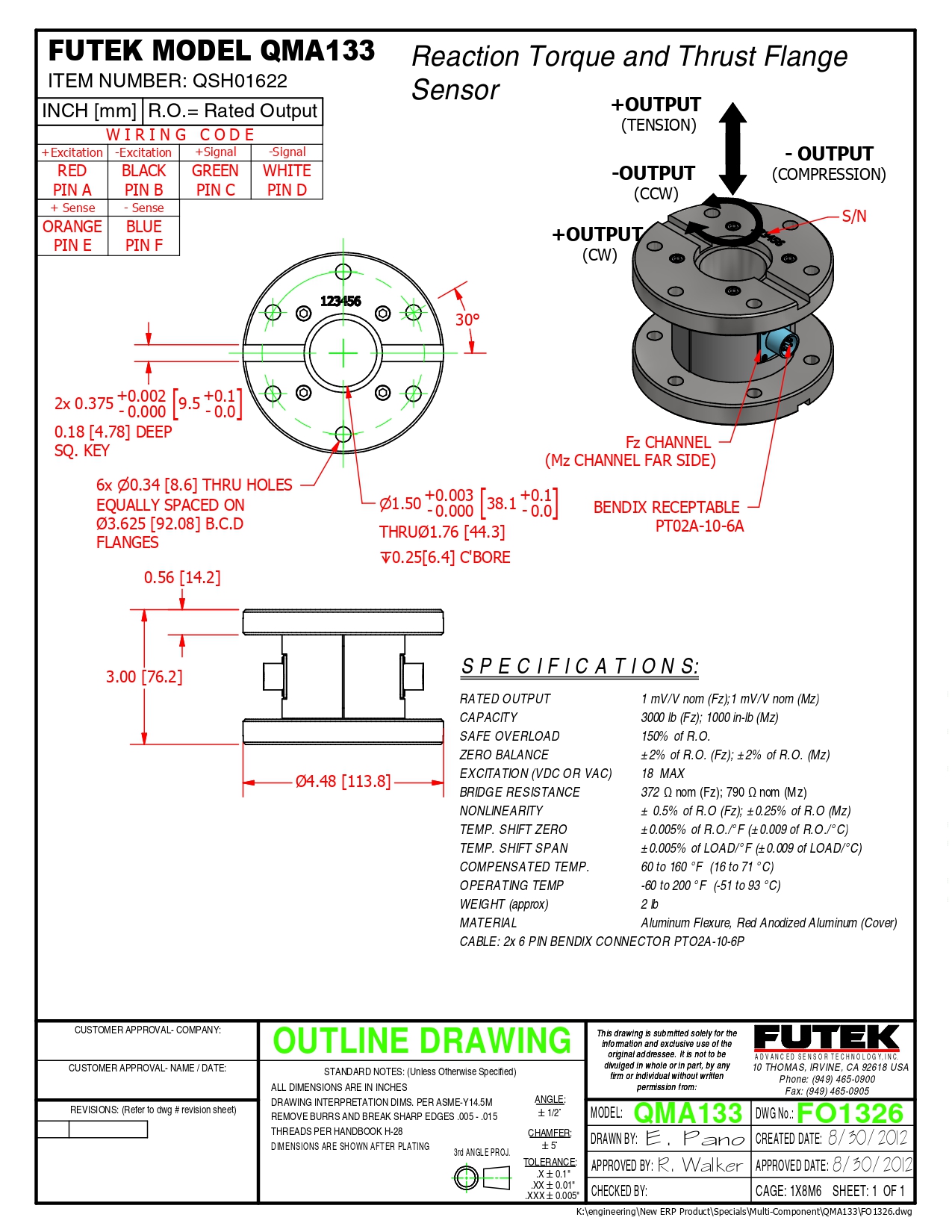

FUTEK QMA133 Reaction Torque and Thrust Flange to Flange Sensor

QMA133 , Mz: 1000 in-lb ; Fz: 3000 lb , Custom Dual Axis Torque & Thrust Sensor , Material - 2024-T4 , 1 1/2" [38.1 mm] ID , 2x 6 Pin Bendix Receptacle, PT02A-10-6P

FUTEK QMA133 Reaction Torque and Thrust Flange to Flange Sensor 이미지

QMA133 , Mz: 1000 in-lb ; Fz: 3000 lb , Custom Dual Axis Torque & Thrust Sensor , Material - 2024-T4 , 1 1/2" [38.1 mm] ID , 2x 6 Pin Bendix Receptacle, PT02A-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QMA133 , Mz: 1000 in-lb ; Fz: 3000 lb , Custom Dual Axis Torque & Thrust Sensor , Material - 2024-T4 , 1 1/2" [38.1 mm] ID , 2x 6 Pin Bendix Receptacle, PT02A-10-6P

QSH01622

Description

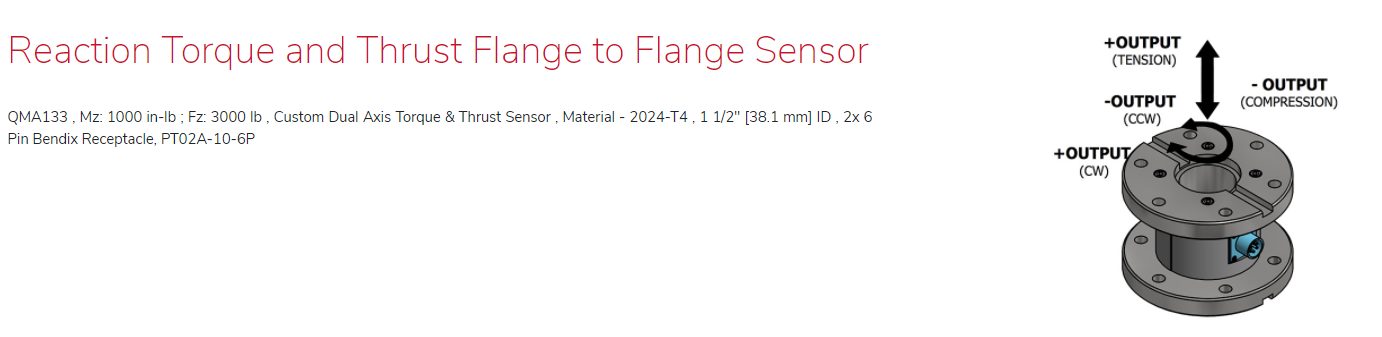

Reaction Torque and Thrust Flange to Flange Sensor

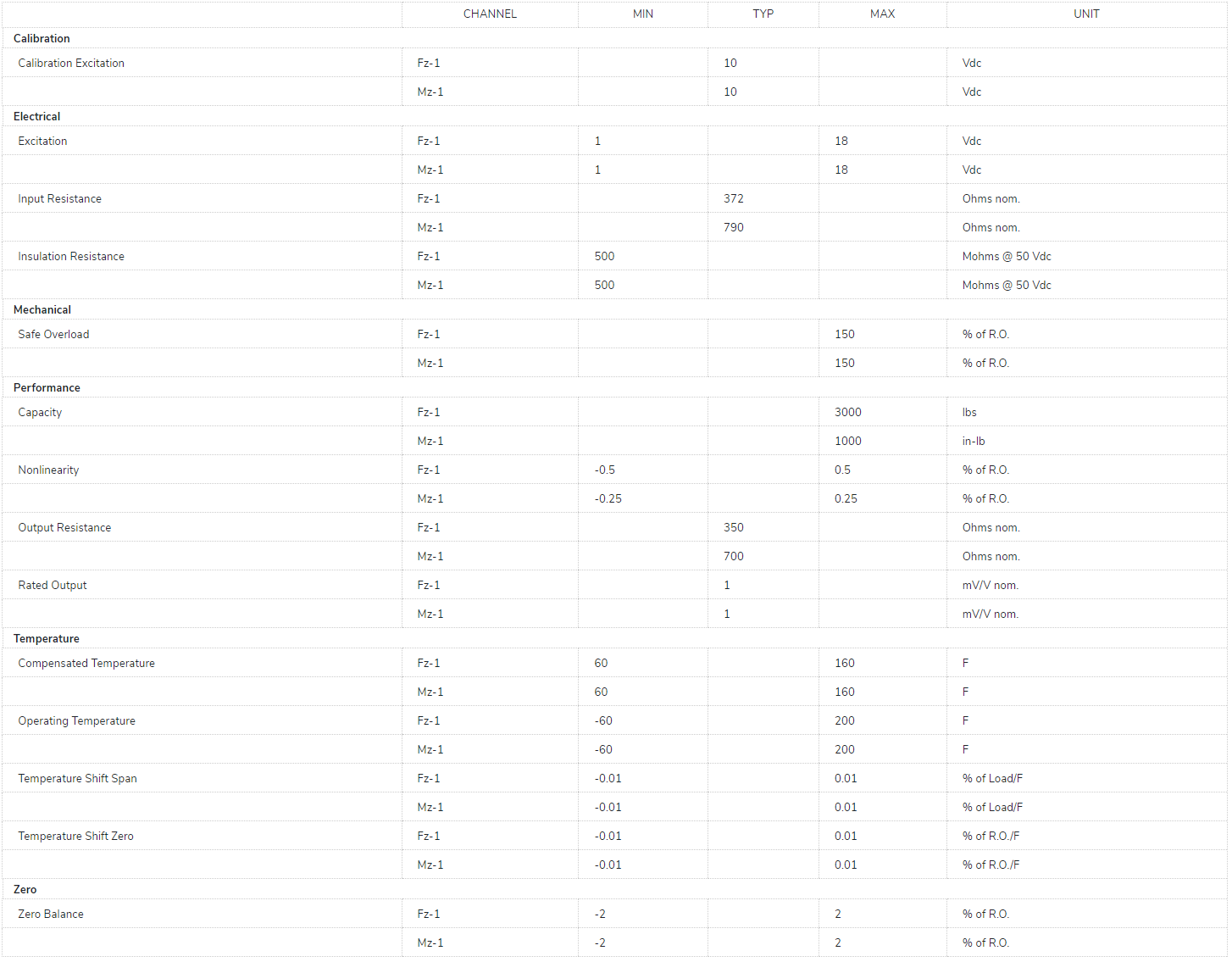

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
