FUTEK QMA129 Custom Tri-Axial Load Cell

QMA129, Ch Fx: 1213 lb ; Ch Fy: 1213 lb ; Ch Fz: 1213 lb , Custom Tri-Axial Load Cell, Material - 2024-T4 , 3x 6 Pin Bendix Receptacle , PT02A-10-6P

FUTEK QMA129 Custom Tri-Axial Load Cell 이미지

QMA129, Ch Fx: 1213 lb ; Ch Fy: 1213 lb ; Ch Fz: 1213 lb , Custom Tri-Axial Load Cell, Material - 2024-T4 , 3x 6 Pin Bendix Receptacle , PT02A-10-6P

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA129, Ch Fx: 1213 lb ; Ch Fy: 1213 lb ; Ch Fz: 1213 lb , Custom Tri-Axial Load Cell, Material - 2024-T4 , 3x 6 Pin Bendix Receptacle , PT02A-10-6P

QSH01449

Description

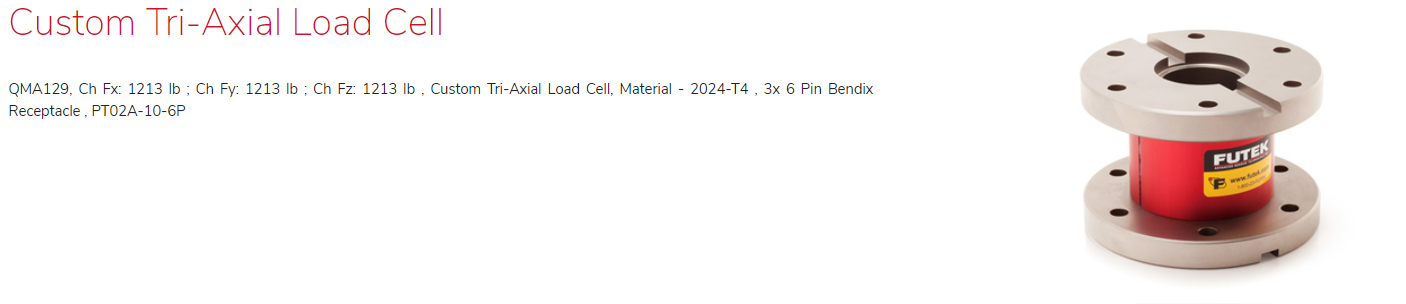

Custom Tri-Axial Load Cell

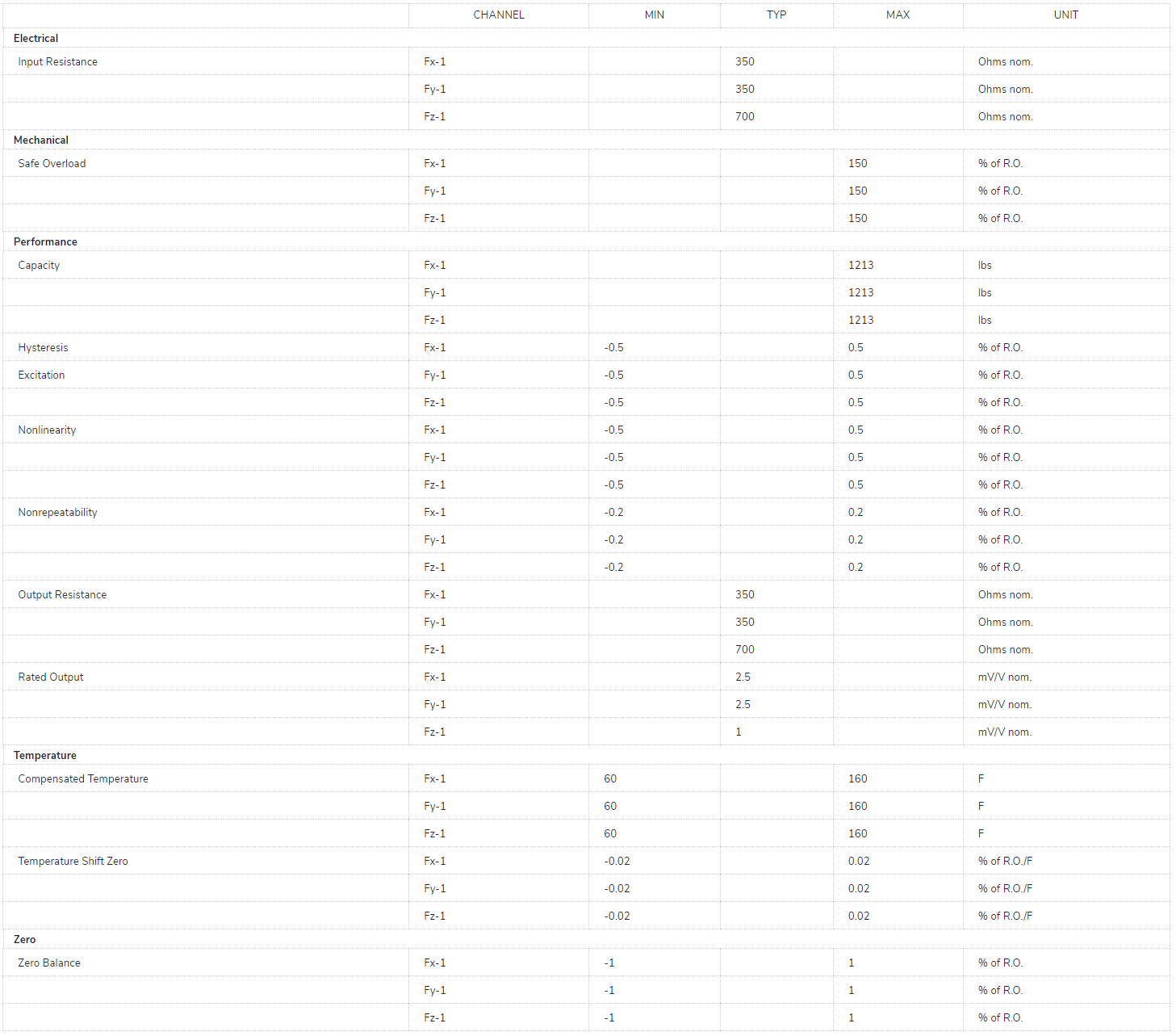

Specifications
