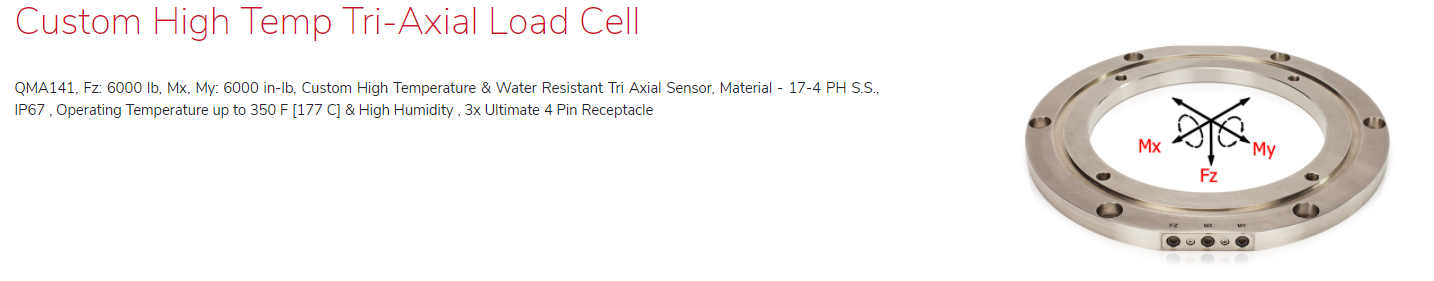

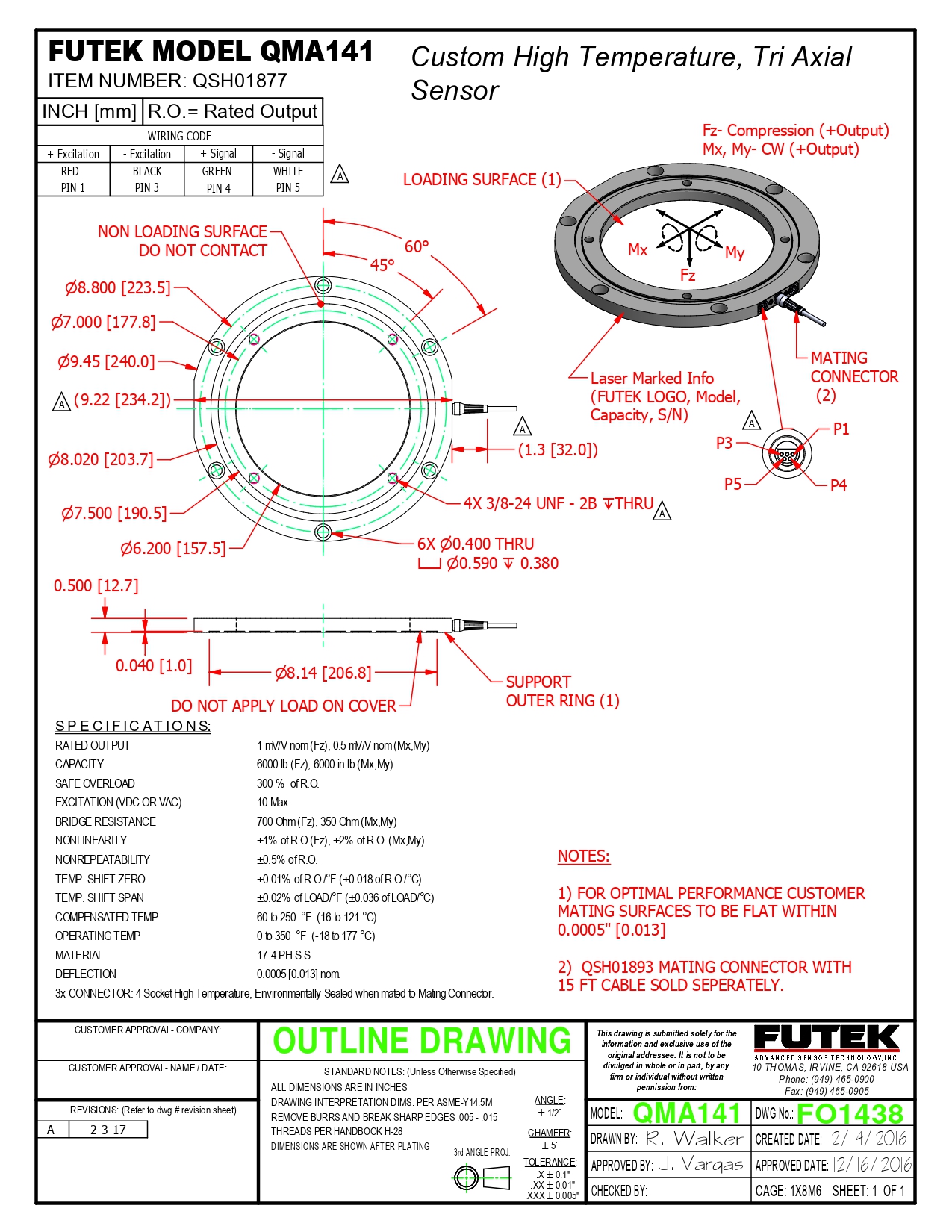

FUTEK QMA141 Custom High Temp Tri-Axial Load Cell

QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb, Custom High Temperature & Water Resistant Tri Axial Sensor, Material - 17-4 PH S.S., IP67 , Operating Temperature up to 350 F [177 C] & High Humidity , 3x Ultimate 4 Pin Receptacle

FUTEK QMA141 Custom High Temp Tri-Axial Load Cell 이미지

QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb, Custom High Temperature & Water Resistant Tri Axial Sensor, Material - 17-4 PH S.S., IP67 , Operating Temperature up to 350 F [177 C] & High Humidity , 3x Ultimate 4 Pin Receptacle

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA141, Fz: 6000 lb, Mx, My: 6000 in-lb, Custom High Temperature & Water Resistant Tri Axial Sensor, Material - 17-4 PH S.S., IP67 , Operating Temperature up to 350 F [177 C] & High Humidity , 3x Ultimate 4 Pin Receptacle

QSH01877

Description

Custom High Temp Tri-Axial Load Cell

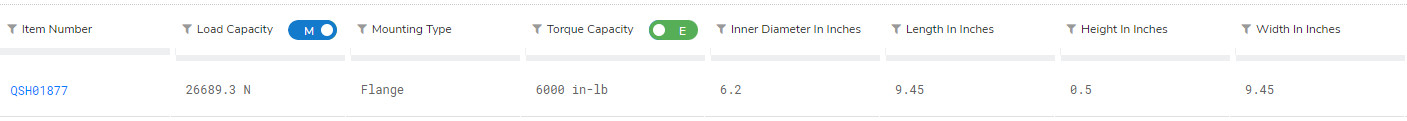

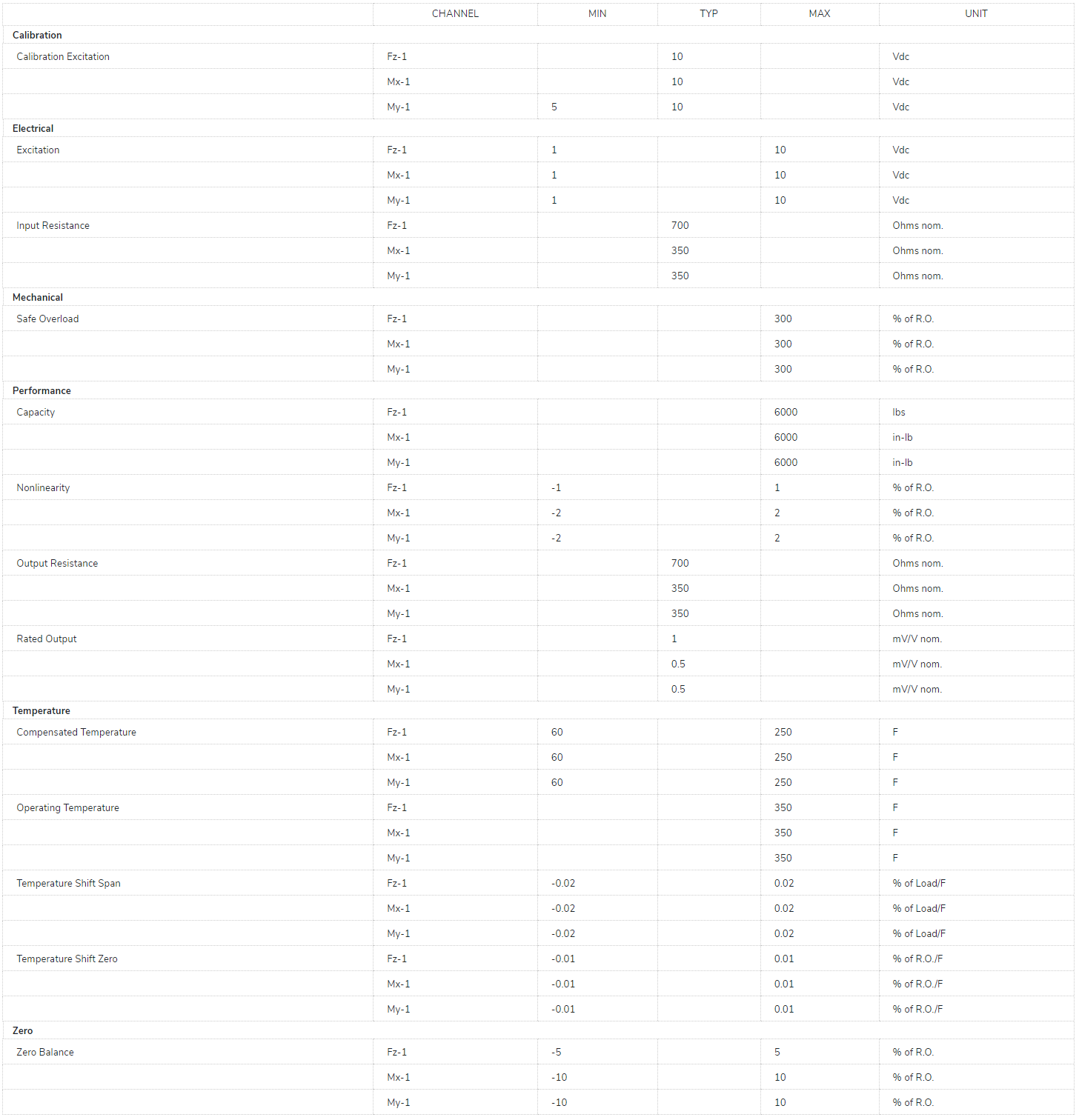

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
