홈/종합산업장비/센서/로드셀/FUTEK QMA121 Custom Fatigue Rated Dual Axis Loadcell

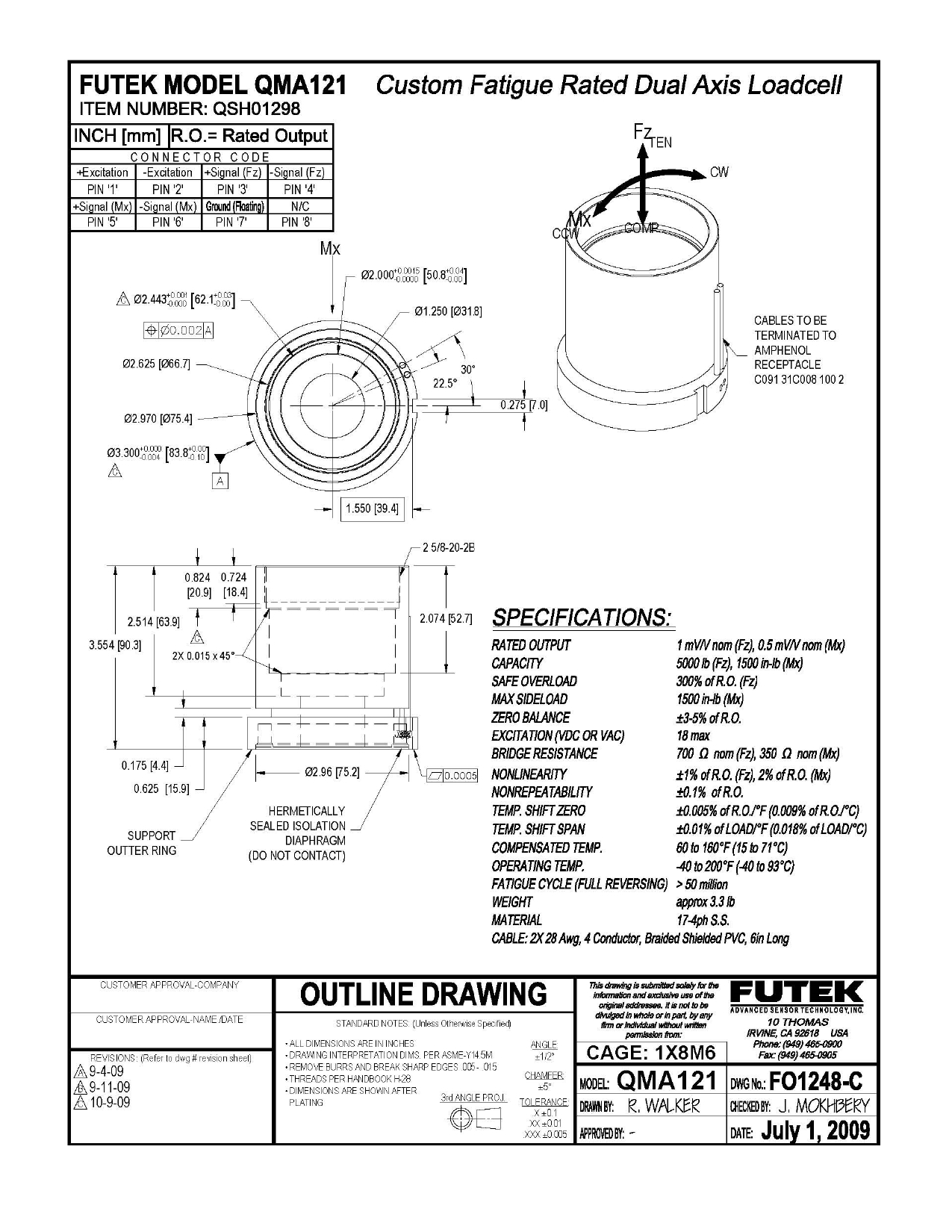

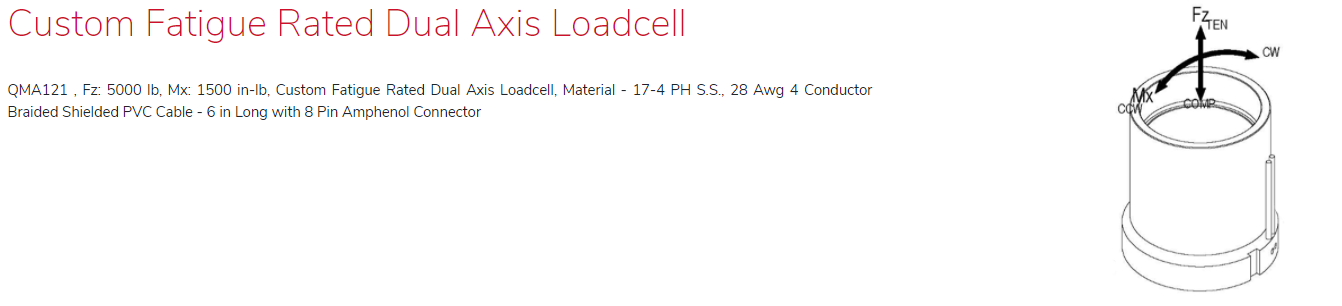

FUTEK QMA121 Custom Fatigue Rated Dual Axis Loadcell

QMA121 , Fz: 5000 lb, Mx: 1500 in-lb, Custom Fatigue Rated Dual Axis Loadcell, Material - 17-4 PH S.S., 28 Awg 4 Conductor Braided Shielded PVC Cable - 6 in Long with 8 Pin Amphenol Connector

FUTEK QMA121 Custom Fatigue Rated Dual Axis Loadcell 이미지

QMA121 , Fz: 5000 lb, Mx: 1500 in-lb, Custom Fatigue Rated Dual Axis Loadcell, Material - 17-4 PH S.S., 28 Awg 4 Conductor Braided Shielded PVC Cable - 6 in Long with 8 Pin Amphenol Connector

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QMA121 , Fz: 5000 lb, Mx: 1500 in-lb, Custom Fatigue Rated Dual Axis Loadcell, Material - 17-4 PH S.S., 28 Awg 4 Conductor Braided Shielded PVC Cable - 6 in Long with 8 Pin Amphenol Connector

v

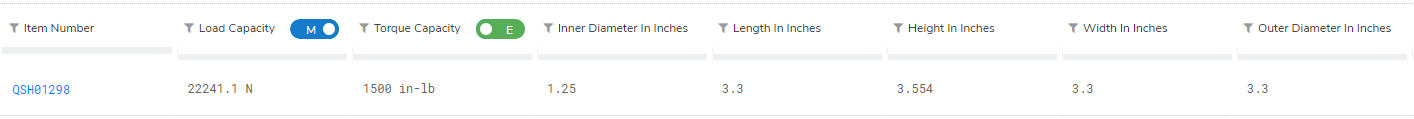

QSH01298

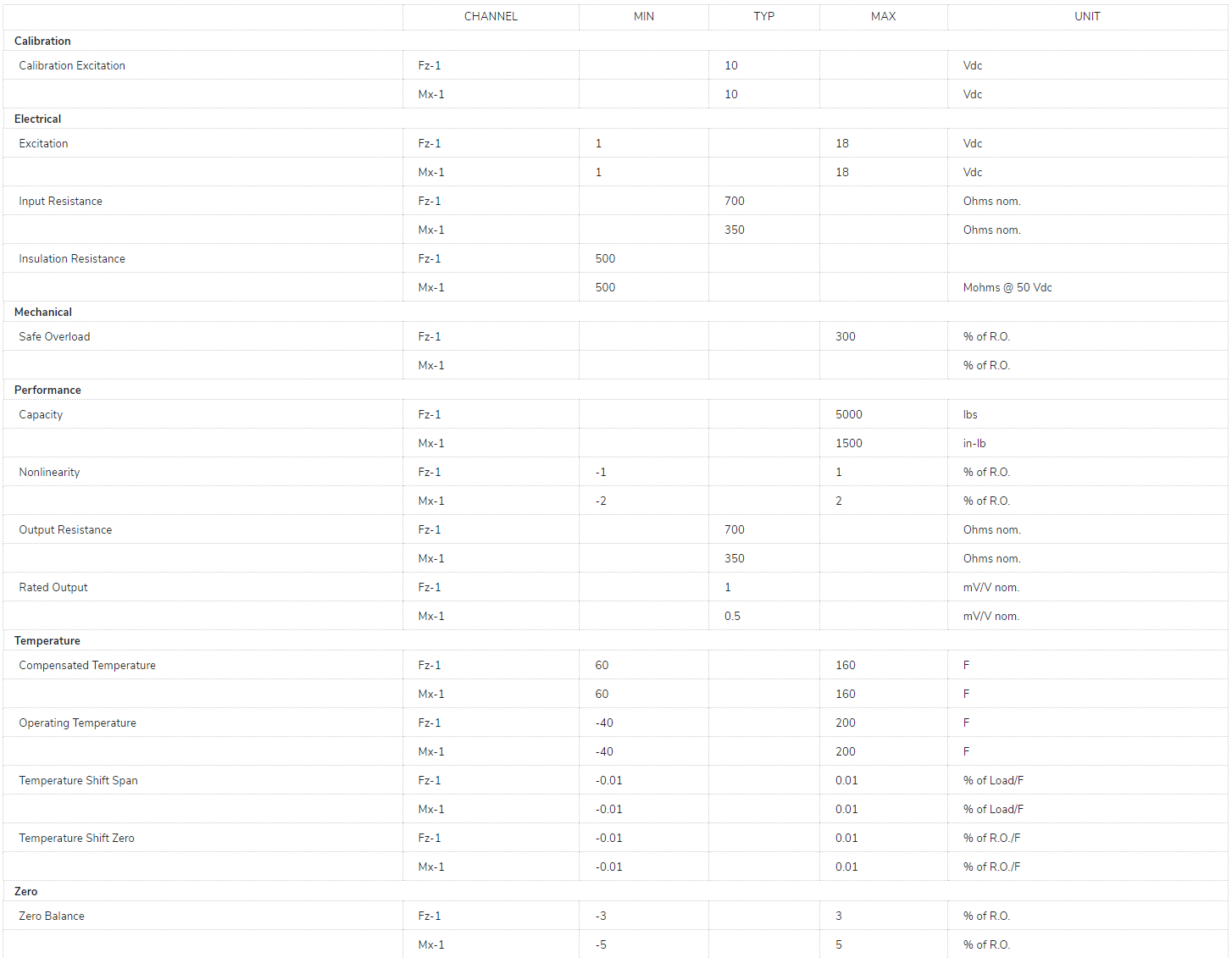

Specifications
