FUTEK QMA114 Custom Dual-Axis Load Cell

QMA114 , Ch Fx: 500 N;Ch Fy: 500 N; , Custom Dual-Axis Load Cell , Material - 17-4 PH S.S. , 4 Pin Microtech Receptacle DR-4S-4

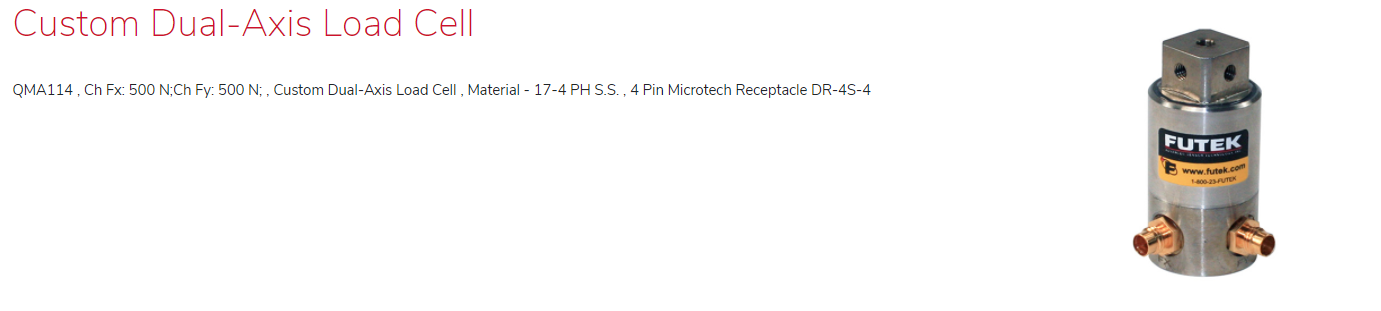

FUTEK QMA114 Custom Dual-Axis Load Cell 이미지

QMA114 , Ch Fx: 500 N;Ch Fy: 500 N; , Custom Dual-Axis Load Cell , Material - 17-4 PH S.S. , 4 Pin Microtech Receptacle DR-4S-4

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA114 , Ch Fx: 500 N;Ch Fy: 500 N; , Custom Dual-Axis Load Cell , Material - 17-4 PH S.S. , 4 Pin Microtech Receptacle DR-4S-4

v

QSH01032

Description

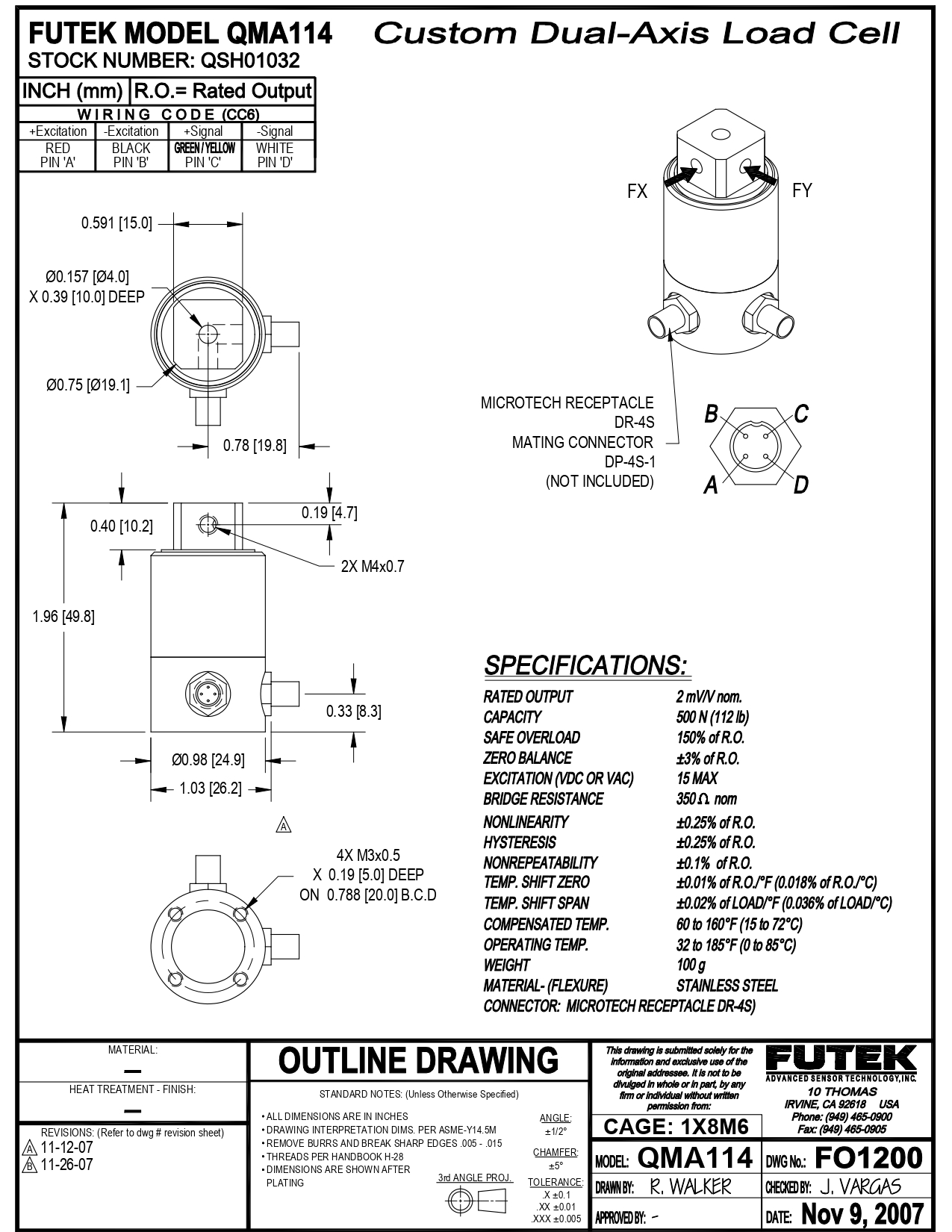

QMA114 Custom Dual-Axis Load Cell

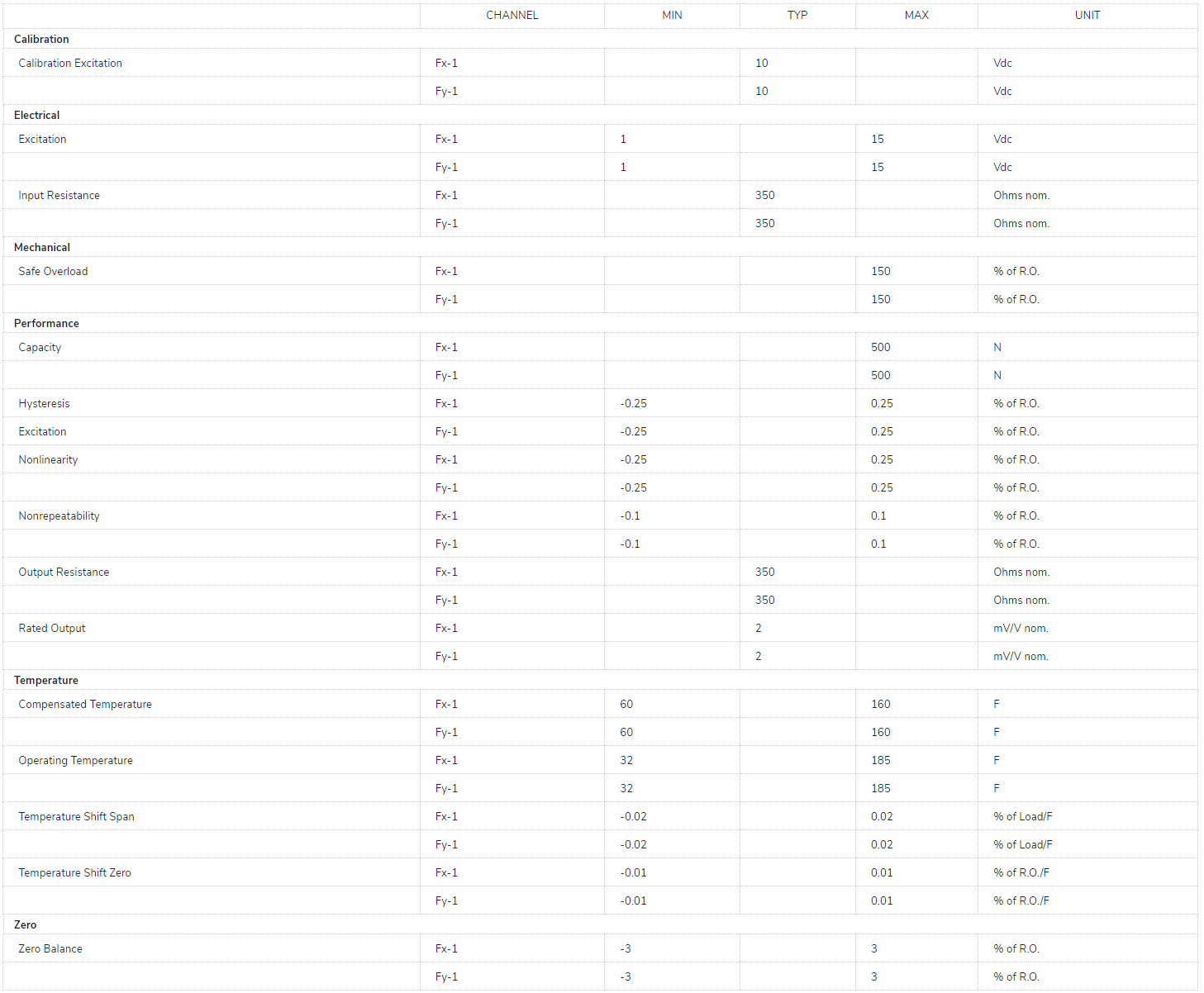

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
