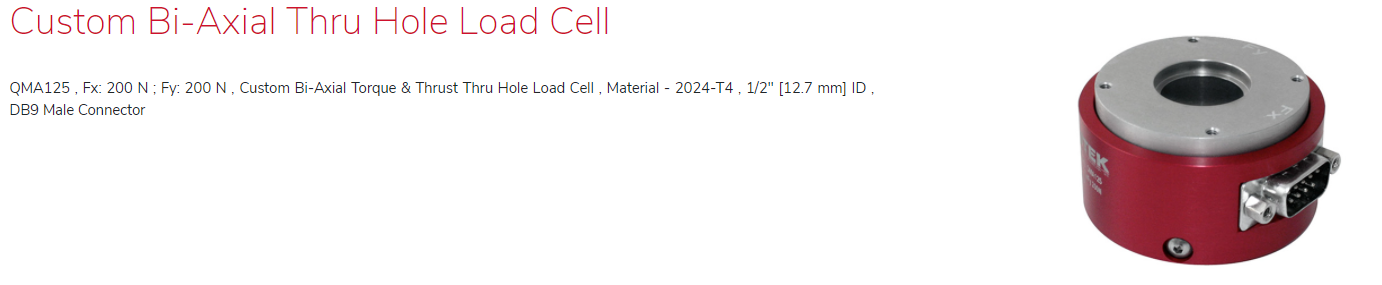

FUTEK QMA125 Custom Bi-Axial Thru Hole Load Cell

QMA125 , Fx: 200 N ; Fy: 200 N , Custom Bi-Axial Torque & Thrust Thru Hole Load Cell , Material - 2024-T4 , 1/2" [12.7 mm] ID , DB9 Male Connector

FUTEK QMA125 Custom Bi-Axial Thru Hole Load Cell 이미지

QMA125 , Fx: 200 N ; Fy: 200 N , Custom Bi-Axial Torque & Thrust Thru Hole Load Cell , Material - 2024-T4 , 1/2" [12.7 mm] ID , DB9 Male Connector

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA125 , Fx: 200 N ; Fy: 200 N , Custom Bi-Axial Torque & Thrust Thru Hole Load Cell , Material - 2024-T4 , 1/2" [12.7 mm] ID , DB9 Male Connector

QSH01347

Description

Custom Bi-Axial Thru Hole Load Cell

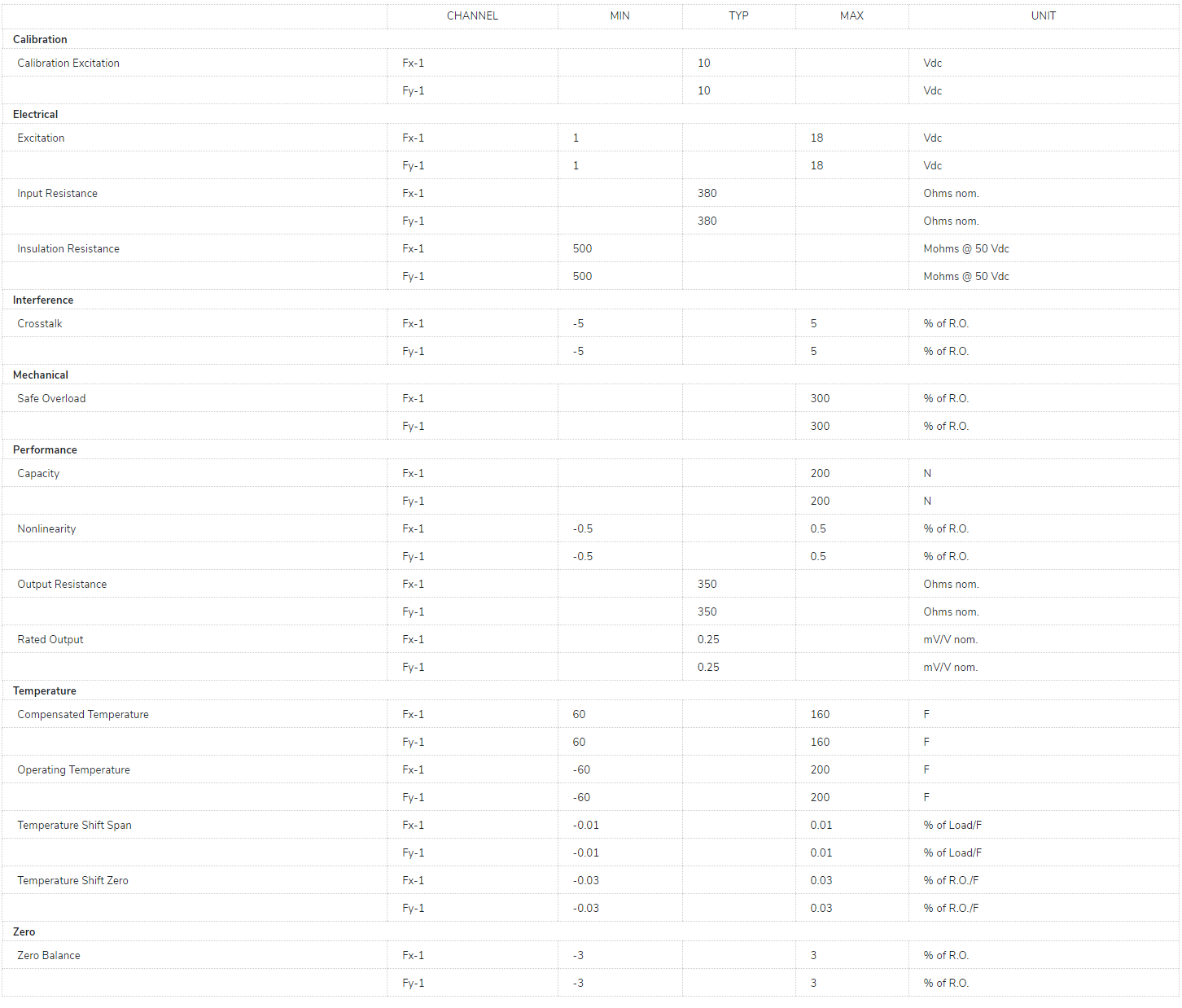

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
