홈/종합산업장비/센서/로드셀/FUTEK QMA101 Bi-Axial Handle Load Cell

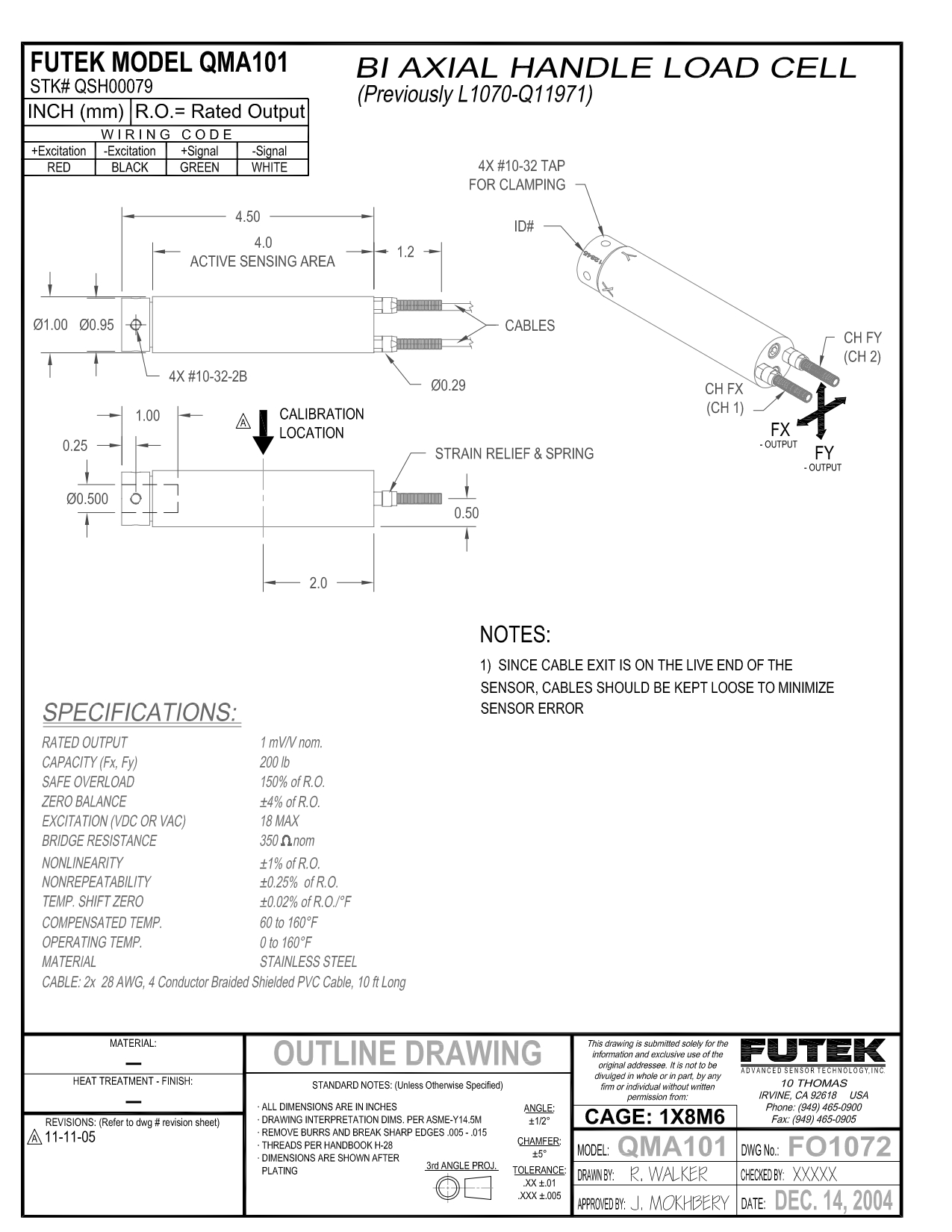

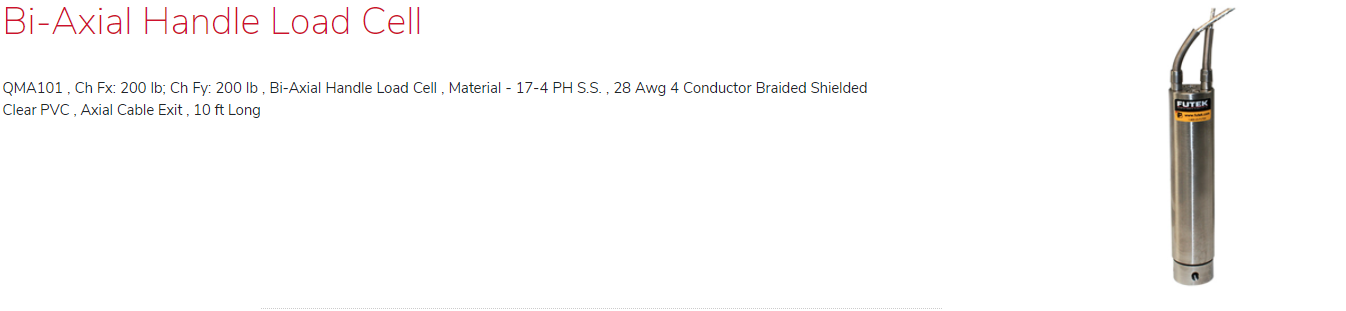

FUTEK QMA101 Bi-Axial Handle Load Cell

QMA101 , Ch Fx: 200 lb; Ch Fy: 200 lb , Bi-Axial Handle Load Cell , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded Clear PVC , Axial Cable Exit , 10 ft Long

FUTEK QMA101 Bi-Axial Handle Load Cell 이미지

QMA101 , Ch Fx: 200 lb; Ch Fy: 200 lb , Bi-Axial Handle Load Cell , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded Clear PVC , Axial Cable Exit , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA101 , Ch Fx: 200 lb; Ch Fy: 200 lb , Bi-Axial Handle Load Cell , Material - 17-4 PH S.S. , 28 Awg 4 Conductor Braided Shielded Clear PVC , Axial Cable Exit , 10 ft Long

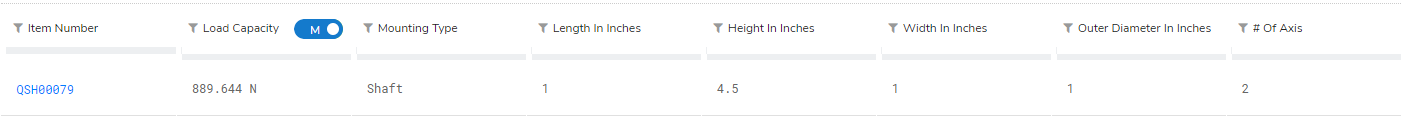

QSH00079

Description

Custom Bi-Axial Handle Load Cell

Features

Compact Size

Designed for hand gripping

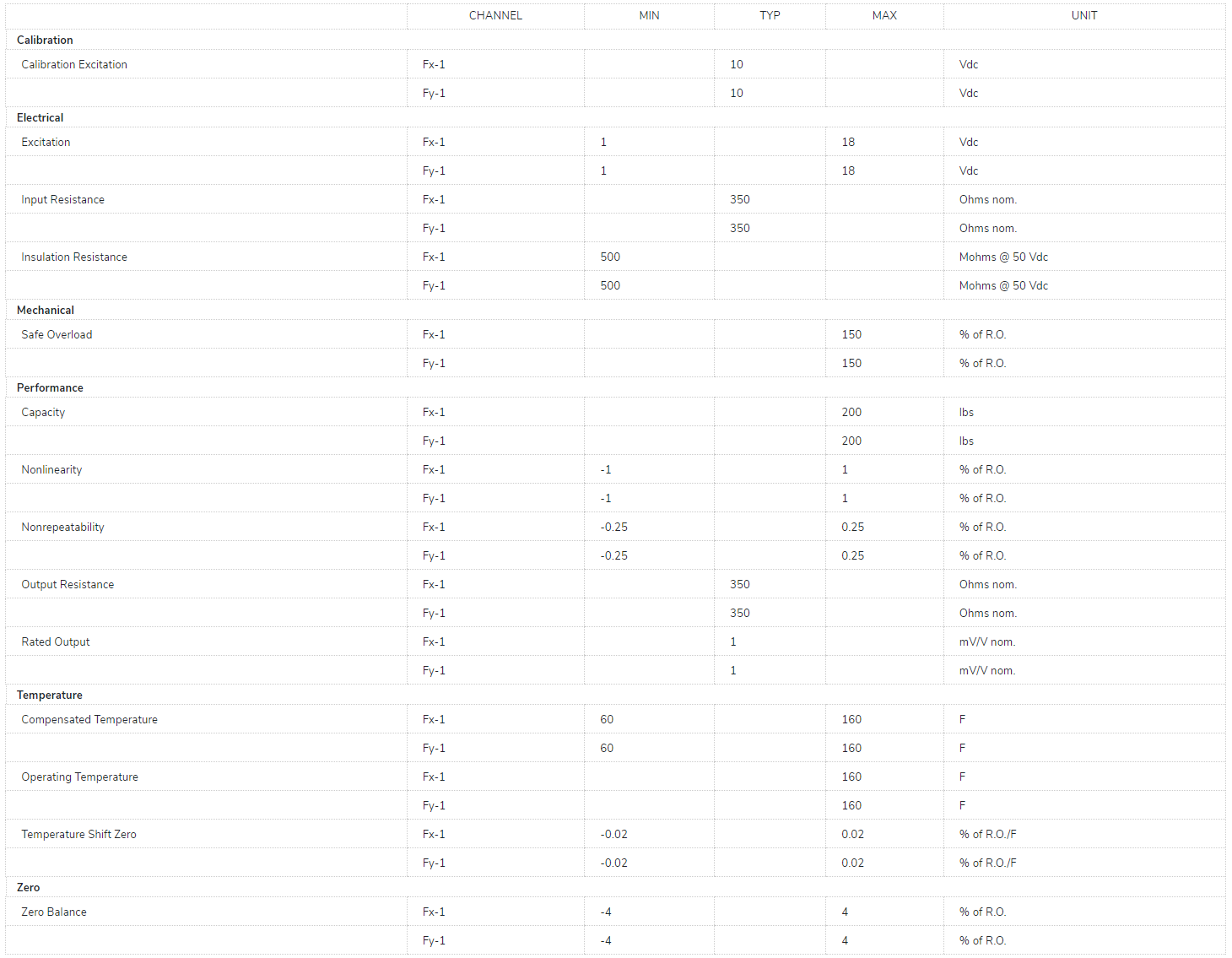

Specifications
