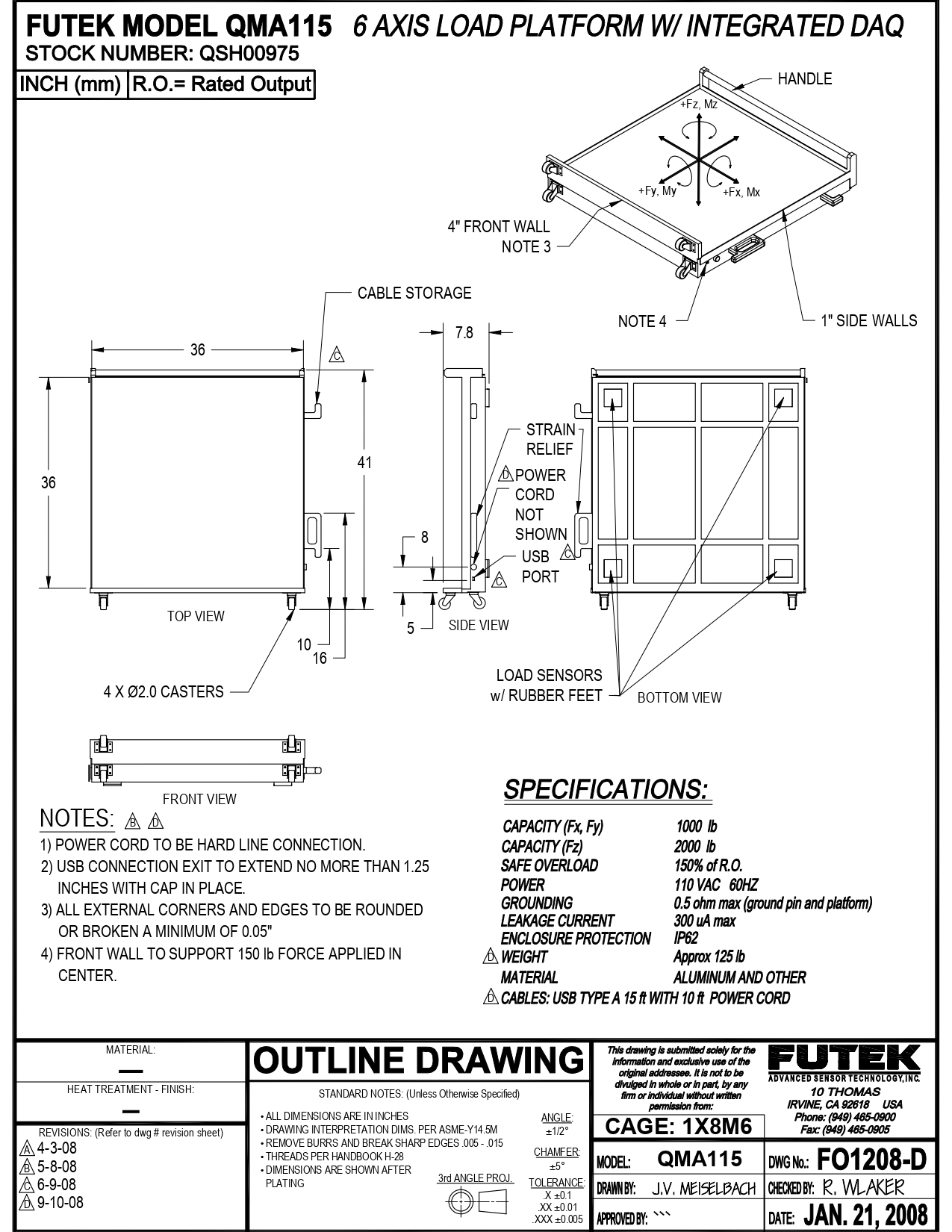

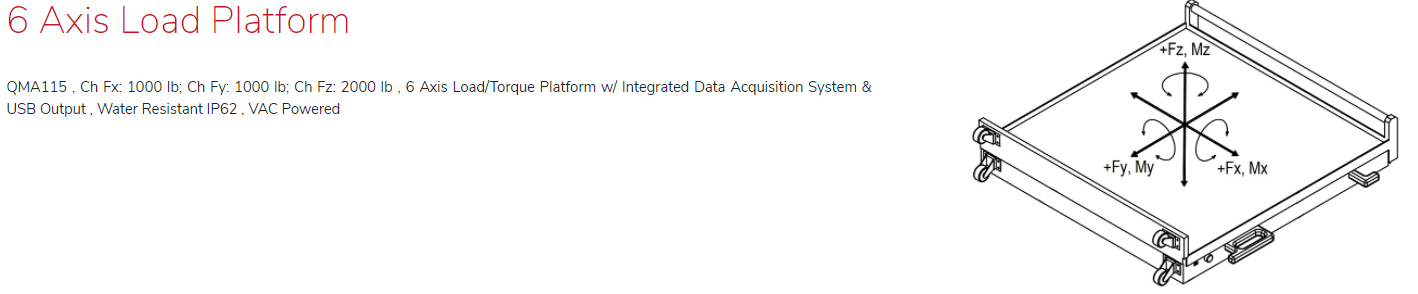

FUTEK QMA115 6 Axis Load Platform

QMA115 , Ch Fx: 1000 lb; Ch Fy: 1000 lb; Ch Fz: 2000 lb , 6 Axis Load/Torque Platform w/ Integrated Data Acquisition System & USB Output , Water Resistant IP62 , VAC Powered

FUTEK QMA115 6 Axis Load Platform 이미지

QMA115 , Ch Fx: 1000 lb; Ch Fy: 1000 lb; Ch Fz: 2000 lb , 6 Axis Load/Torque Platform w/ Integrated Data Acquisition System & USB Output , Water Resistant IP62 , VAC Powered

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QMA115 , Ch Fx: 1000 lb; Ch Fy: 1000 lb; Ch Fz: 2000 lb , 6 Axis Load/Torque Platform w/ Integrated Data Acquisition System & USB Output , Water Resistant IP62 , VAC Powered

QSH00975

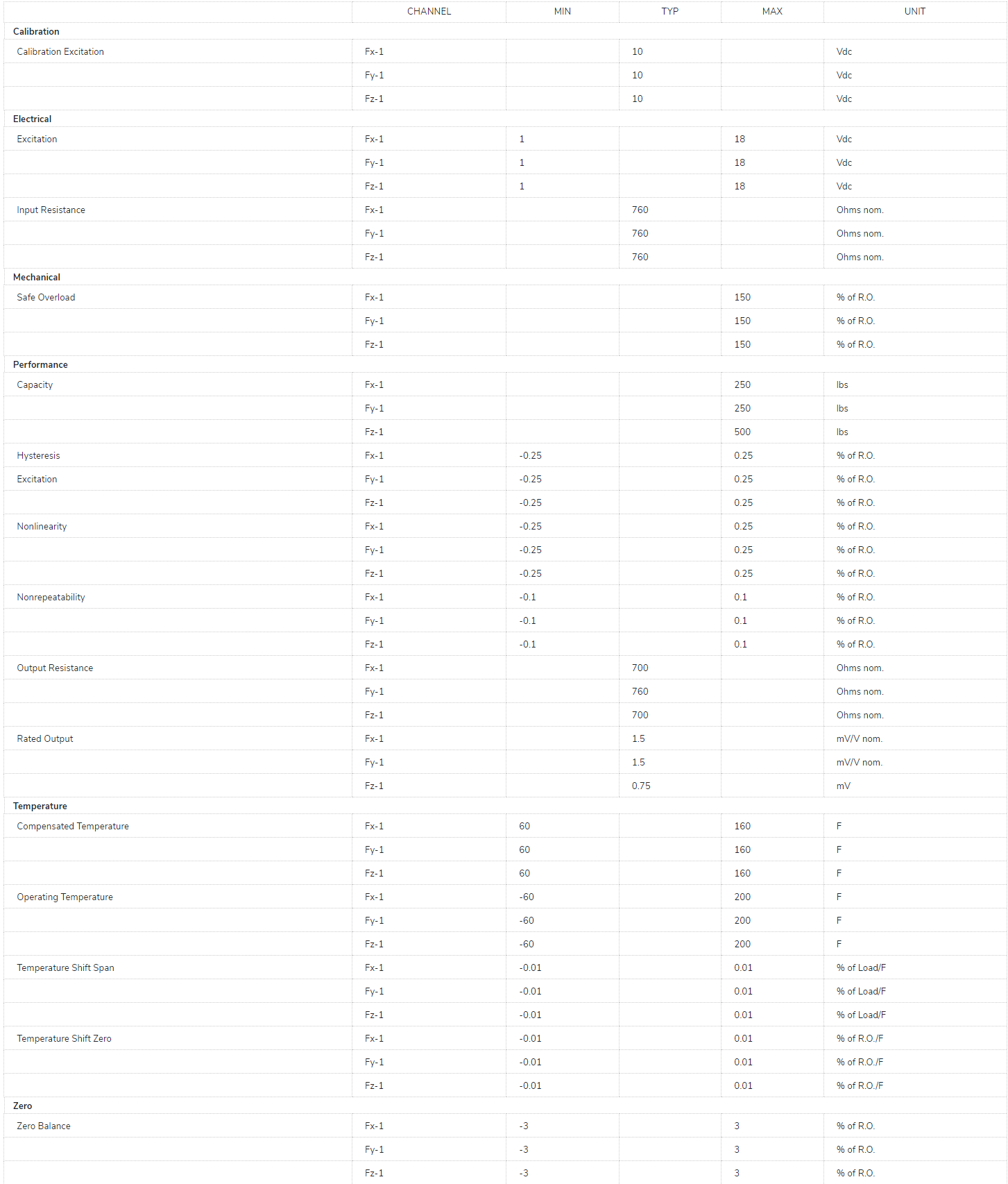

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
