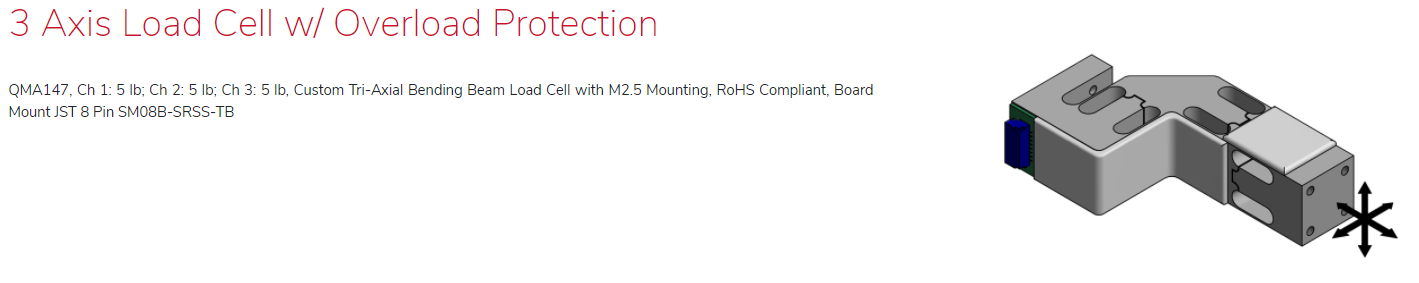

FUTEK QMA147 3 Axis Load Cell W/ Overload Protection

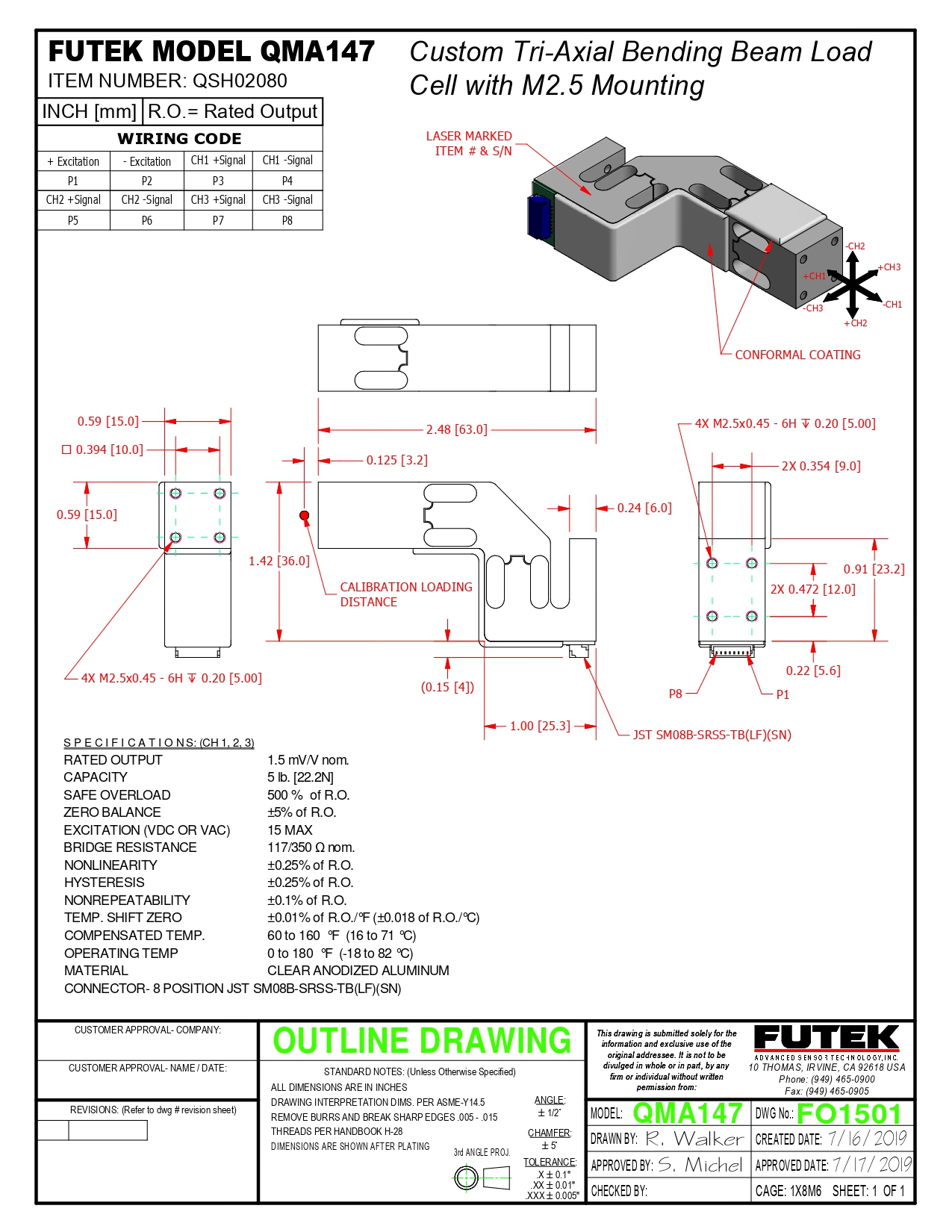

QMA147, Ch 1: 5 lb; Ch 2: 5 lb; Ch 3: 5 lb, Custom Tri-Axial Bending Beam Load Cell with M2.5 Mounting, RoHS Compliant, Board Mount JST 8 Pin SM08B-SRSS-TB

FUTEK QMA147 3 Axis Load Cell W/ Overload Protection 이미지

QMA147, Ch 1: 5 lb; Ch 2: 5 lb; Ch 3: 5 lb, Custom Tri-Axial Bending Beam Load Cell with M2.5 Mounting, RoHS Compliant, Board Mount JST 8 Pin SM08B-SRSS-TB

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QMA147, Ch 1: 5 lb; Ch 2: 5 lb; Ch 3: 5 lb, Custom Tri-Axial Bending Beam Load Cell with M2.5 Mounting, RoHS Compliant, Board Mount JST 8 Pin SM08B-SRSS-TB

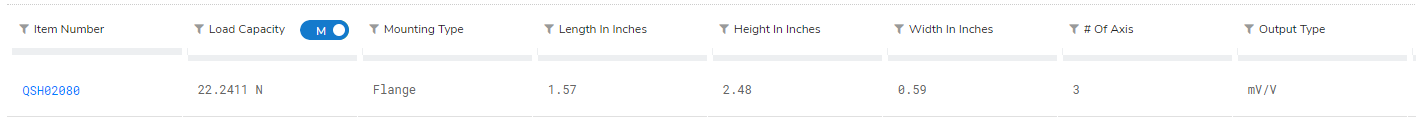

QSH02080

Features

Overload Protection in all 3 Degrees of Freedom
Compact Size
Integrated Latching Receptacle

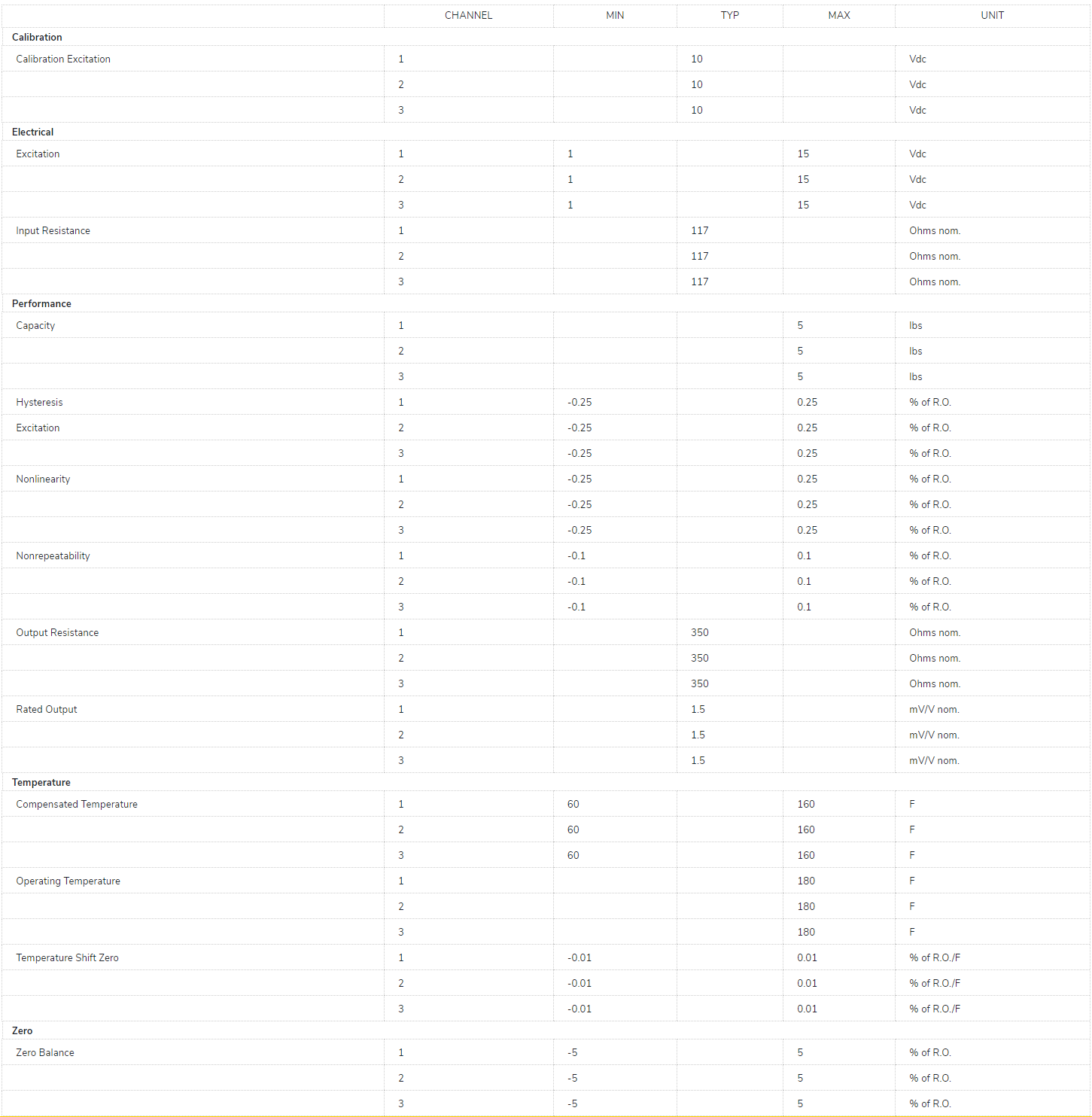

Specifications
