industrial equipment

홈/종합산업장비/센서/로드셀/FUTEK QLA135 Weld Through Force Sensor

FUTEK QLA135 Weld Through Force Sensor

QLA135 , 1100 lb , Weld Through Force Load Cell Sensor , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

FUTEK QLA135 Weld Through Force Sensor 이미지

QLA135 , 1100 lb , Weld Through Force Load Cell Sensor , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA135 , 1100 lb , Weld Through Force Load Cell Sensor , 28 Awg 6 Conductor Shielded Polyurethane Cable , 5 ft Long

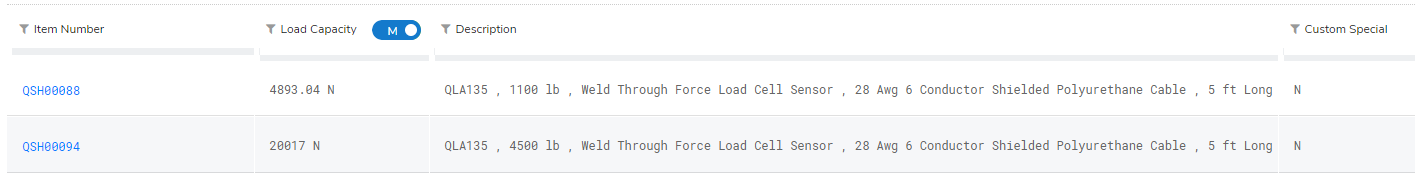

QSH00088

QSH00094

Description

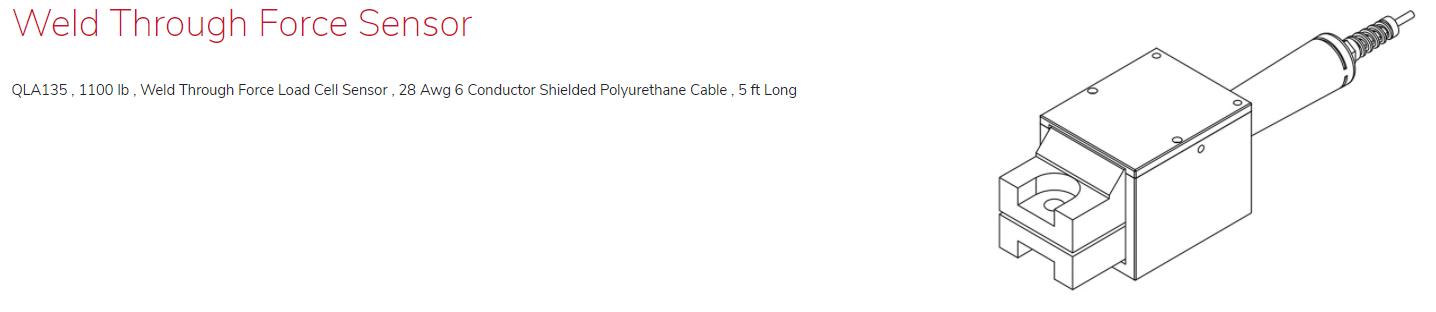

Weld Through Force Sensor

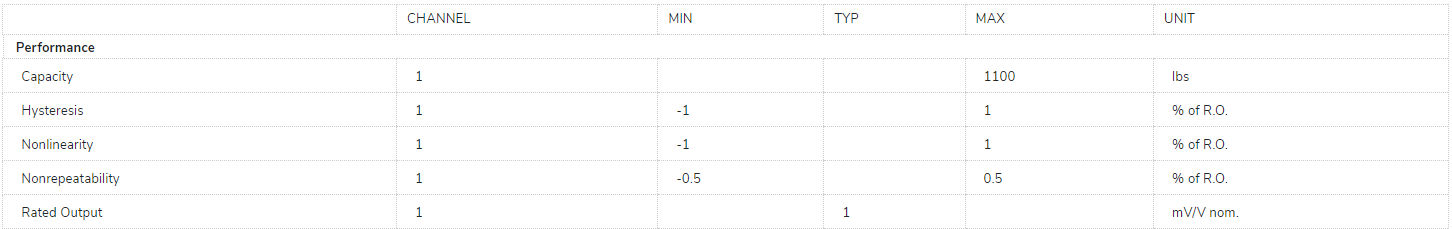

Specifications
