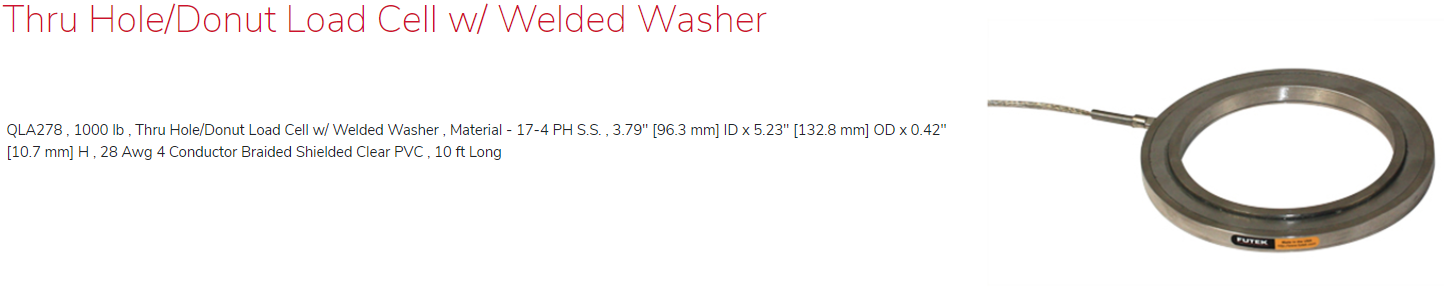

FUTEK QLA278 Thru Hole/Donut Load Cell w/ Welded Washer

QLA278 , 1000 lb , Thru Hole/Donut Load Cell w/ Welded Washer , Material - 17-4 PH S.S. , 3.79" [96.3 mm] ID x 5.23" [132.8 mm] OD x 0.42" [10.7 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

FUTEK QLA278 Thru Hole/Donut Load Cell w/ Welded Washer 이미지

QLA278 , 1000 lb , Thru Hole/Donut Load Cell w/ Welded Washer , Material - 17-4 PH S.S. , 3.79" [96.3 mm] ID x 5.23" [132.8 mm] OD x 0.42" [10.7 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA278 , 1000 lb , Thru Hole/Donut Load Cell w/ Welded Washer , Material - 17-4 PH S.S. , 3.79" [96.3 mm] ID x 5.23" [132.8 mm] OD x 0.42" [10.7 mm] H , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

QSH00857

Description

Thru Hole / Donut Load Cell with Welded Washer

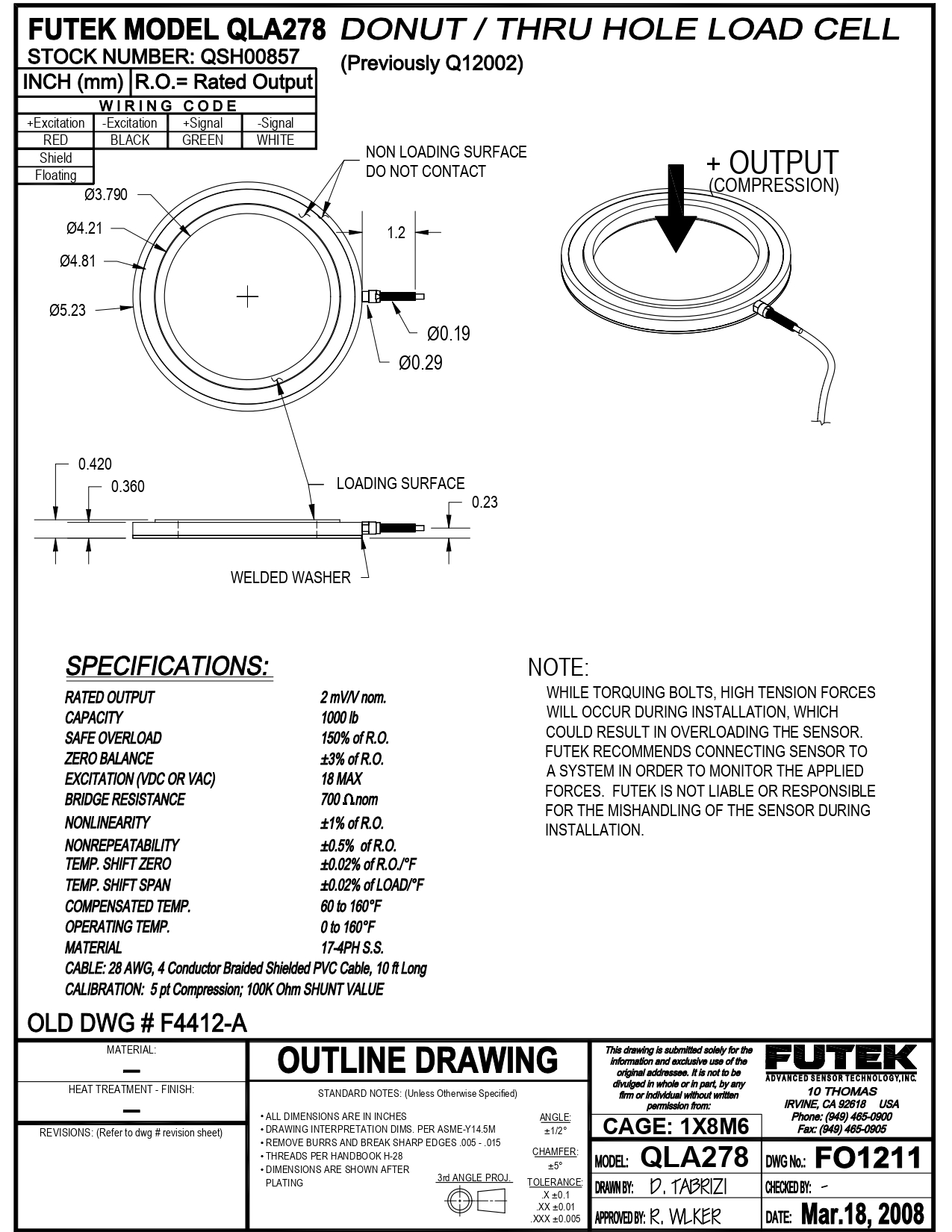

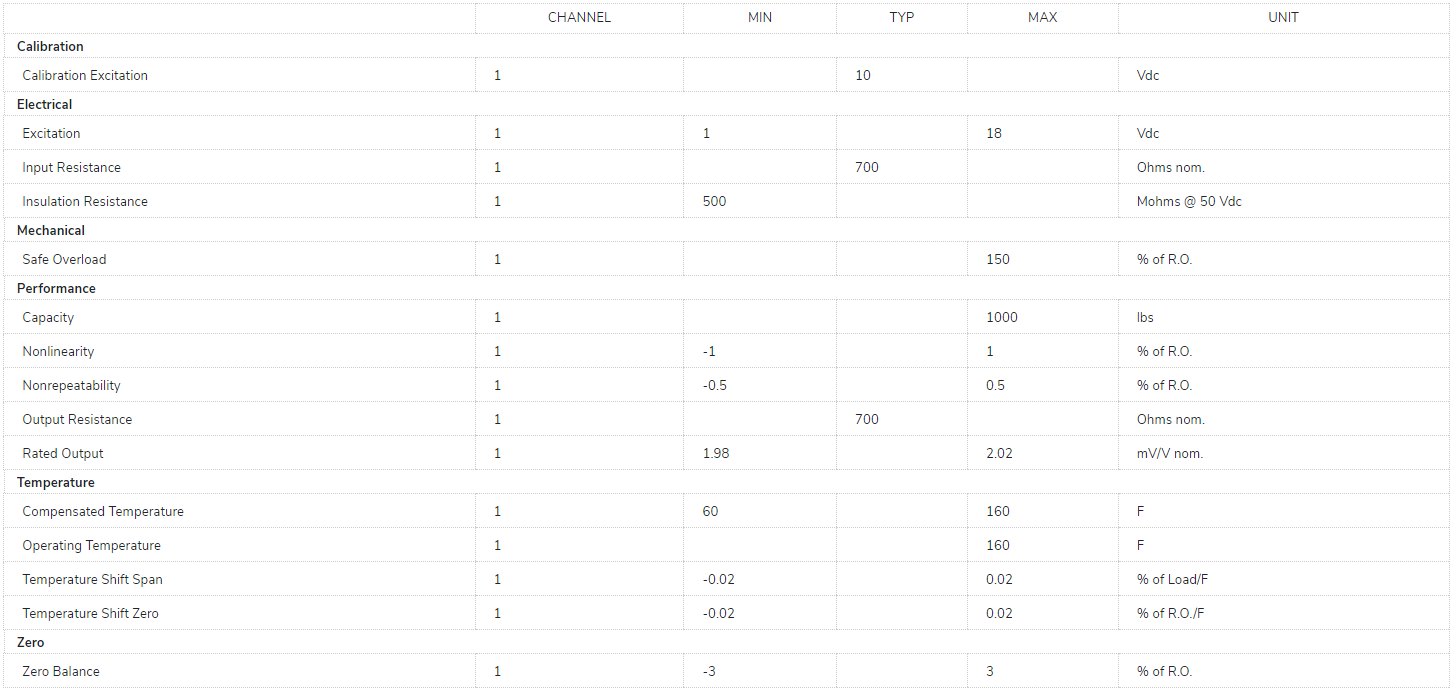

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
