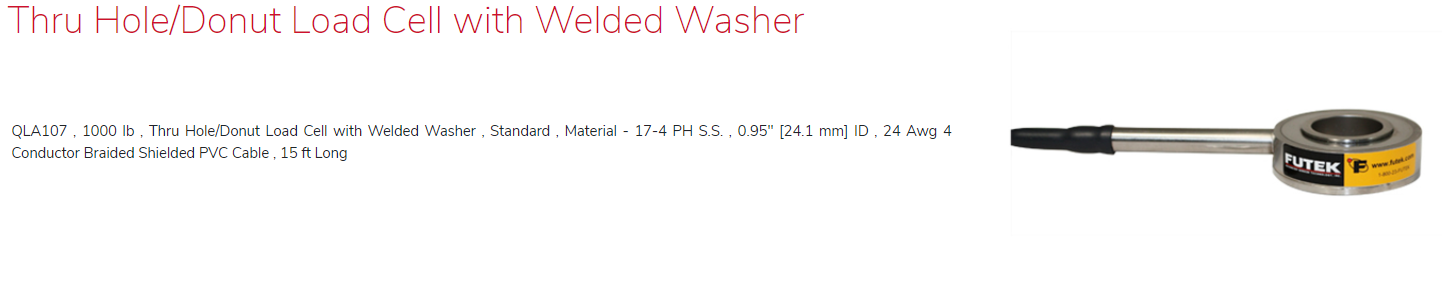

FUTEK QLA107 Thru Hole/Donut Load Cell with Welded Washer

QLA107 , 1000 lb , Thru Hole/Donut Load Cell with Welded Washer , Standard , Material - 17-4 PH S.S. , 0.95" [24.1 mm] ID , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long

FUTEK QLA107 Thru Hole/Donut Load Cell with Welded Washer 이미지

QLA107 , 1000 lb , Thru Hole/Donut Load Cell with Welded Washer , Standard , Material - 17-4 PH S.S. , 0.95" [24.1 mm] ID , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA107 , 1000 lb , Thru Hole/Donut Load Cell with Welded Washer , Standard , Material - 17-4 PH S.S. , 0.95" [24.1 mm] ID , 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long

QSH00177

Description

Donut Load Cell with Welded Washer

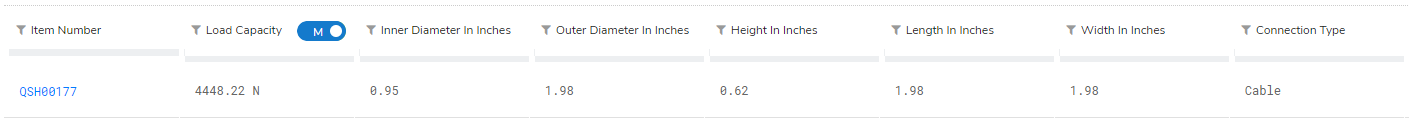

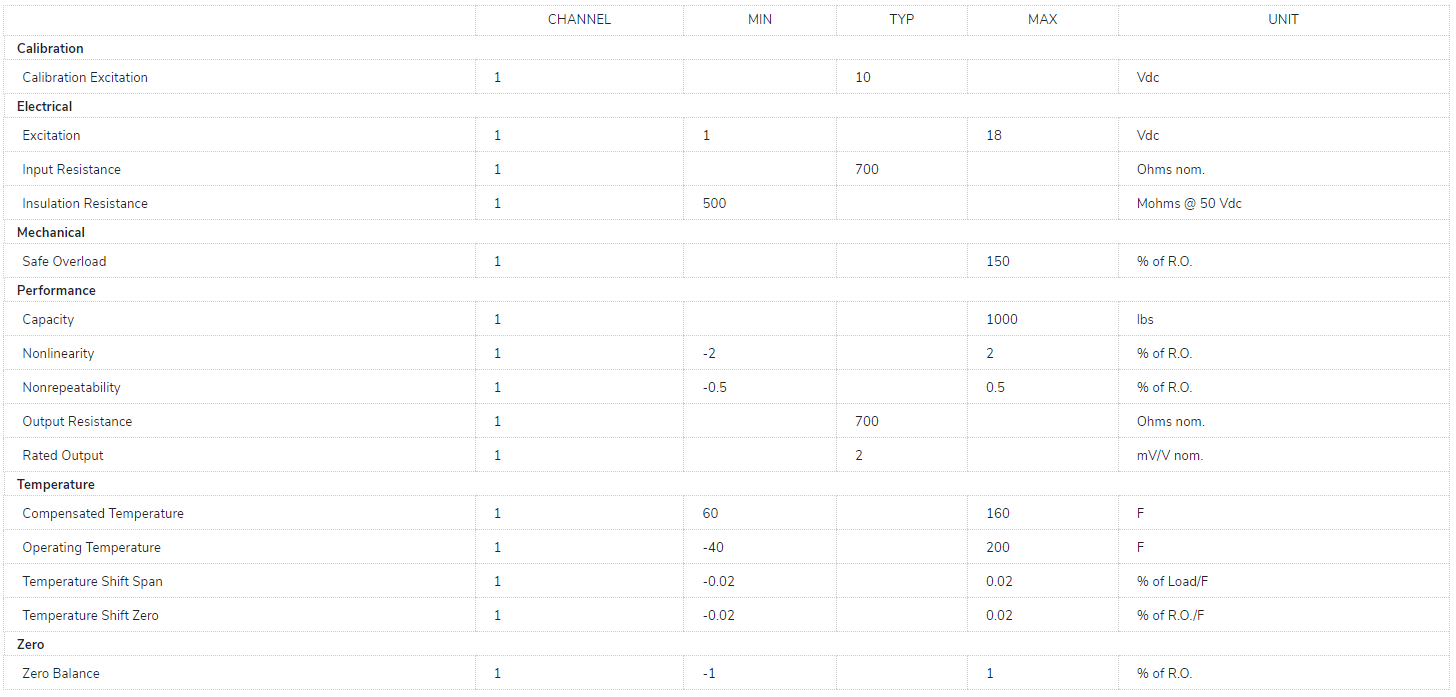

Specifications

QSH00177

시스템의 센서 전원 노이즈를 줄이는 방법
