industrial equipment

홈/종합산업장비/센서/로드셀/FUTEK QLA115 Thru Hole/Donut Load Cell

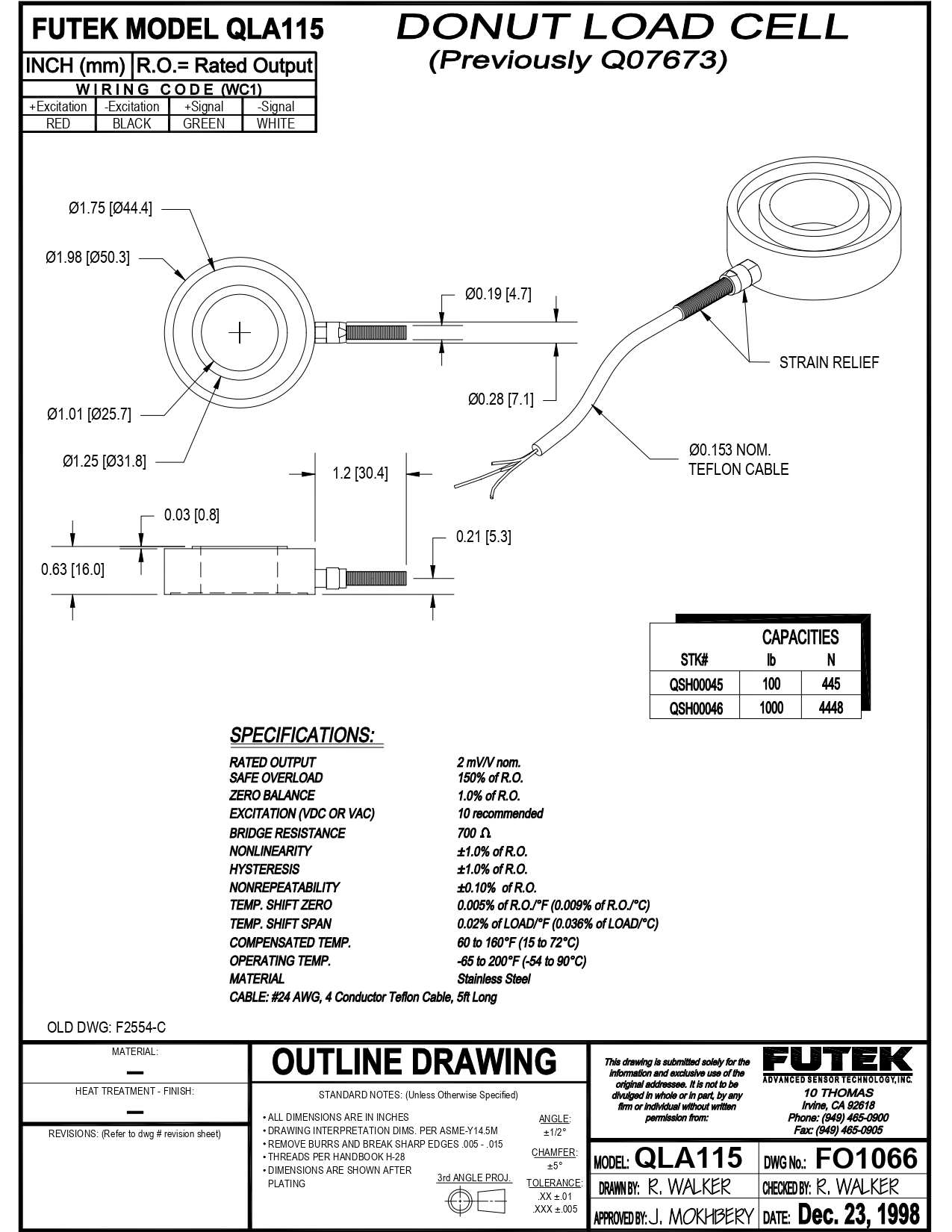

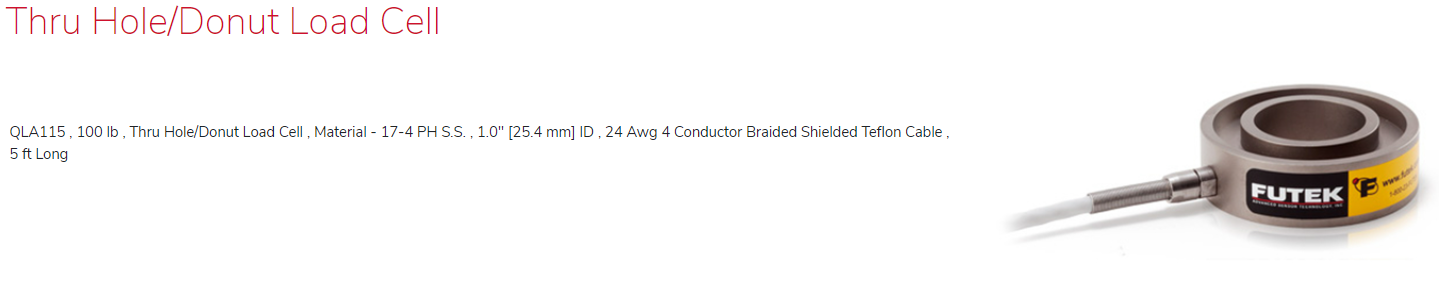

FUTEK QLA115 Thru Hole/Donut Load Cell

QLA115 , 100 lb , Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 1.0" [25.4 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

FUTEK QLA115 Thru Hole/Donut Load Cell 이미지

QLA115 , 100 lb , Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 1.0" [25.4 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA115 , 100 lb , Thru Hole/Donut Load Cell , Material - 17-4 PH S.S. , 1.0" [25.4 mm] ID , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

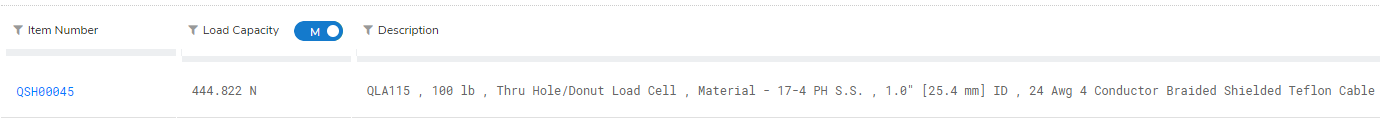

QSH00045

Description

Donut Load Cell

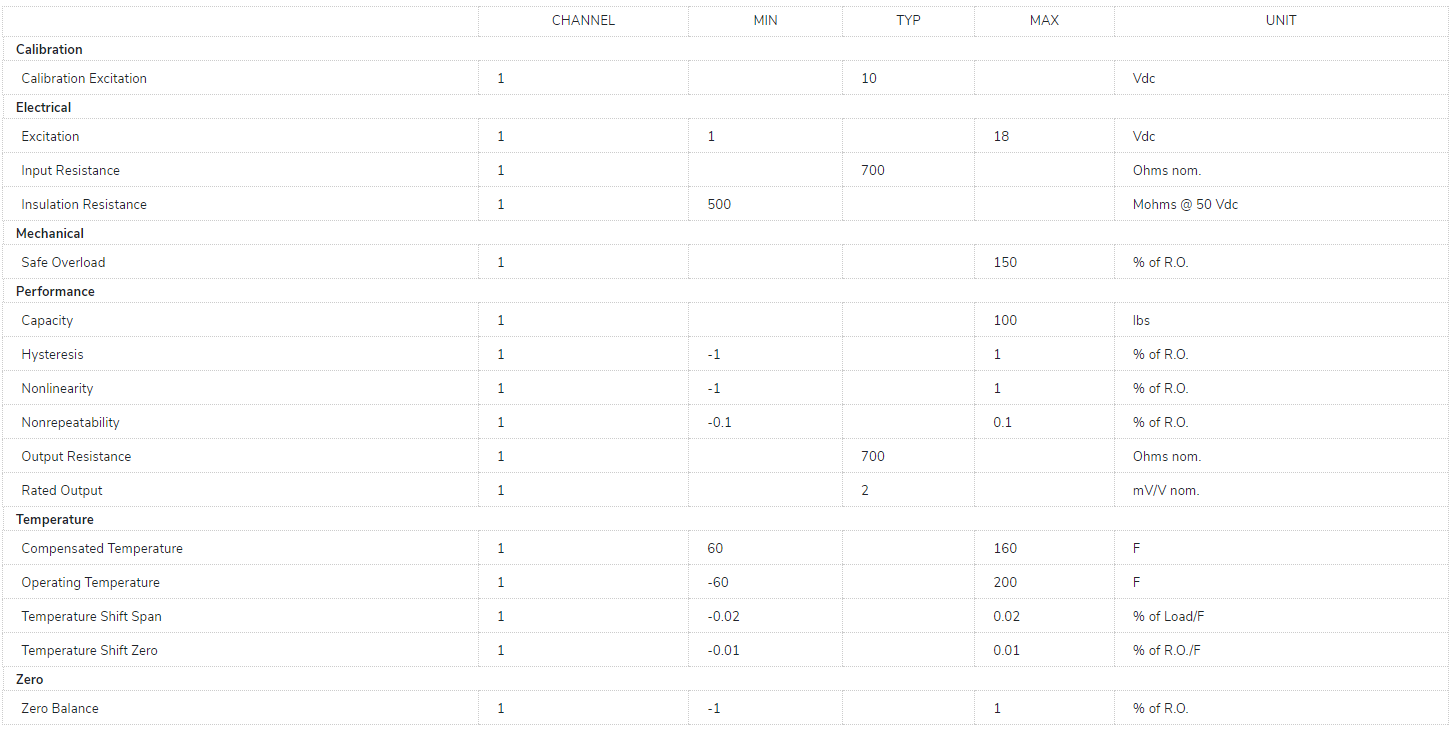

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
