홈/종합산업장비/센서/로드셀/FUTEK QLA106 Thru Hole/Donut Load Cell with 1.79 ID

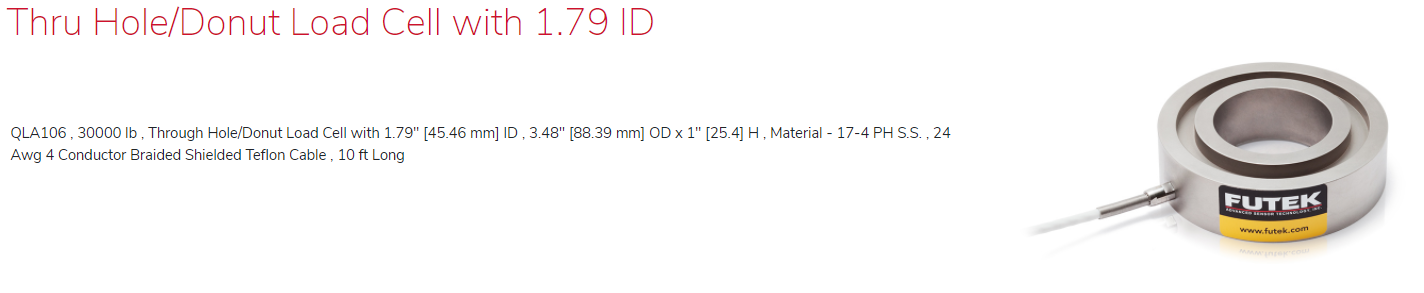

FUTEK QLA106 Thru Hole/Donut Load Cell with 1.79 ID

QLA106 , 30000 lb , Through Hole/Donut Load Cell with 1.79" [45.46 mm] ID , 3.48" [88.39 mm] OD x 1" [25.4] H , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

FUTEK QLA106 Thru Hole/Donut Load Cell with 1.79 ID 이미지

QLA106 , 30000 lb , Through Hole/Donut Load Cell with 1.79" [45.46 mm] ID , 3.48" [88.39 mm] OD x 1" [25.4] H , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA106 , 30000 lb , Through Hole/Donut Load Cell with 1.79" [45.46 mm] ID , 3.48" [88.39 mm] OD x 1" [25.4] H , Material - 17-4 PH S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 10 ft Long

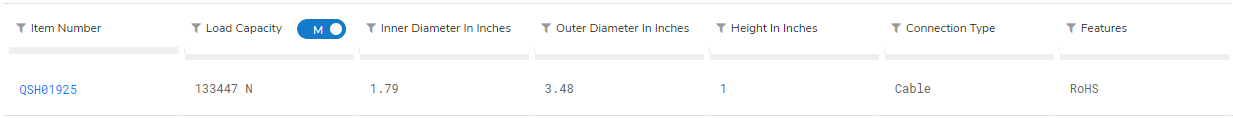

QSH01925

Description

Thru Hole/Donut Load Cell with 1.79 ID

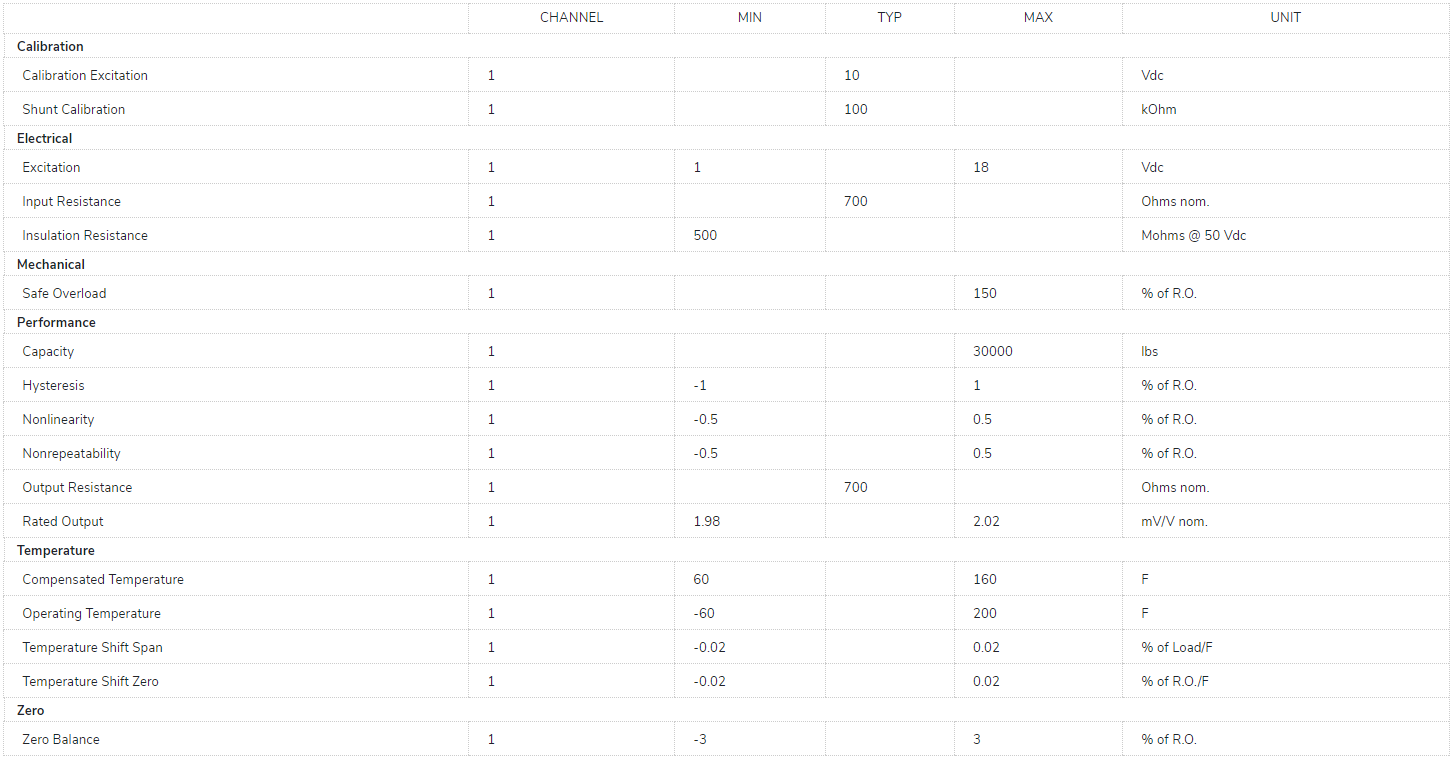

Specifications
