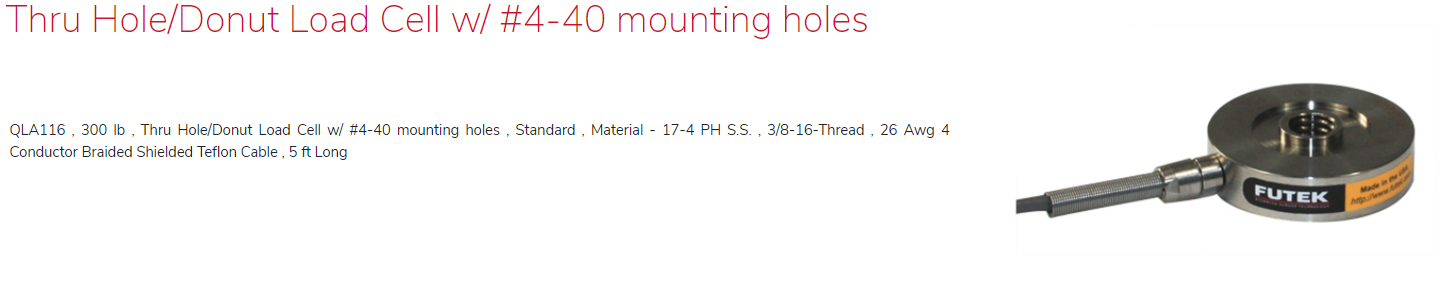

FUTEK QLA116 Thru Hole/Donut Load Cell w/ #4-40 mounting holes

QLA116 , 300 lb , Thru Hole/Donut Load Cell w/ #4-40 mounting holes , Standard , Material - 17-4 PH S.S. , 3/8-16-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

FUTEK QLA116 Thru Hole/Donut Load Cell w/ #4-40 mounting holes 이미지

QLA116 , 300 lb , Thru Hole/Donut Load Cell w/ #4-40 mounting holes , Standard , Material - 17-4 PH S.S. , 3/8-16-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA116 , 300 lb , Thru Hole/Donut Load Cell w/ #4-40 mounting holes , Standard , Material - 17-4 PH S.S. , 3/8-16-Thread , 26 Awg 4 Conductor Braided Shielded Teflon Cable , 5 ft Long

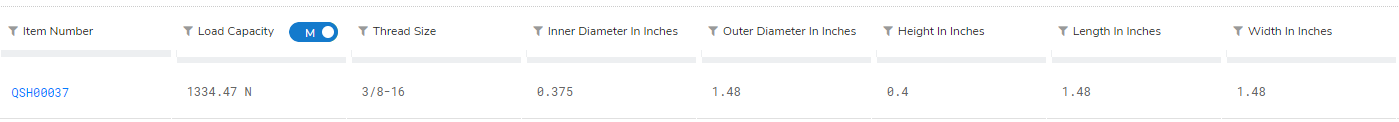

QSH00037

Description

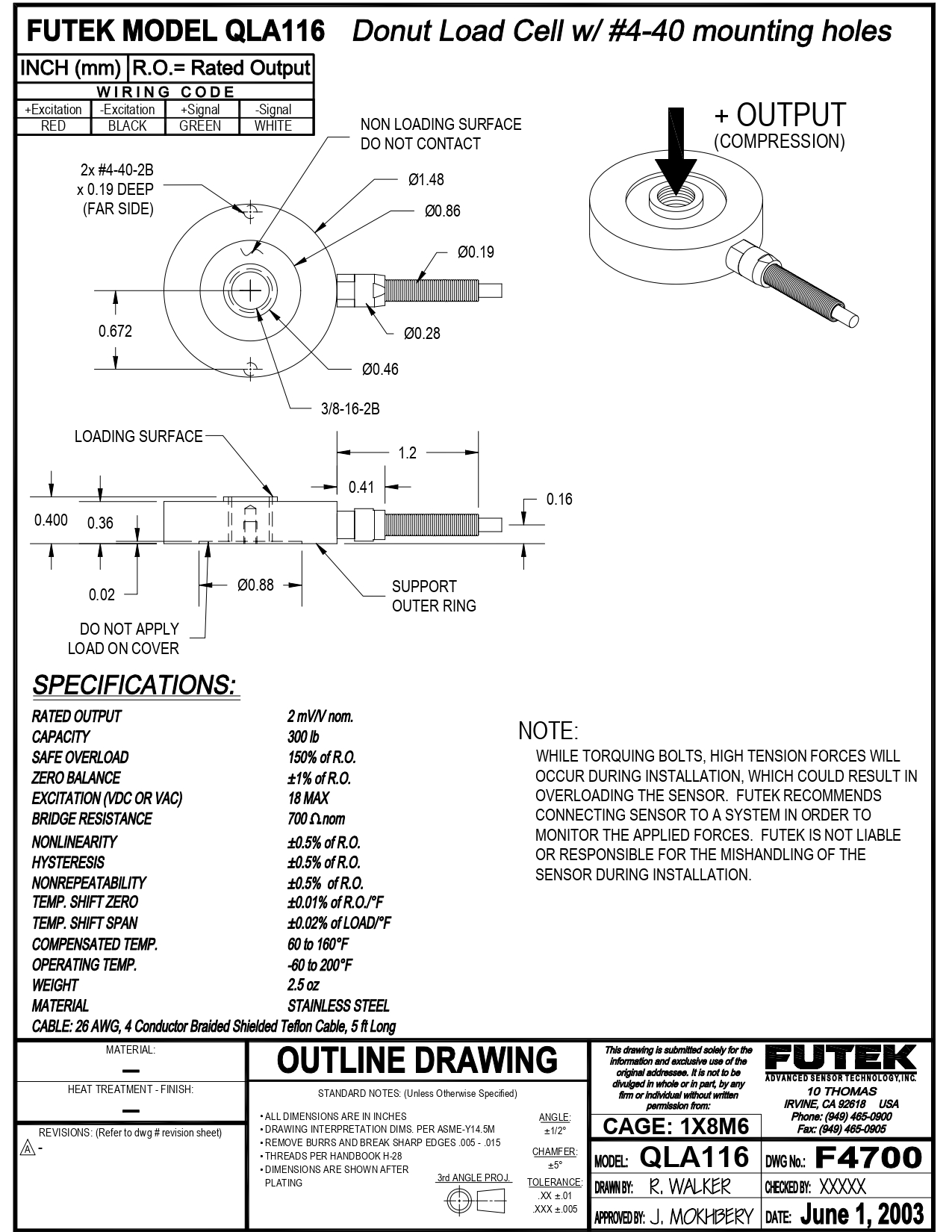

Donut Load Cell with #4-40 Mounting Holes

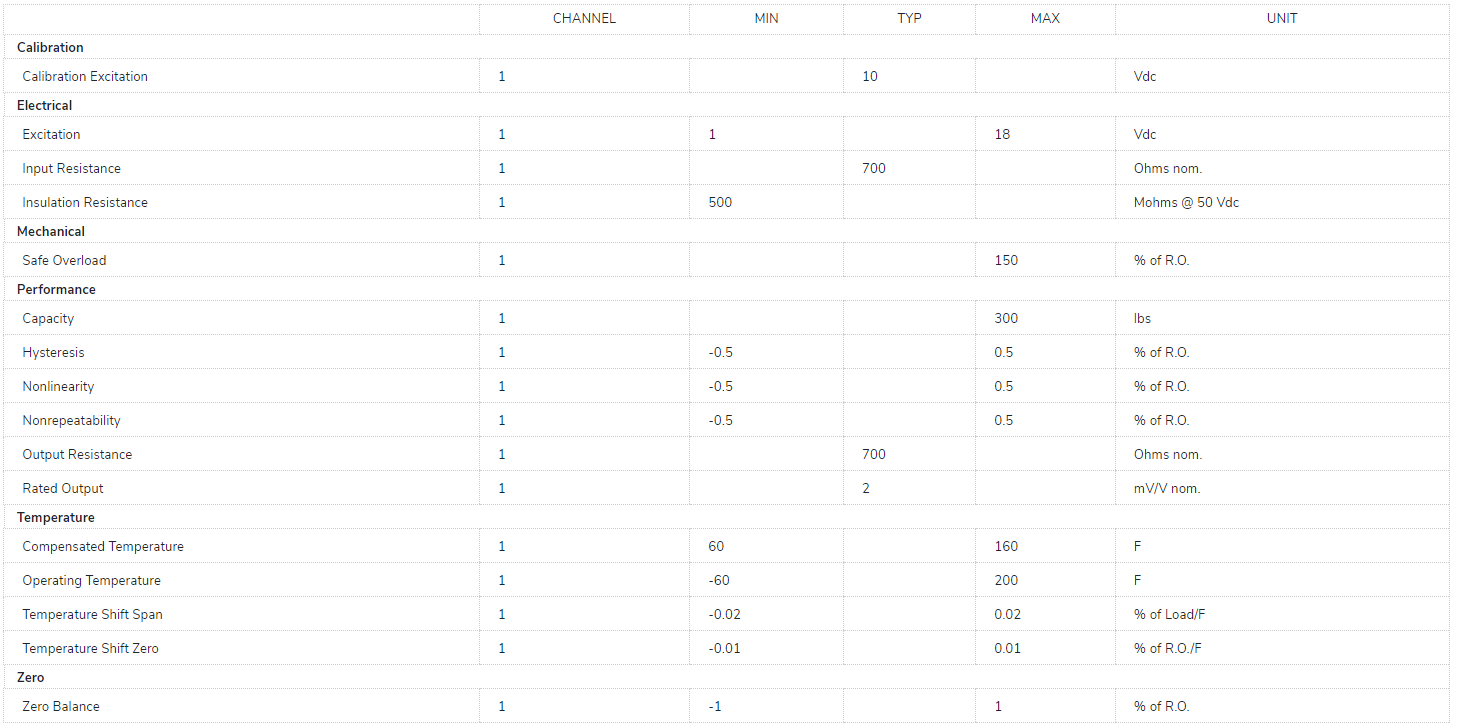

Specifications
