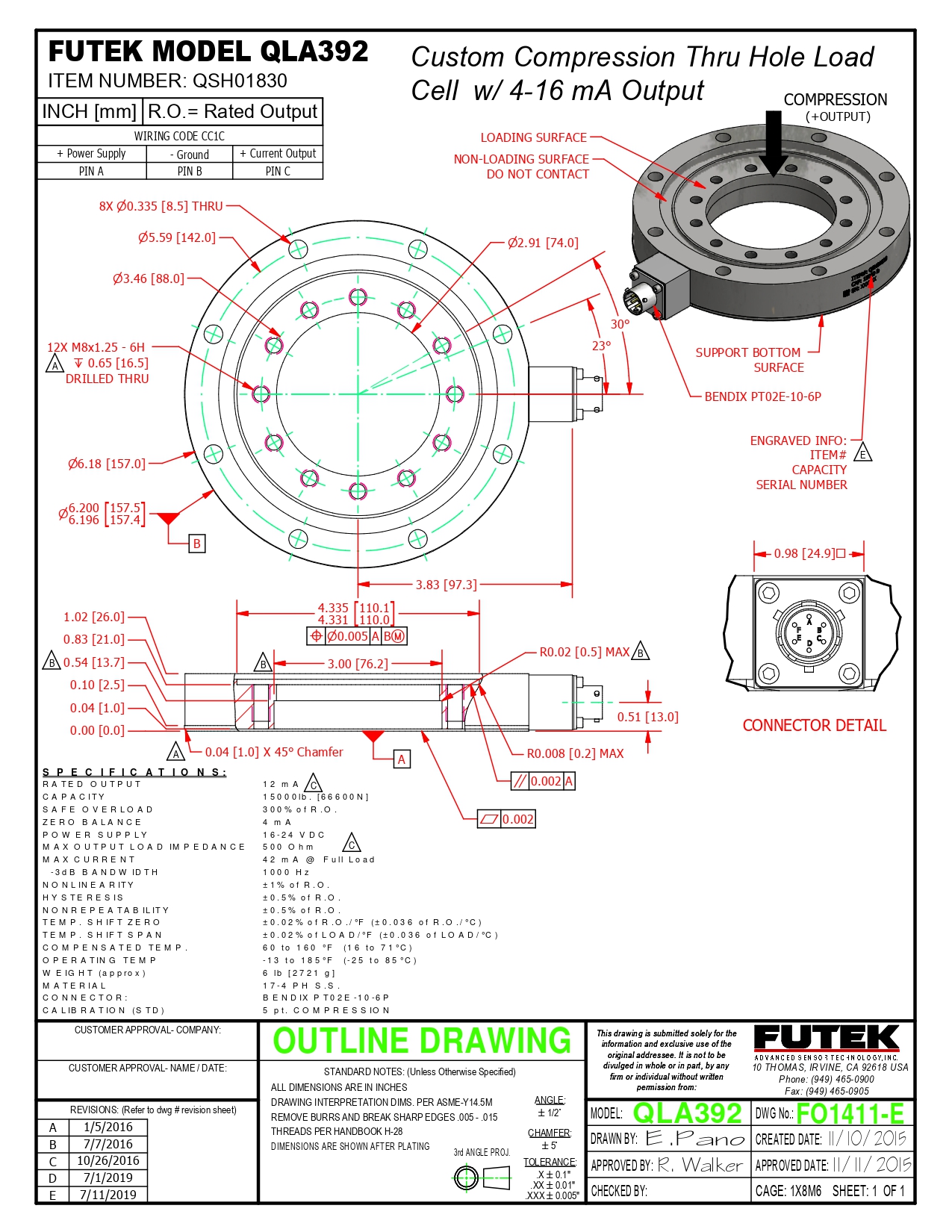

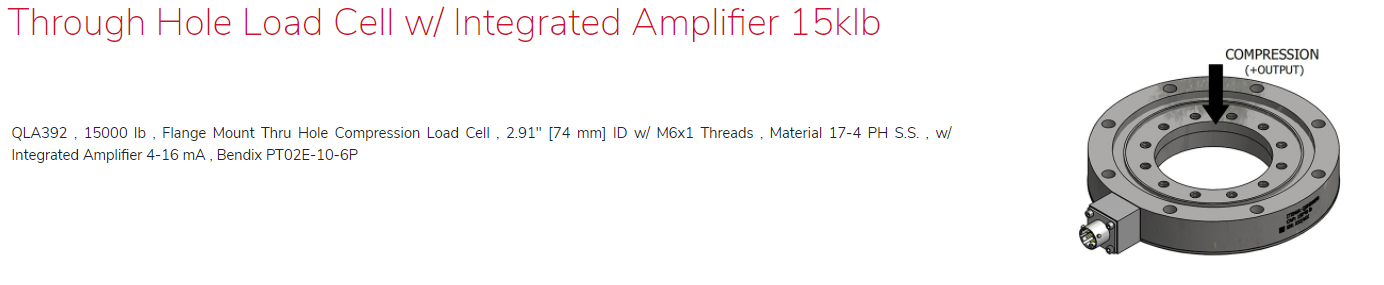

FUTEK QLA392 Through Hole Load Cell w/ Integrated Amplifier 15klb

QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91" [74 mm] ID w/ M6x1 Threads , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P

FUTEK QLA392 Through Hole Load Cell w/ Integrated Amplifier 15klb 이미지

QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91" [74 mm] ID w/ M6x1 Threads , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA392 , 15000 lb , Flange Mount Thru Hole Compression Load Cell , 2.91" [74 mm] ID w/ M6x1 Threads , Material 17-4 PH S.S. , w/ Integrated Amplifier 4-16 mA , Bendix PT02E-10-6P

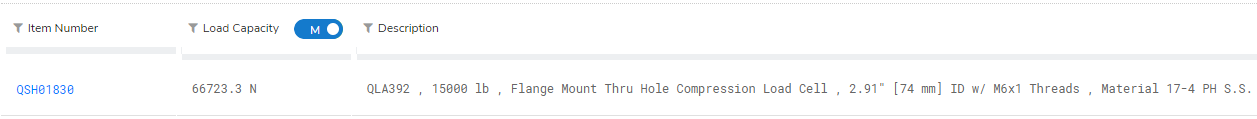

QSH01830

Description

Custom Donut Load Cell

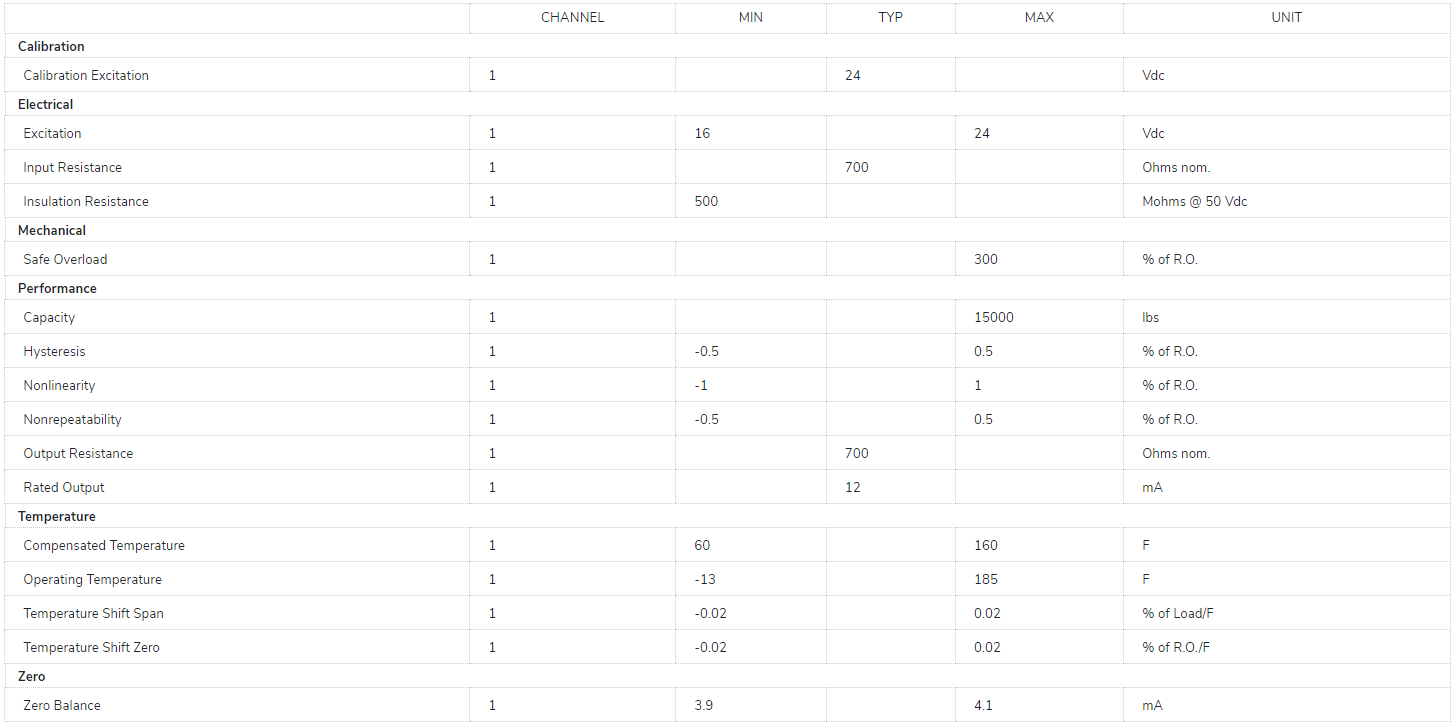

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
