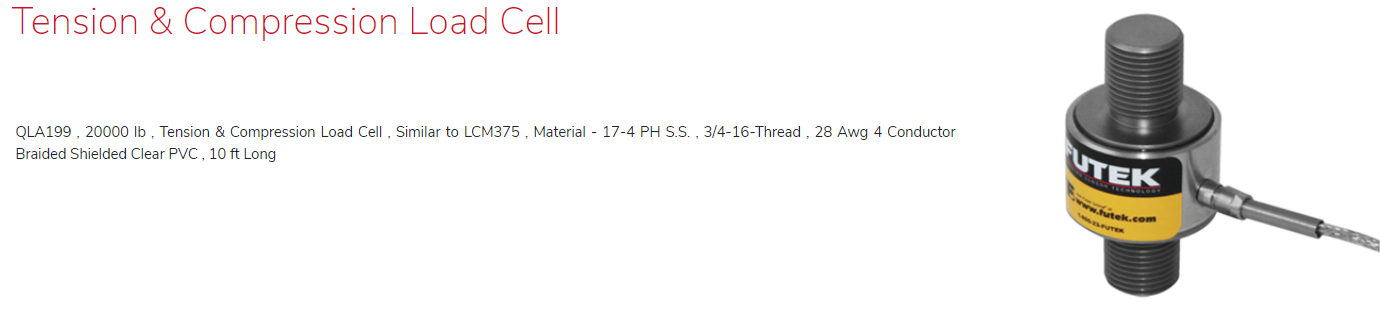

FUTEK QLA199 Tension & Compression Load Cell

QLA199 , 20000 lb , Tension & Compression Load Cell , Similar to LCM375 , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

FUTEK QLA199 Tension & Compression Load Cell 이미지

QLA199 , 20000 lb , Tension & Compression Load Cell , Similar to LCM375 , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA199 , 20000 lb , Tension & Compression Load Cell , Similar to LCM375 , Material - 17-4 PH S.S. , 3/4-16-Thread , 28 Awg 4 Conductor Braided Shielded Clear PVC , 10 ft Long

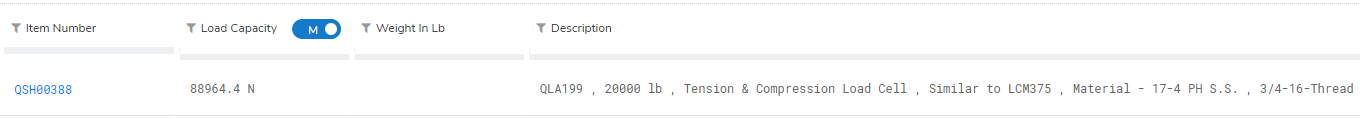

QSH00388

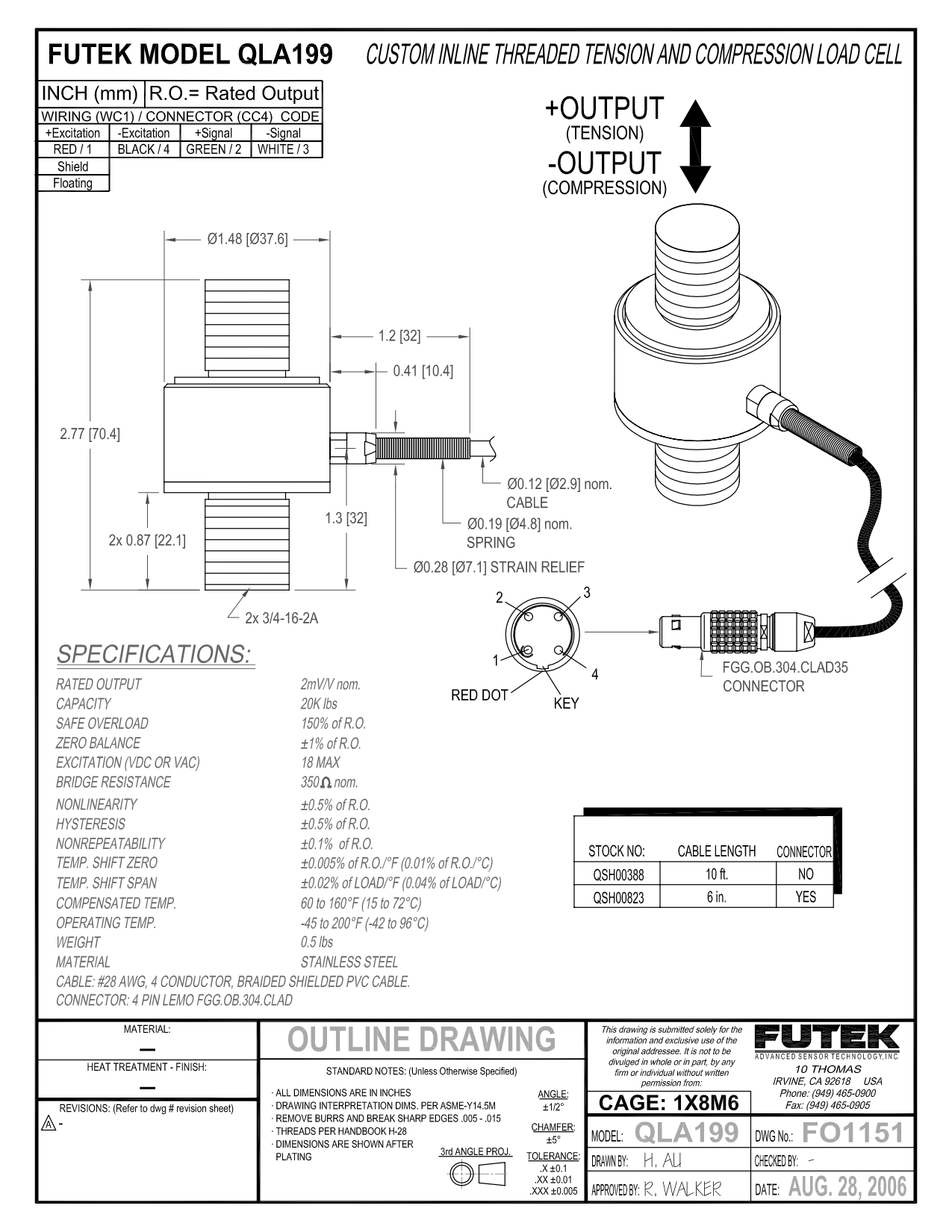

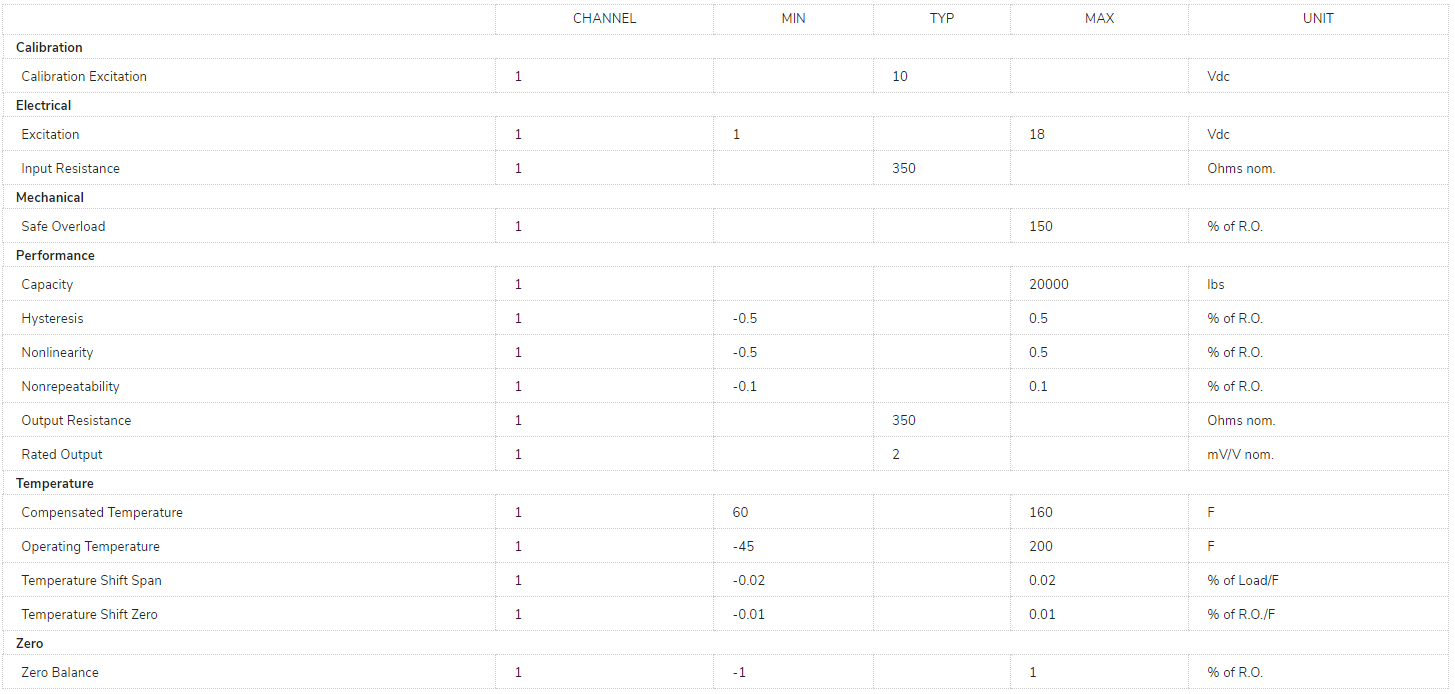

Specifications
