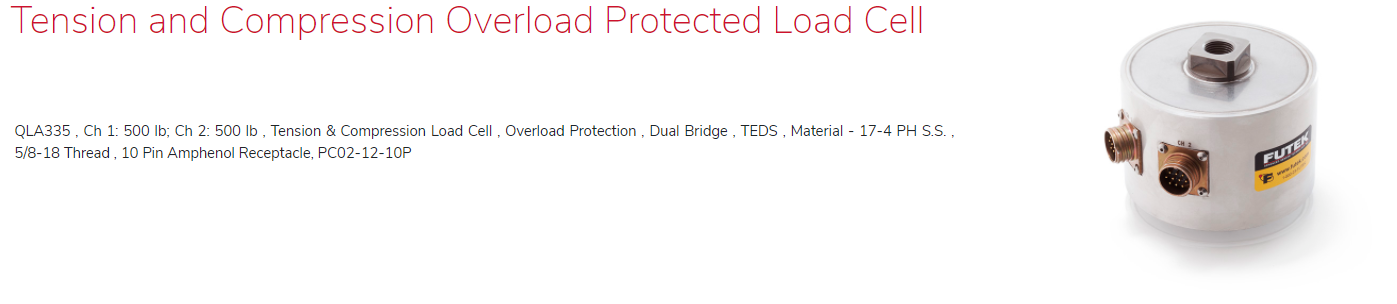

FUTEK QLA335 Tension and Compression Overload Protected Load Cell

QLA335 , Ch 1: 500 lb; Ch 2: 500 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P

FUTEK QLA335 Tension and Compression Overload Protected Load Cell 이미지

QLA335 , Ch 1: 500 lb; Ch 2: 500 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA335 , Ch 1: 500 lb; Ch 2: 500 lb , Tension & Compression Load Cell , Overload Protection , Dual Bridge , TEDS , Material - 17-4 PH S.S. , 5/8-18 Thread , 10 Pin Amphenol Receptacle, PC02-12-10P

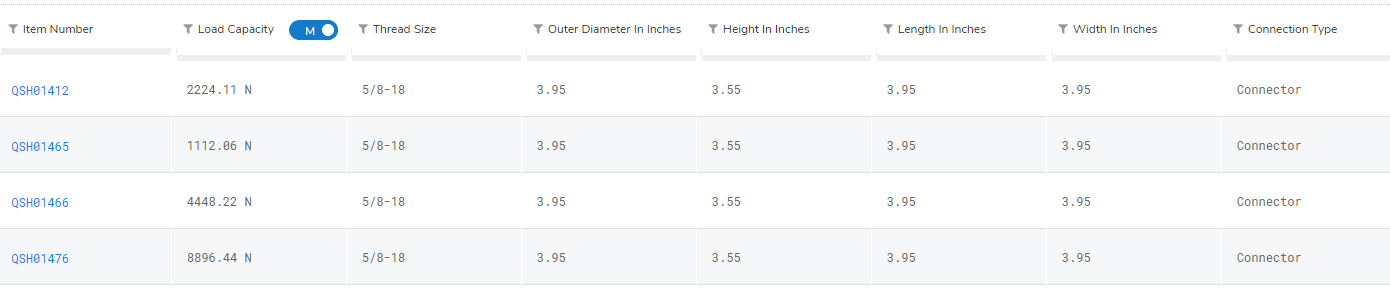

QSH01412

QSH01465

QSH01466

QSH01476

Description

Tension and Compression Overload Protected Load Cell

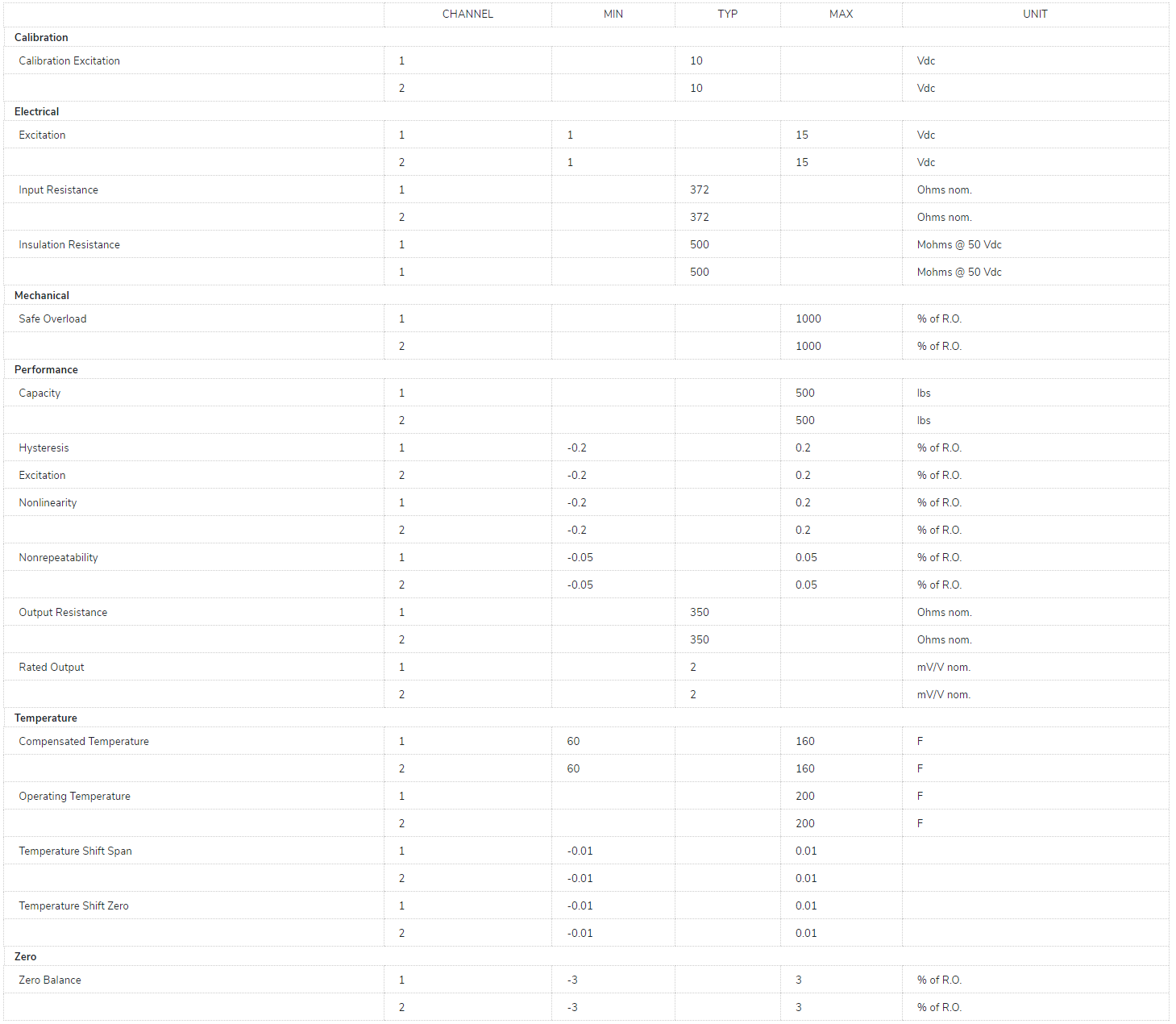

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
