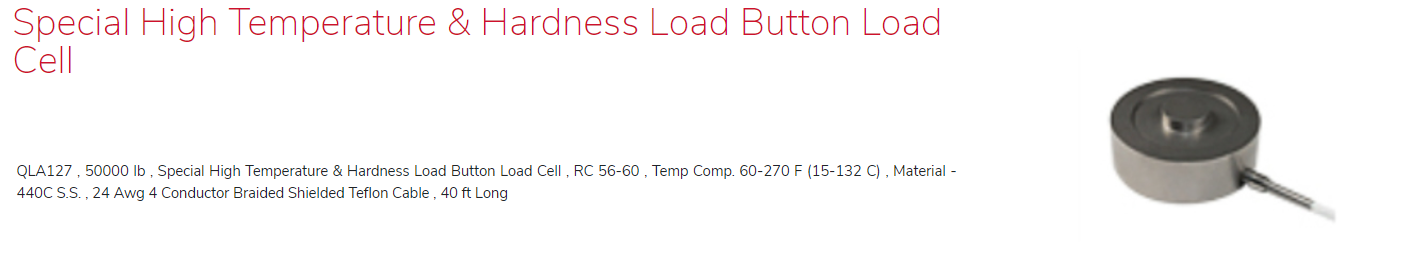

FUTEK QLA127 Special High Temperature & Hardness Load Button Load Cell

QLA127 , 50000 lb , Special High Temperature & Hardness Load Button Load Cell , RC 56-60 , Temp Comp. 60-270 F (15-132 C) , Material - 440C S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 40 ft Long

FUTEK QLA127 Special High Temperature & Hardness Load Button Load Cell 이미지

QLA127 , 50000 lb , Special High Temperature & Hardness Load Button Load Cell , RC 56-60 , Temp Comp. 60-270 F (15-132 C) , Material - 440C S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 40 ft Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA127 , 50000 lb , Special High Temperature & Hardness Load Button Load Cell , RC 56-60 , Temp Comp. 60-270 F (15-132 C) , Material - 440C S.S. , 24 Awg 4 Conductor Braided Shielded Teflon Cable , 40 ft Long

QSH00055

Description

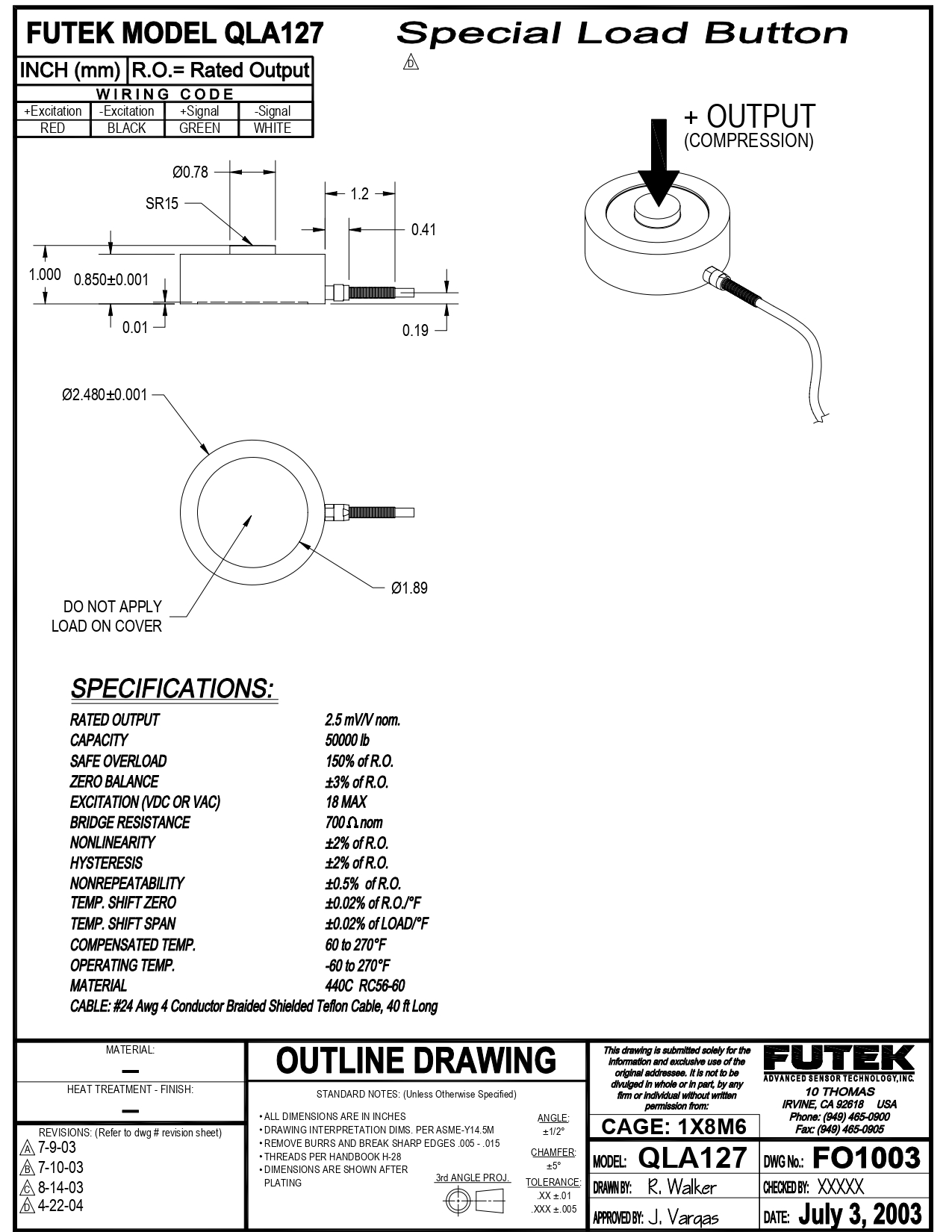

Special Load Button

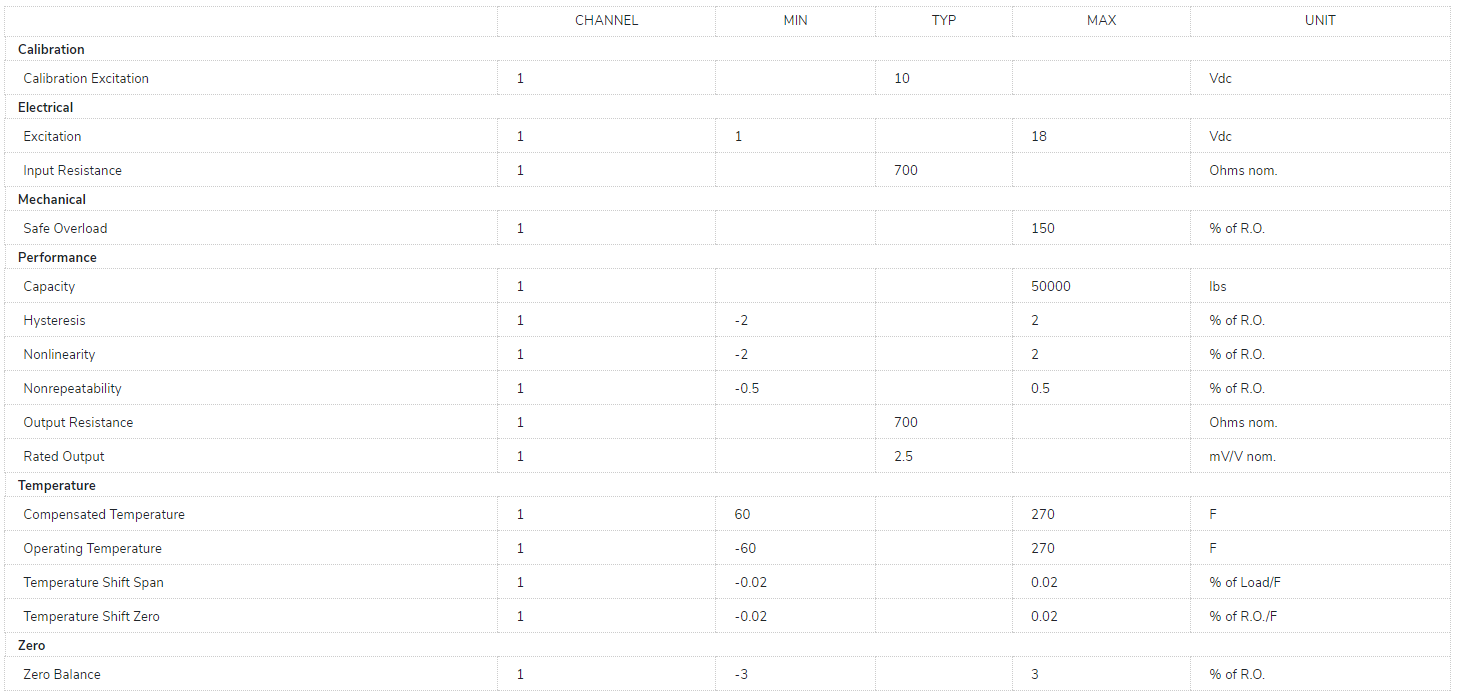

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
