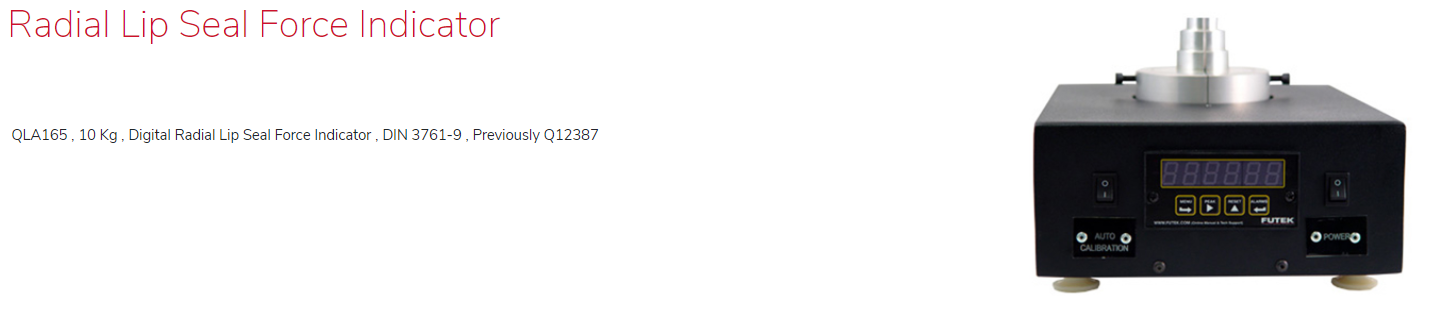

FUTEK QLA165 Radial Lip Seal Force Indicator

QLA165 , 10 Kg , Digital Radial Lip Seal Force Indicator , DIN 3761-9 , Previously Q12387

FUTEK QLA165 Radial Lip Seal Force Indicator 이미지

QLA165 , 10 Kg , Digital Radial Lip Seal Force Indicator , DIN 3761-9 , Previously Q12387

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA165 , 10 Kg , Digital Radial Lip Seal Force Indicator , DIN 3761-9 , Previously Q12387

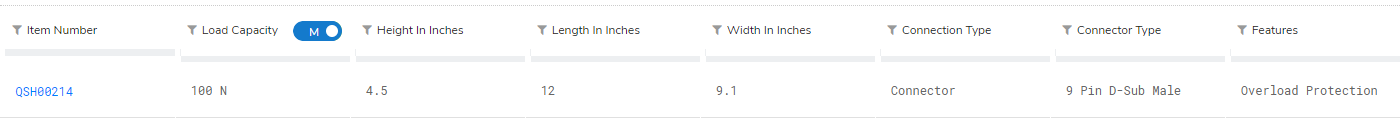

QSH00214

Description

Radial Lip Seal Force Indicator.

Radial Force Measurement instrument according to DIN 3761-9

(Rotary shaft lip type seals for automobiles). Radial force measuring instrument digital indicator.

Features

Specifications:
Capacity: 10 Kg
Safe Overload: 400% of RO
Power: 120 VAC Power Supply Converter to 12 VDC Included
Operating Temperature: 32 to 130 F
Weight: 10 lb

Specifications
