홈/종합산업장비/센서/로드셀/FUTEK QLA418 Custom Load Washer Load Cell

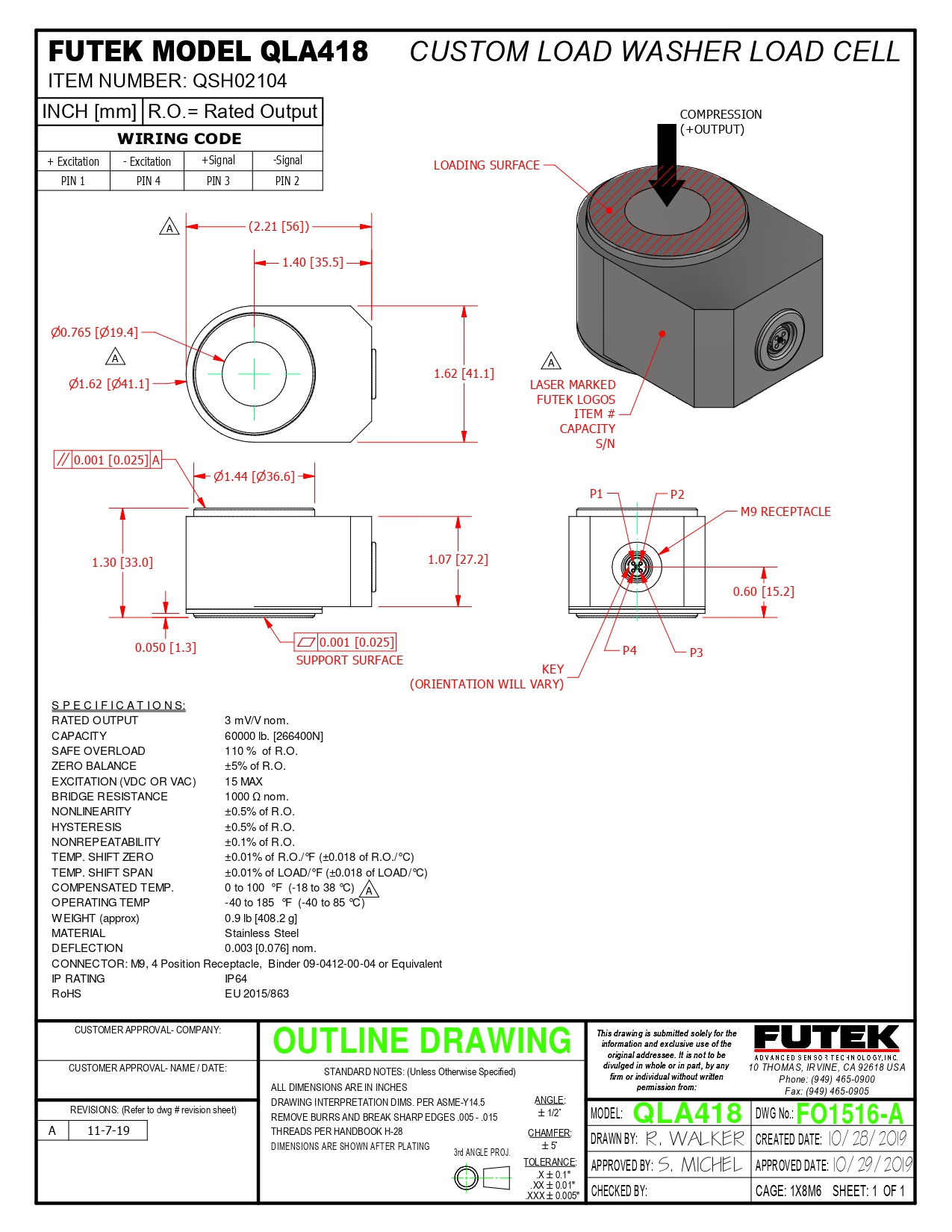

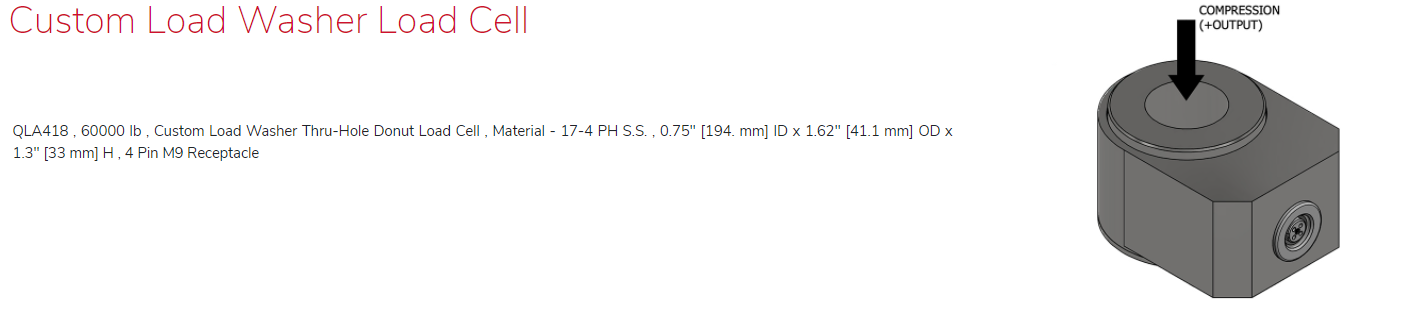

FUTEK QLA418 Custom Load Washer Load Cell

QLA418 , 60000 lb , Custom Load Washer Thru-Hole Donut Load Cell , Material - 17-4 PH S.S. , 0.75" [194. mm] ID x 1.62" [41.1 mm] OD x 1.3" [33 mm] H , 4 Pin M9 Receptacle

FUTEK QLA418 Custom Load Washer Load Cell 이미지

QLA418 , 60000 lb , Custom Load Washer Thru-Hole Donut Load Cell , Material - 17-4 PH S.S. , 0.75" [194. mm] ID x 1.62" [41.1 mm] OD x 1.3" [33 mm] H , 4 Pin M9 Receptacle

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA418 , 60000 lb , Custom Load Washer Thru-Hole Donut Load Cell , Material - 17-4 PH S.S. , 0.75" [194. mm] ID x 1.62" [41.1 mm] OD x 1.3" [33 mm] H , 4 Pin M9 Receptacle

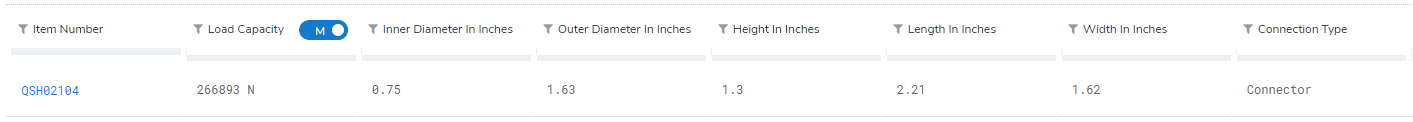

QSH02104

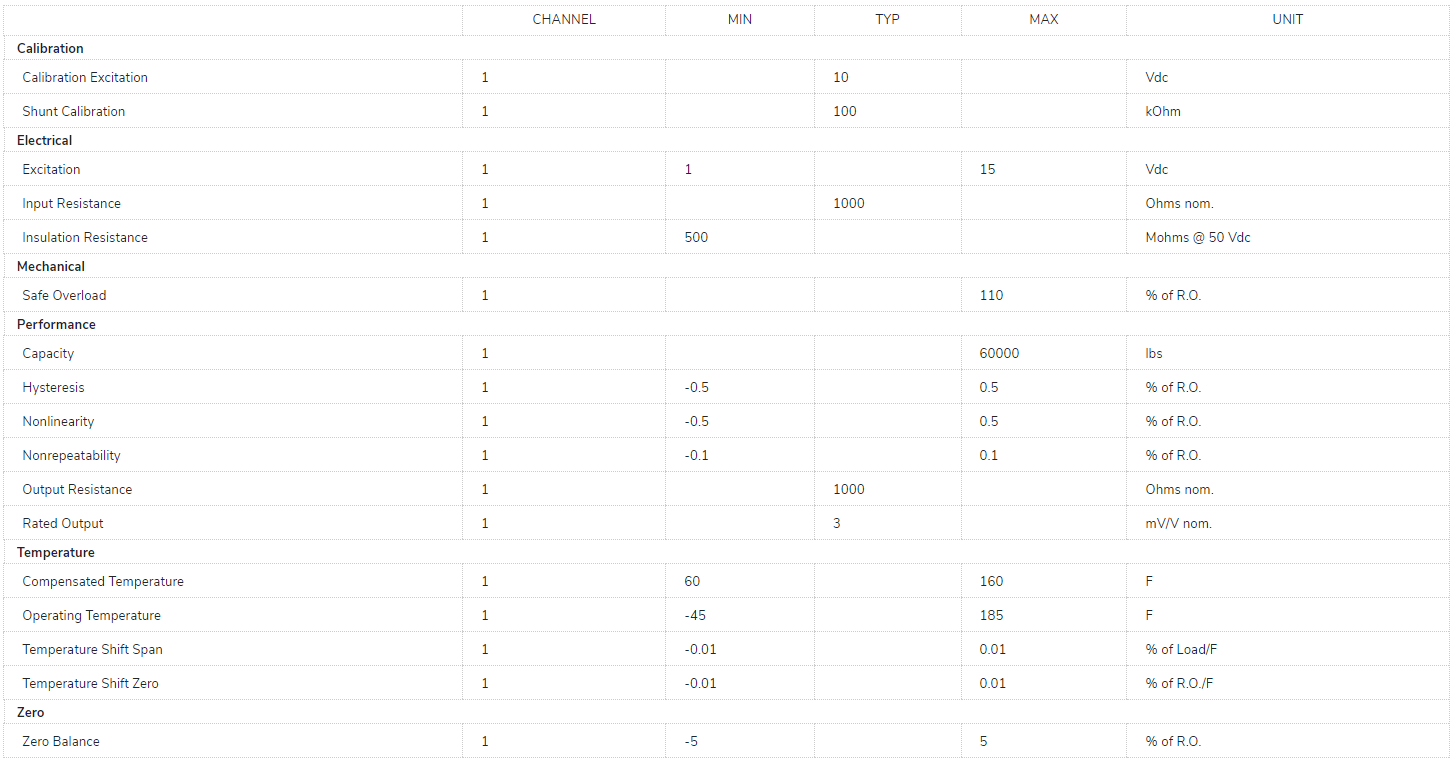

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
