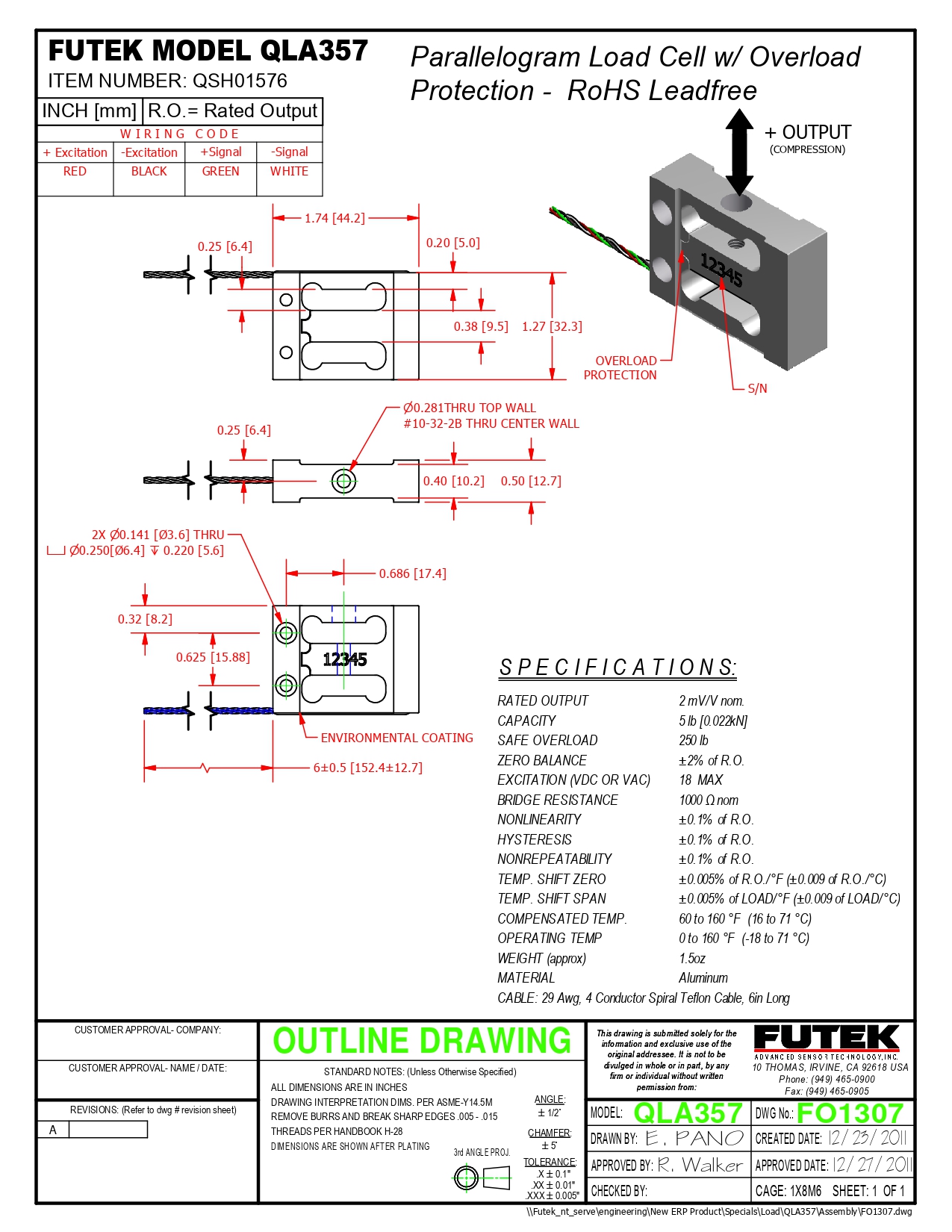

FUTEK QLA357 Parallelogram Load Cell

QLA357 , 5 lb , Parallelogram Beam Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long

FUTEK QLA357 Parallelogram Load Cell 이미지

QLA357 , 5 lb , Parallelogram Beam Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA357 , 5 lb , Parallelogram Beam Load Cell , Material - 2024-T4 , #10-32-Thread , Overload Protection , RoHS Lead Free, 29 Awg 4 Conductor Spiral Teflon Cable , 6 inch Long

QSH01576

Description

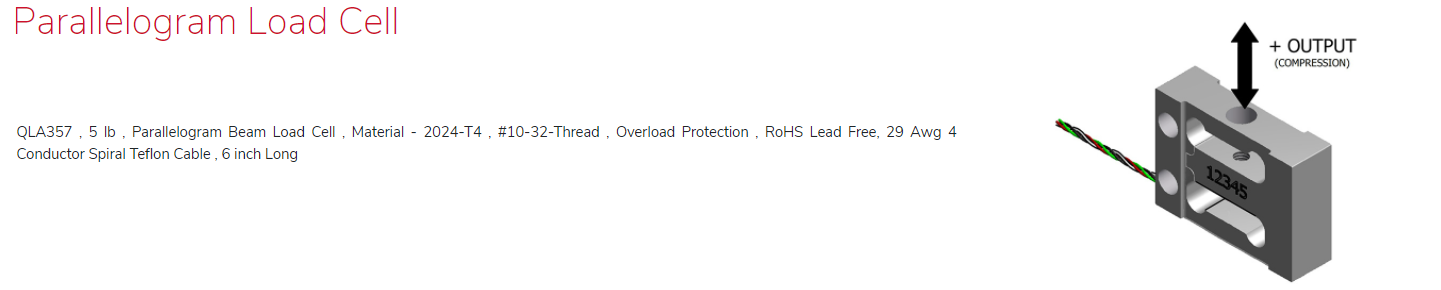

Parallelogram Load Cell

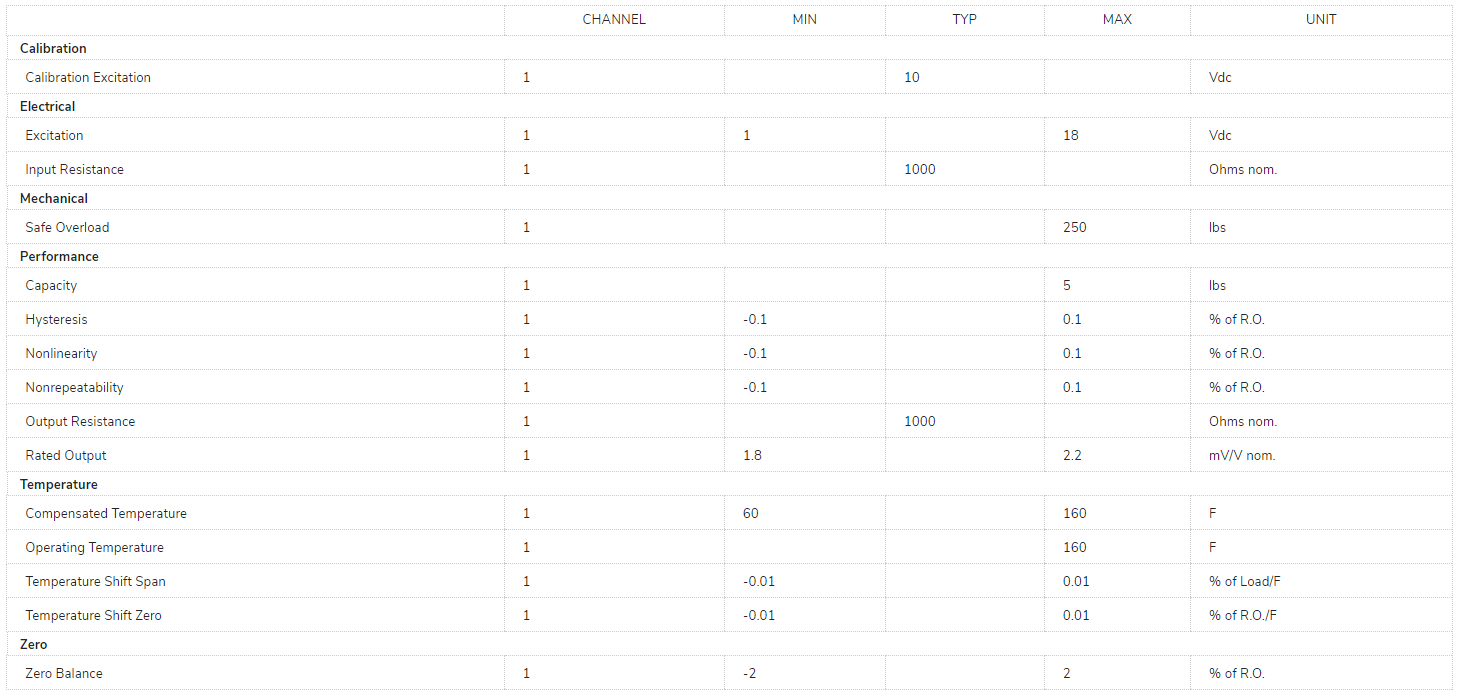

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
