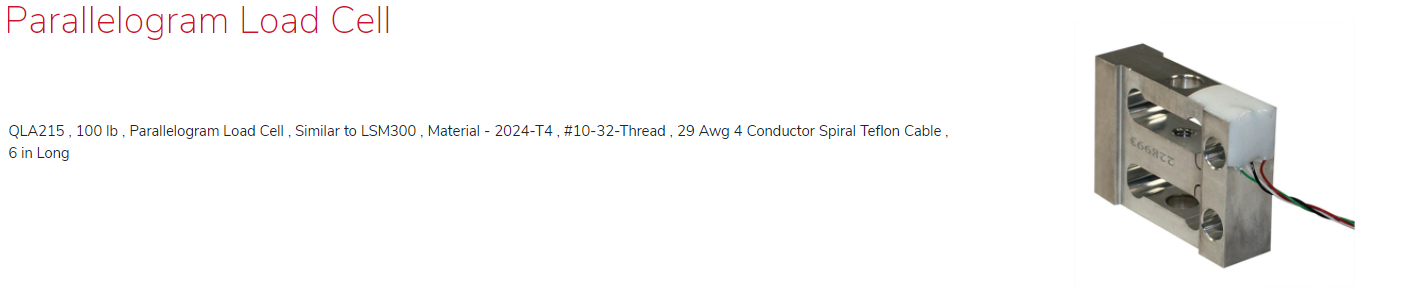

FUTEK QLA215 Parallelogram Load Cell

QLA215 , 100 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

FUTEK QLA215 Parallelogram Load Cell 이미지

QLA215 , 100 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA215 , 100 lb , Parallelogram Load Cell , Similar to LSM300 , Material - 2024-T4 , #10-32-Thread , 29 Awg 4 Conductor Spiral Teflon Cable , 6 in Long

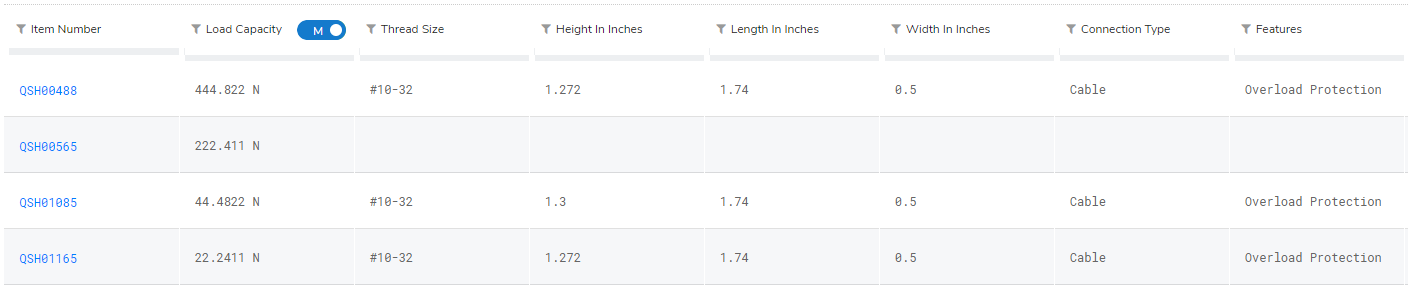

QSH00488

QSH00565

QSH01165

QSH01085

Description

Parallelogram Load Cell

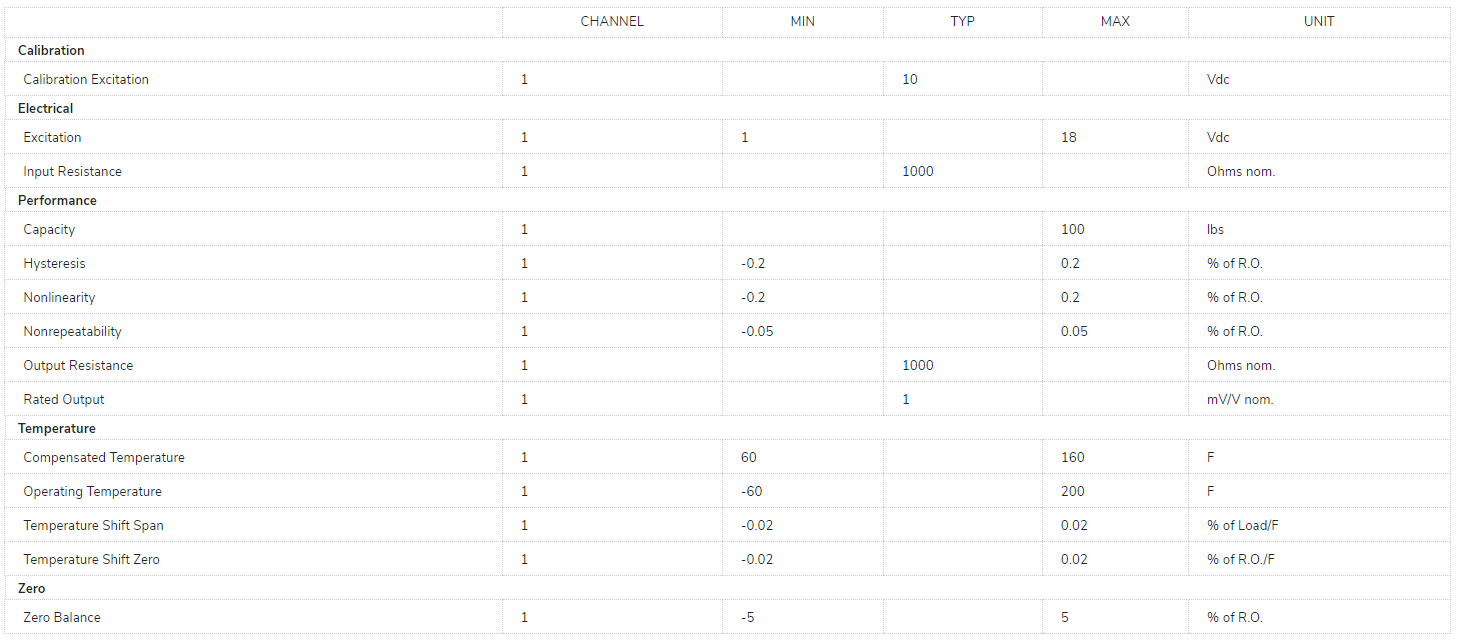

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
