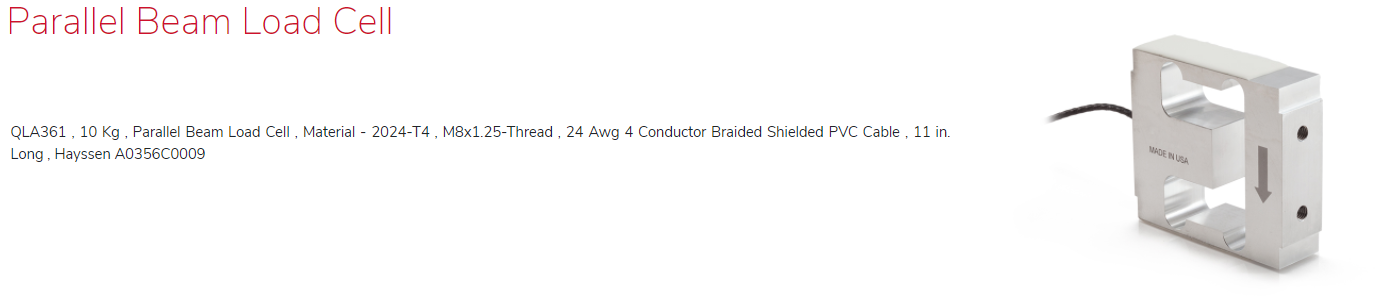

FUTEK QLA361 Parallel Beam Load Cell

QLA361 , 10 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 11 in. Long , Hayssen A0356C0009

FUTEK QLA361 Parallel Beam Load Cell 이미지

QLA361 , 10 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 11 in. Long , Hayssen A0356C0009

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA361 , 10 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread , 24 Awg 4 Conductor Braided Shielded PVC Cable , 11 in. Long , Hayssen A0356C0009

QSH01629

Description

Shear beam load cells deliver exceptional stability in the case of lateral or side forces. Shear strains on the spring element do not change when the load application point moves within a specific range, which is desirable in applications where the load application force varies. Therefore, the electrical signal output of the strain gauge bridge is proportional to the applied force, regardless the point where the load is applied.

Shear beam load cell is also known as bending load cell, parallelogram load cell or Parallel Beam Load Cell, is widely used in industrial weighing scale and general measurement applications where robustness is required.

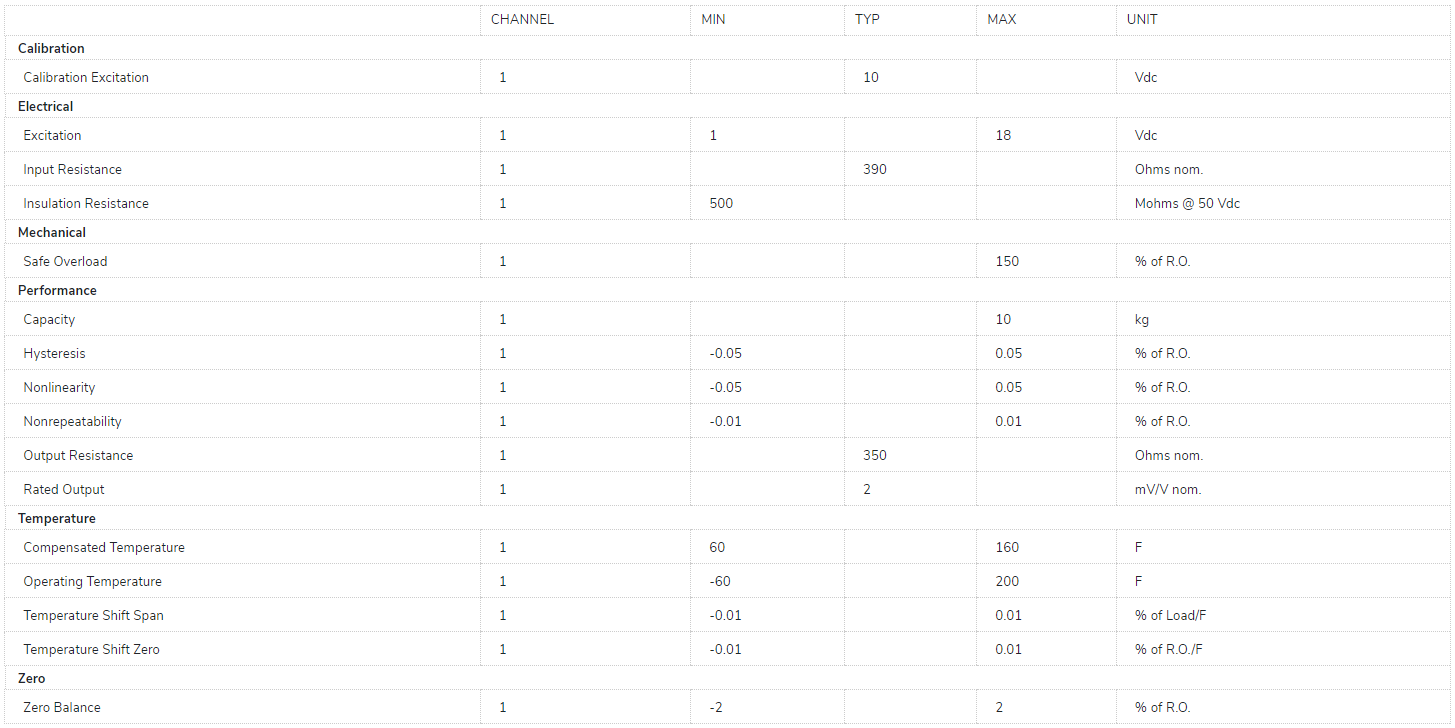

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
