홈/종합산업장비/센서/로드셀/FUTEK QLA362 Parallel Beam Load Cell with Overload Protection

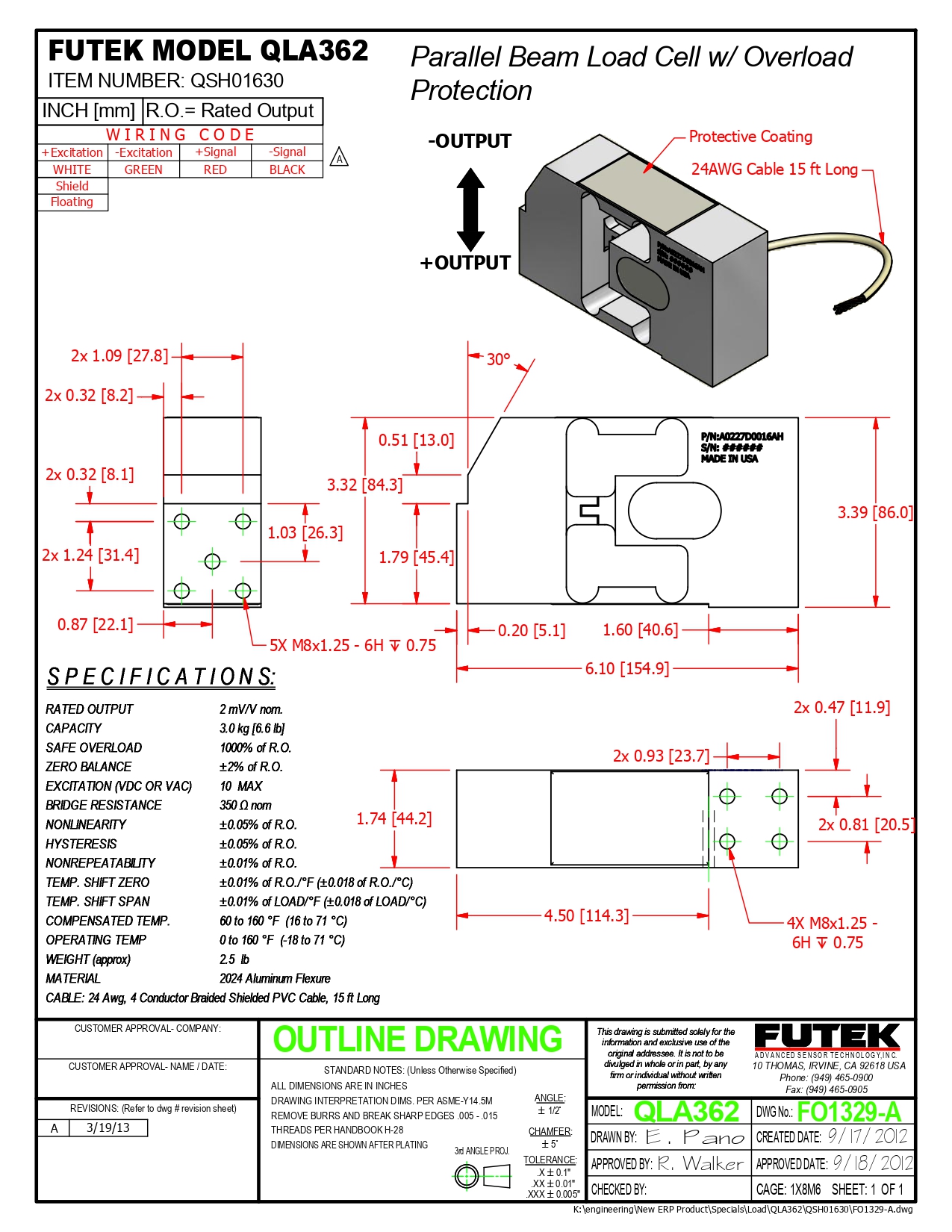

FUTEK QLA362 Parallel Beam Load Cell with Overload Protection

QLA362 , 3 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread, Overload Protection, 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long , Hayssen A0227D0016

FUTEK QLA362 Parallel Beam Load Cell with Overload Protection 이미지

QLA362 , 3 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread, Overload Protection, 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long , Hayssen A0227D0016

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA362 , 3 Kg , Parallel Beam Load Cell , Material - 2024-T4 , M8x1.25-Thread, Overload Protection, 24 Awg 4 Conductor Braided Shielded PVC Cable , 15 ft Long , Hayssen A0227D0016

QSH01630

Description

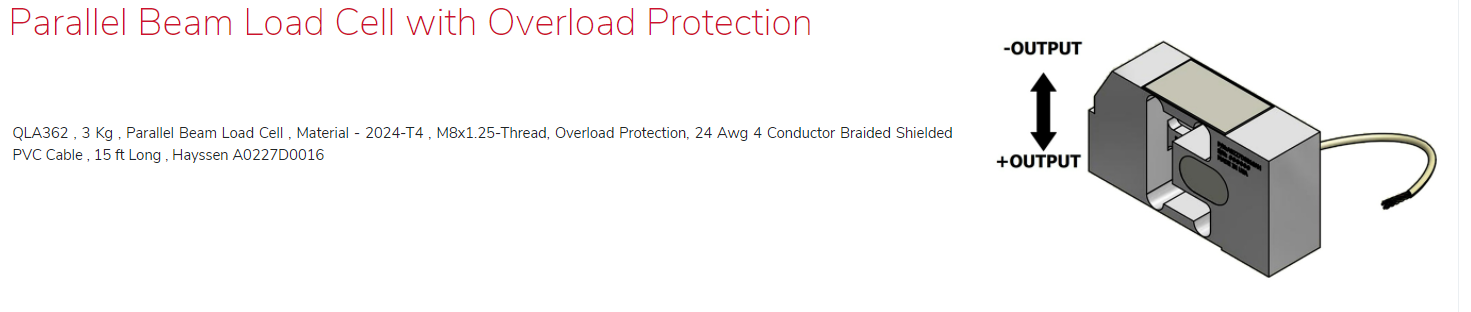

Parallel Beam Load Cell with Overload Protection

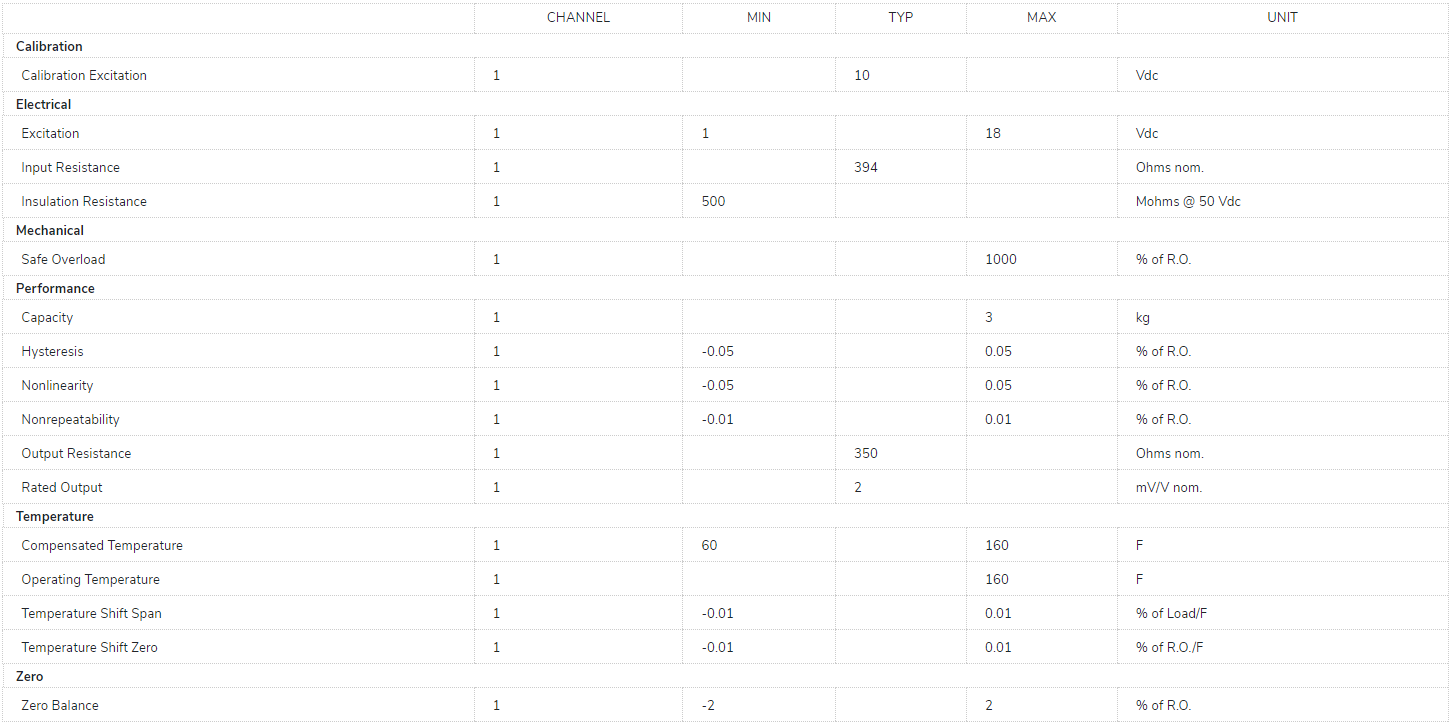

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
