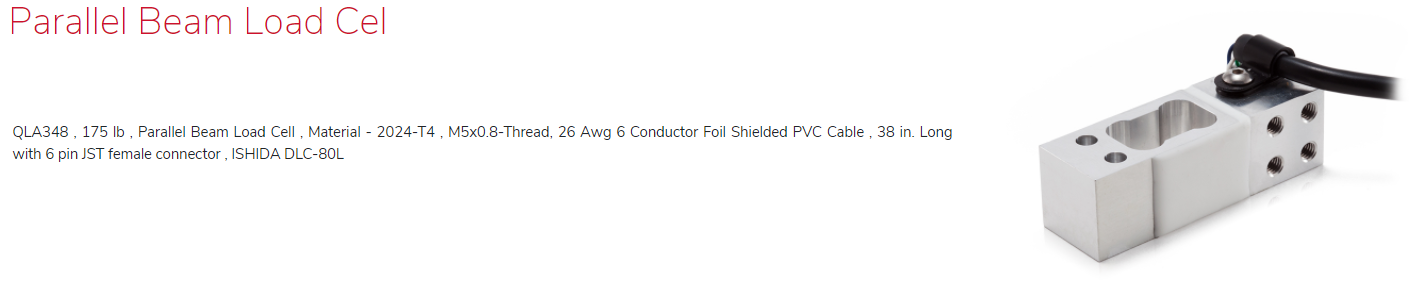

FUTEK QLA348 Parallel Beam Load Cell

QLA348 , 175 lb , Parallel Beam Load Cell , Material - 2024-T4 , M5x0.8-Thread, 26 Awg 6 Conductor Foil Shielded PVC Cable , 38 in. Long with 6 pin JST female connector , ISHIDA DLC-80L

FUTEK QLA348 Parallel Beam Load Cell 이미지

QLA348 , 175 lb , Parallel Beam Load Cell , Material - 2024-T4 , M5x0.8-Thread, 26 Awg 6 Conductor Foil Shielded PVC Cable , 38 in. Long with 6 pin JST female connector , ISHIDA DLC-80L

원산지	USA
제조사	FUTEK
브랜드	FUTEK
무게	1kg

QLA348 , 175 lb , Parallel Beam Load Cell , Material - 2024-T4 , M5x0.8-Thread, 26 Awg 6 Conductor Foil Shielded PVC Cable , 38 in. Long with 6 pin JST female connector , ISHIDA DLC-80L

QSH01485

Description

Parallel Beam Load Cell

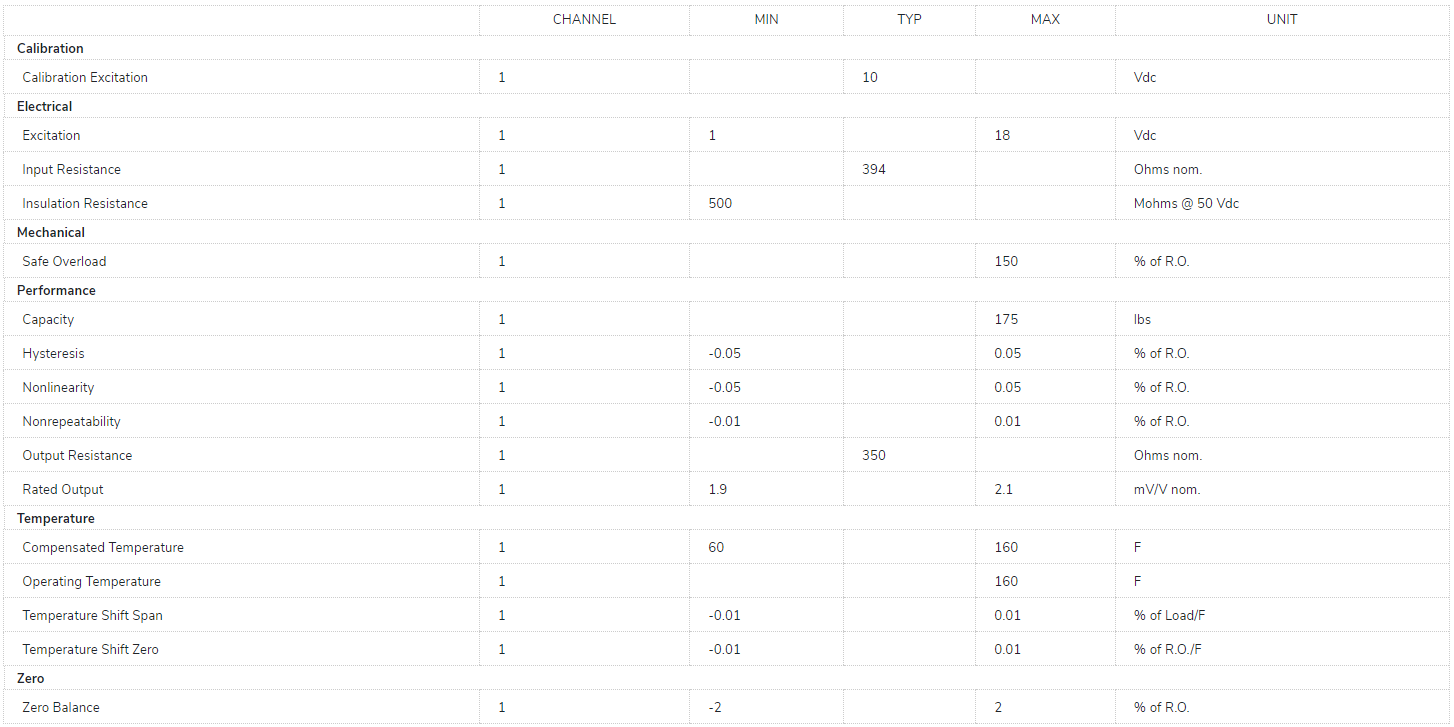

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
