홈/종합산업장비/센서/로드셀/FUTEK QLA415 Miniature Threaded Load Cell

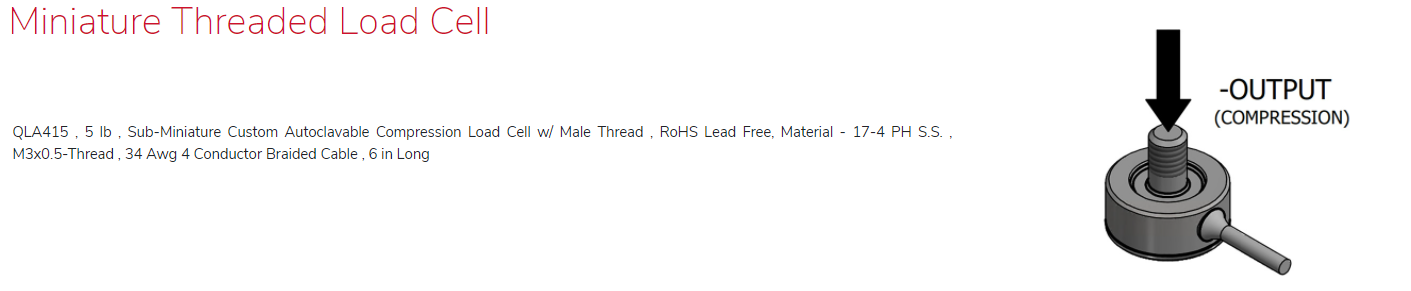

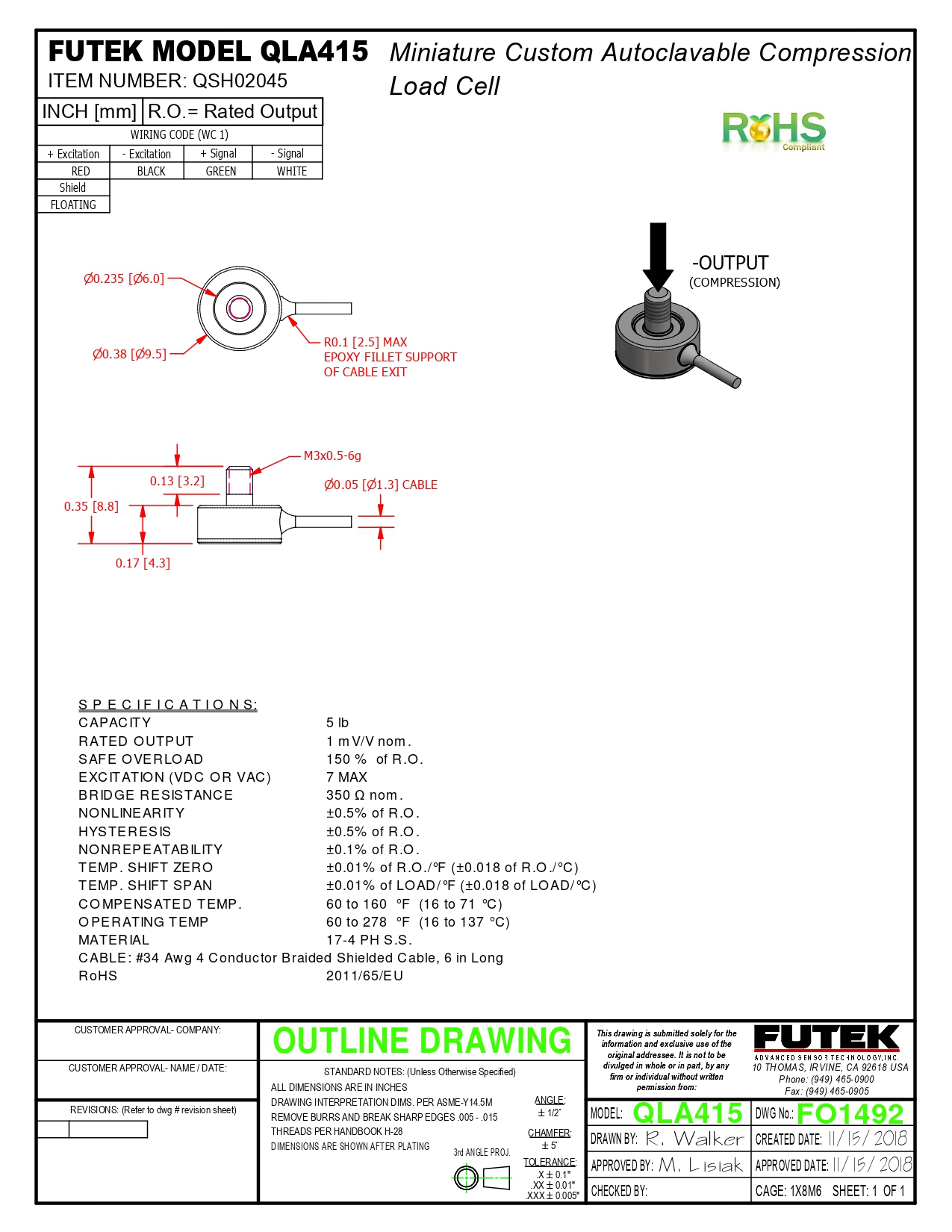

FUTEK QLA415 Miniature Threaded Load Cell

QLA415 , 5 lb , Sub-Miniature Custom Autoclavable Compression Load Cell w/ Male Thread , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 6 in Long

FUTEK QLA415 Miniature Threaded Load Cell 이미지

QLA415 , 5 lb , Sub-Miniature Custom Autoclavable Compression Load Cell w/ Male Thread , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 6 in Long

원산지USA
제조사FUTEK
브랜드FUTEK
무게1kg

QLA415 , 5 lb , Sub-Miniature Custom Autoclavable Compression Load Cell w/ Male Thread , RoHS Lead Free, Material - 17-4 PH S.S. , M3x0.5-Thread , 34 Awg 4 Conductor Braided Cable , 6 in Long

QSH02045

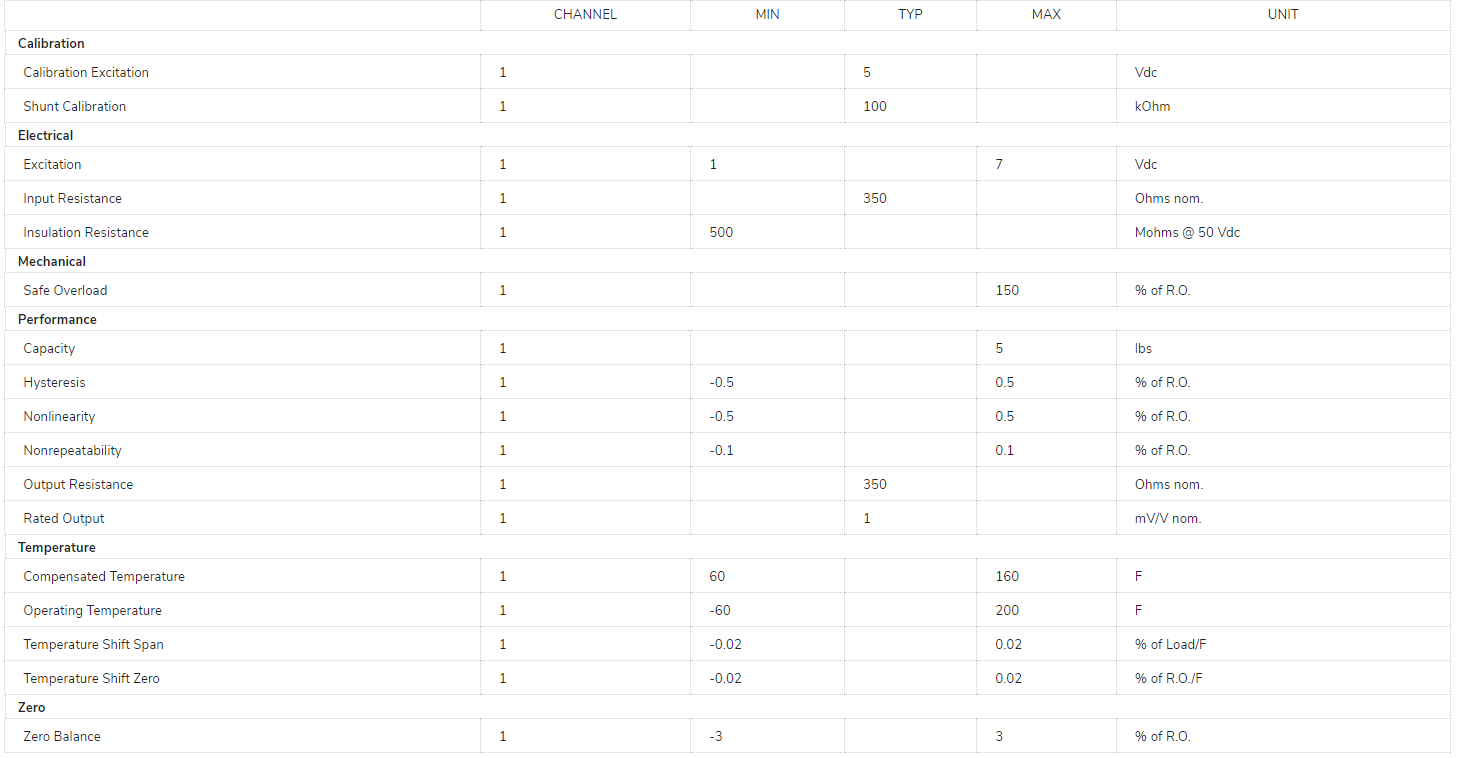

Specifications

시스템의 센서 전원 노이즈를 줄이는 방법
